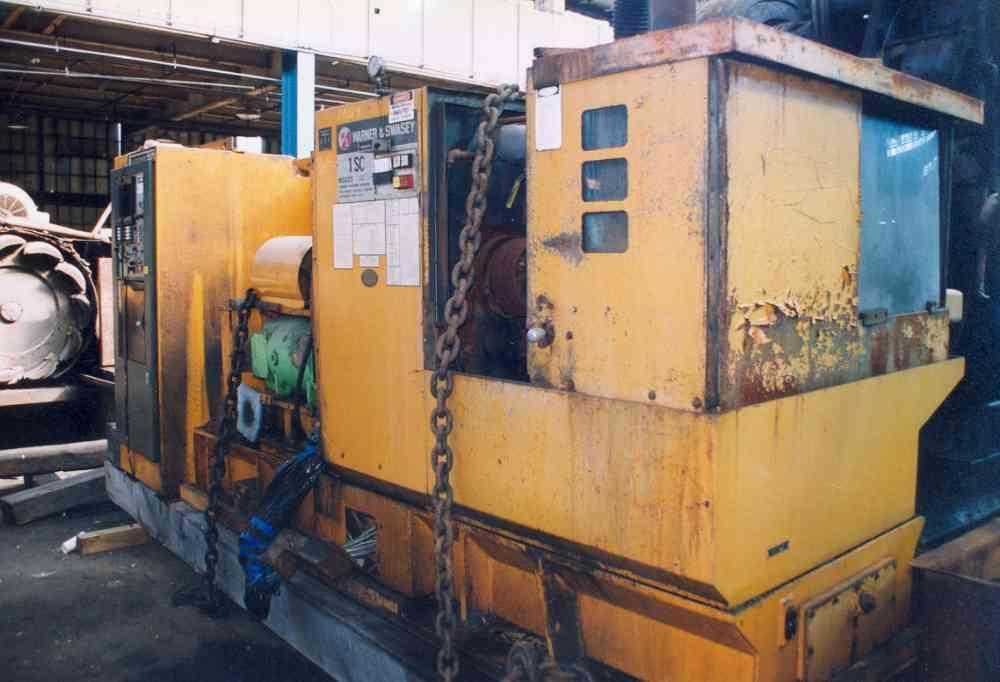

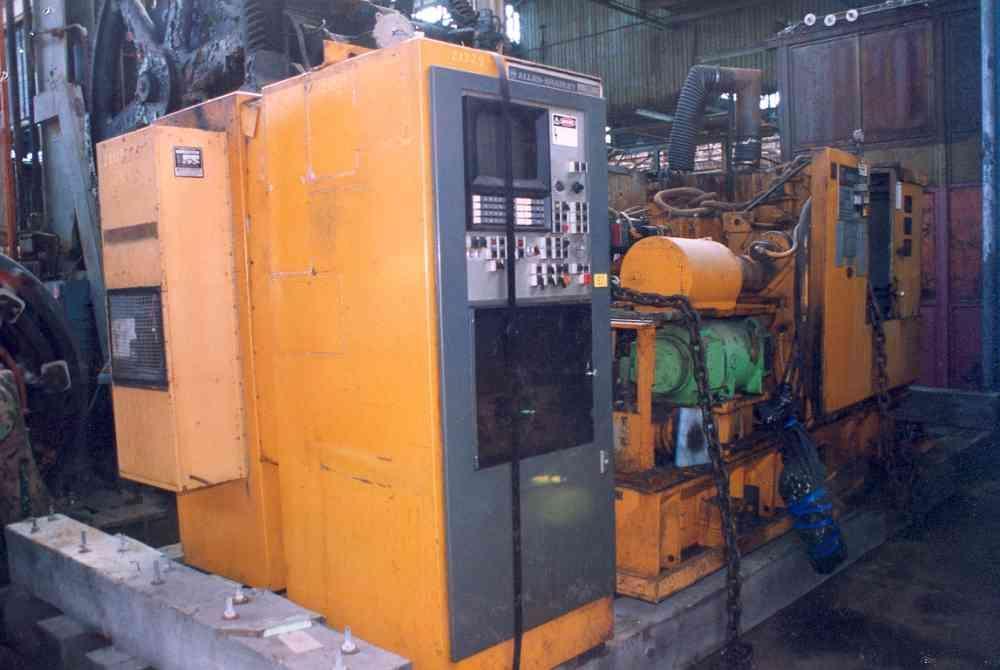

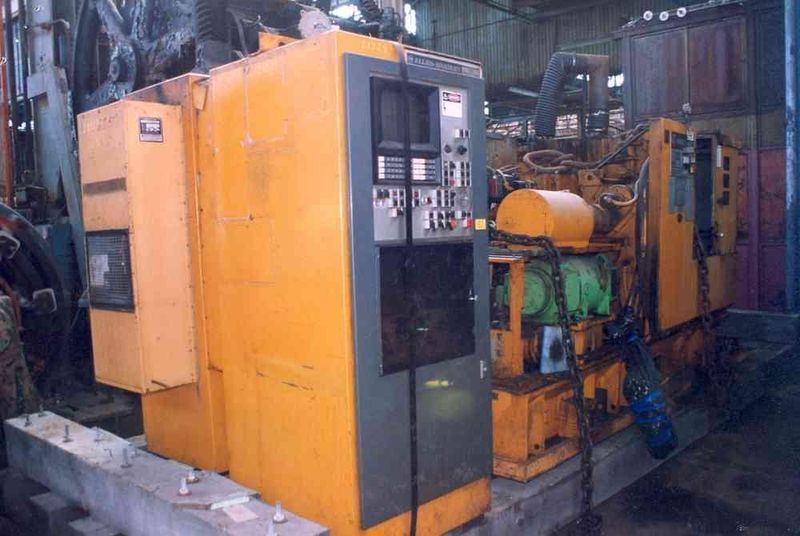

#1SC12 WARNER & SWASEY NC SINGLE SPINDLE AUTOMATIC CHUCKER: STK #8176

Manufacturer

Category

Automatic Chuckers

Type

AUTOMATIC CHUCKERS, VERTICAL, (Single Spindle), CNC

Stock

8176

Model

1SC

Dealer Location

Ohio

Request a Quote
View Contact Information

Spec Sheet



SERIAL ...................................... 3154194
MODEL ....................................... 1SC12 (M-5020)
YEAR NEW .................................... 1983
DIAMETER OF 3-JAW HYDRAULIC CHUCK ........... 10"
TURRET STATIONS ............................. 12
BAR CAPACITY ................................ 2-1/4" DIAMETER
MAXIMUM SWING DIAMETER (OVER TURRET BAR) .... 21-1/4"
MAXIMUM SWING DIAMETER (OVER TURRET FACE) ... 12-1/2"
LONGITUDINAL WORK AREA ...................... 20-7/8"
LONGITUDINAL STROKE ......................... 8-7/8"
CROSS STROKE ................................ 6-1/4"
SPINDLE SPEEDS (EVEN RANGE) ................. 55 TO 2558 RPM
SPINDLE SPEEDS (ODD RANGE) .................. 55 TO 827 RPM
SPINDLE NOSE ................................ 8" A-1
HOLE IN SPINDLE ............................. 2-13/16"
ALLEN BRADLEY 7360 N/C CONTROL .............. YES
CHIP CONVEYOR ............................... YES
HYDRAULIC UNIT .............................
COOLANT PUMP AND MOTOR
