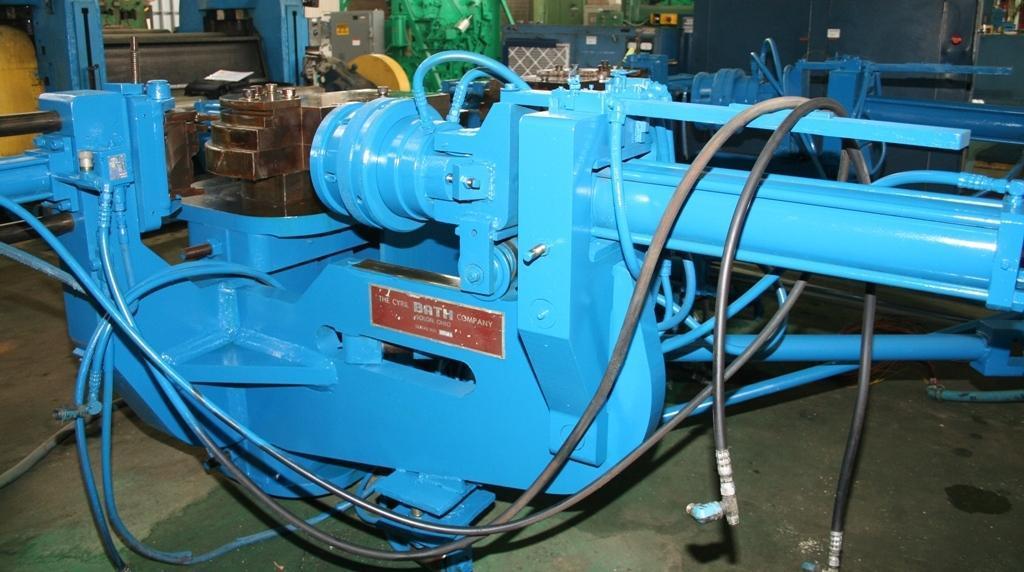

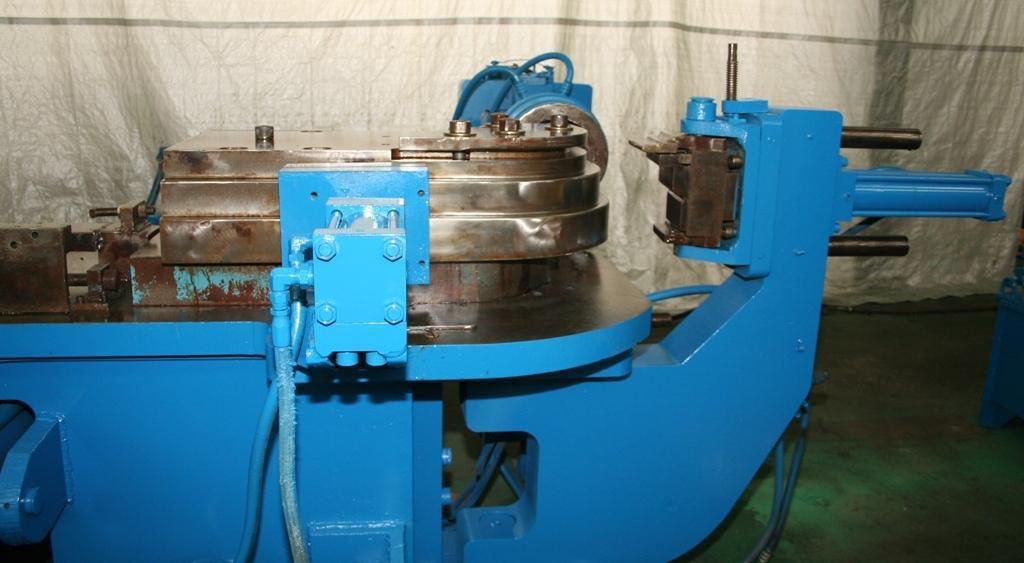

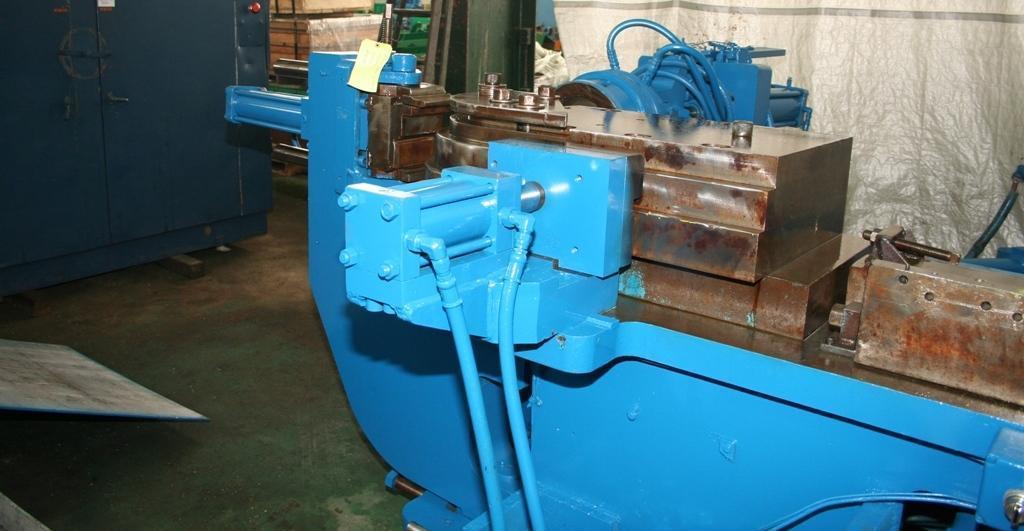

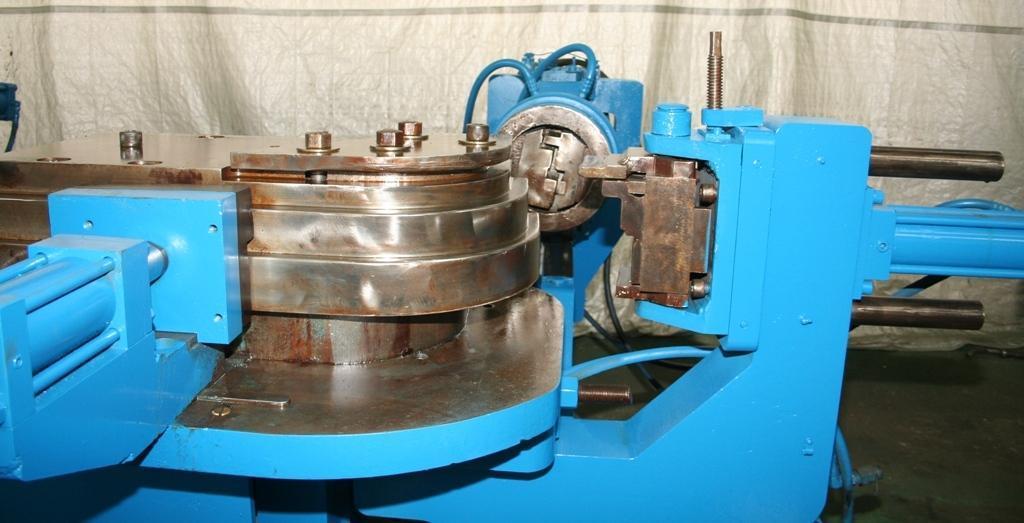

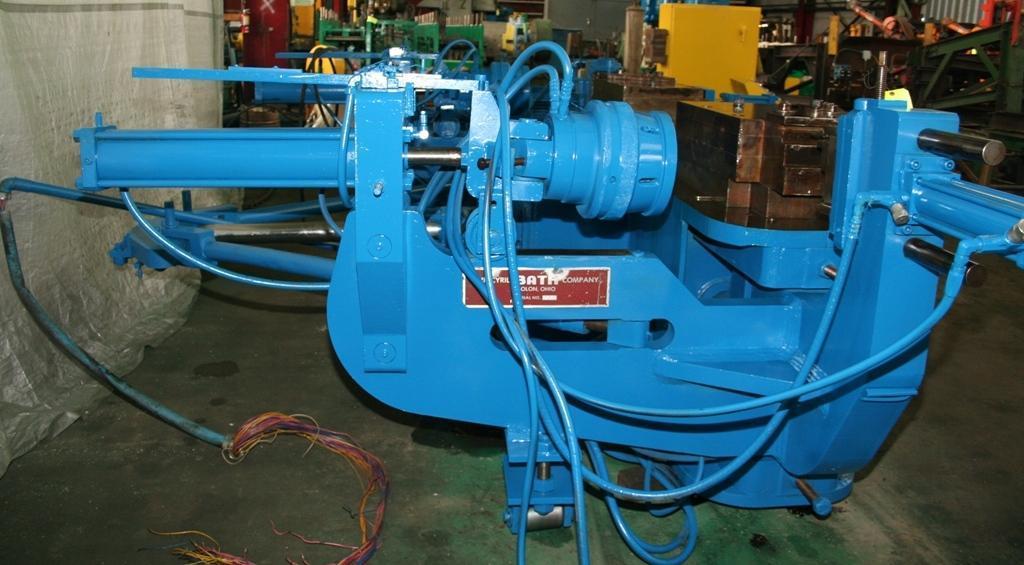

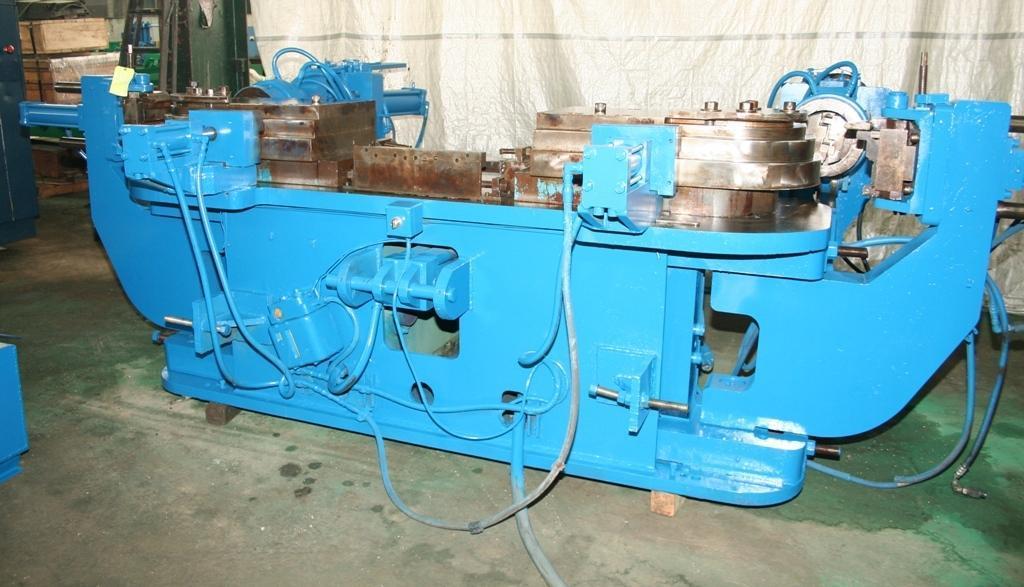

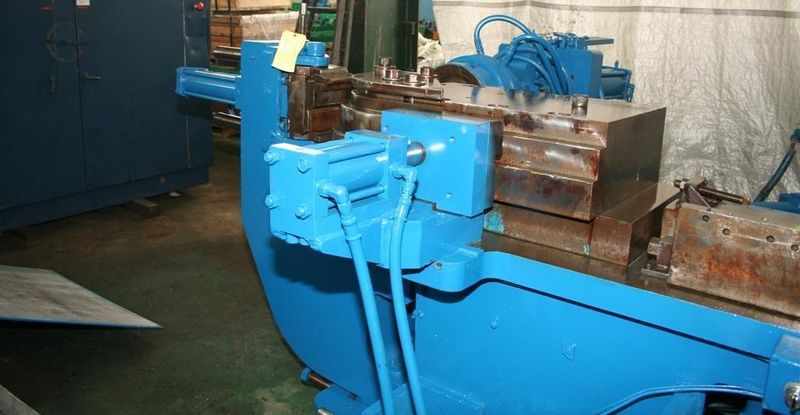

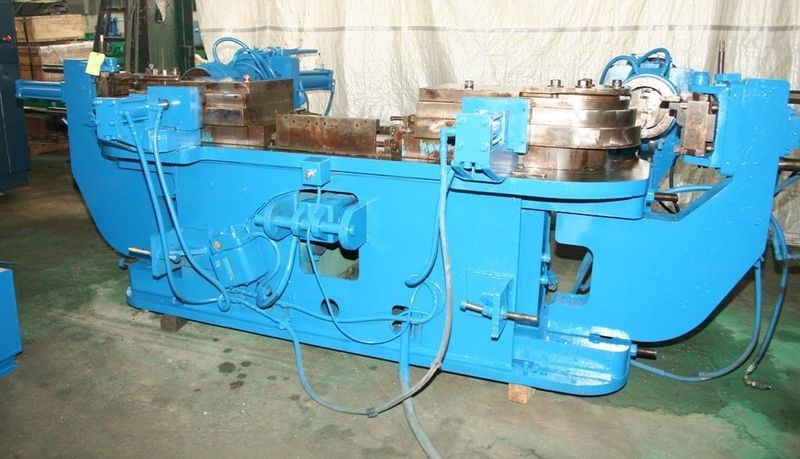

40 TON CYRIL BATH STRETCH FORMER: STOCK #8283

Manufacturer

CYRIL BATH

Category

Fabricating Machines

Type

STRETCH FORMING MACHINES, EXTRUSION (Wrap) or SHEET (Plate)

Stock

8283

Model

0040

Dealer Location

Ohio

Request a Quote
View Contact Information

Spec Sheet



SERIAL #78743A
NEW IN 1987
CAPACITY TENSIONS ON PULLING CYLINDERS .. 40 TON
LENGTH OF PART ADMITTED (EXTRUSION) .. 96" MINIMUM, 124" MAXIMUM
DIE WIDTH ............................ 90" MINIMUM, 106" MAXIMUM
HEIGHT OF WORK TABLE ABOVE FLOOR ..... 36"

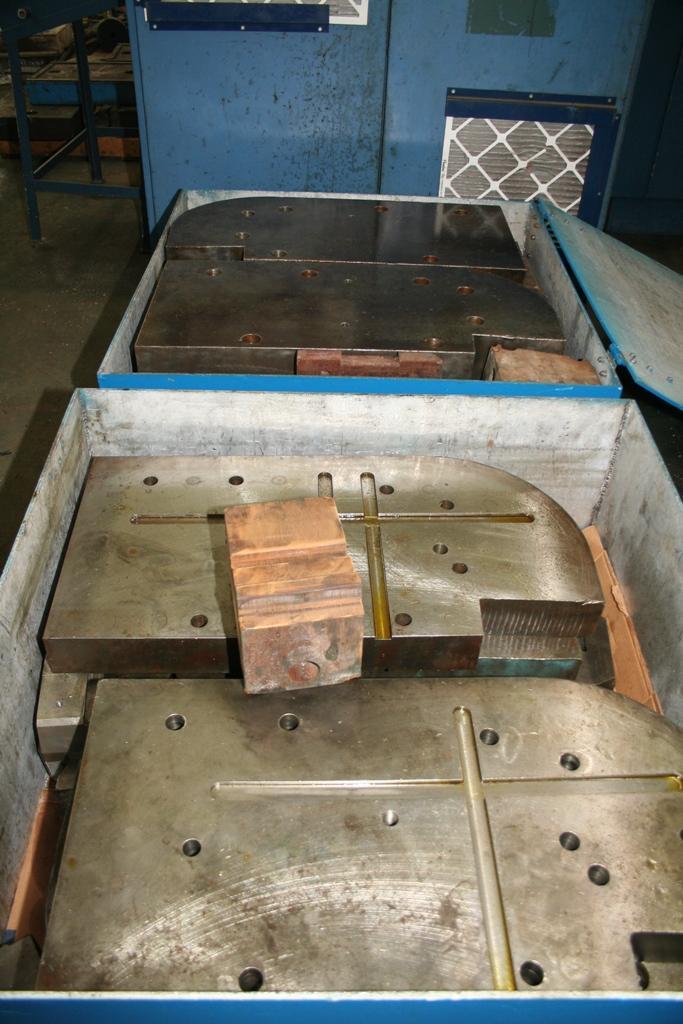

SIZE OF DIE HOLDING TABLE ............ 32" X 15-5/8" X 3-3/4" HT
DISTANCE FROM TABLE TO CLAMPING CYLINDER . 7" MAXIMUM

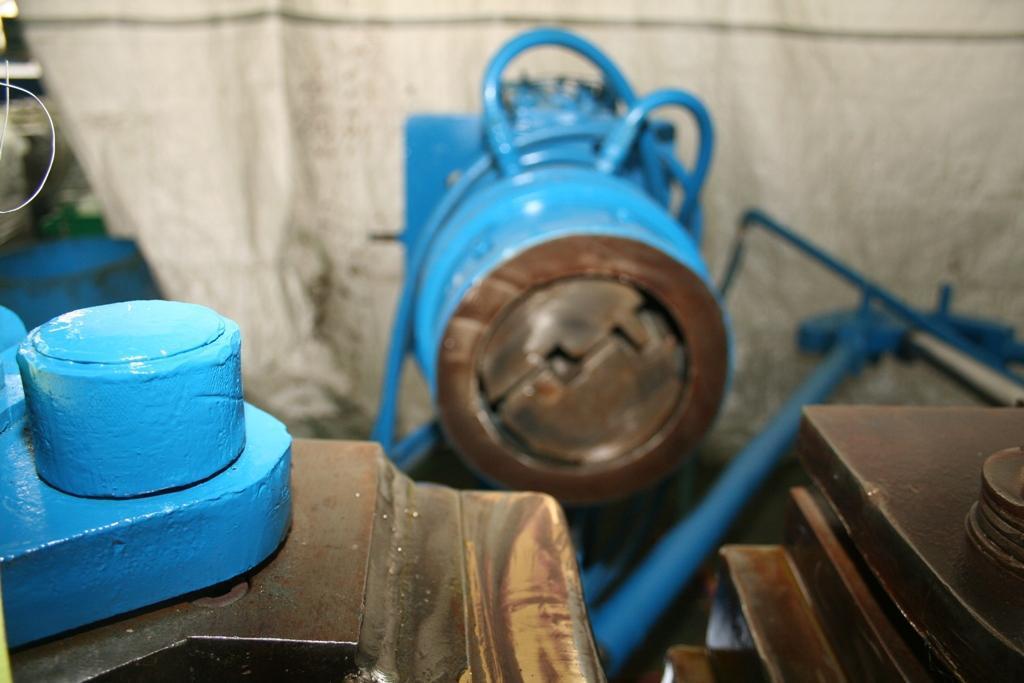

PULL CYLINDER GRIP HEAD ............ 8" DIAMETER X 7" MAX HEIGHT
TENSION STROKE OF PULL CYLINDER .... 18" MAXIMUM
HOLDING DIE ........................ 9-3/4" WIDE X 7-3/4" HIGH
WIPING DIE HOLDER .................. 8" WIDE X 9" HIGH
CYCLE TIME ......................... 10 TO 15 SECONDS
CENTER POINT PUSH CYLINDER FOR TENSION ARM SWING
ARM EQUIPPED WITH CENTER POSITIONING HOLES FOR PREBENT MATERIAL
HYDRAULIC OPERATION ON ALL FUNCTIONS

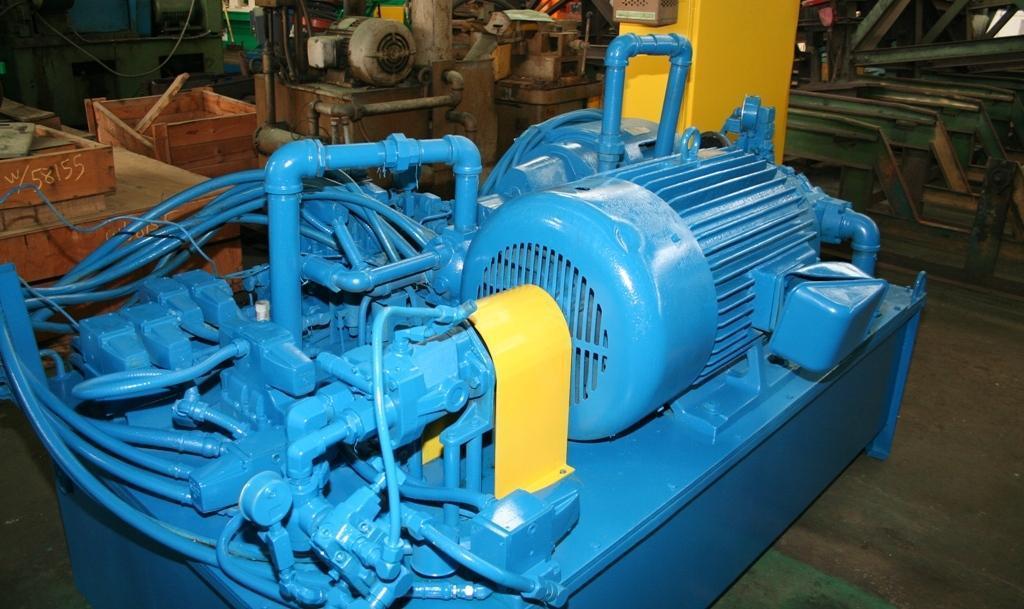

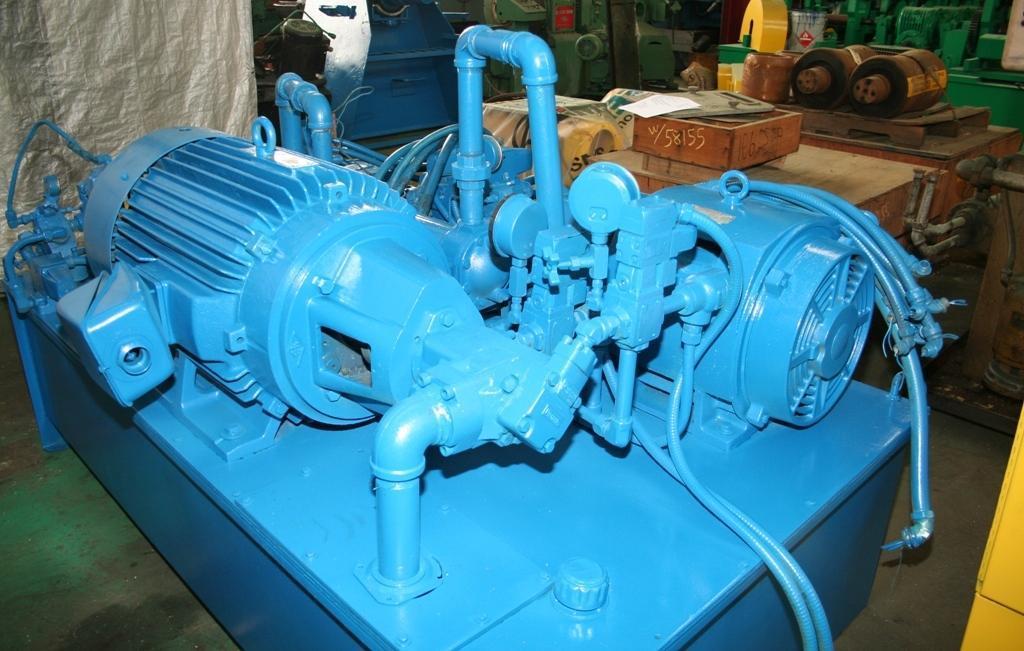

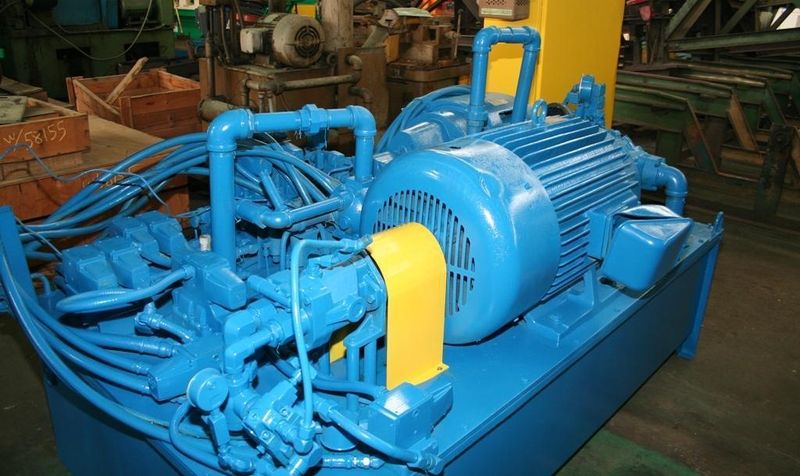

SELF CONTAINED HYDRAULIC PUMPS & TANK
BIJUR LUBE SYSTEM
60 HORSEPOWER MAIN MOTOR
25 HORSEPOWER SECONDARY MOTOR
