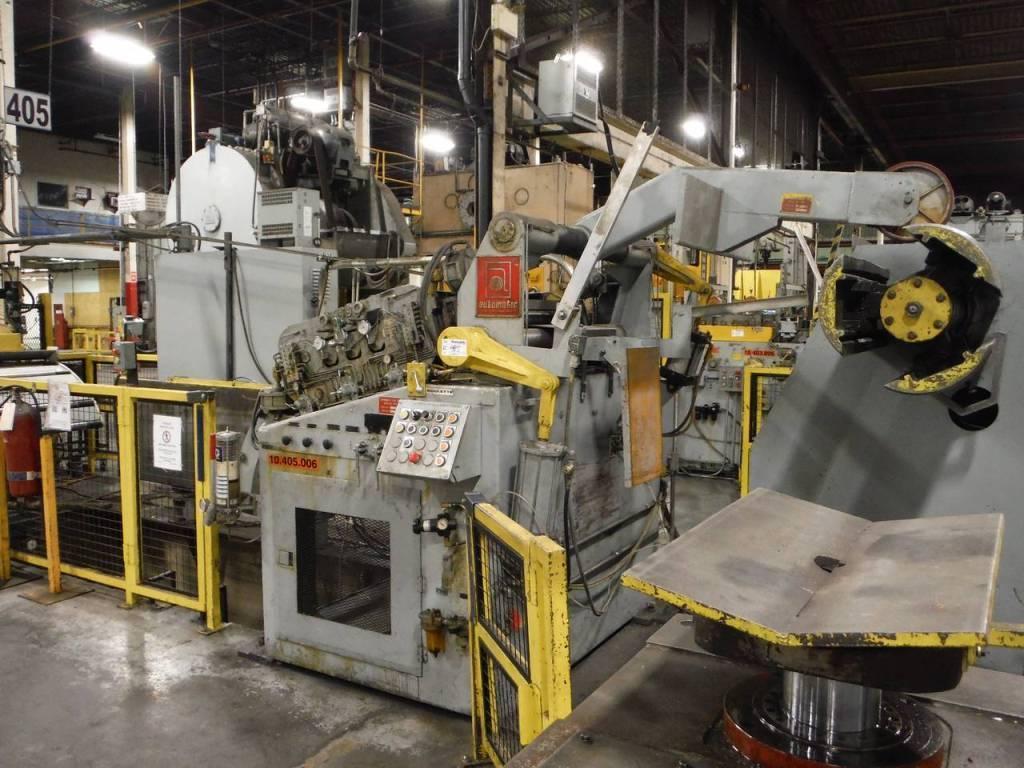

20000# X 42' X .060' AUTOMATIC FEED COIL REEL, CAR, & STRAIGHTENER: #64

Manufacturer

Category

Coil Processing Equipment

Type

COIL STRAIGHTENERS

Stock

64190

Model

20000 X 42 X .060

Dealer Location

Ohio

Request a Quote
View Contact Information

Spec Sheet

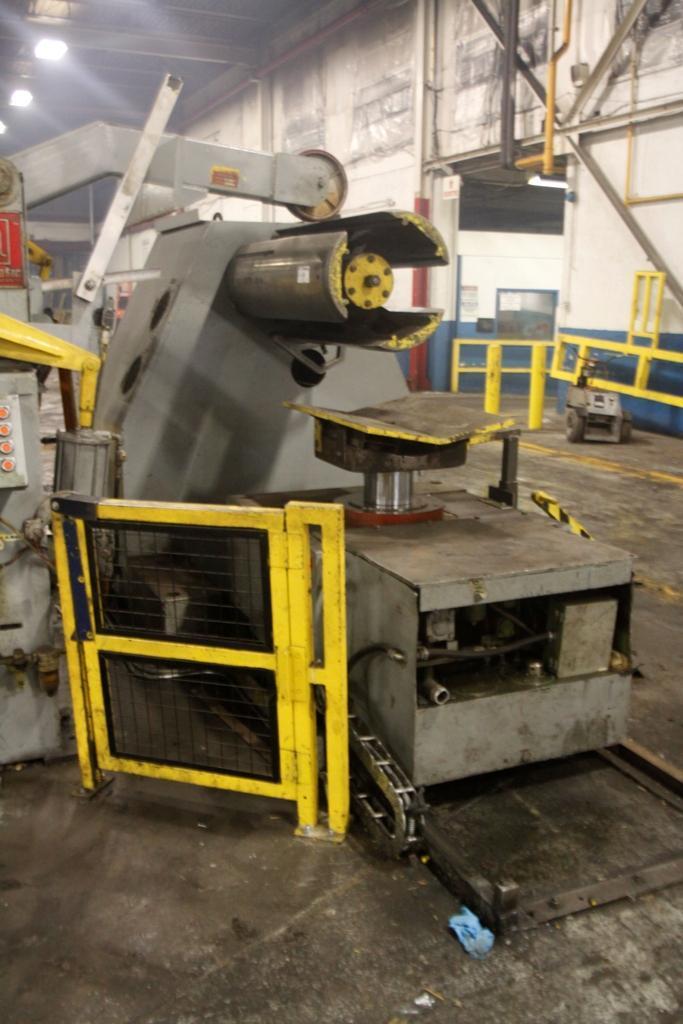

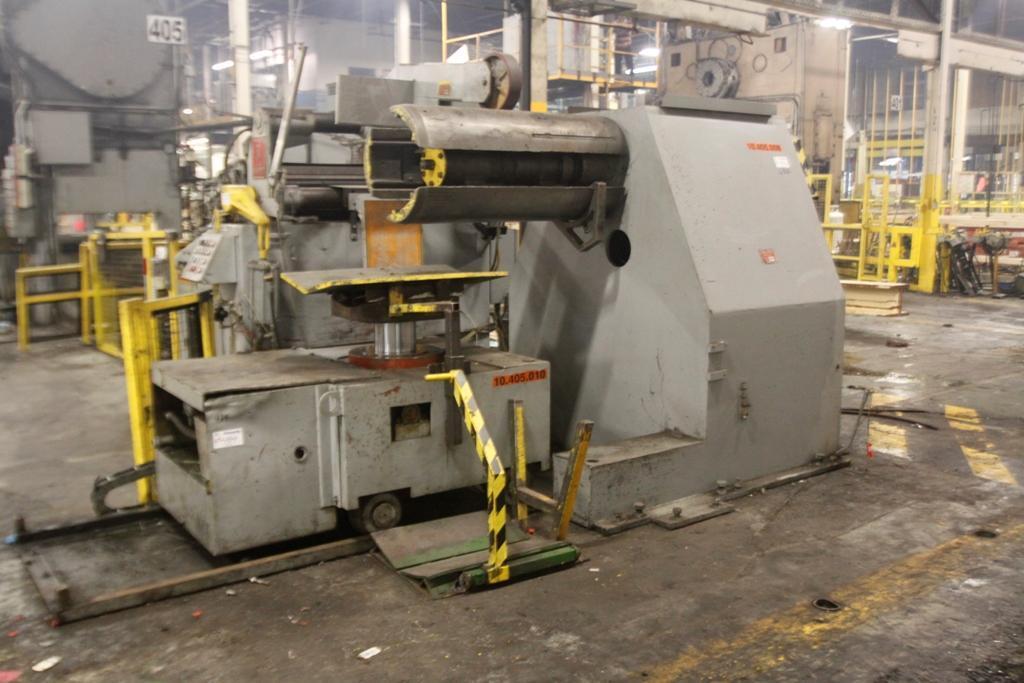

COIL REEL
SERIAL .................. 3417
MODEL ................... 204260
COIL WEIGHT CAPACITY .... 20,000 LBS
COIL WIDTH .............. 4" TO 42"
COIL ID ................. 18" TO 22"
ID EXPANSION ............ HYDRAULIC
COIL OD ................. 36" TO 60"
MANDREL WIDTH ........... 50"
MOTORIZED OPERATION ..... YES

COIL CAR
MOTORIZED TRAVEL ........ YES
HYDRAULIC LIFT .......... 8"
FLOOR STANDING .......... YES

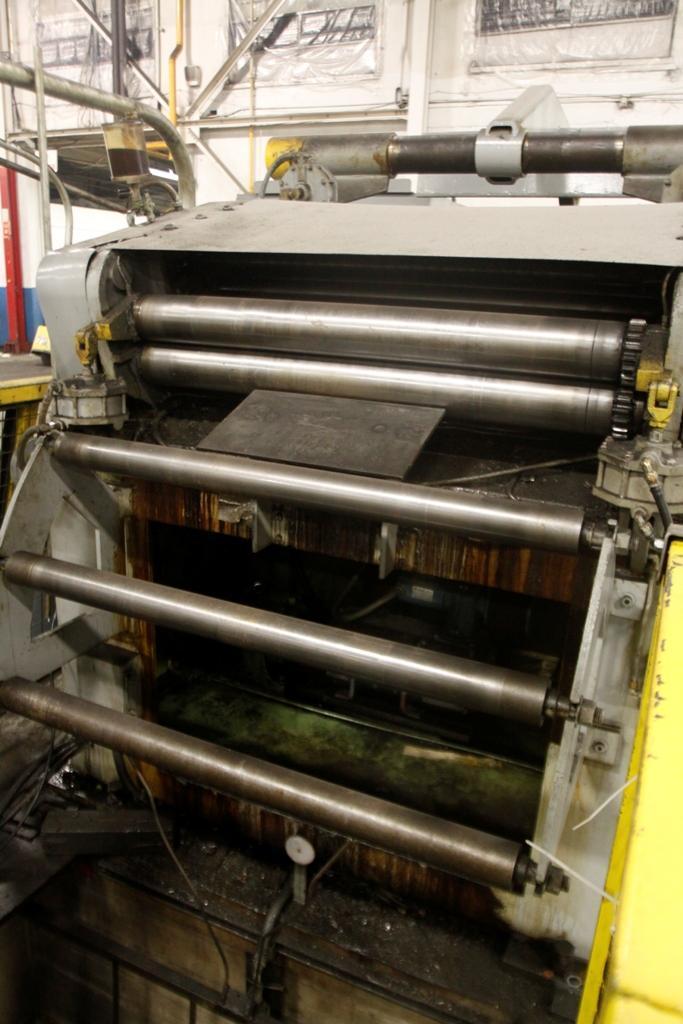

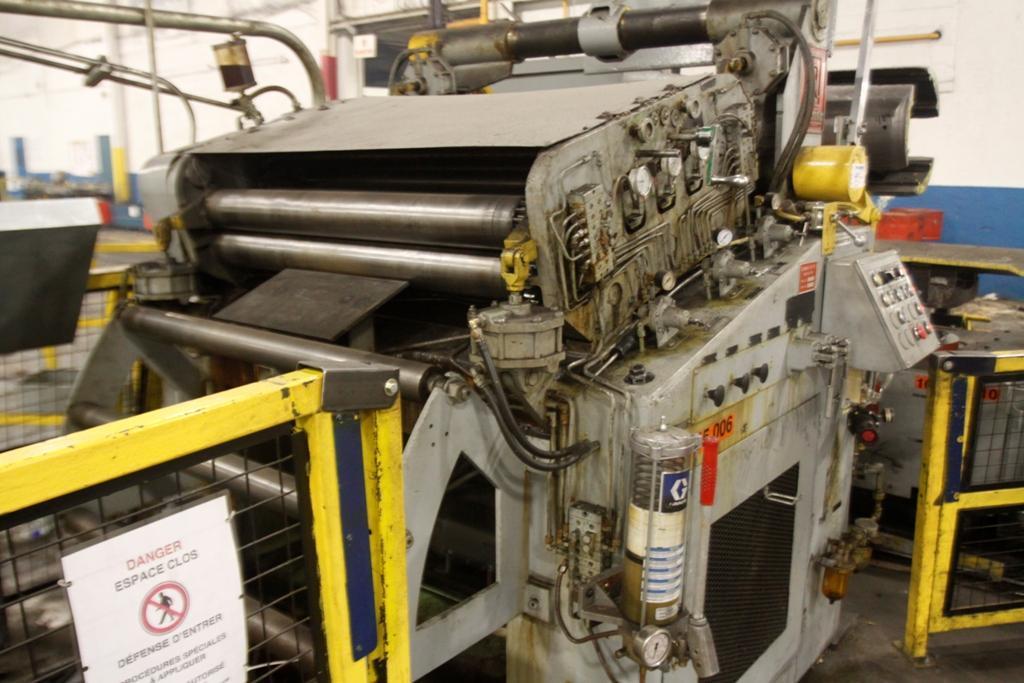

STRAIGHTENER

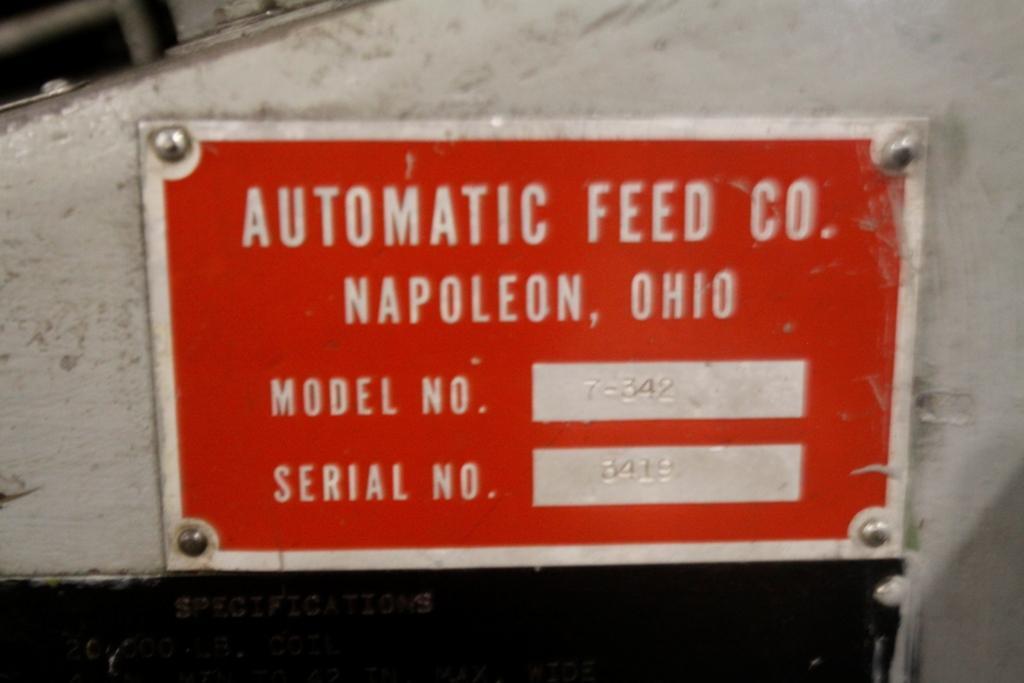

SERIAL ..... 3419
MODEL ................... 7-342
CAPACITY ................ 42" WIDE
THICKNESS ............... .020" TO .060"
SPEED ................... 180" TO 1800" PER MINUTE
STRAIGHTENING ROLLS ..... (7) 3 OVER 4
WIDTH OF ROLLS .......... 43"
TOP ROLLS ............... INDIVIDUAL ADJUSTMENT
PINCH ROLLS ............. PNEUMATIC ENTRY & EXIT
PEEL BLADE .............. HYDRAULIC
OVERARM HOLD DOWN ....... HYDRAULIC
OVERARM SERIAL .......... 3418
HOLD DOWN MODEL ......... 42-60

THREADING TABLE ......... HYDRAULIC
THREADING TABLE SERIAL .. 3420
THREADING TABLE MODEL ... 42
DIMENSIONS .............. 32" X 102"
