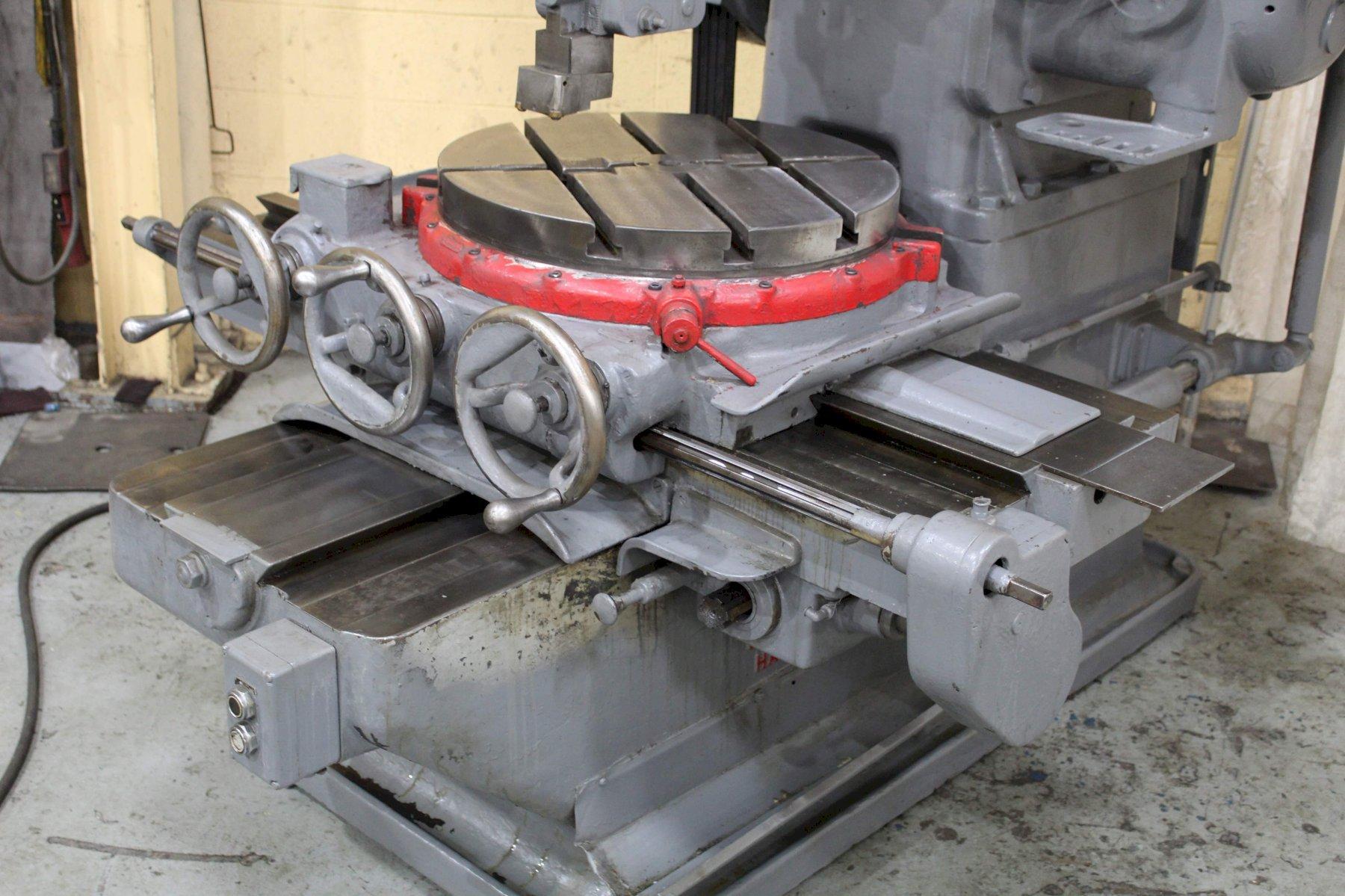

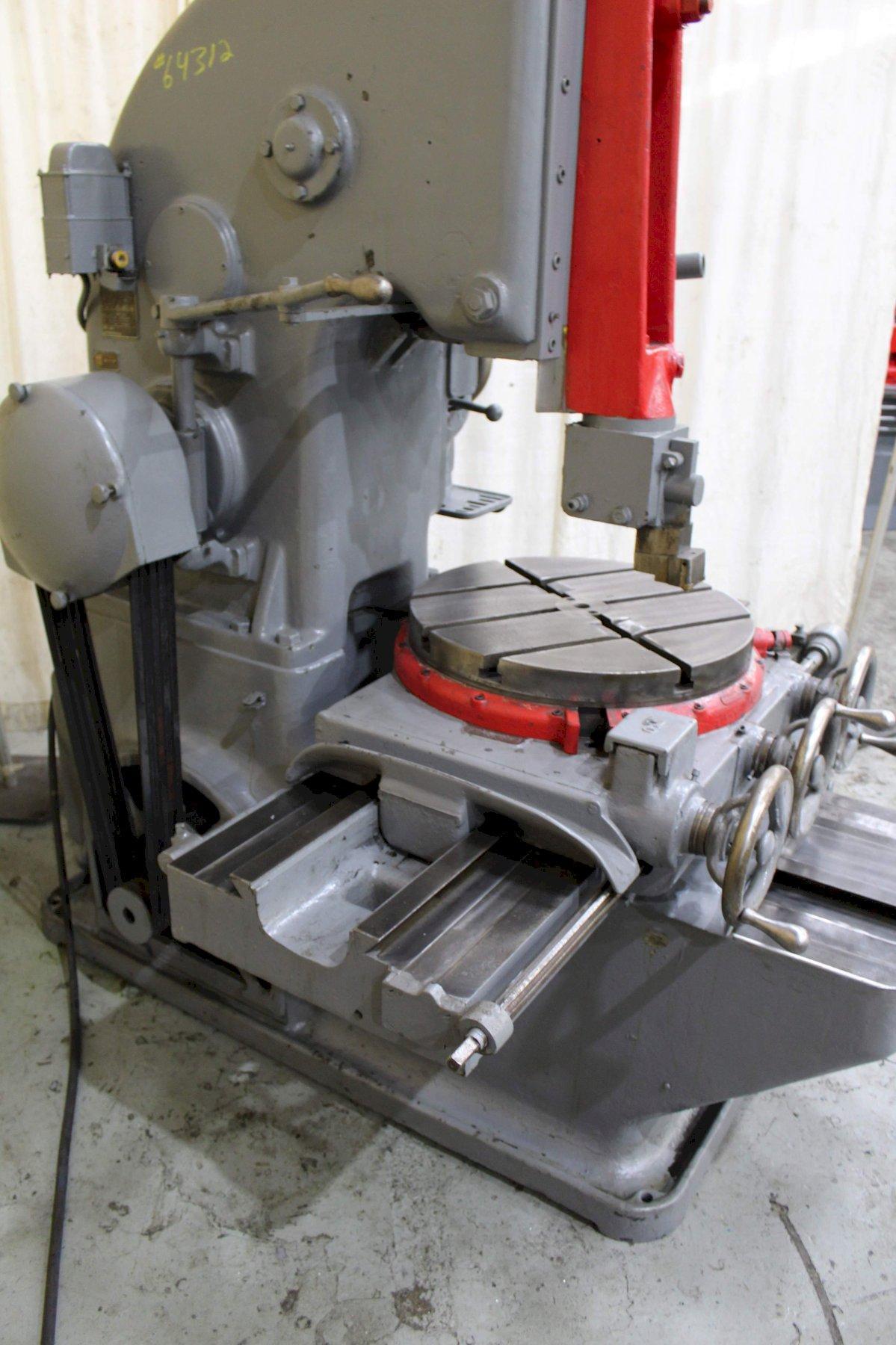

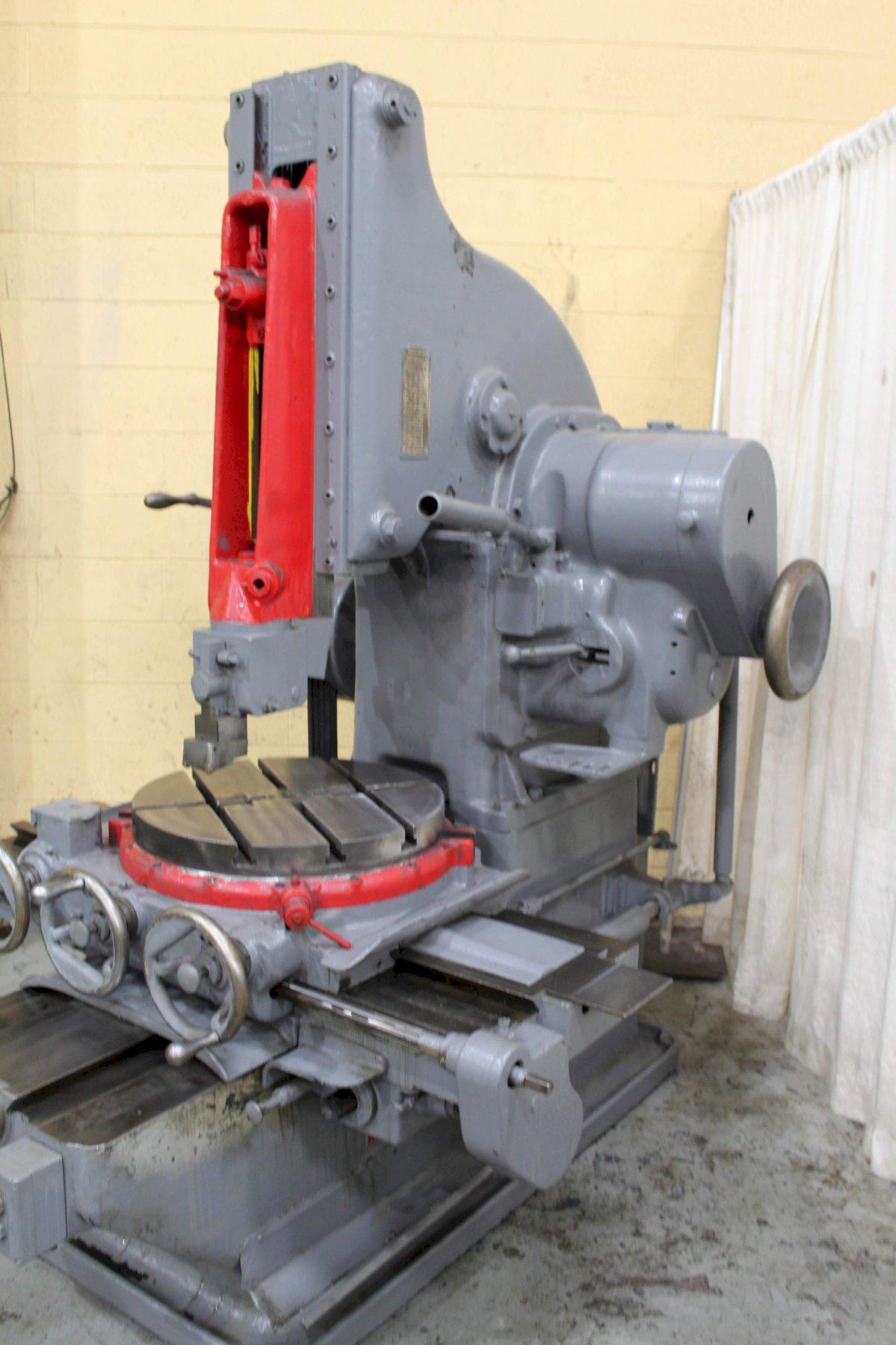

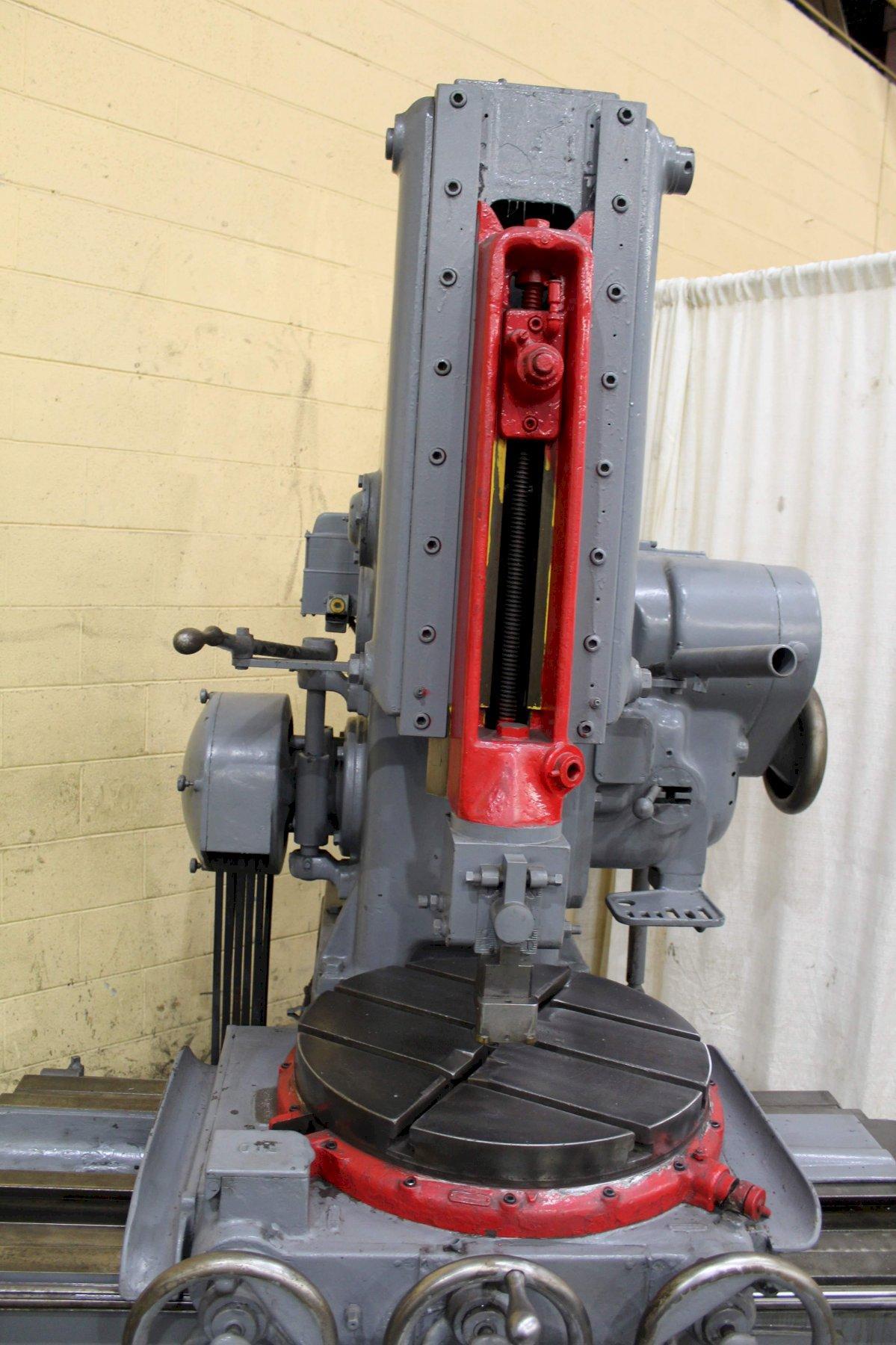

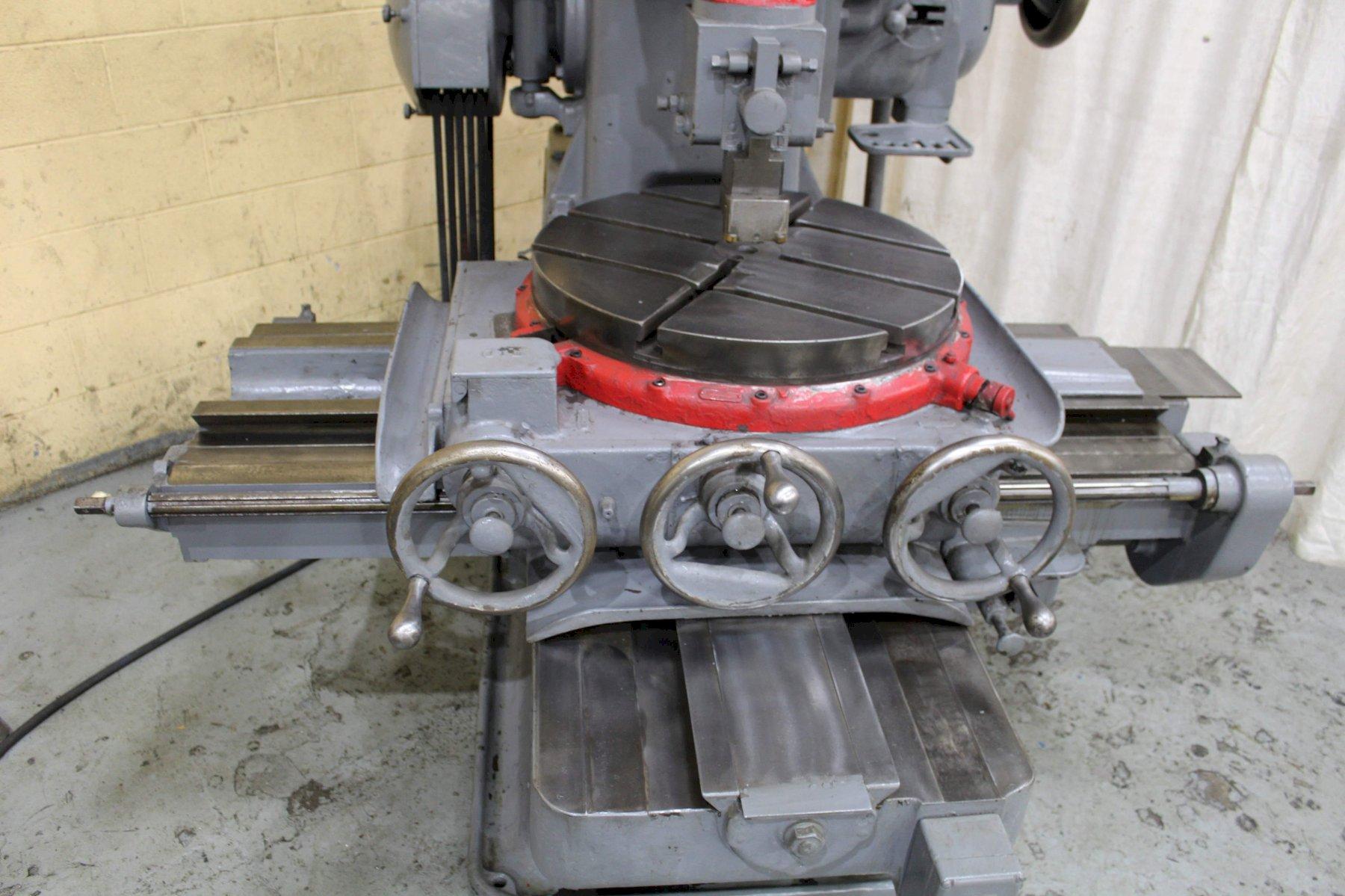

12" PRATT & WHITNEY VERTICAL SLOTTER: STOCK #64312

Stock

64312

Model

12

Dealer Location

Ohio

Spec Sheet



SERIAL ................................ 153-98152
MODEL ................................. #B
STROKE OF RAM ......................... 0 TO 12"
RAM ADJUSTMENT ........................ 16-1/8"
ANGULAR RAM ADJUSTMENT ................ 0 TO 5 DEGREES
STROKES PER MINUTE .................... 19 - 31 - 48 - 76
CUTTING SPEED ......................... 5 TO 84 FPM
ROTARY TABLE DIAMETER (T-SLOTTED) ..... 24"
LONGITUDINAL TABLE TRAVEL ............. 25"
CROSS TABLE TRAVEL .................... 25"
LONGITUDINAL & CROSS TABLE FEEDS ...... .0021" TO .0833" PER STROKE
ROTARY TABLE FEEDS .................... .0043" TO .1745" PER STROKE
TABLE TO RAM GUIDES ................... 17"
FLOOR TO TABLE ........................ 37"
SPINDLE MOTOR ......................... 5 HORSEPOWER
