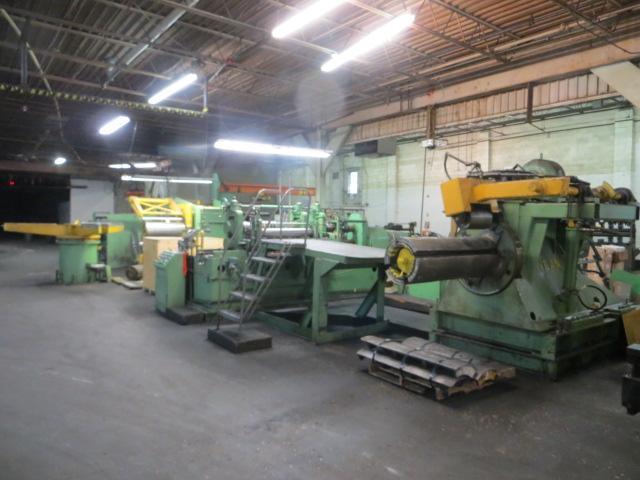

36' X 6' PAXSON / WEAN SLITTING LINE: STOCK #66539

Manufacturer

Category

Slitters and Slitting Lines

Type

SLITTING LINE ACCESSORIES

Stock

66539

Model

36 X 06 X 20000

Dealer Location

Ohio

Request a Quote
View Contact Information

Spec Sheet



COMPLETE WITH:

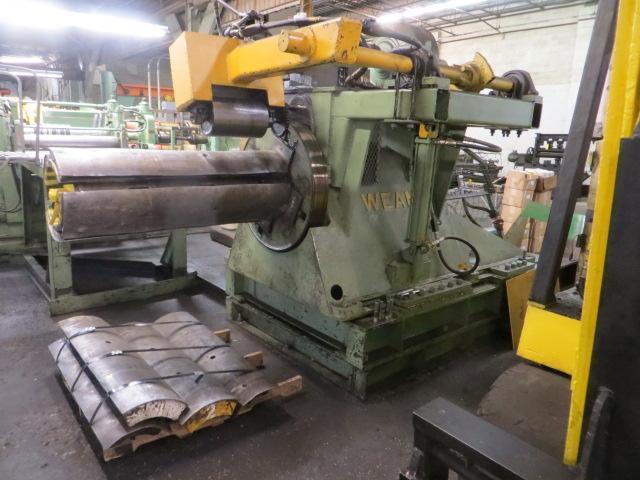

20,000 LBS X 54" WEAN UNCOILER:
ID RANGE .............................. 14" TO 18""
ID RANGE WITH BUILD UP LEAFS .......... UP TO 24"
HYDRAULIC EXPANSION ................... YES
MANDREL LENGTH ........................ 52"
(4) LEAF CONSTRUCTION ................. YES
HYDRAULIC HOLD DOWN ROLL (MOTORIZED) .. YES
WEDGE TYPE EXPANSION .................. YES

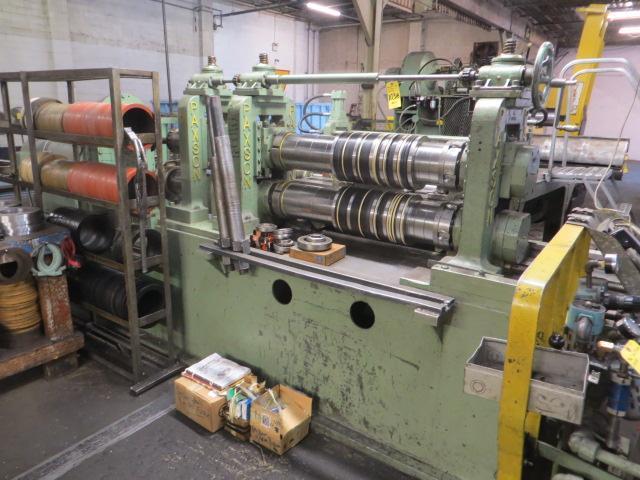

36" X 6" PAXSON SLITTER:
SERIAL ................................ 112168-6
MAX WIDTH ............................. 36"
ARBOR DIAMETER ........................ 6"
PINCH ROLLS ........................... YES
FEED UP TABLE ......................... YES
ENTRY EDGE GUIDES ..................... YES
ENTRY PASS LINE ROLLS ................. YES
MOTOR  ................................ 25 HP

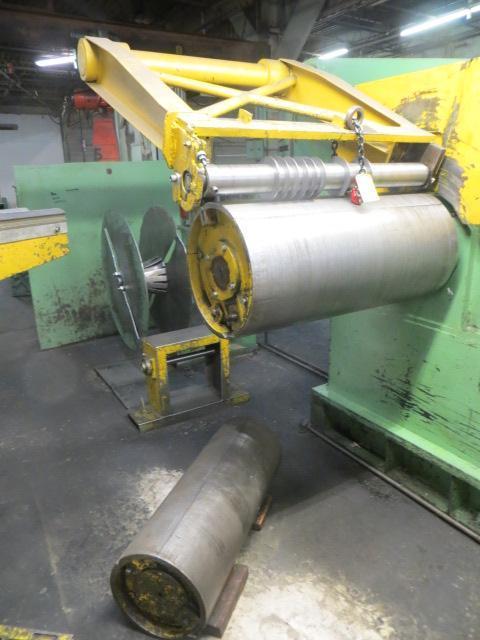

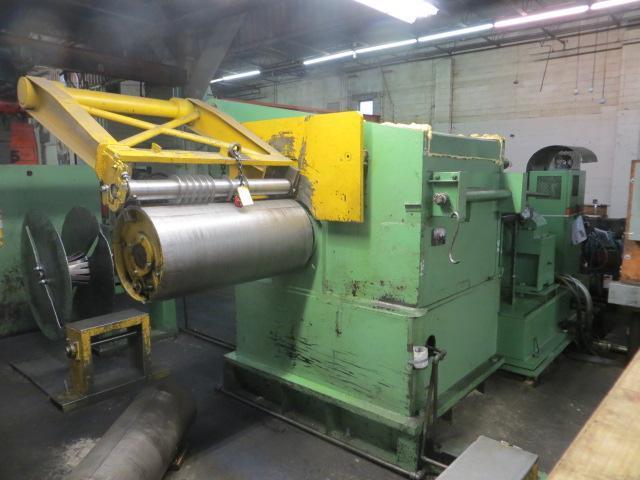

20,000 PAXSON RECOILER:
SERIAL ................................ 11216-71
CAPACITY .............................. 20,000 LBS
MANDREL LENGTH ........................ 54"
DRUM ID DIAMETER ...................... 20" & 16"
PNEUMATIC OVERARM SUPPORT ............. YES
OVERARM GUIDE TOOLING ................. YES
TOP HYDRAULIC PUSHOFF ................. YES
MOTOR  ................................ 50 HP W/ SECO DRIVE

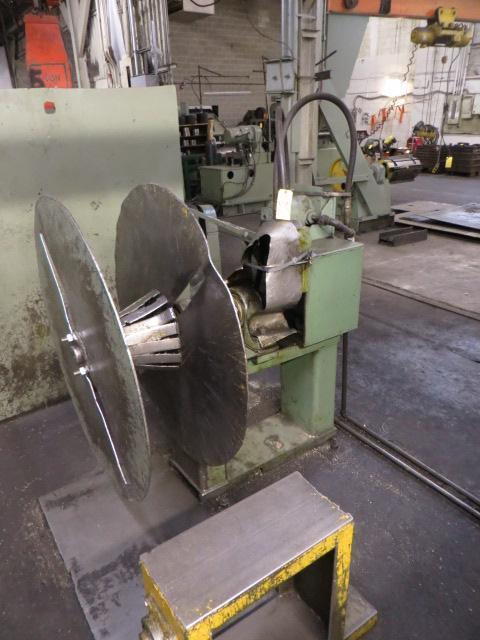

SCRAP WINDER .......................... YES

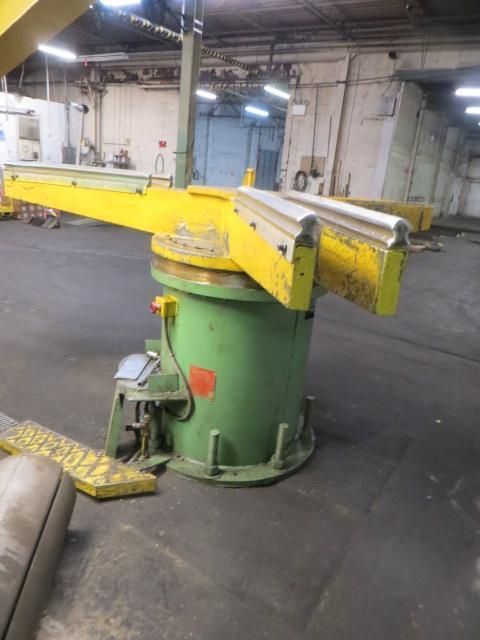

LOOPCO COIL TURNSTYLE:
NUMBER OF ARMS ........................ 3

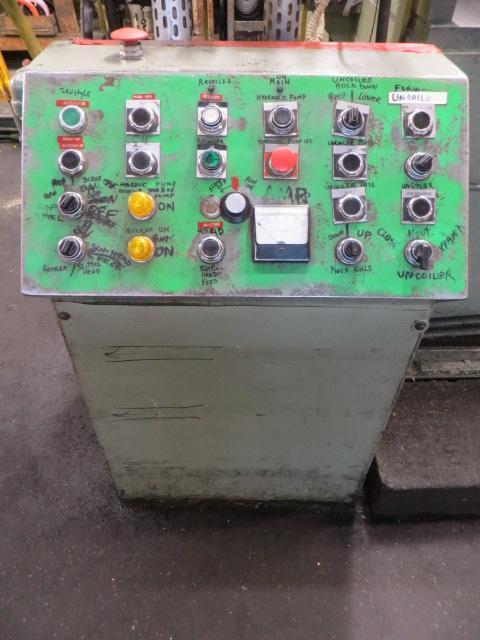

CONTROL STATION ....................... YES

LARGE QUANTITY KNIVES / SPACERS ....... YES
