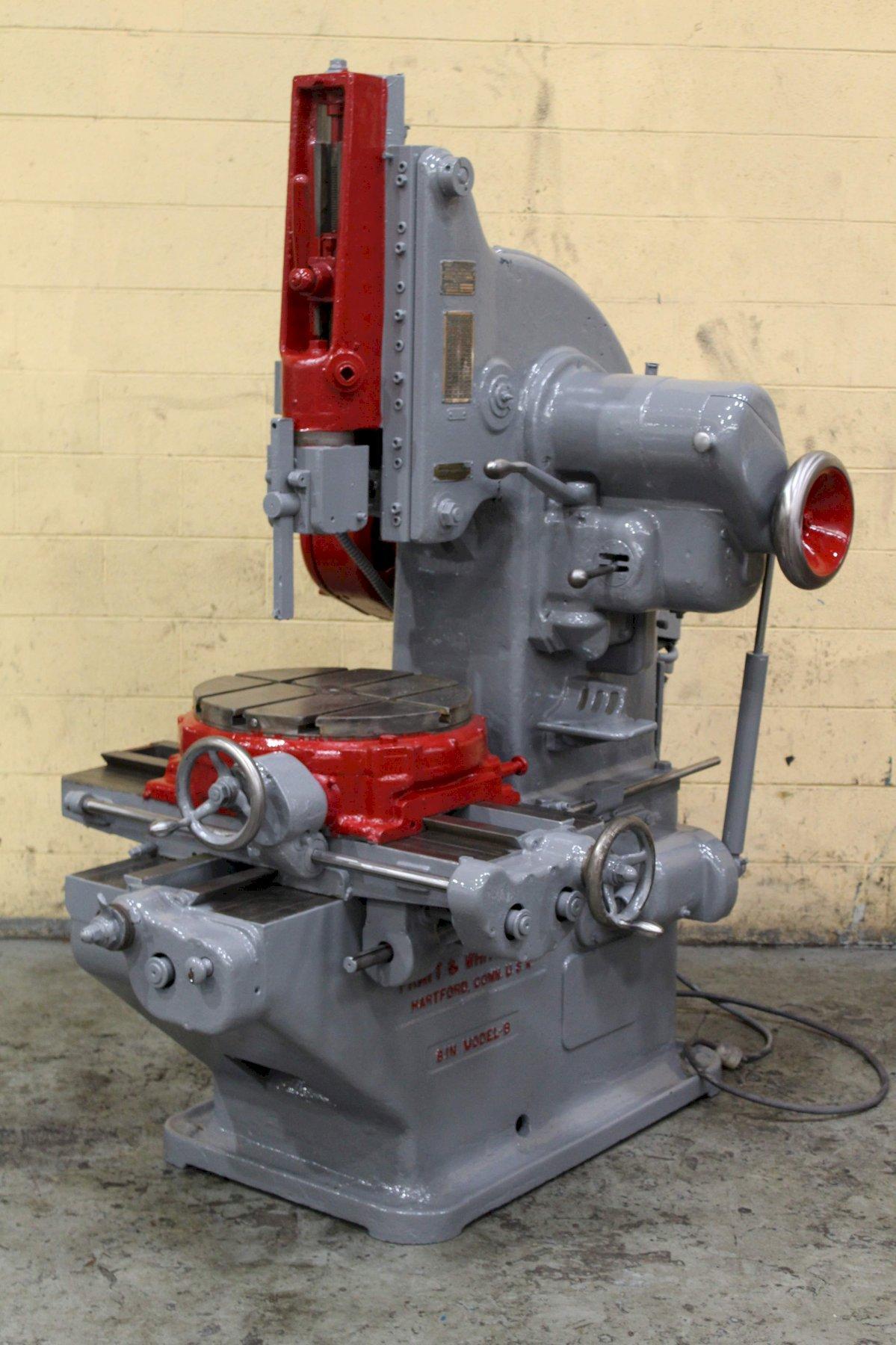

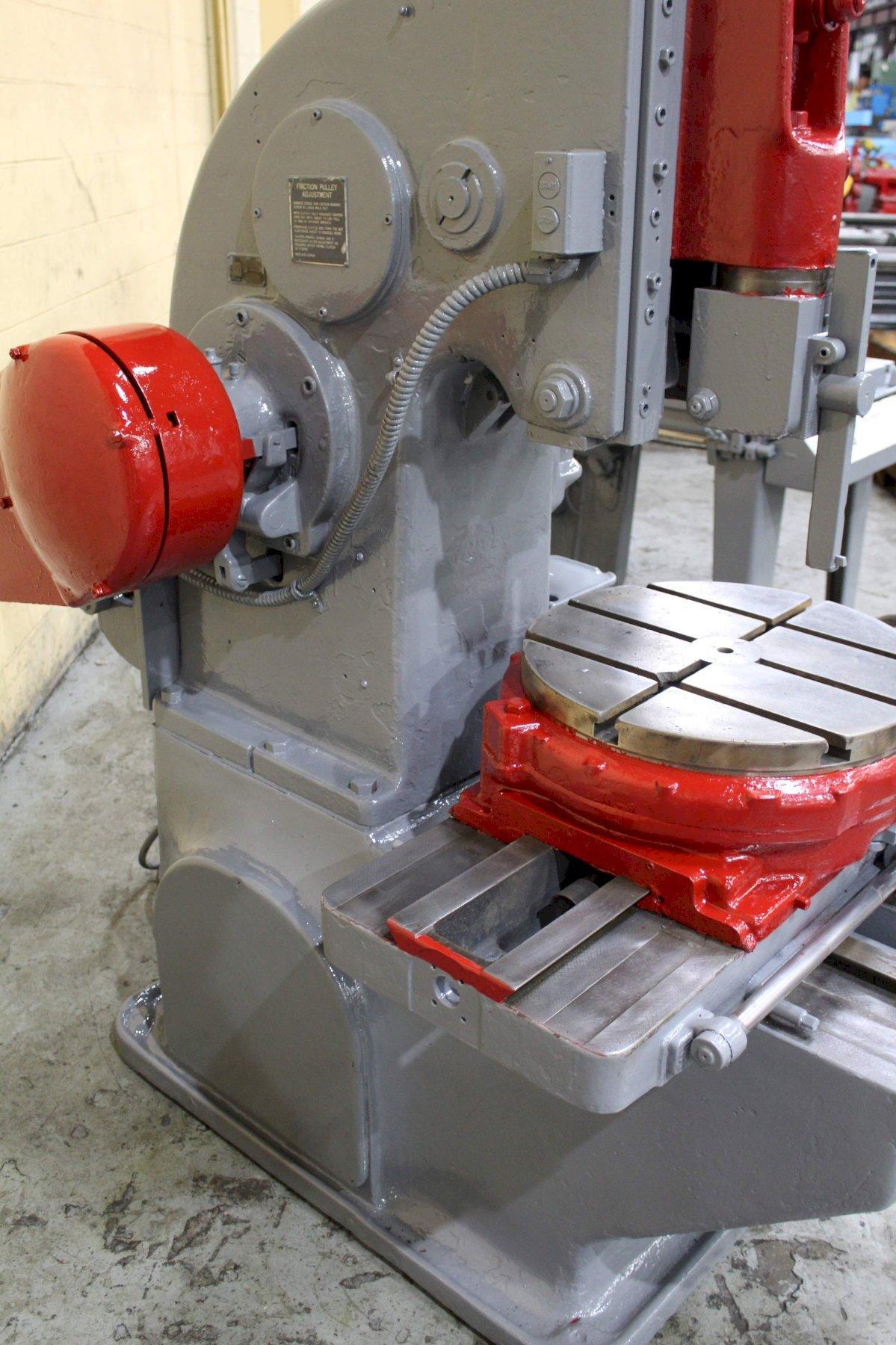

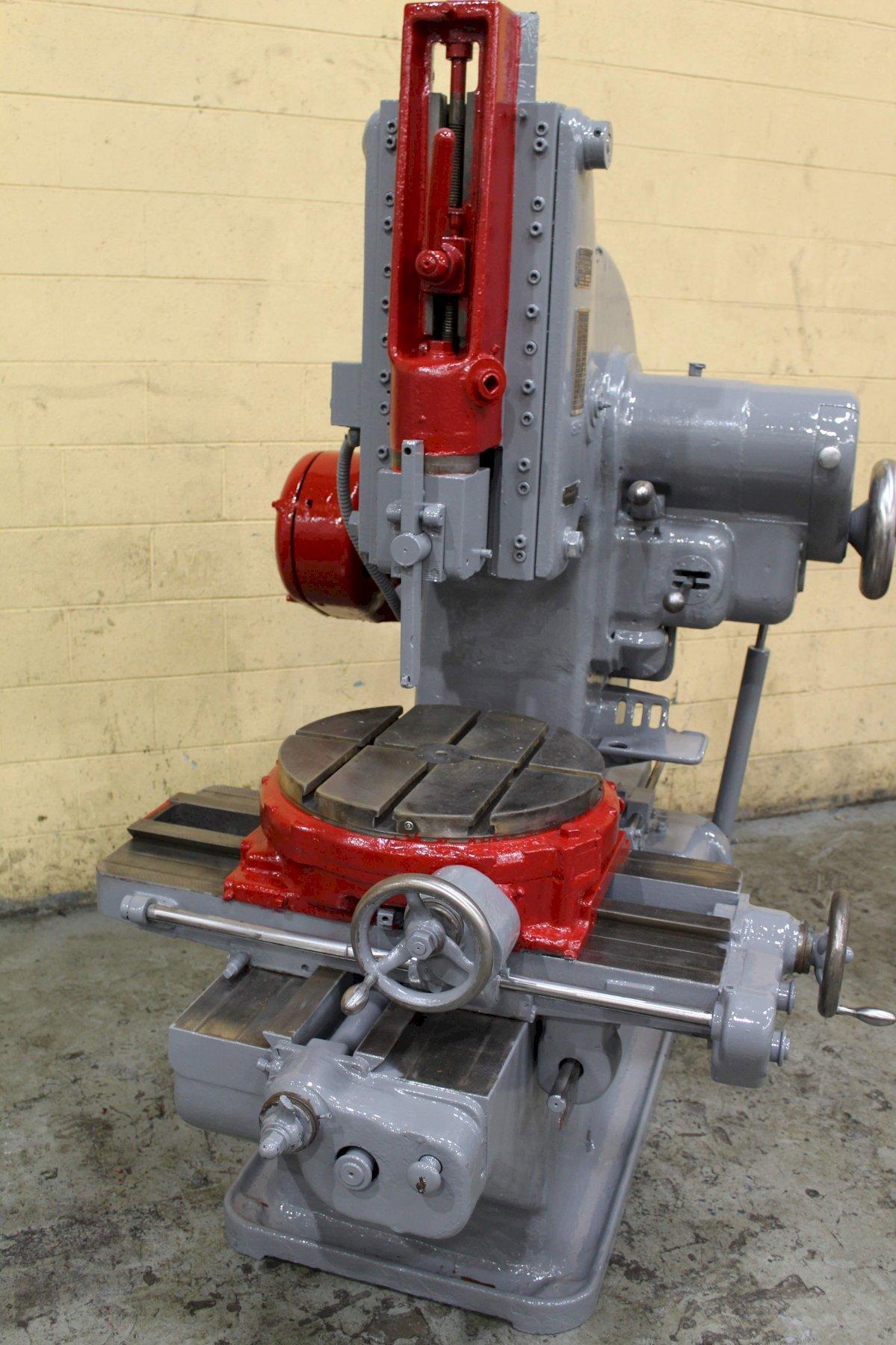

6' PRATT & WHITNEY VERTICAL SHAPER; STOCK #71741

Stock

71741

Model

None listed

Dealer Location

Ohio

Spec Sheet

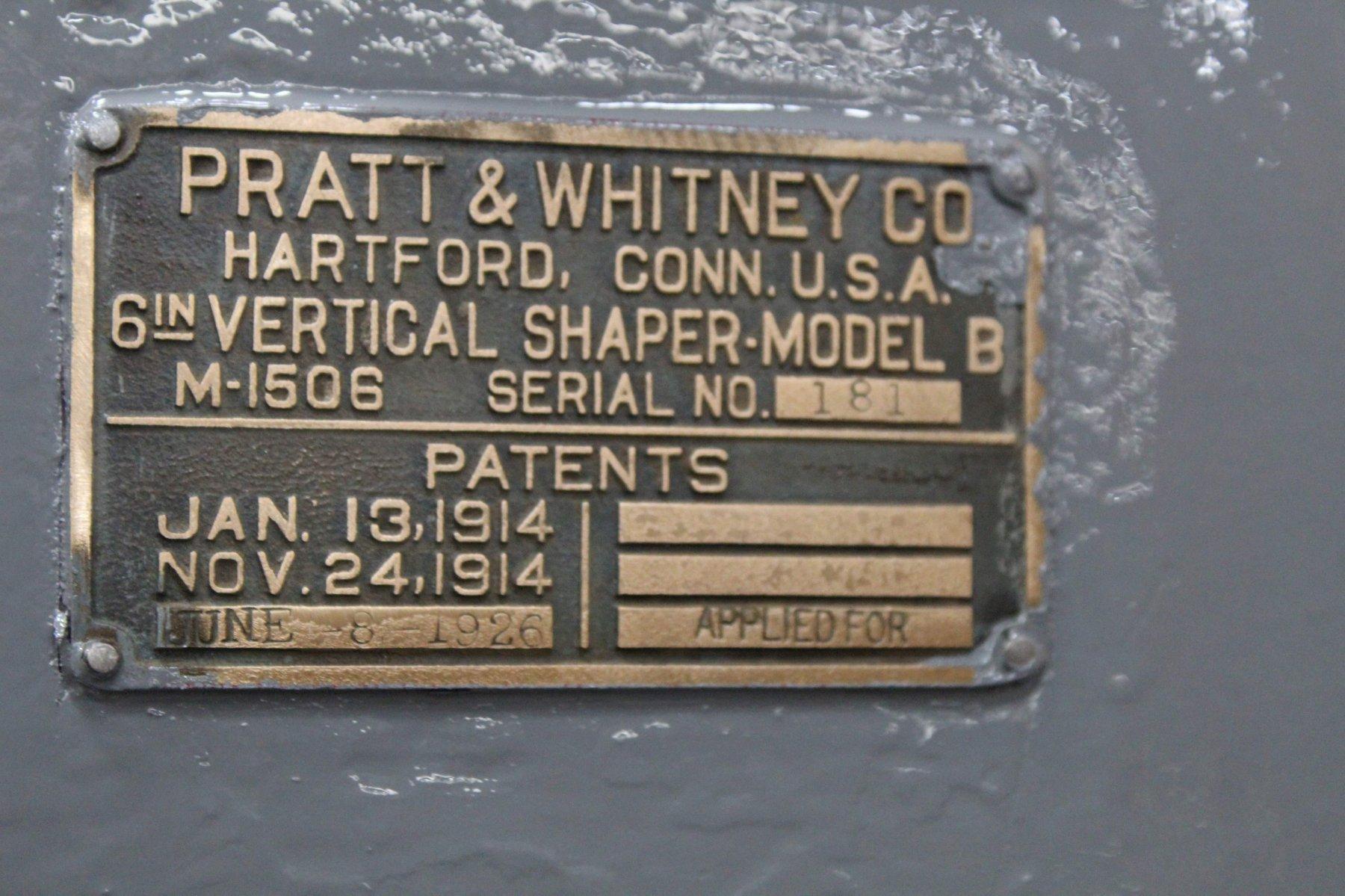

SERIAL ...............................#181
LENGTH OF STROKE ..................... 0 TO 6"
TABLE TO RAM (MAXIMUM) ............... 15"
VERTICAL ADJUSTMENT OF RAM ........... 10"

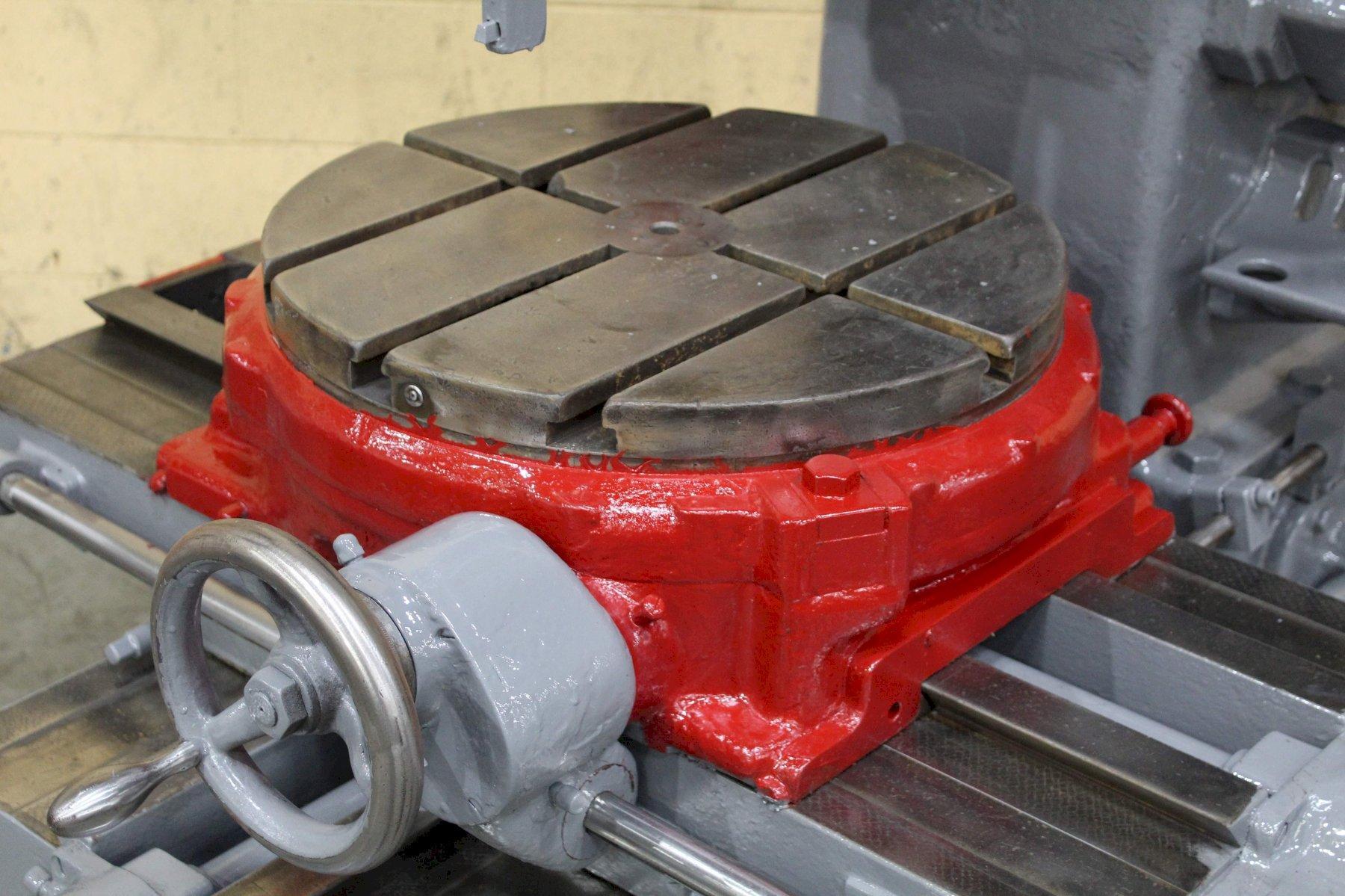

ROTARY TABLE DIAMETER (T-SLOTTED) .... 19-1/2"

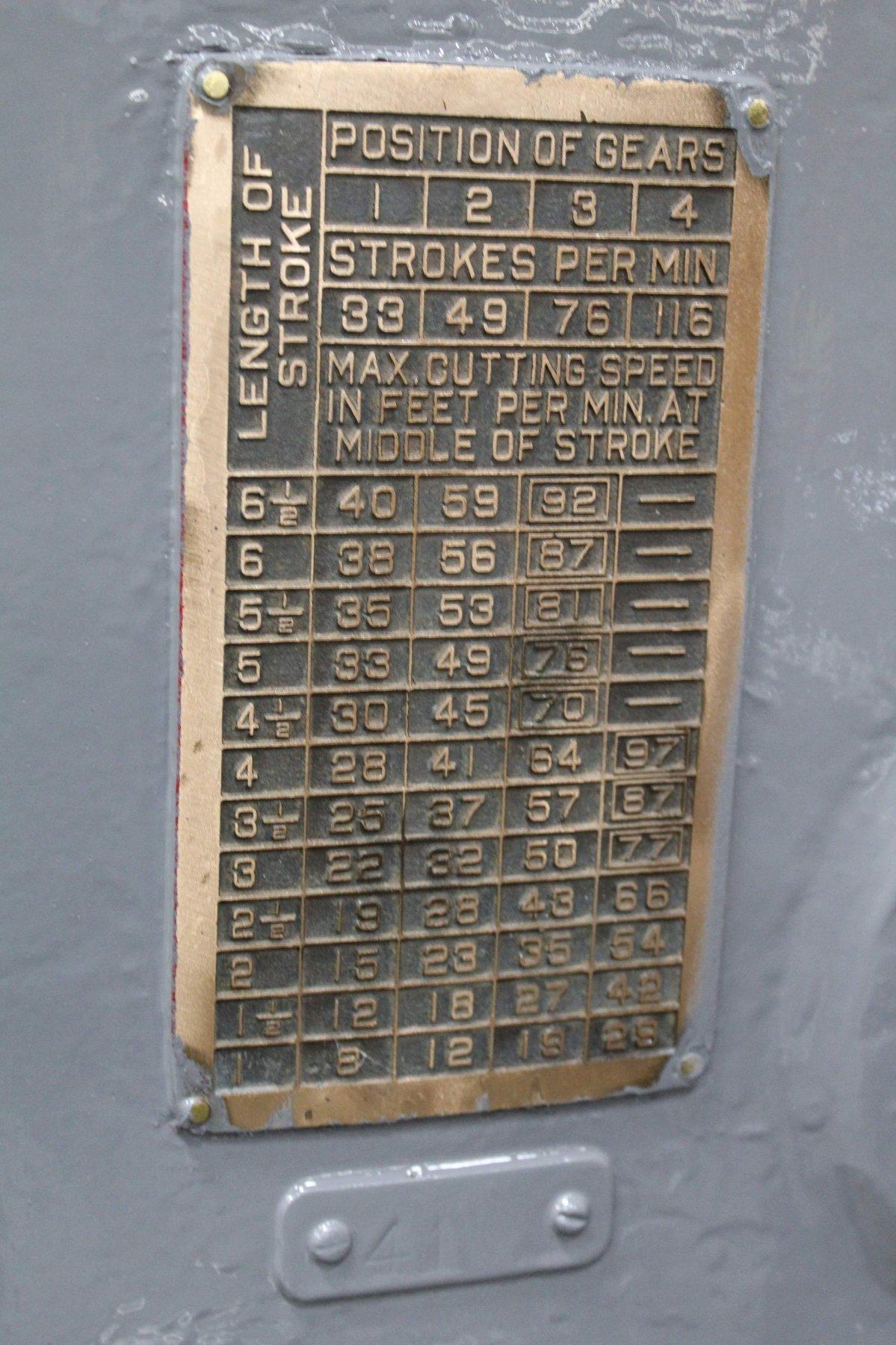

STROKES PER MINUTE ................... 33 - 49 - 76 - 116

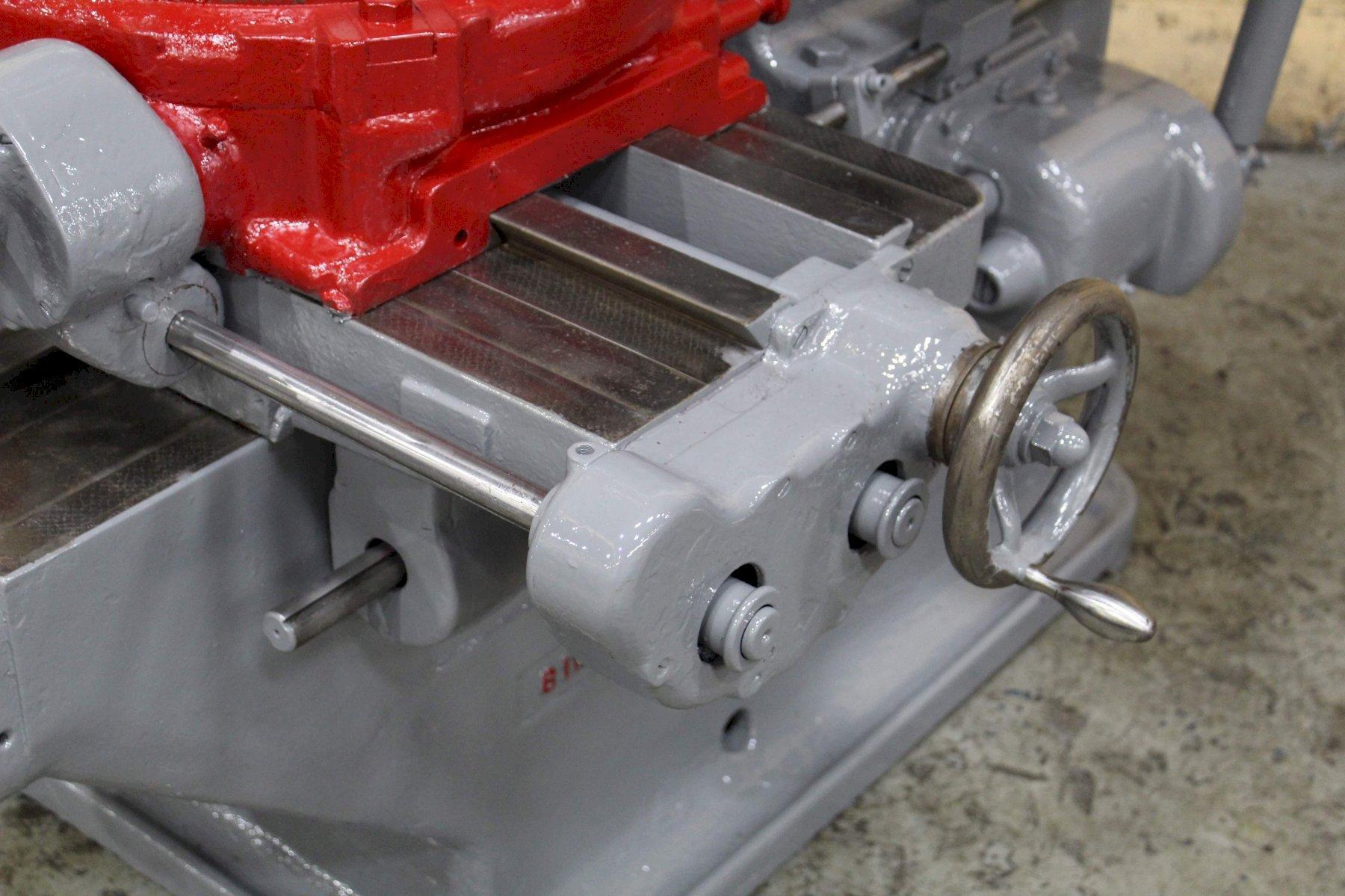

LONGITUDINAL TABLE TRAVEL ............ 25"
CROSS TABLE TRAVEL ................... 20"
LONGITUDINAL & CROSS TABLE FEEDS ..... .0027" TO .0243" PER STROKE
ROTARY TABLE FEED .................... .009" TO .085" PER STROKE
COLUMN TO RAM CENTERLINE ............. 18-3/4"
ANGULAR RAM ADJUSTMENT ............... 0 TO 5 DEGREES
FLOOR TO TABLE ....................... 37"

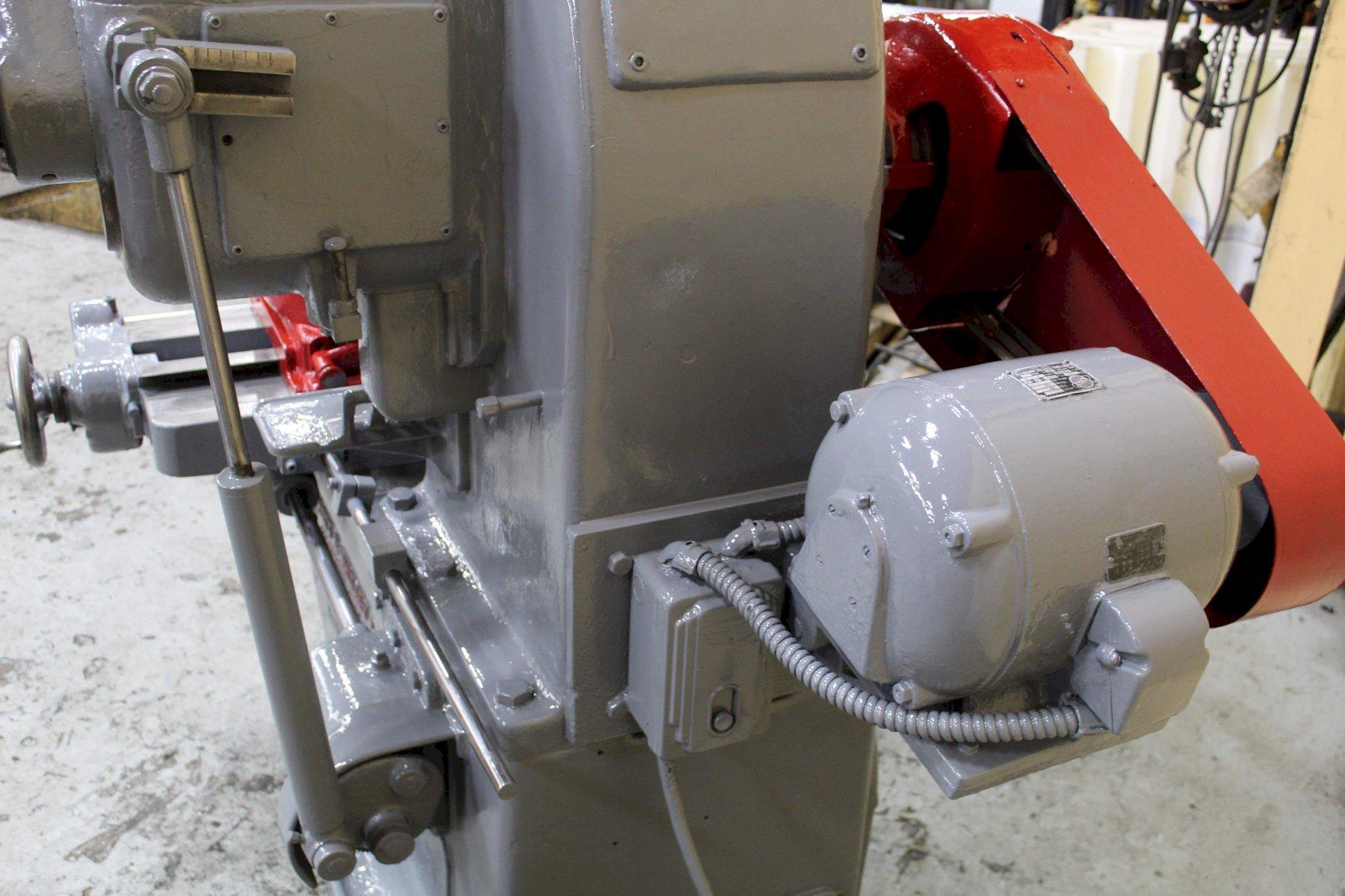

3 HORSEPOWER MAIN MOTOR
