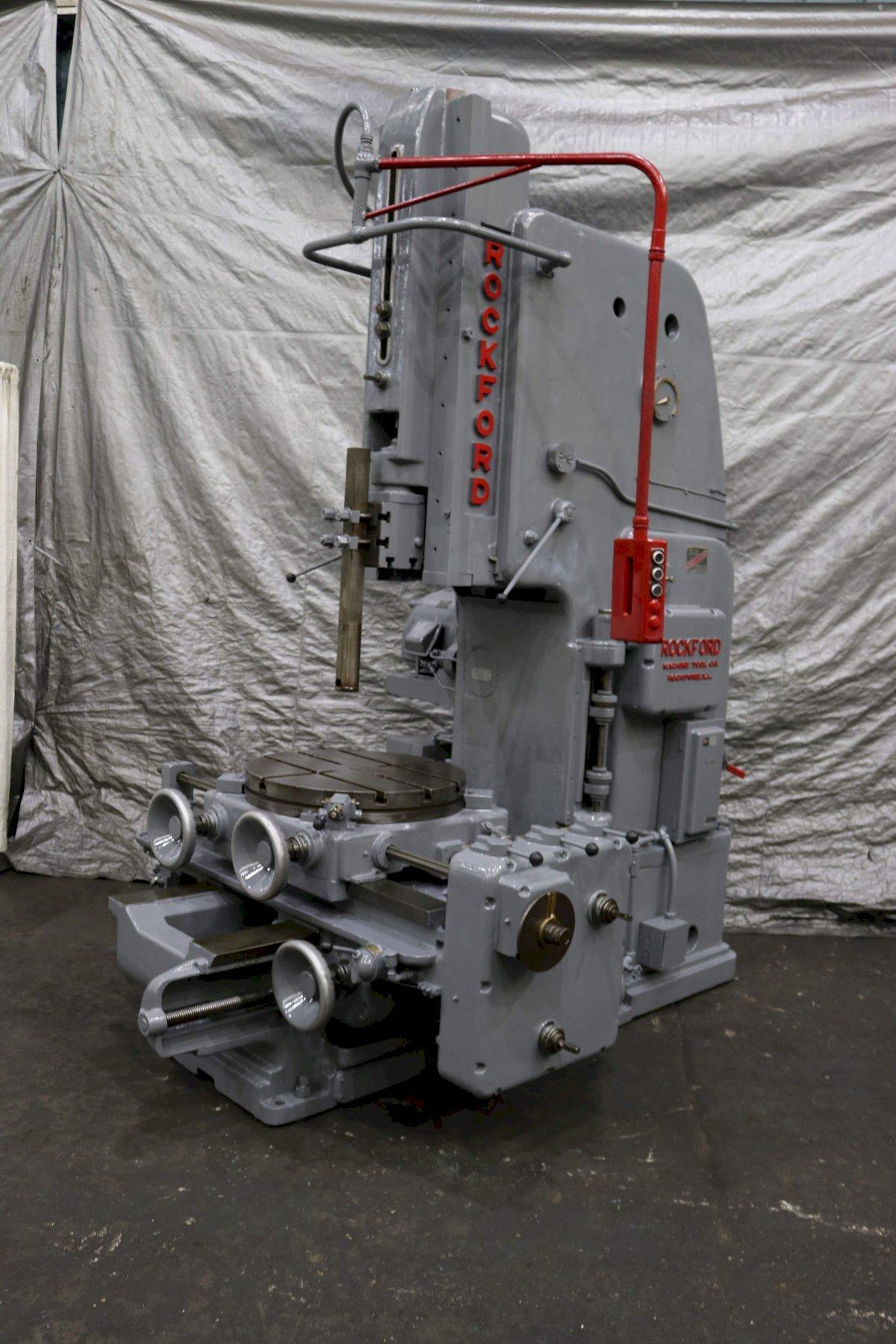

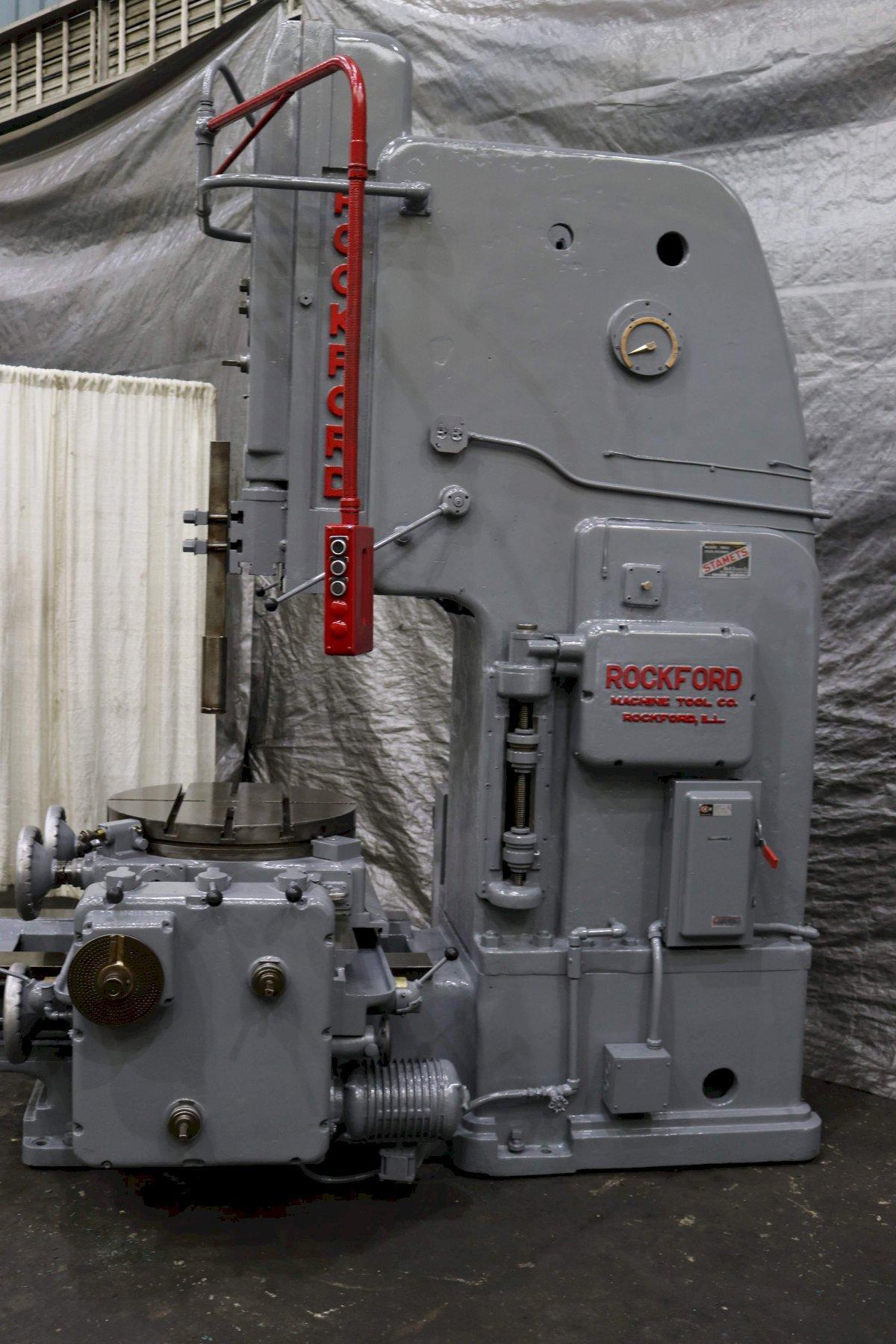

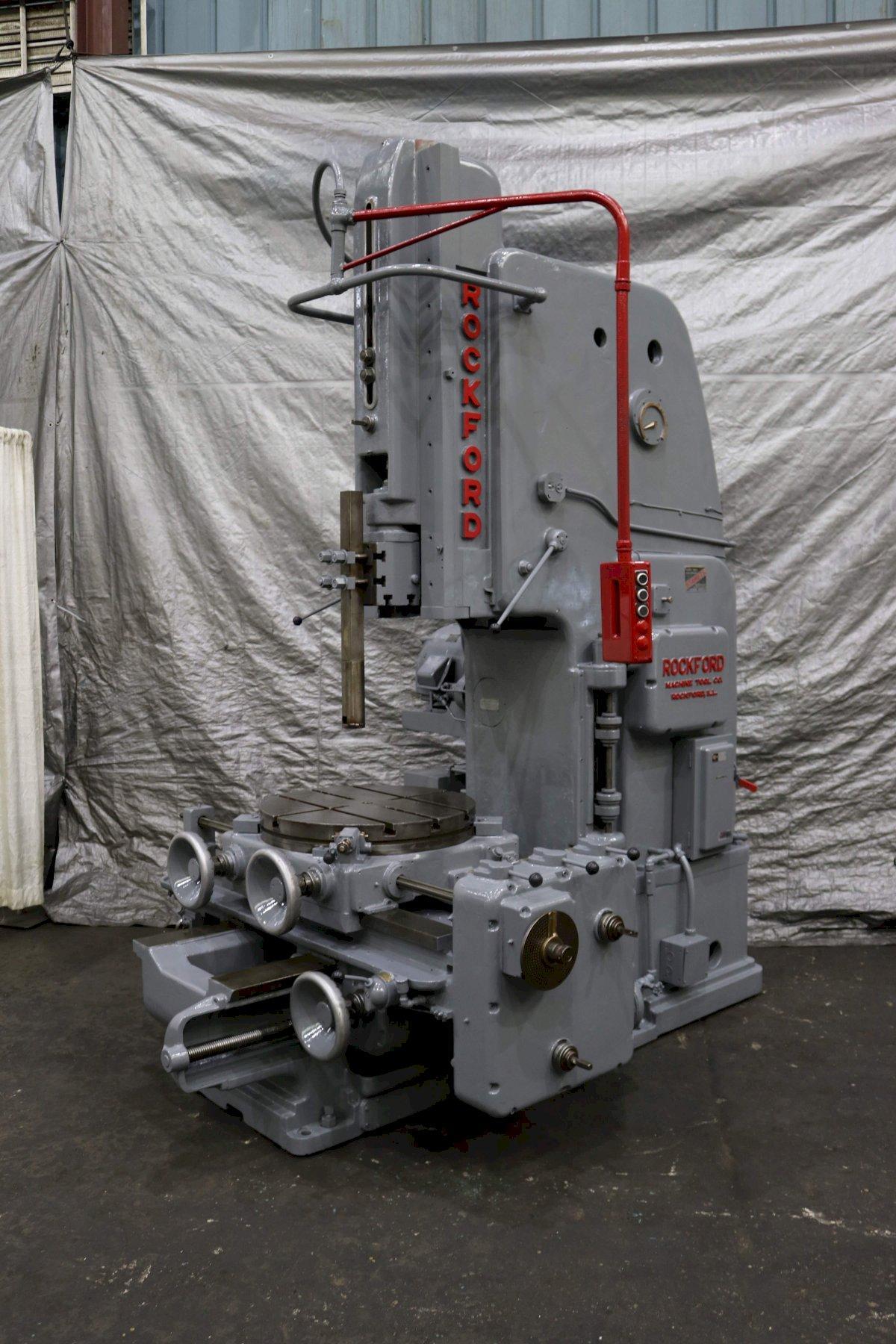

20' ROCKFORD HYDRAULIC SLOTTER: STOCK #72869

Stock

72869

Model

None listed

Dealer Location

Ohio

Spec Sheet



SERIAL ............................ 87SA64
MODEL ............................. SA
MINIMUM LENGTH OF STROKE .......... 3"
MAXIMUM LENGTH OF STROKE .......... 22"

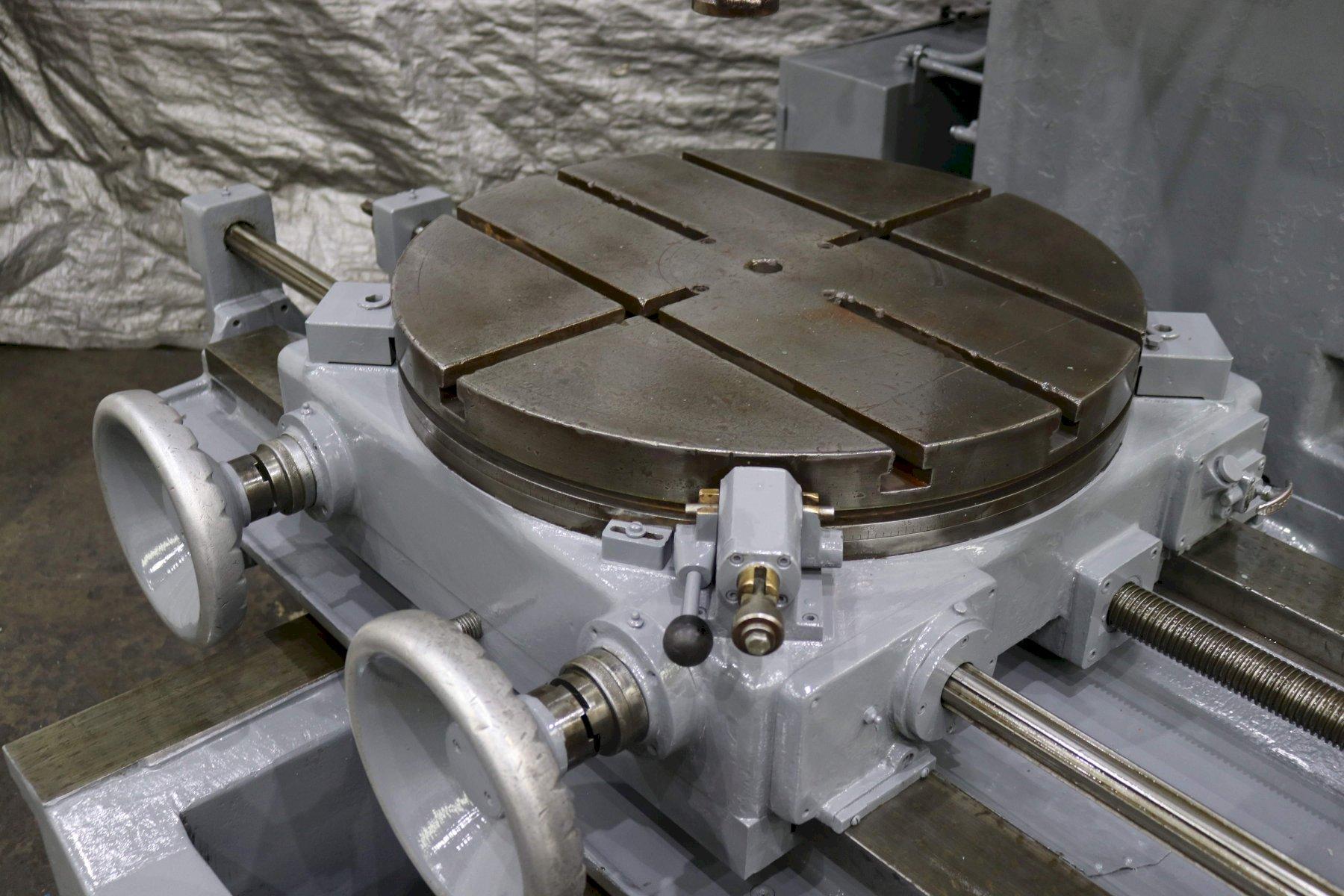

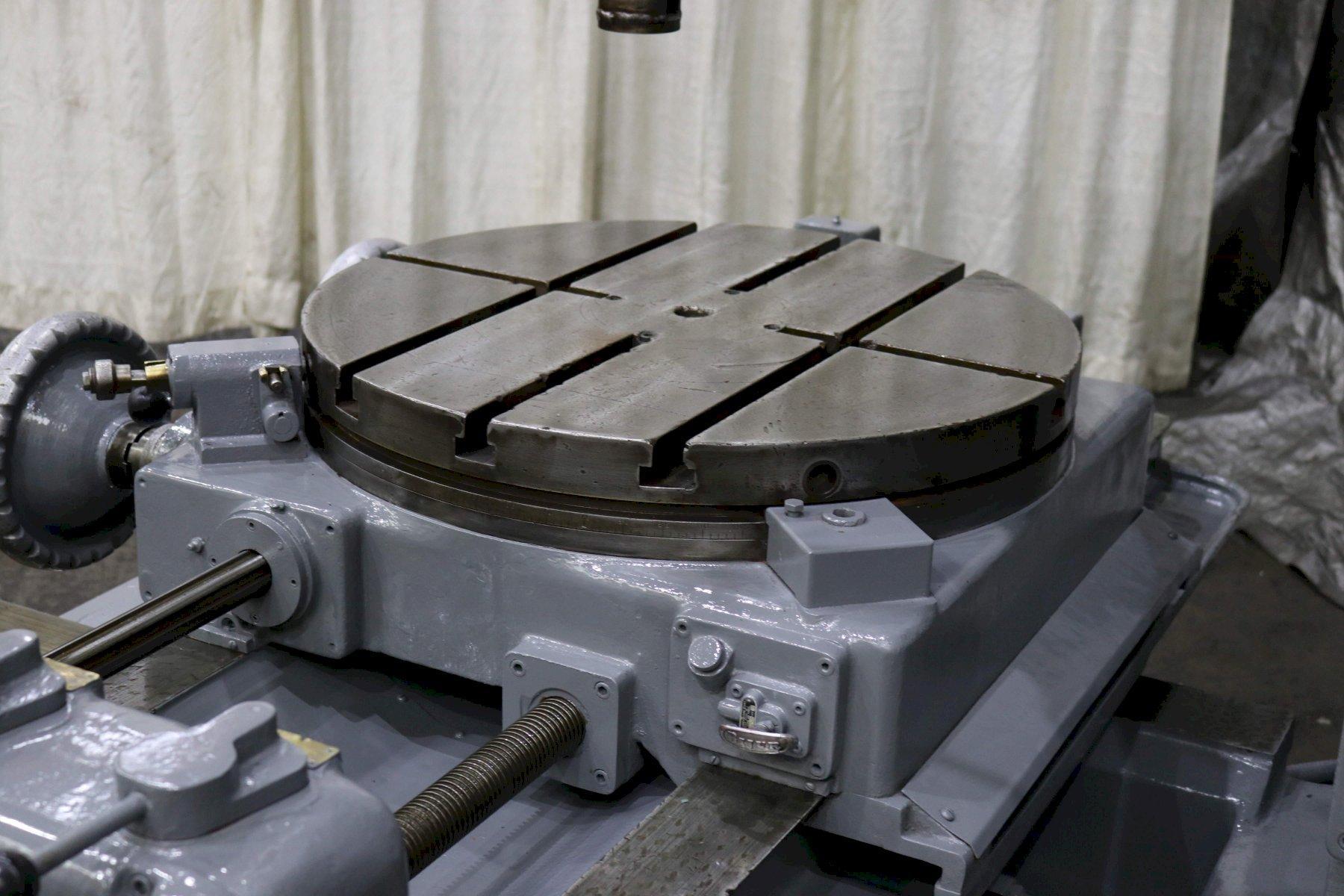

DIAMETER OF ROTARY TABLE .......... 28"
MAXIMUM HEIGHT UNDER RAM .......... 35"
CUTTING SPEED ..................... 25 TO 100 FPM
VERTICAL RAM ADJUSTMENT ........... 22"
ANGULAR RAM ADJUSTMENT - MINIMUM .. 0 DEGREES
ANGULAR RAM ADJUSTMENT - MAXIMUM .. 10 DEGREES

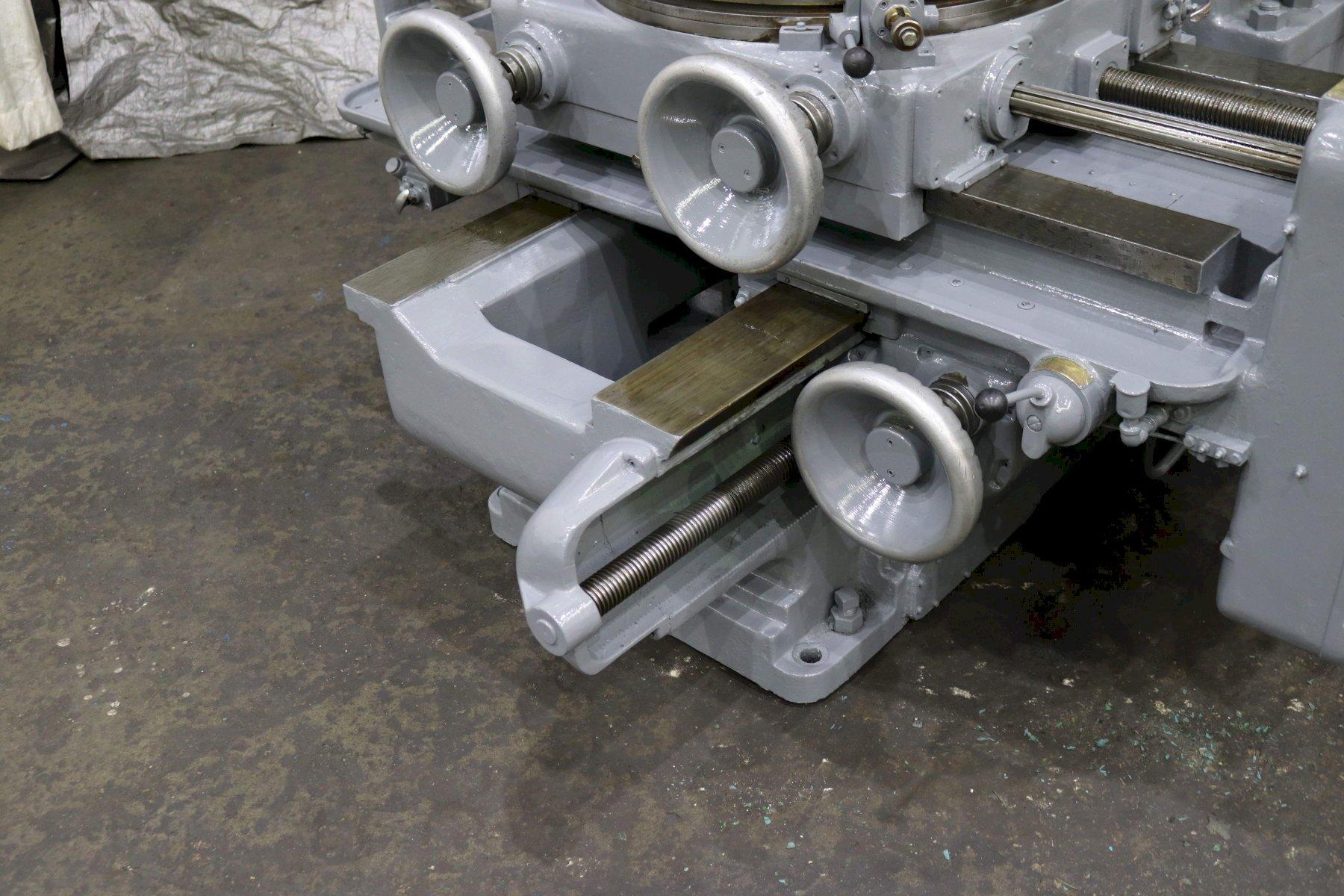

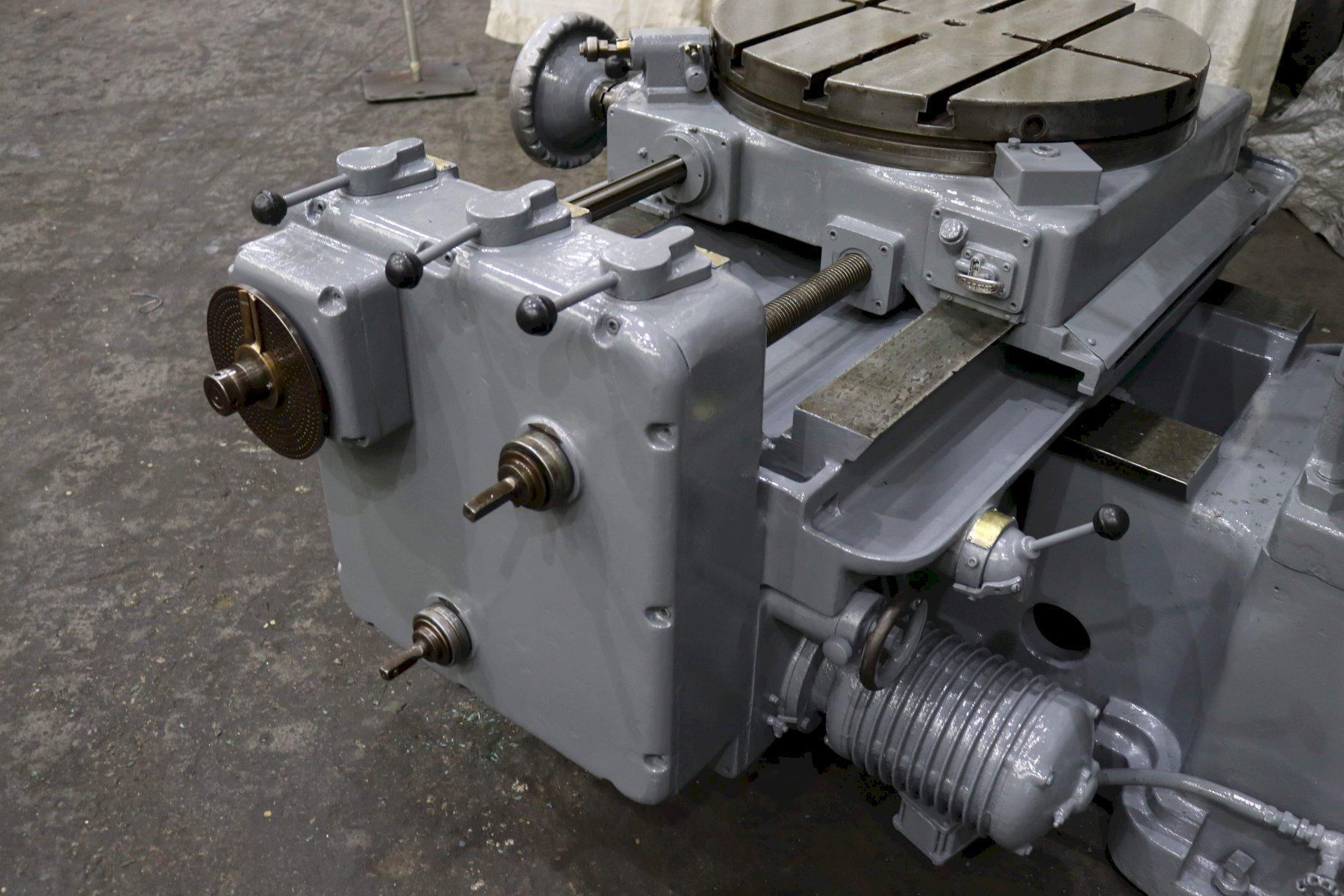

LONGITUDINAL & CROSS FEED ......... .125" MAXIMUM
LONGITUDINAL TABLE TRAVEL ......... 32"
TRANSVERSE TABLE TRAVEL ........... 24"
SLOTS TO CENTER OF CIRCLE ......... 54" DIAMETER
HEIGHT TOOL HEAD TO TABLE ......... 35" MAXIMUM
RAM HEAD FACE TO COLUMN FACE ...... 26"
PENDANT CONTROL ................... YES

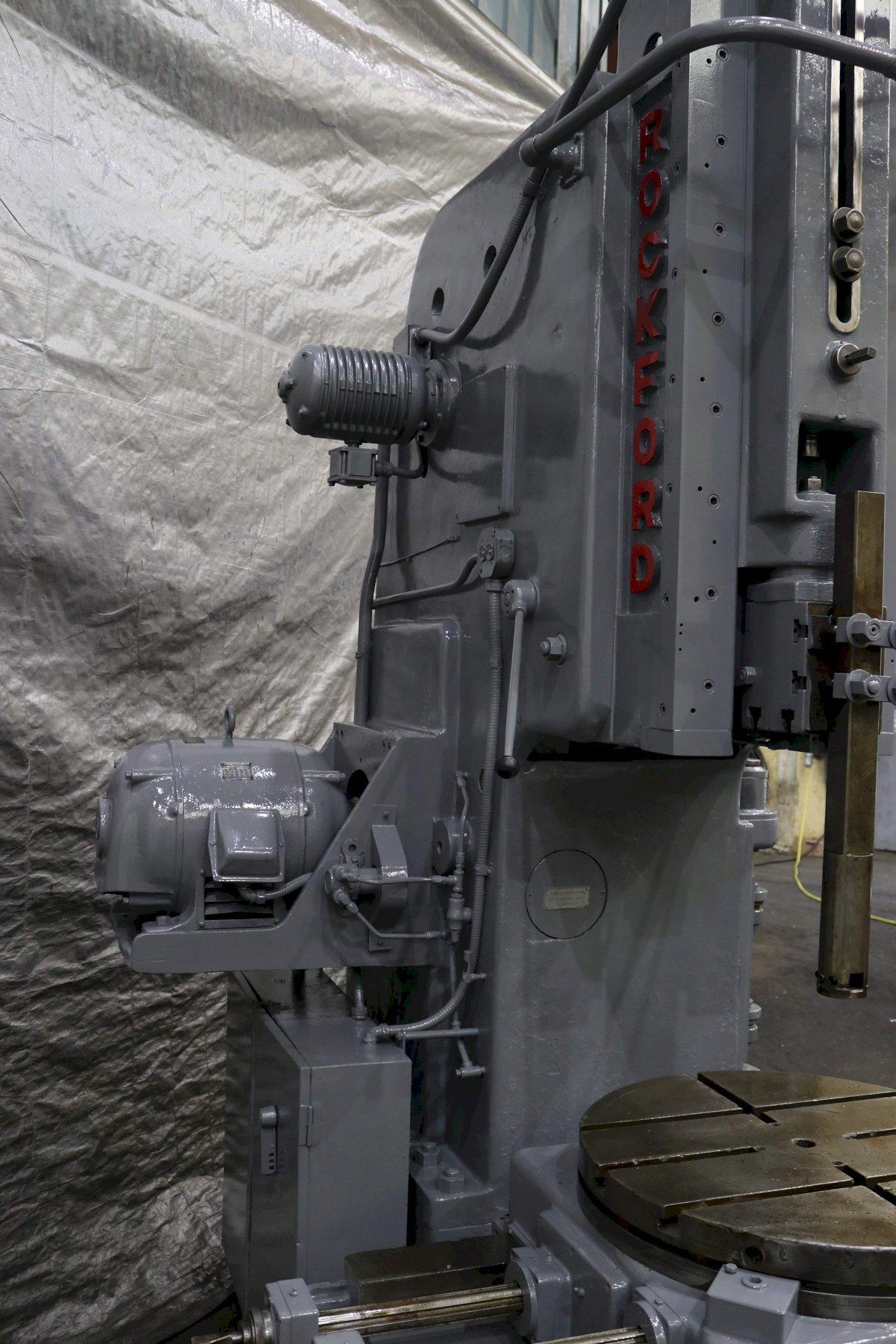

MAIN MOTOR ........................ 7.5 HP
