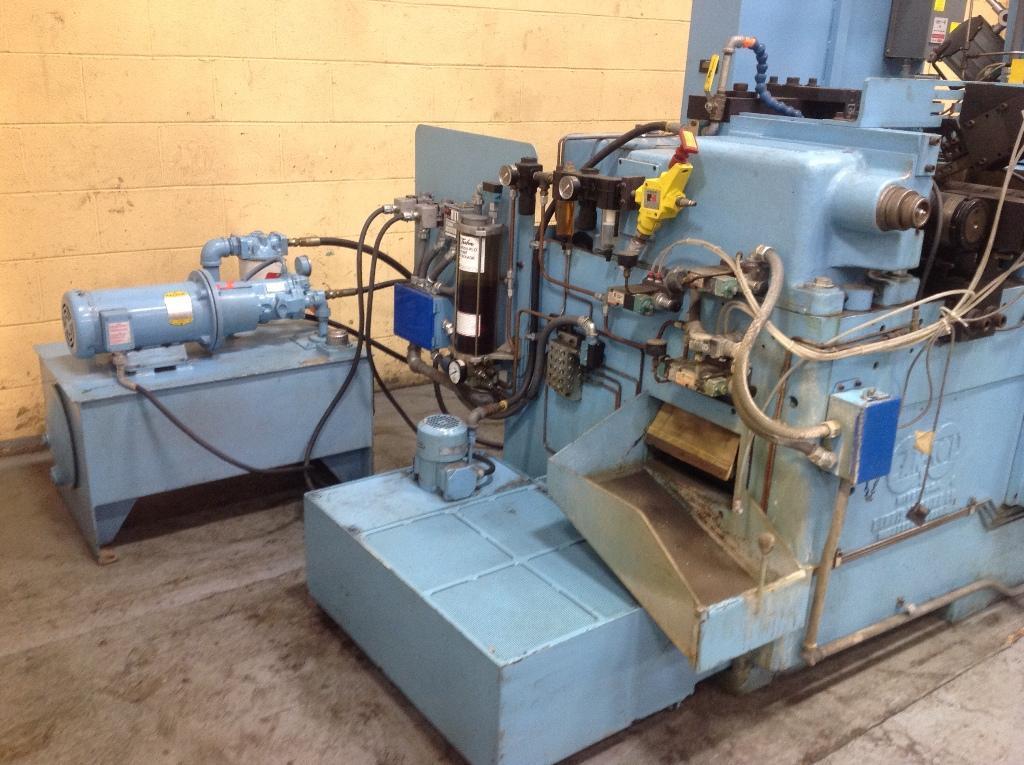

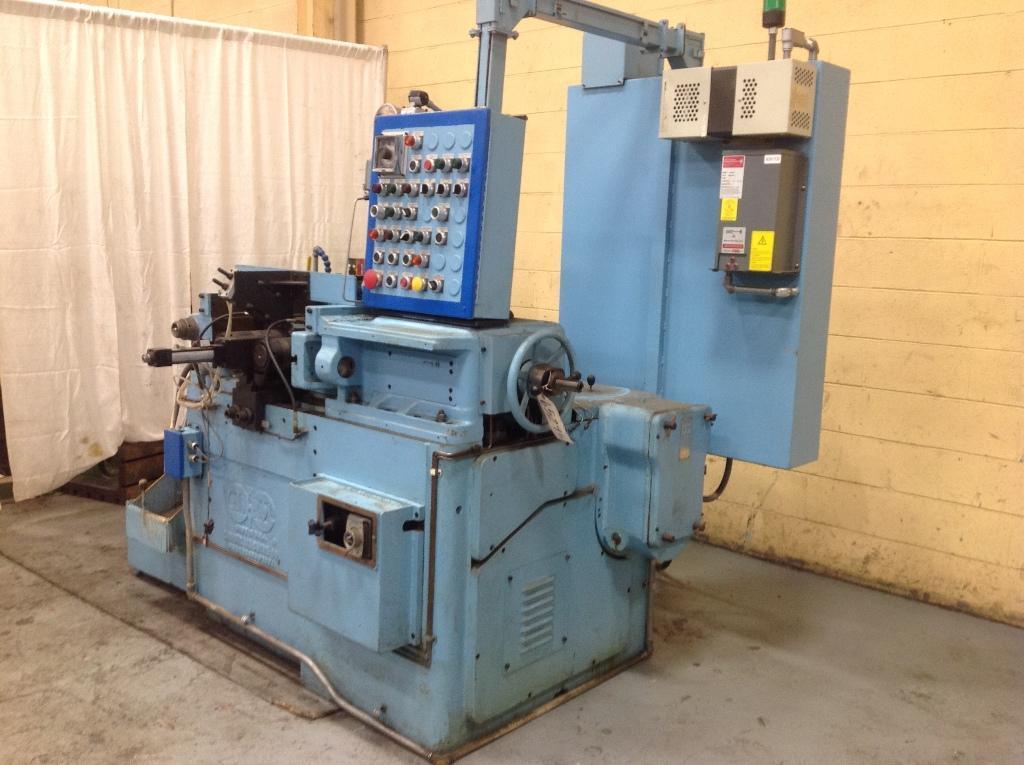

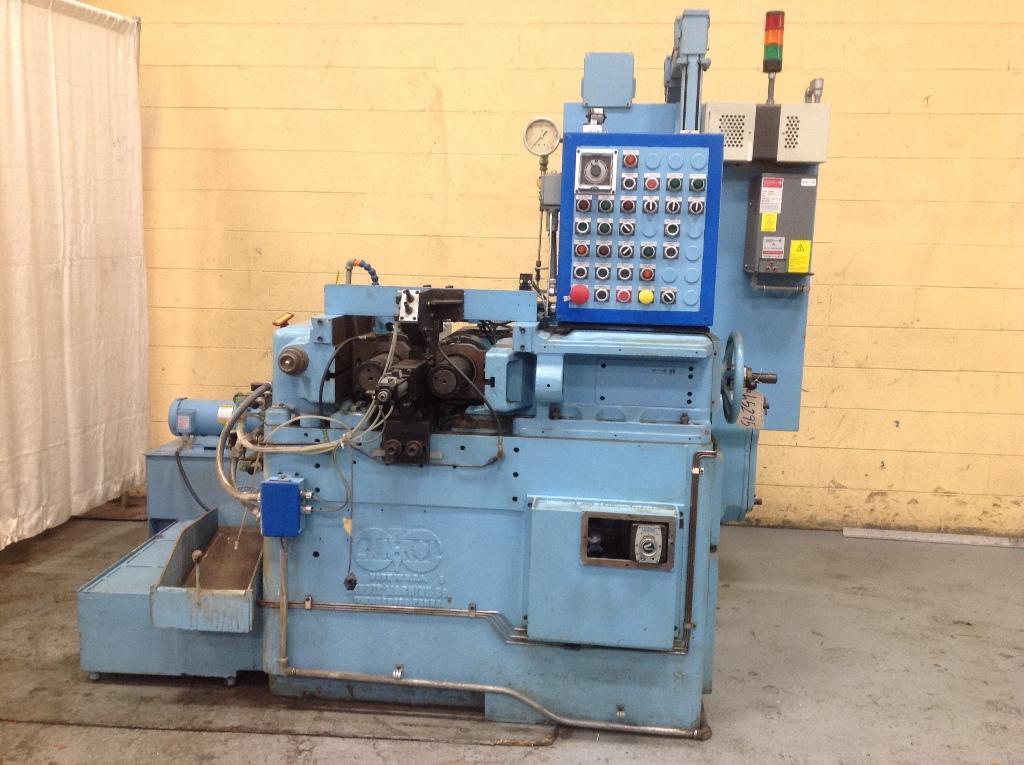

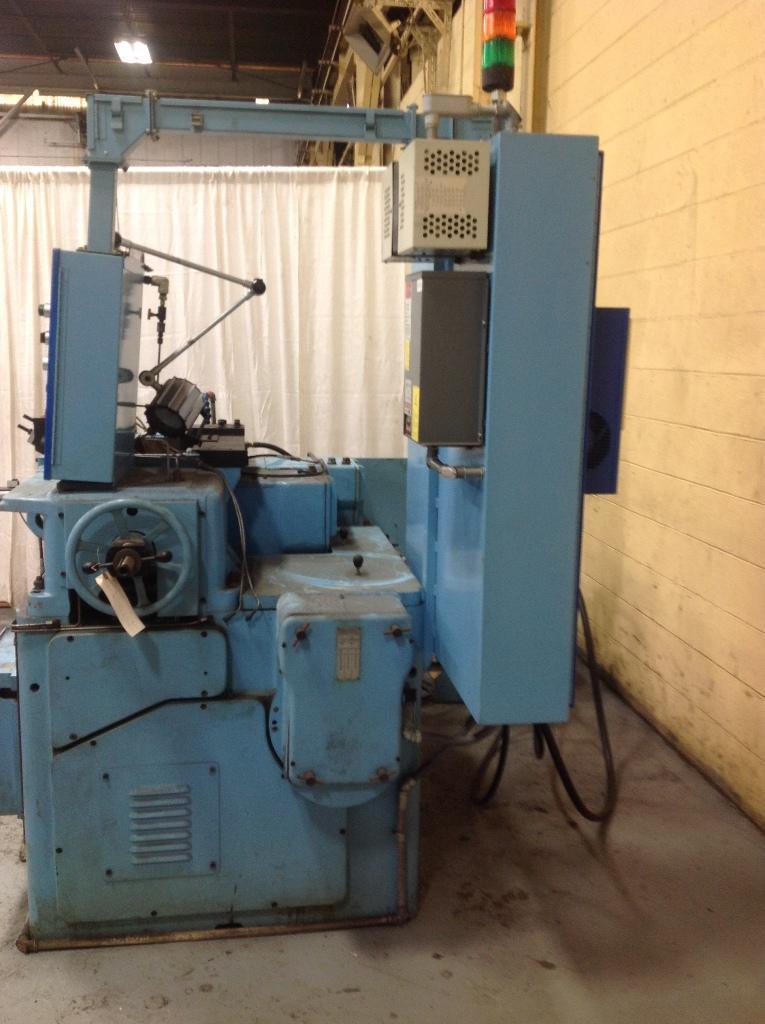

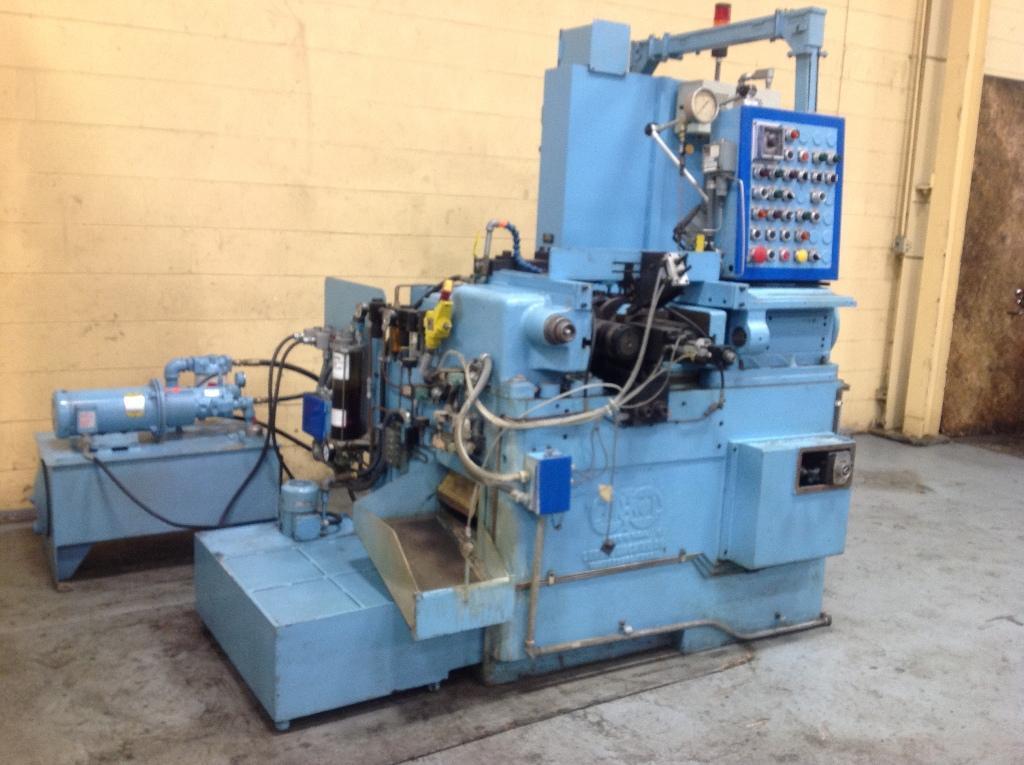

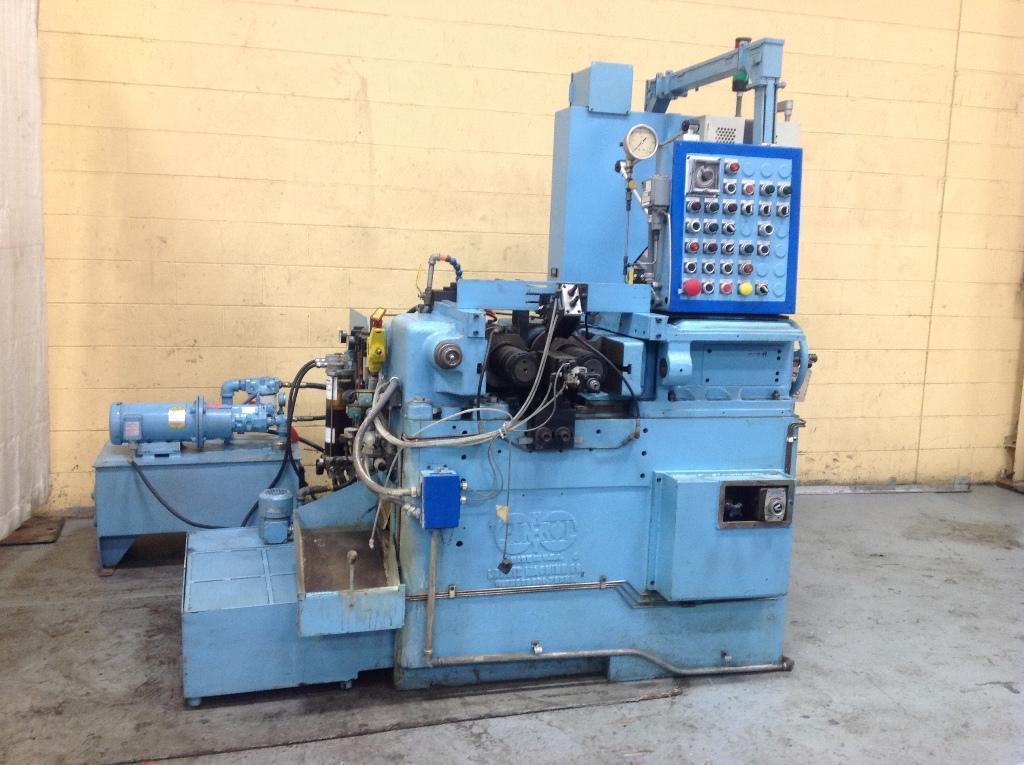

3" LANDIS LANHYROL 2-ROLL EXTENDED SPINDLE THREADING & FORM ROLLING MACHINE: STOCK #65295

Manufacturer

LANDIS

Stock

65295

Model

03

Dealer Location

Ohio

Spec Sheet



MODEL ............................... LANHYROL

CAPACITY:
MIN DIAMETER OF WORK ................ 0"
MAX DIAMETER OF WORK ................ 3"
DIAMETER OF WORK (SPECIAL) .......... 4"
FINEST PITCH (UN OR AN) ............. 48 THREADS PER IN
COARSEST PITCH (UN OR AN) ........... 2 THREADS PER IN
COARSEST PITCH (ACME) ............... 4 THREAD PER IN
COARSEST PITH (WORM THREAD) ......... 7 DIA PITCH OR EQUIVALENT

MAX ROLL DIAMETER ................... 8-5/8"
SPINDLE DIAMETER .................... 3"
LENGTH OF SPINDLE ................... 13-1/2"

SPINDLE SPEEDS ...................... 10
MAX AT 10 HP ........................ 126 RPM
MIN AT 10 HP ........................ 21 RPM

ROLLING PRESSURE:
VARIABLE TO MAXIMUM ................ 18 TONS

COOLANT PUMP MOTOR (STANDARD) ...... 1/2 HP
