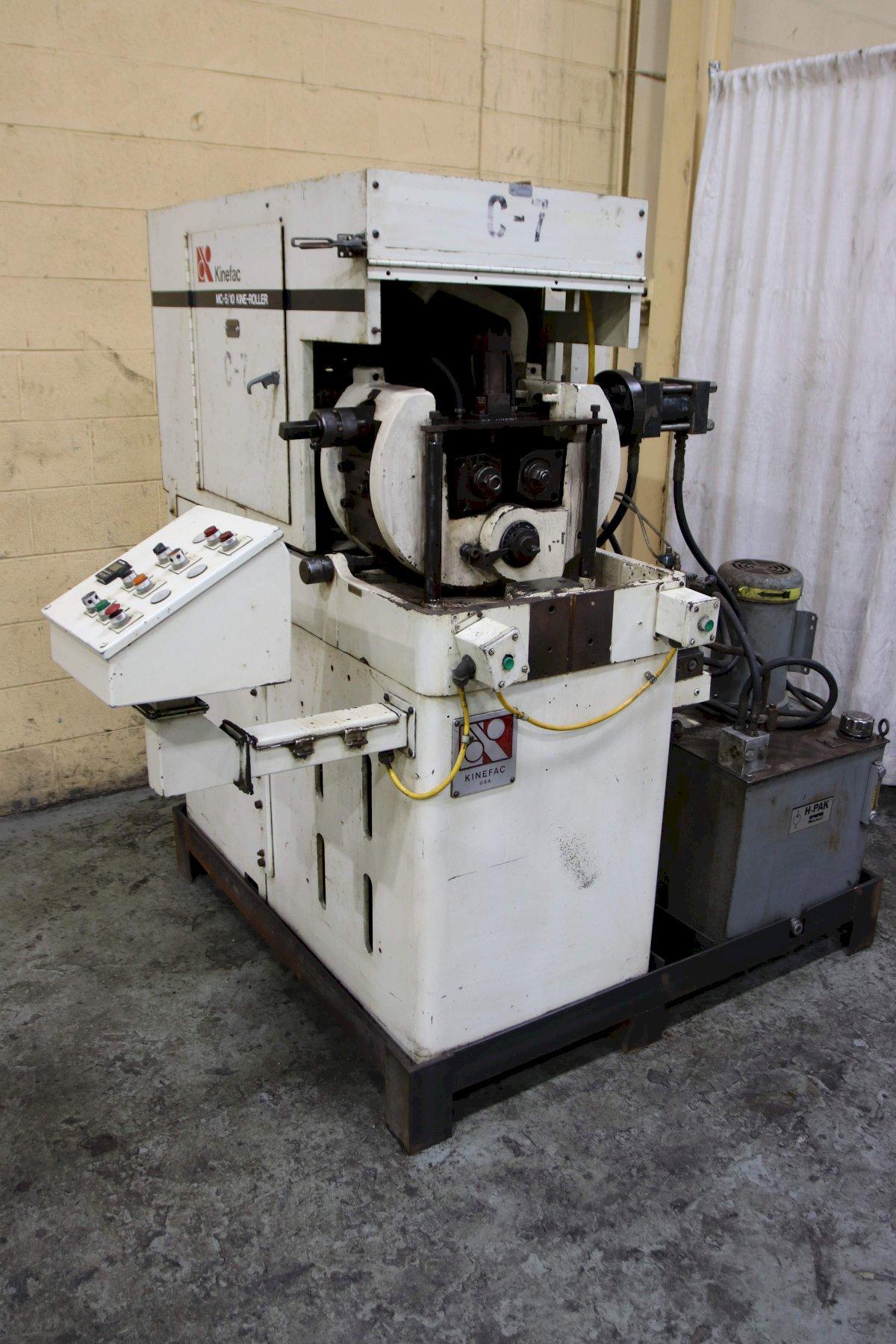

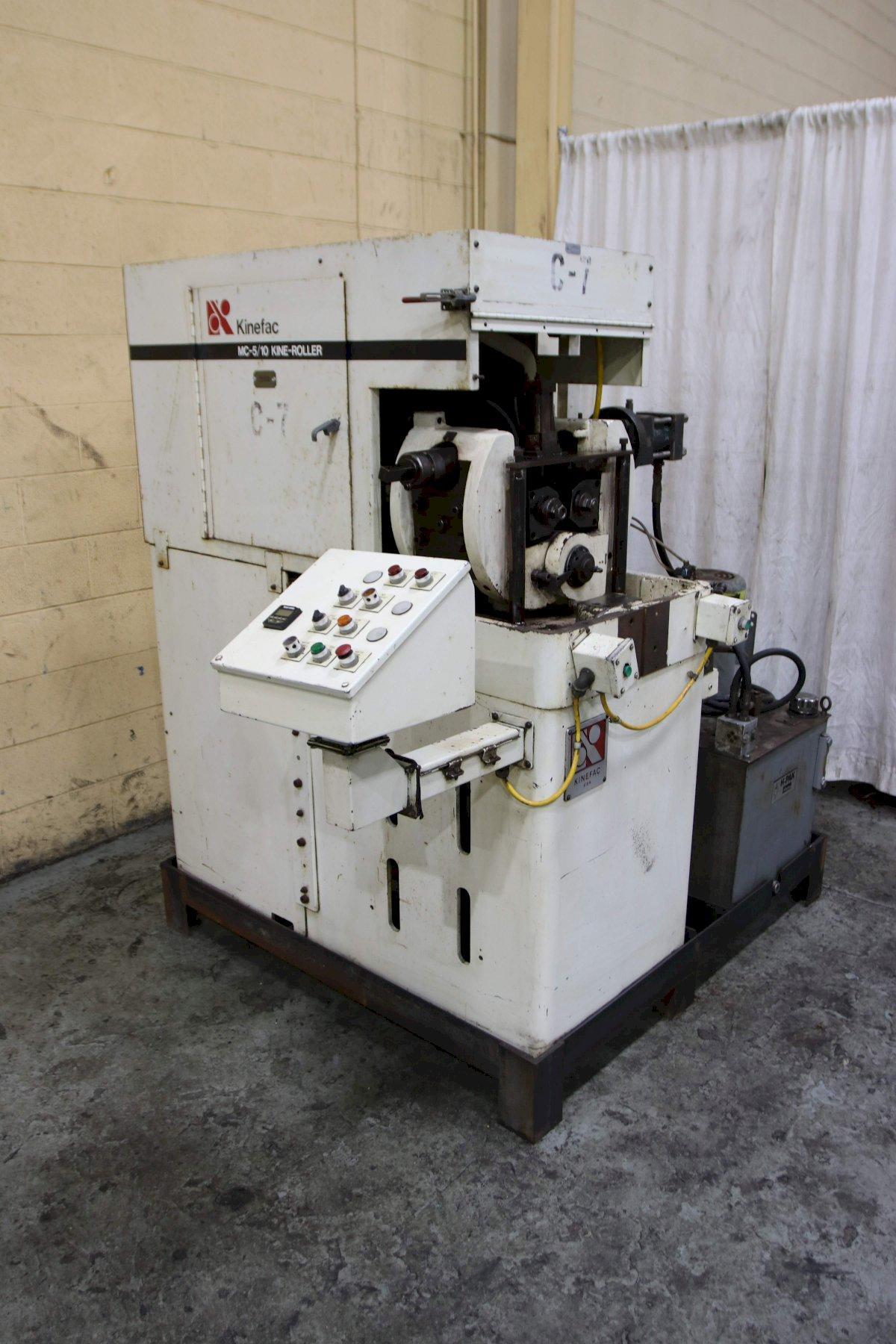

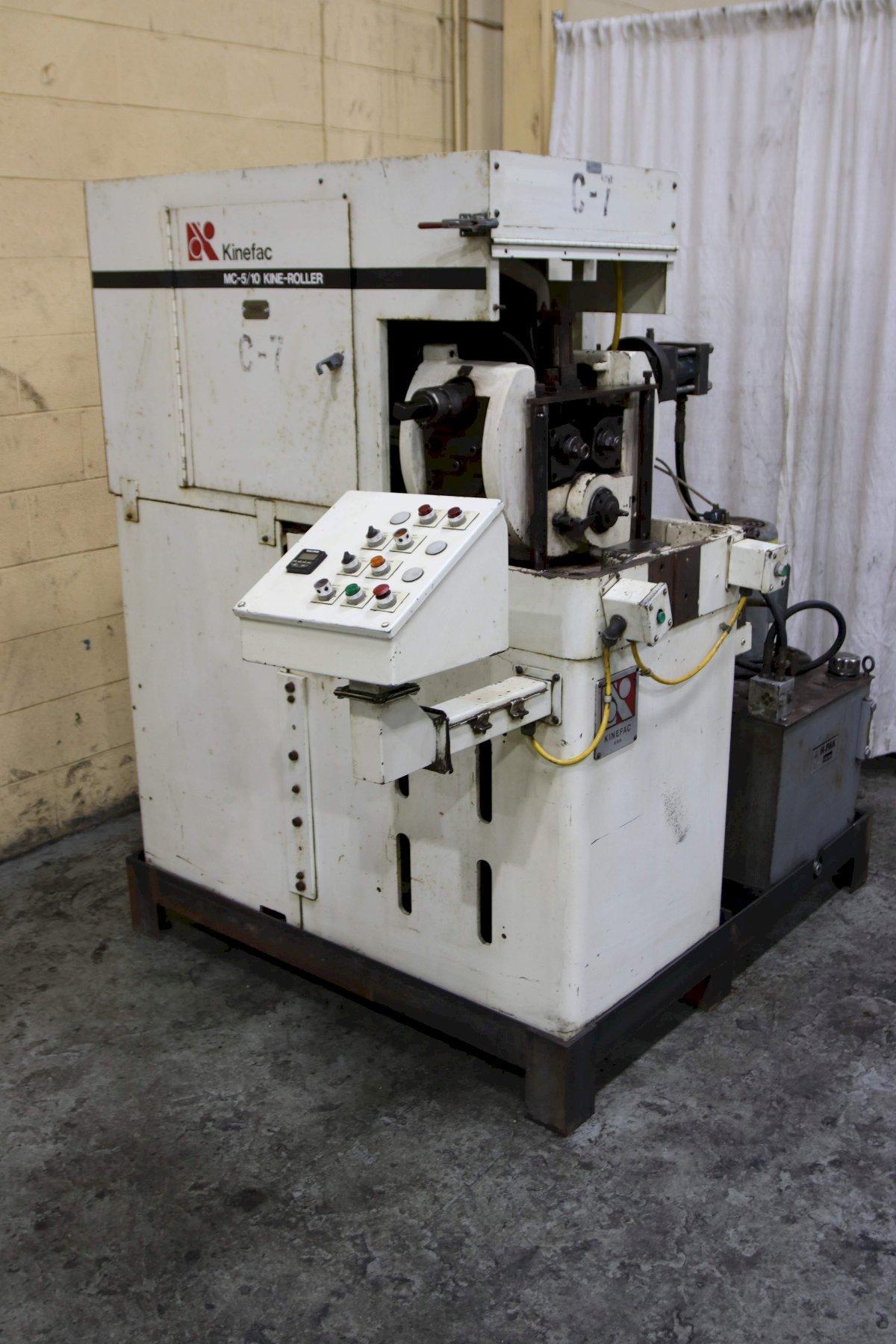

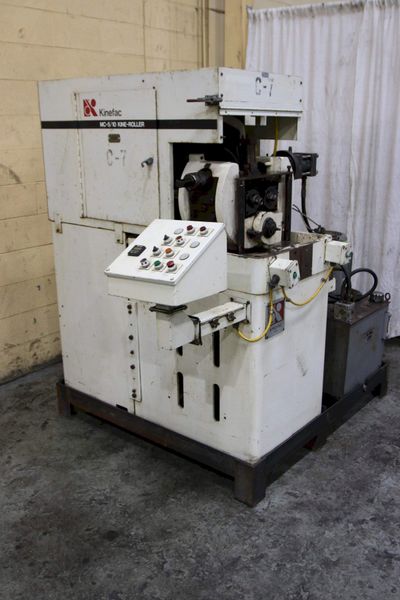

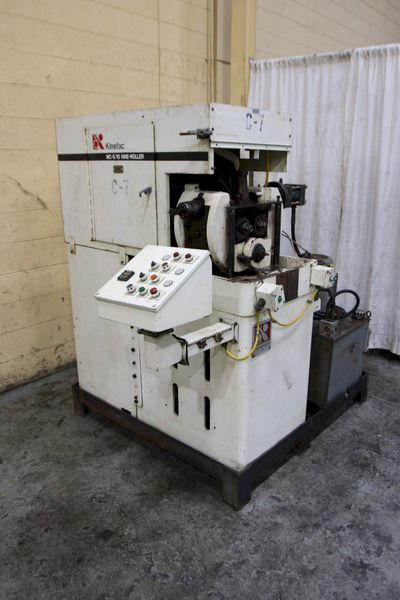

KINEFAC MODEL MC-5/10 KINE-ROLLER THREAD ROLLER: STOCK #71301

Manufacturer

KINEFAC

Stock

71301

Model

MC5/10

Dealer Location

Ohio

Spec Sheet



MODEL ......................... MC 510
Serial No. 098R Rebuilt & Retrofit: 1998
Rolling Mode Capabilites In-Feed/Thru-Feed
Thru-Feed Diameter - Maximum 2 1/4"
In-Feed Diameter - Maximum 1 1/2"
Recommended Part Diameter for Coarse Threads - Maximum
(Continuous Production) 1" UNC
In-Feed Work Length - Maximum 2 1/4"
In-Feed Work Length with Axial Match 2 1/4"
Adjustable Skew 0 to 5 Degrees
Cyclical Actuation Rate (Variable) - Maximum 30/Minute
Applicable Radial Die Load - Maximum 57,600 LBS.

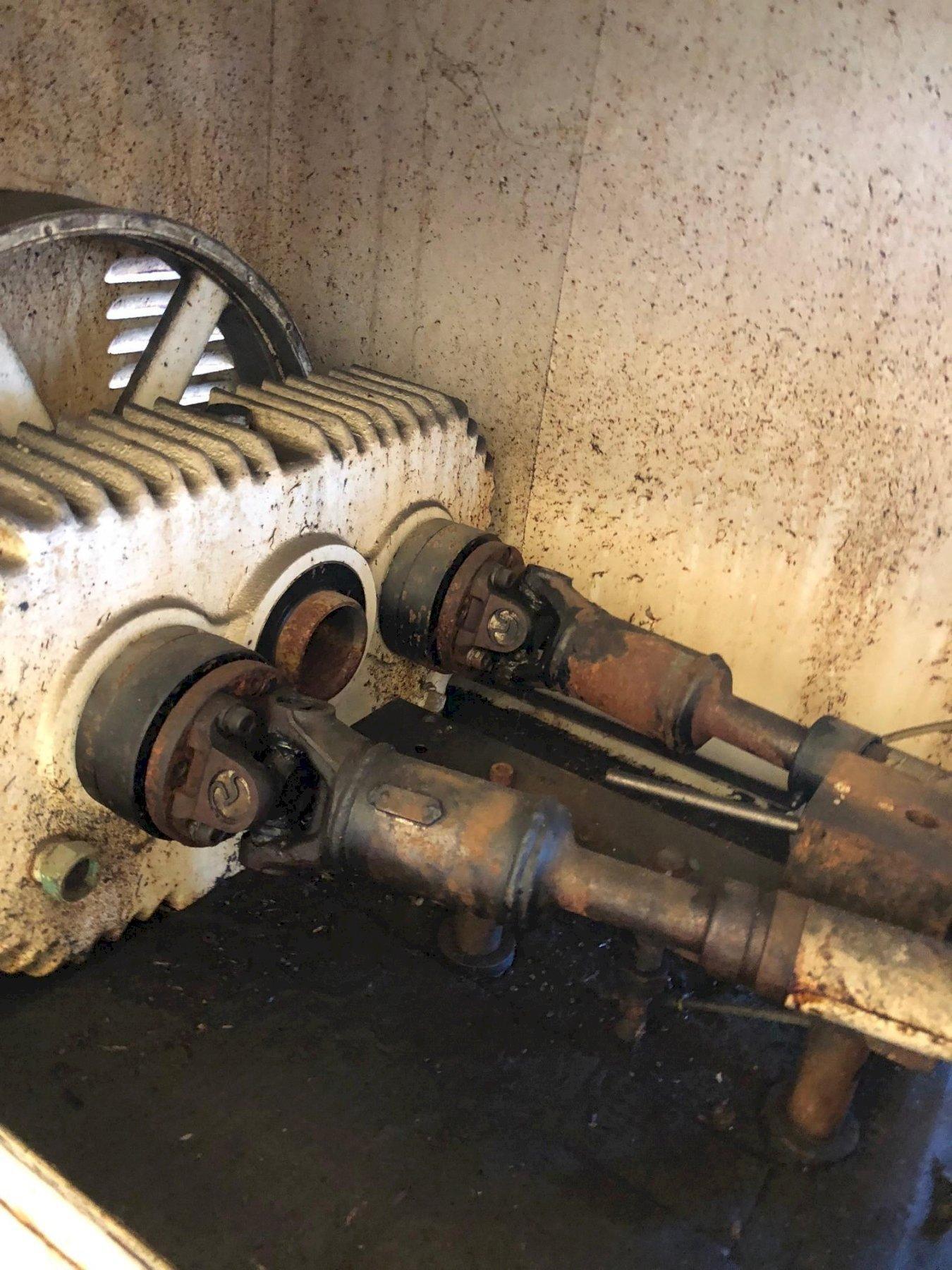

Allen Bradley SLC500 PLC MC5/10 Spindle Drive Conversion

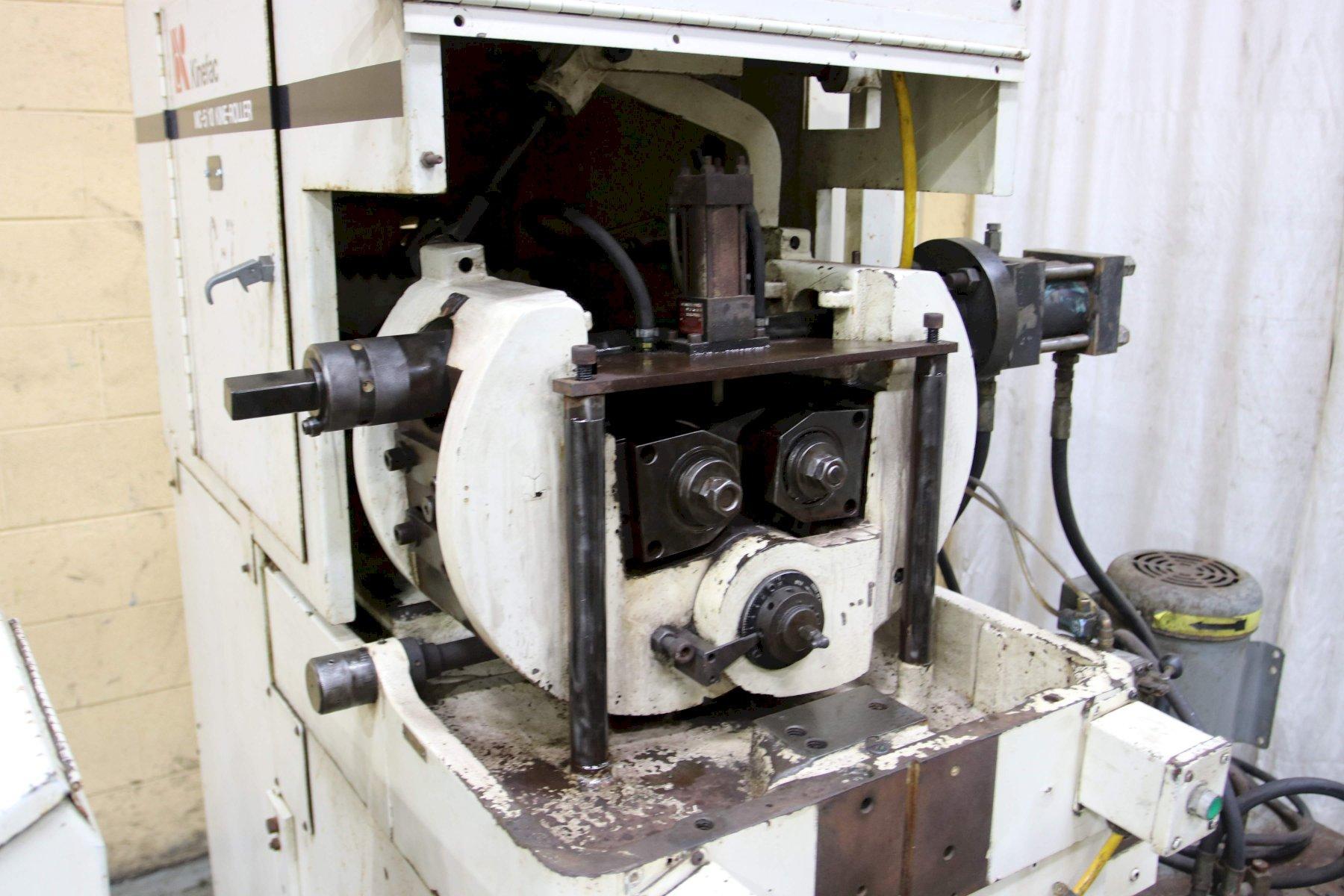

Skewable Spindles Capable of Thru-Feed or In-Feed Work
Reversing Switch for Die Rotation

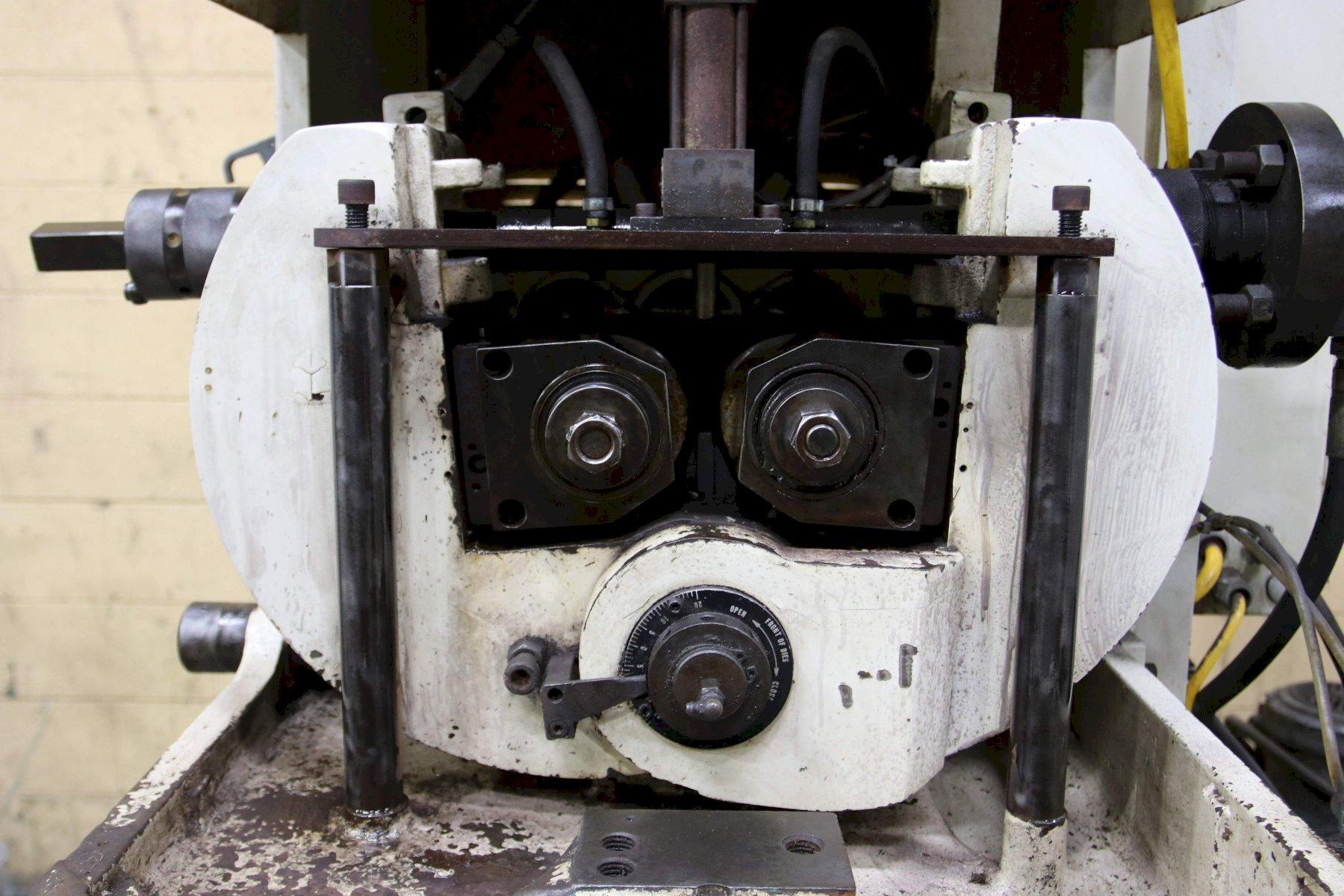

Rotary Die Matching for Phasing of Dies
Double Acting Arm Control System
Kine-Mat Pneumatic Rod & Part Feeder:
Maximum Operating Rate - One Piece per Cycle 120 Parts/Min.
- Two Pieces per Cycle 240 Parts/Min.
#10-24 V-Bolt Blank, 4" Long Rolled at 120 Parts/ Min.
1/4-20 J-Bolt Blank, 7" Long at 160 Parts/Min.
