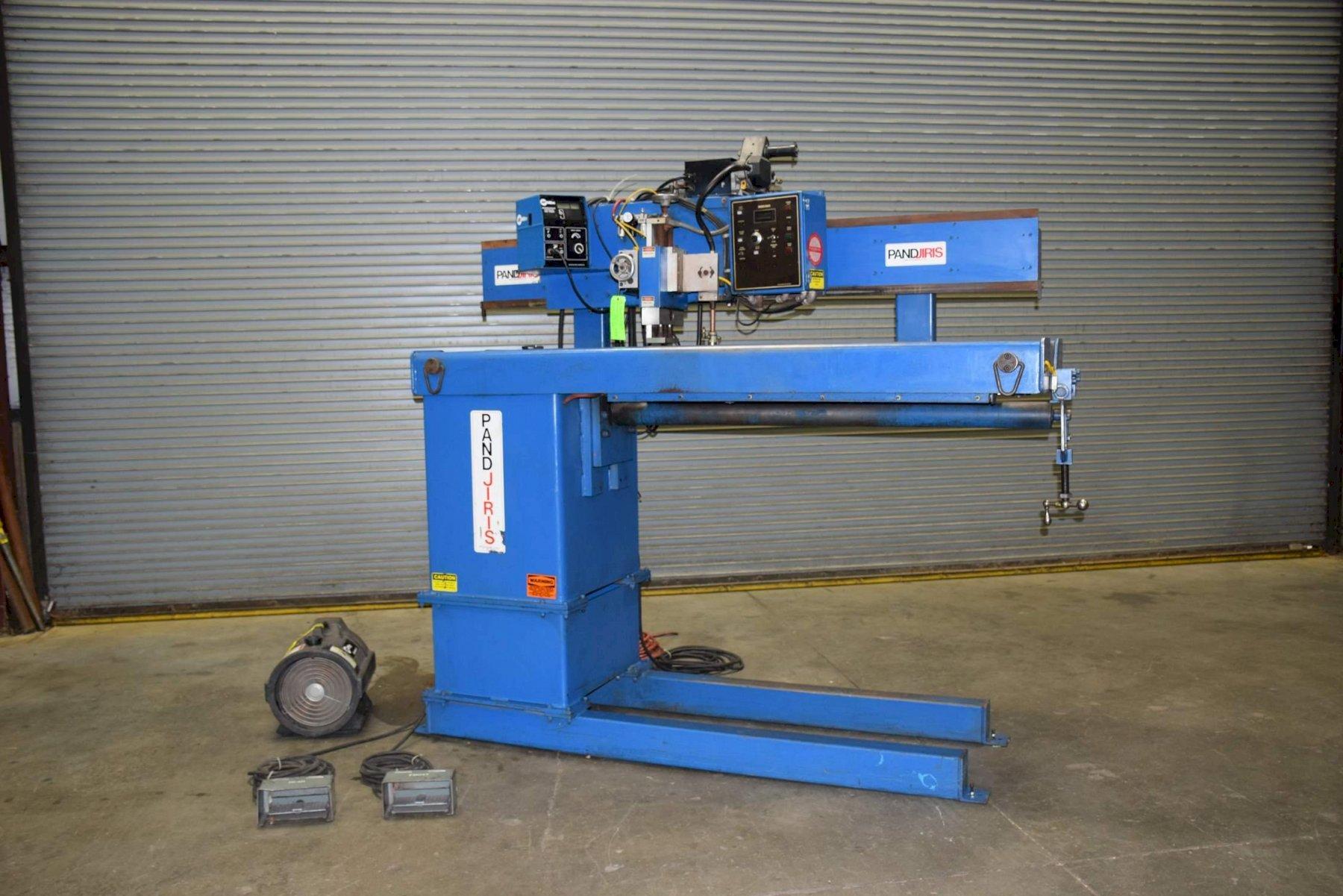

48' PANDJIRIS SEAM WELDER: STOCK #66756

Manufacturer

Category

Welding Machines

Type

WELDERS, CIRCUMFERENTIAL, (Seam)

Stock

66756

Model

04

Dealer Location

Ohio

Request a Quote
View Contact Information

Spec Sheet

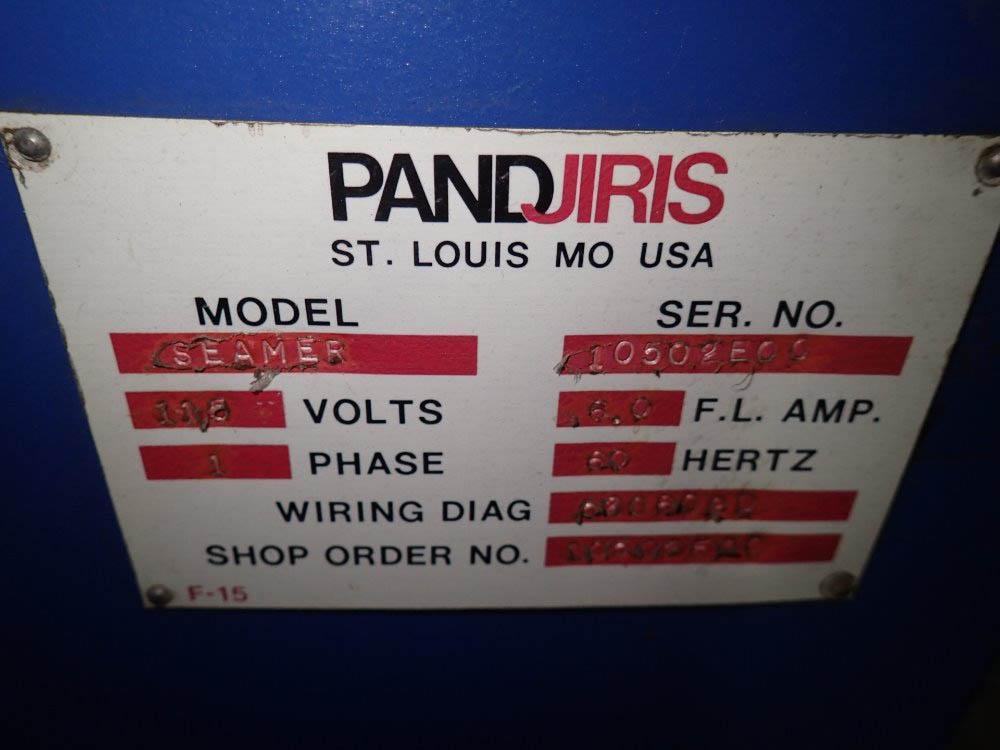

SERIAL ...................................... 10502E00
MODEL ....................................... SEAMER
TOTAL WELDING LENGTH ........................ 48"
TOTAL CLAMPING LENGTH ....................... 54"
EXTERNAL DIAMETER CAPACITY .................. 4" - 48"
WIDTH OF ALUMINUM HOLD DWON FINGERS ........  3" AIR ACTIVATED
RACK AND PINION CARRIAGE .................... 3 TO 116 IPM
MANUAL VERTICAL SLIDE ....................... 4"
MANUAL HORIZONTAL SLIDE ..................... 3"
TORCH LIFTER ................................ 4" AIR
DUAL PNEUMATIC FOOT PEDAL CLAMPING .......... YES
PANDJIRIS M - VSC WELD SEQUENCER CONTROL .... YES
WATER COLLED MANDREL ........................ YES
180 DEGREE AUTOMATIC WATER COOLED MIG GUN ... YES
PLATE ALIGNMENT DEVICE ...................... YES
MILLER S-64M MIG CONTRAL AND FEEDER ......... YES
MILLER COOLMATE 4 WATER CIRCULATOR .......... YES
