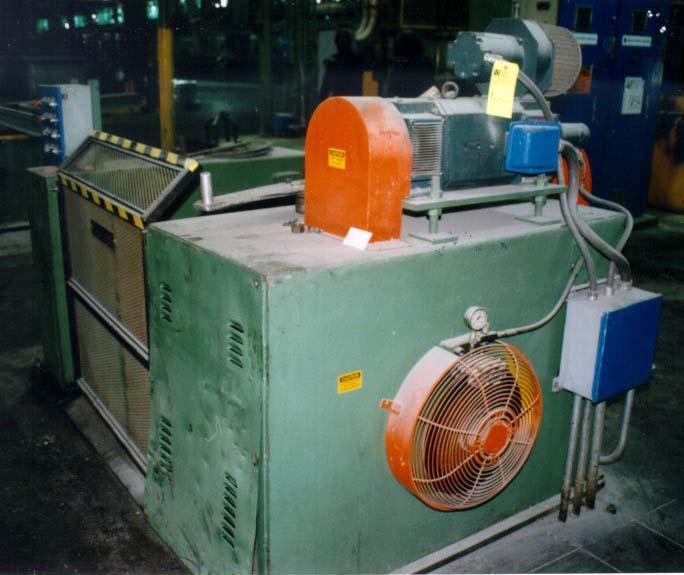

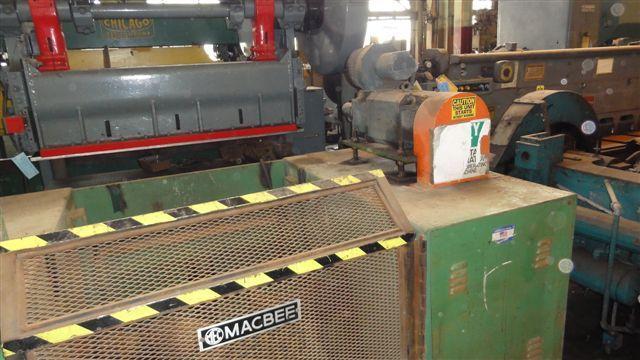

4000 LB SPOOLER PAYOFF SPOOL TYPE MACBEE COIL: STOCK #12277

Manufacturer

MACBEE

Category

Wire Machines

Type

WIRE CLEANING MACHINERY

Stock

12277

Model

None listed

Dealer Location

Ohio

Request a Quote
View Contact Information

Spec Sheet



SERIAL ............................. 5538995
MODEL .............................. 9509
COPPER WIRE CAPACITY ............... 6 - 16 GA
SPEED .............................. 1000 FPM
SPOOLS.............................. 22" TO 36"
SPOOL FLANGE ....................... 30"
COPPER WIRE CAPACITY ............... 6 TO 16 GUAGE
MOTOR .............................. 30 HP / 500 UDC / 1750/2300 RPM
FAN COOLED
DANCER ARM
LOOP CONTROL
TANK FOR LUBRICANTS
TRAVERSE ON THE TAKE-UP

ARBOR IS MOVED TO AND AWAY FROM SPOOL BY AN AIR CYLINDER.
LOADING IS ASSISTED BY A LIFT RAMP DESIGNED TO PAYOFF AT CONSTANT SURFACE
SPEED IN TANDEM WITH SPOOLER TAKEUP.

SPOOLER TAKEUP:
SERIAL ............................ 5539995
MODEL ............................. 4000 SPTY (9509)
COPPER WIRE CAPACITY .............. 6 - 16 GA

EQUIPPED WITH:

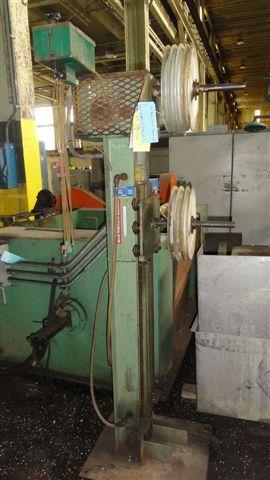

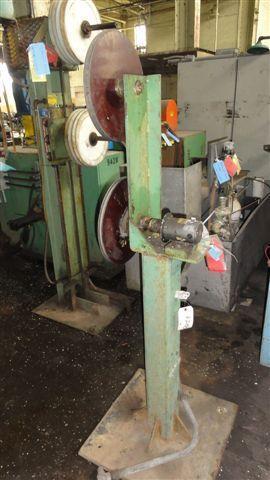

ANCOIL TRAVERSING WIRE GUIDE & TENSION STAND

SERIAL ............................ 5537995
MACBEE MODEL ...................... 10293

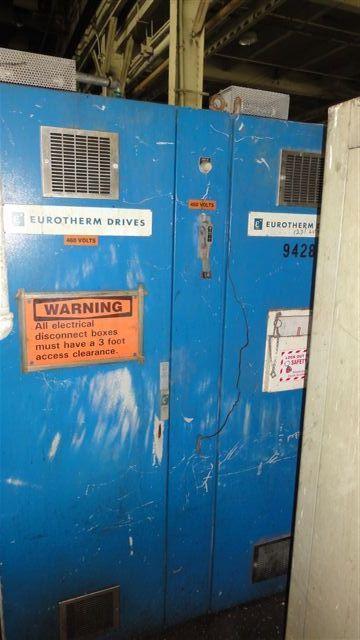

EUROTHERM CONTROL PANEL:
SETUP TO RUN ON 460 VAC

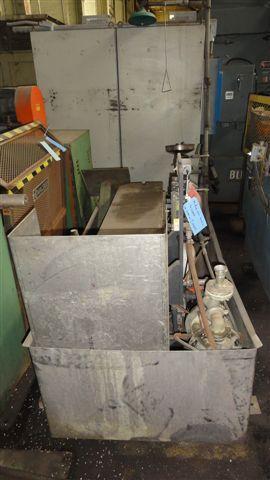

CLEANING TANK:
ACID AND WATER ZONES WITH FLOW CONTROLS & AIR KNIVES FOR ACID & WATER
