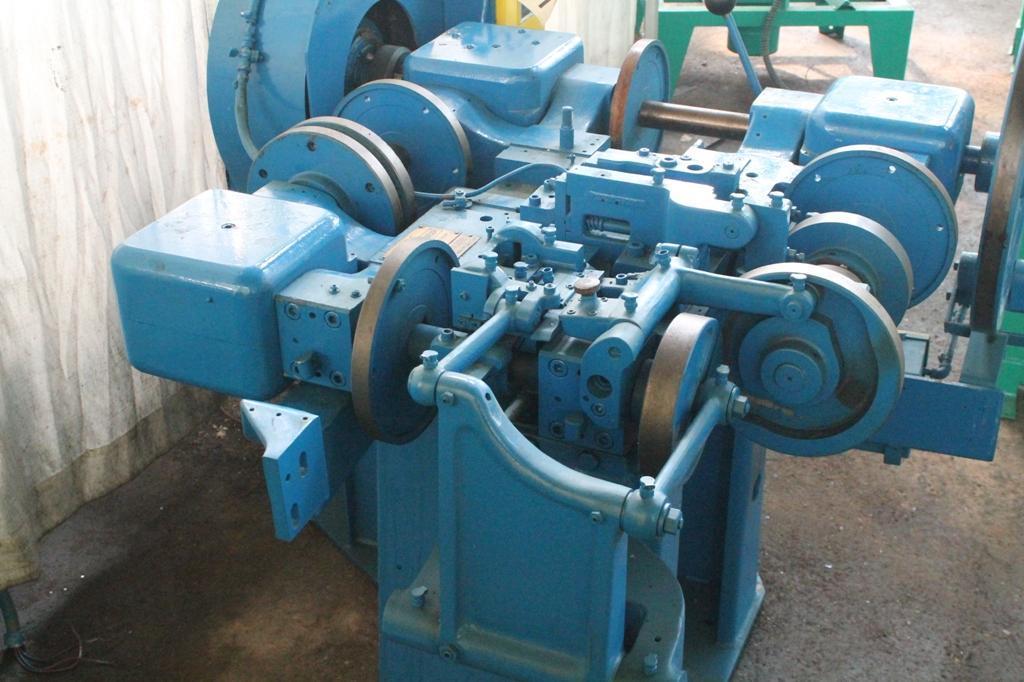

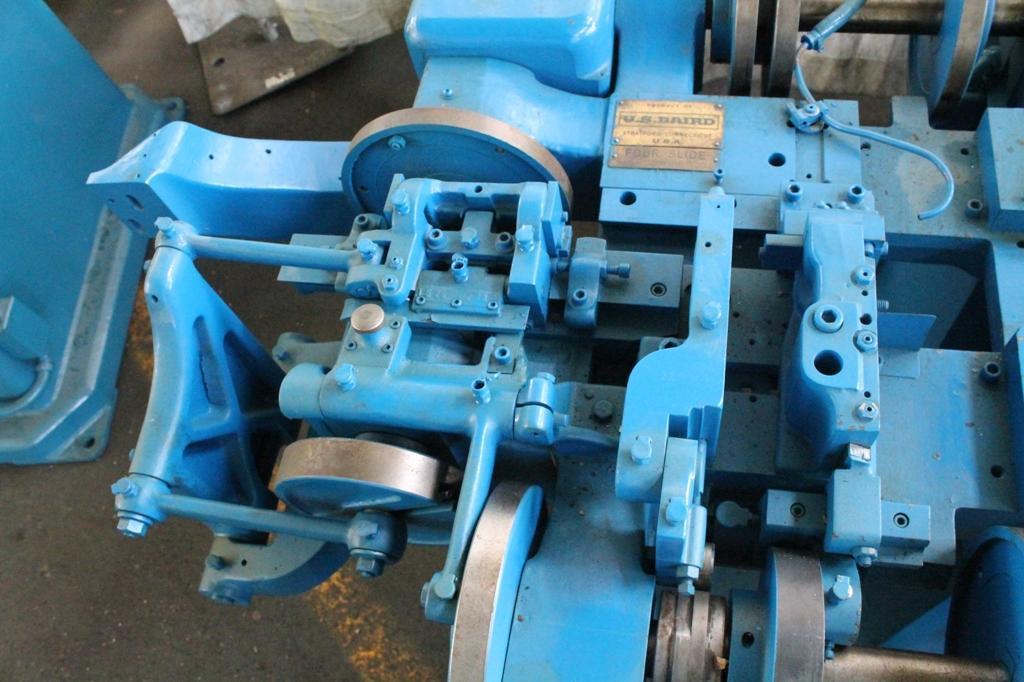

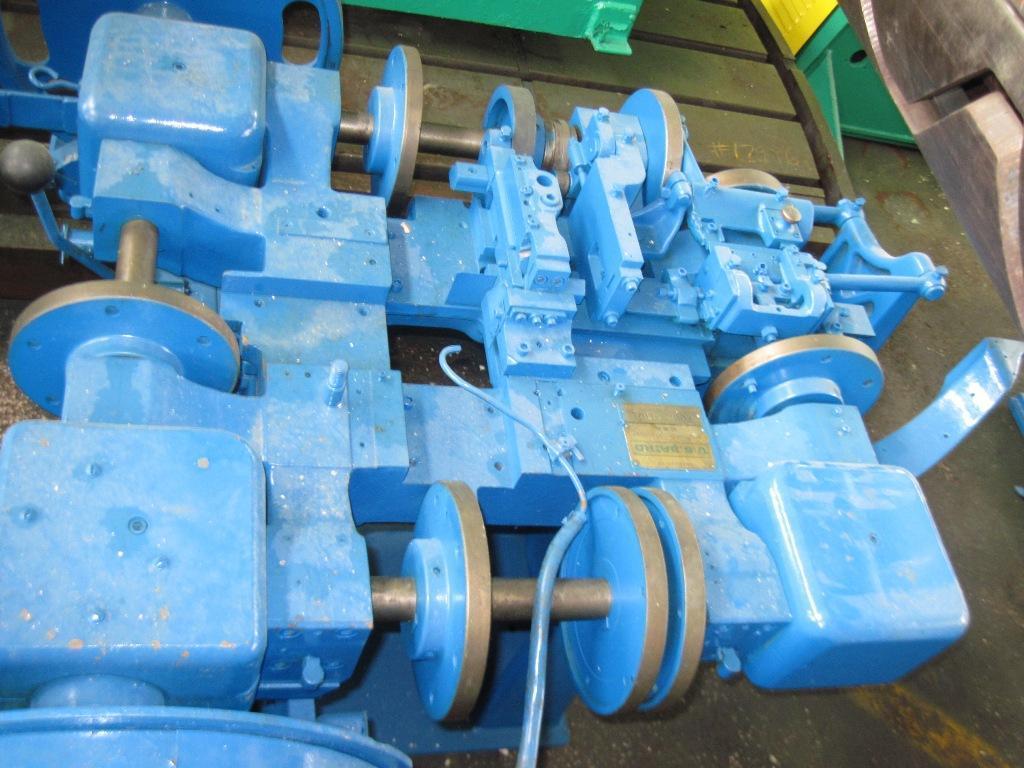

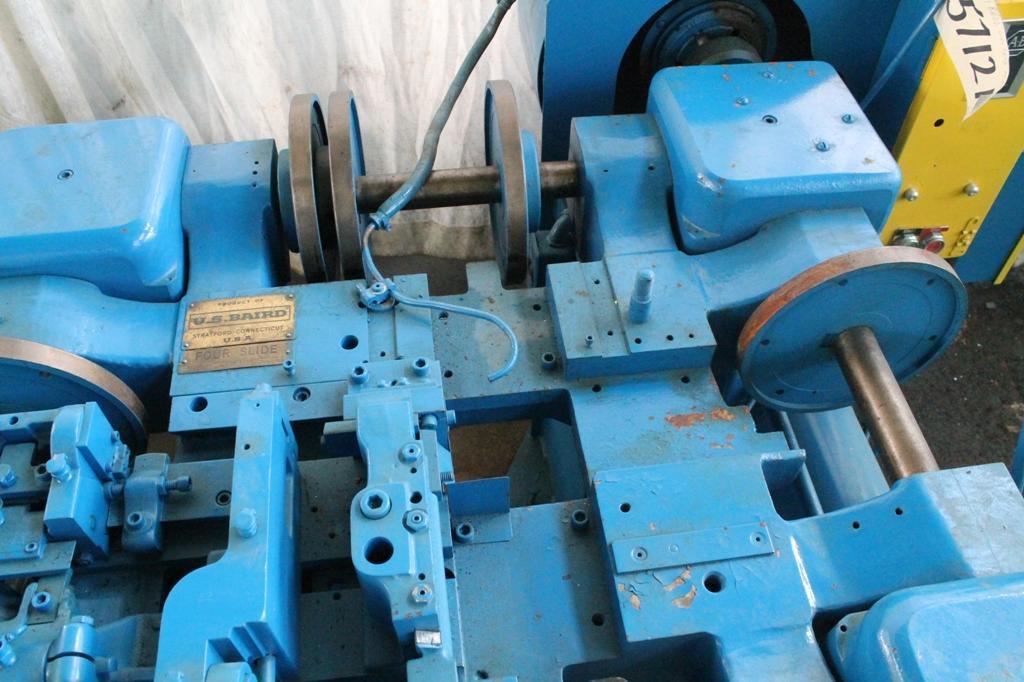

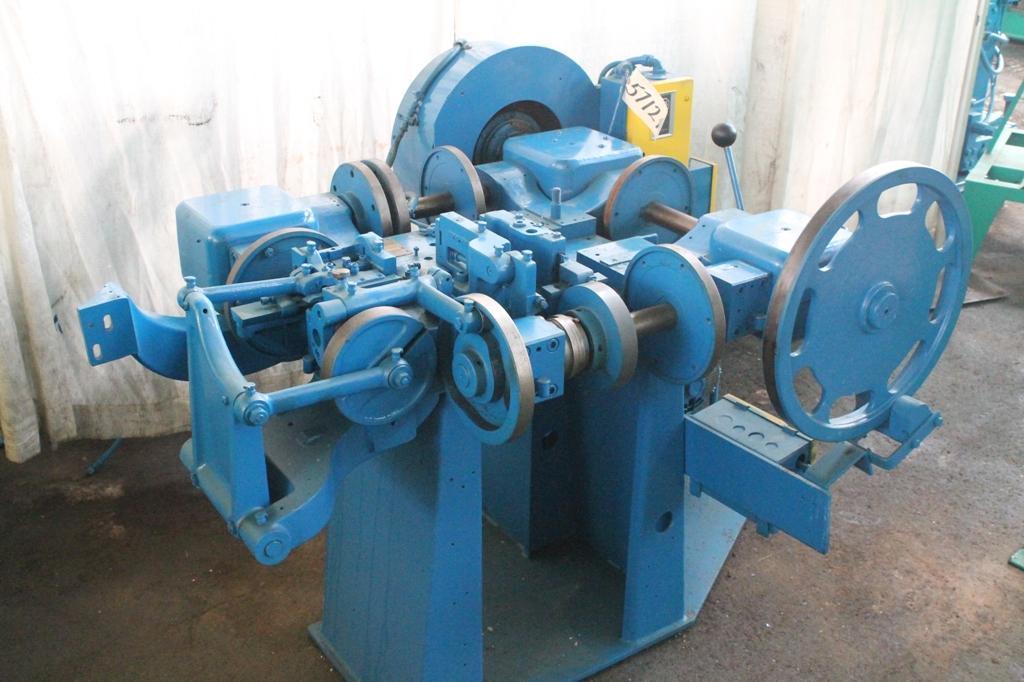

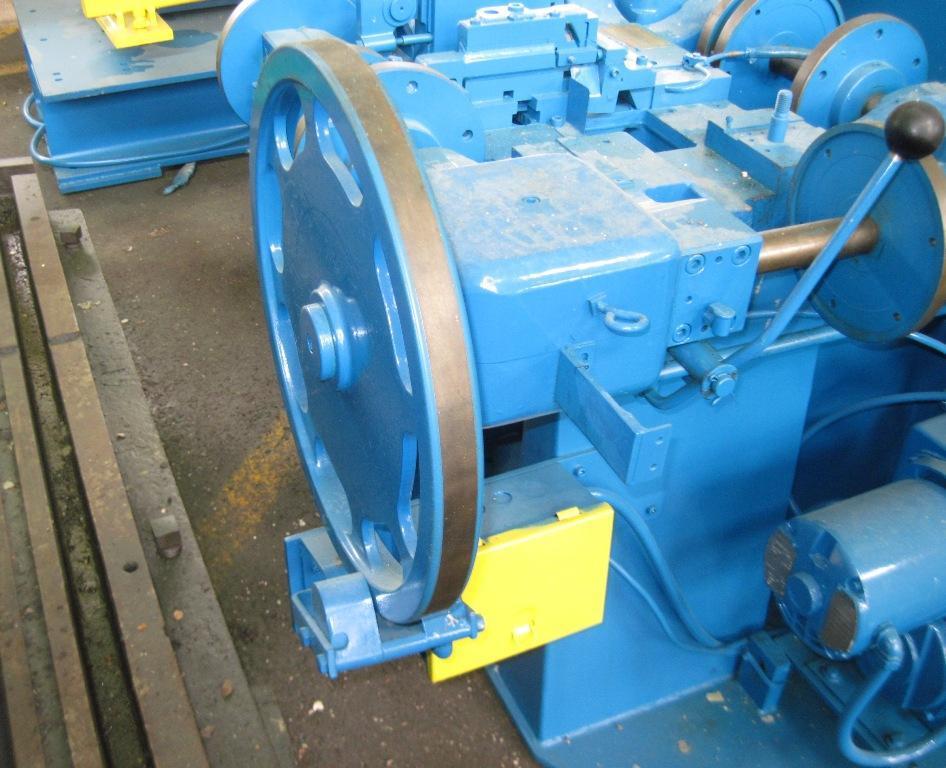

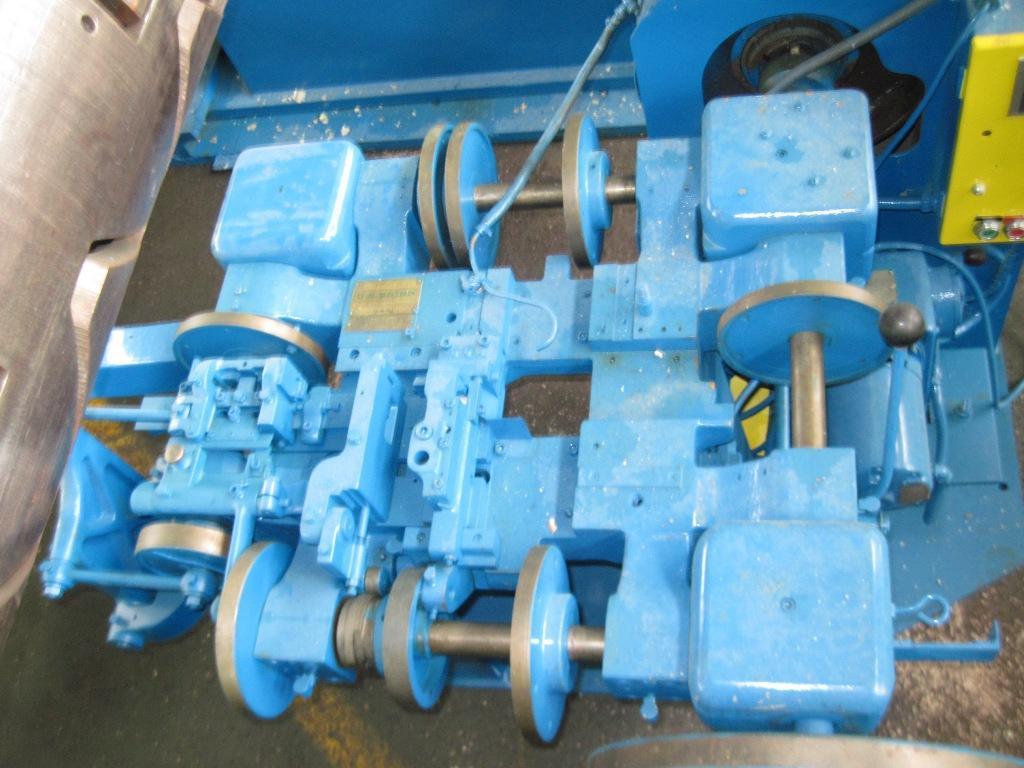

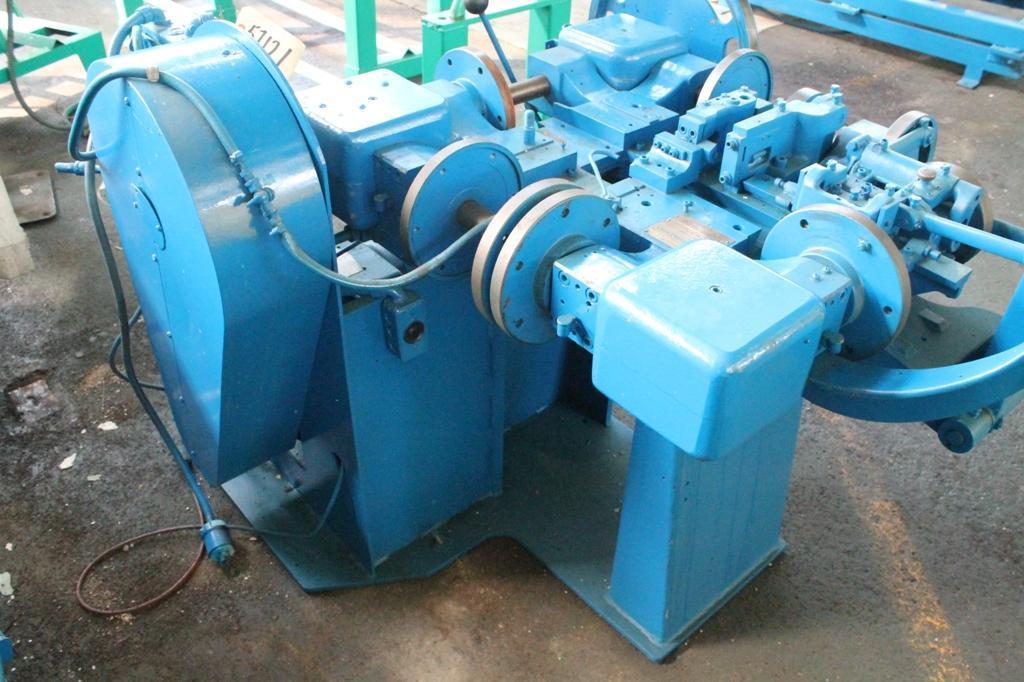

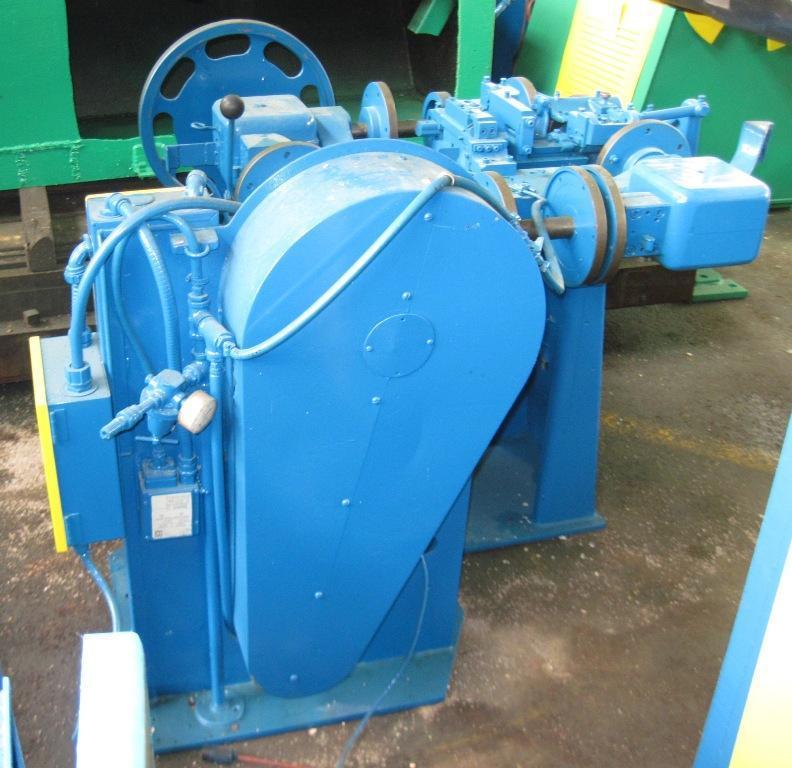

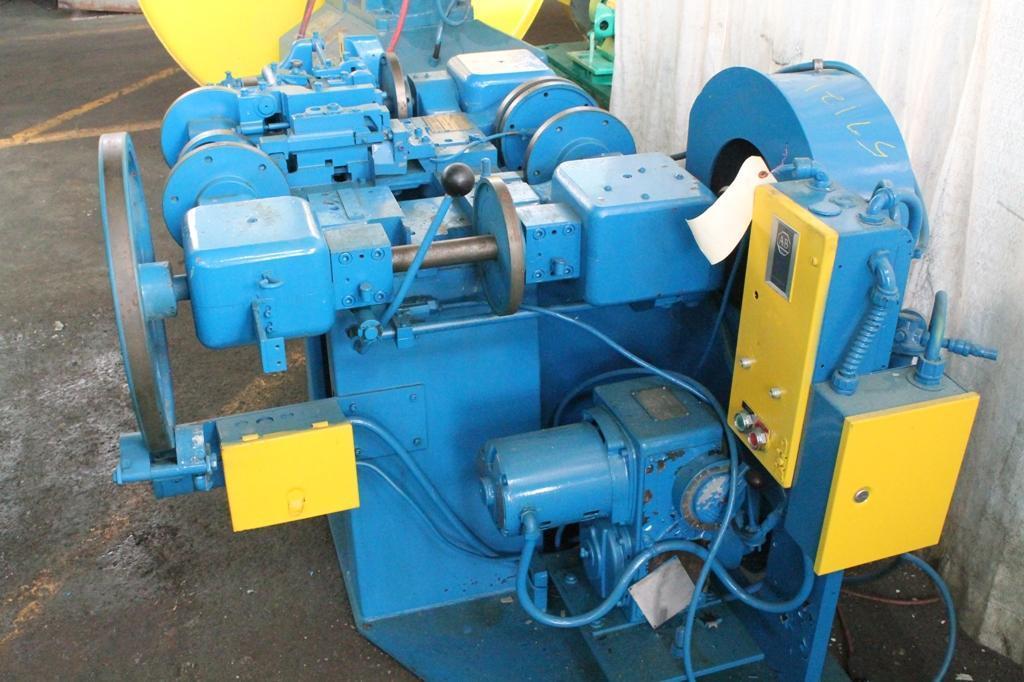

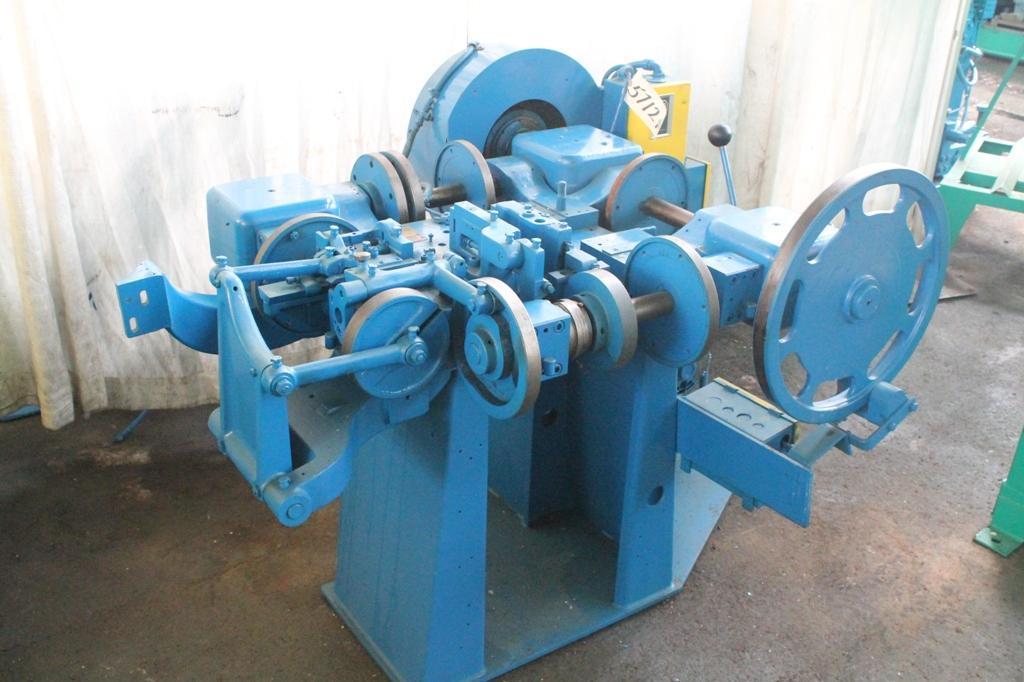

U S BAIRD MODEL #1 FOUR SLIDE WIRE FORMING MACHINE: STOCK #57121

Manufacturer

Category

Wire Machines

Type

WIRE MACHINERY, FORMING

Stock

57121

Model

1

Dealer Location

Ohio

Request a Quote
View Contact Information

Spec Sheet



SERIAL ........................................... 11003-101
MODEL ............................................ 1
SOFT STEEL WIRE MAXIMUM DIAMETER ................. 3/32"
STANDARD WIDTH RIBBON METAL ...................... 3/4"
SIZE OF ROLL STRAIGHTENER USED ................... #2
MAXIMUM FEED LENGTH USING FEED SLIDE STOPS ....... 6"
MAXIMUM FEED LENGTH NOT USING FEED SLIDE STOPS ... 7-1/4"
MAXIMUM DIAMETER OF RING THAT CAN BE SET ......... 3/4"

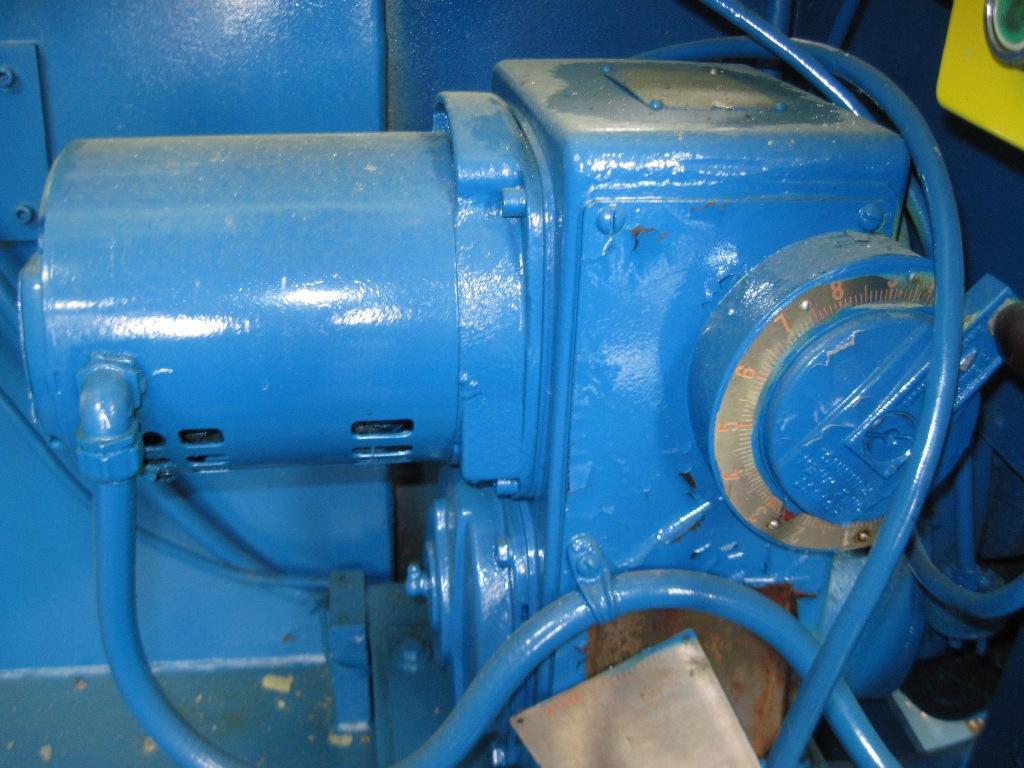

VARIABLE SPEED DRIVE OPERATING SPEED ............. 85 TO 255 RPM
STROKE WITH CAMS: FRONT SLIDE CAM ................ 1"
STROKE WITH CAMS: REAR SLIDE CAM ................. 7/8"
STROKE WITH CAMS: SIDE CAMS ...................... 1-5/8"
STROKE WITH CAMS:  VERTICAL ...................... 13/32" TO 57/64"
SIZE OF OPENING IN BED ........................... 4-3/4" X 4-1/2"
DIAMETER OF CAM SHAFTS ........................... 1-9/16"
EQUIPPED WITH STOCK CHECK, POSITIVE FEED, SPLIT CAMS, 2-PLANE STRAIGHTENER,
POSITIVE STOP CHECK, MECHANICAL CLUTCH, AIR BRAKE, BIJUR LUBRICATION
1 HORSEPOWER MAIN MOTOR
