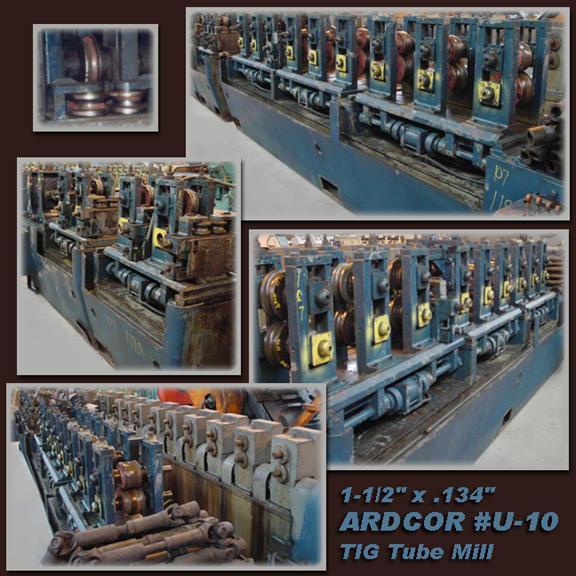

1-1/2' X .134' ARDCOR #U-10 TIG TUBE MILL: STOCK #14013

Manufacturer

Category

Tube Machinery

Type

TUBE MILLS

Stock

14013

Model

01.5

Dealer Location

Ohio

Request a Quote
View Contact Information

Spec Sheet



MODEL ............................ U-10
MAXIMUM TUBE DIAMETER ............ 1-1/2"
MINIMUM TUBE DIAMETER ............ 3/4"
MAXIMUM WALL THICKNESS ........... .134"
MINIMUM WALL THICKNESS ........... .034"
VERTICAL ADJUSTMENT .............. 4" - 8-5/8"
HORIZONTAL CENTERS ............... 16"
ROLL SPACE ....................... 6"
SPINDLE DIAMETER ................. 2"
CENTER OF LOWER SPINDLE TO BASE .. 7-1/2"
WORM GEAR RATIO .................. 14.5:1
FORMING MILL ..................... (6) DRIVEN BREAK DOWN STANDS
(3) DRIVEN FINE STANDS
+ CHAR(13) + CHAR(10) +
+ CHAR(13) + CHAR(10) +
WELDING .......................... (2) ROLL WELD PRESSURE
SEAM IRONING PASS
SIZING MILL ...................... (4) DRIVEN SIZING STANDS
(4) IDLE SIDE ROLLS
(2) 2-ROLL STRAIGHTENING UNITS
25 HP DC 500 VOLT MOTOR
TOOLING .......................... 1.315" ON MILL
