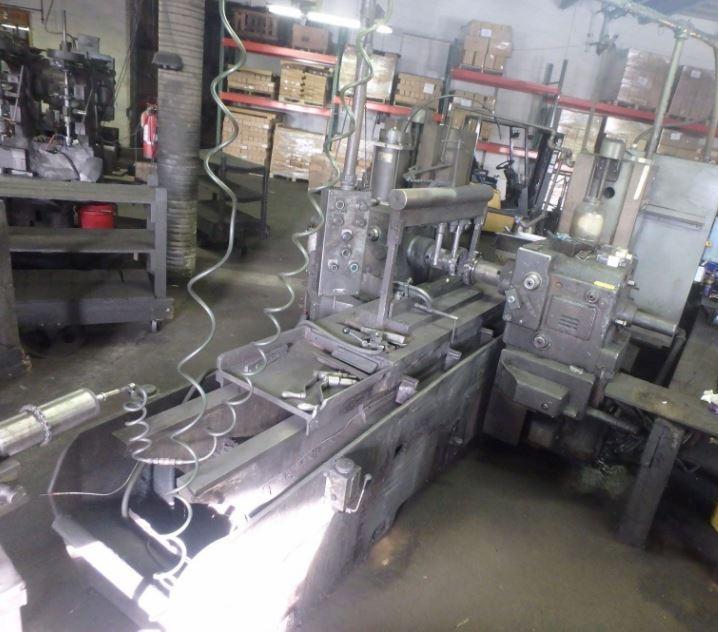

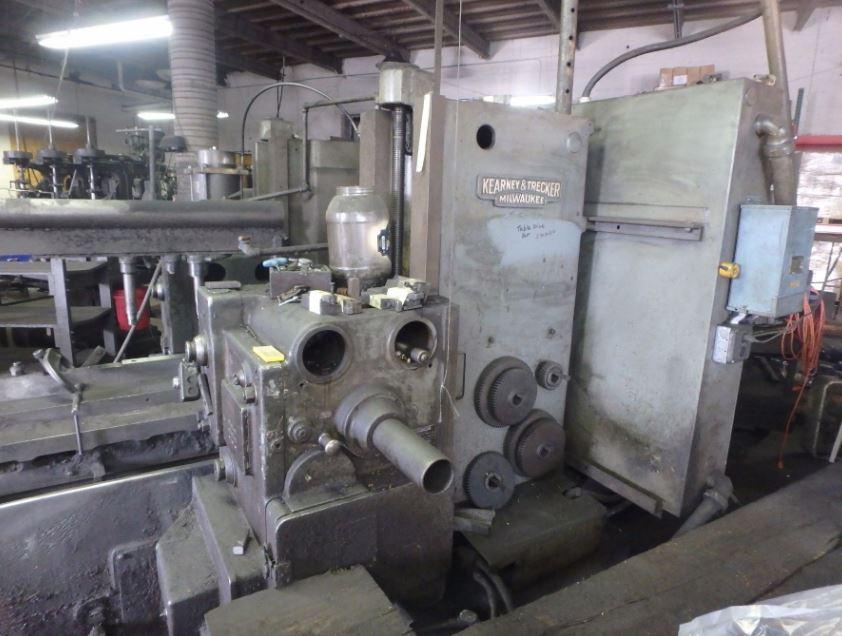

KEARNEY & TRECKER DUPLEX PRODUCTION MILL: STOCK #69102

Manufacturer

Stock

69102

Model

72' TRAVEL

Dealer Location

Ohio

Spec Sheet



SERIAL ............................. 2/9201
MODEL .............................. 2072B
AREA OF TABLE  ..................... 94" X 20"
SPINDLE SPEEDS VIA CHANGE GEARS .... 20 TO 2000 RPM
TABLE FEEDS ........................ .5 TO 150 IPM
TABLE TRAVEL ....................... 72"
VERTICAL TRAVEL OF SPINDLE CARRIER . 20"
QUILL TRAVEL ....................... 5"
DIAMETER OF QUILL .................. 8"
TAPER IN SPINDLES .................. 50 NS
DISTANCE BETWEEN HOUSING ........... 29-1/2
HARDENED BED WAYS .................. YES
PENDANT CONTROL .................... YES
FEED MOTOR ......................... 5 HORSEPOWER
SPINDLE DRIVE MOTORS ............... 15 HORSEPOWER
