10344

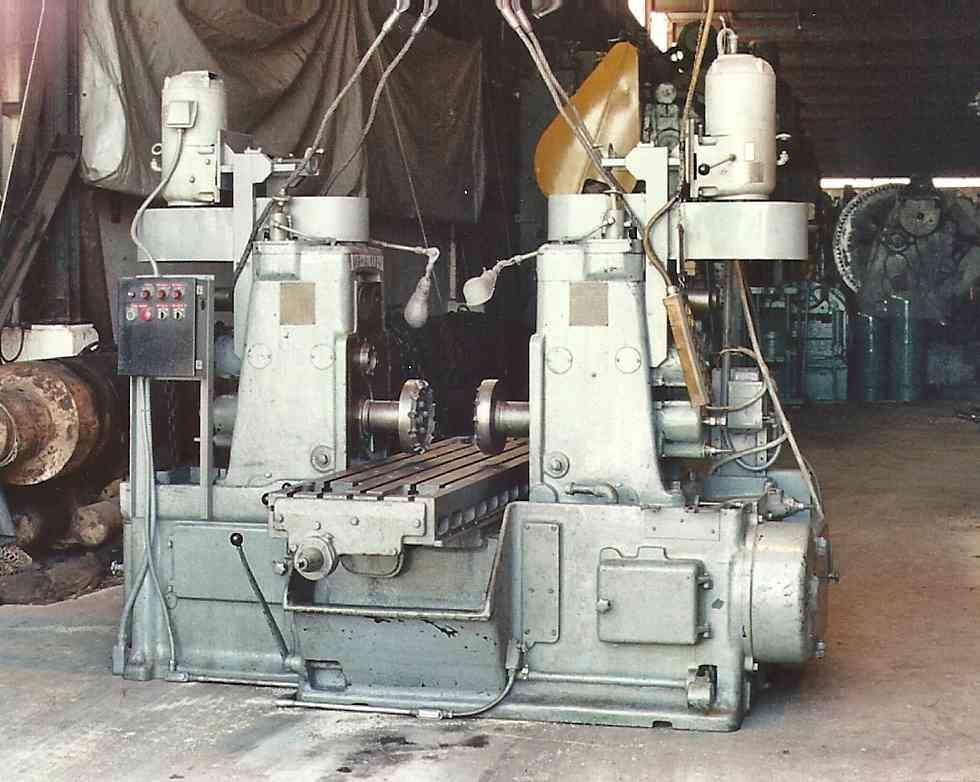

1400
Ohio
SERIAL .................................. 41471
MODEL ................................... 1400
OVERALL SIZE OF TABLE ................... 22" X 86"
TABLE TRAVEL ............................ 40"
HORIZONTAL ADJUSTMENT OF EACH HEAD ...... 12"
MAXIMUM DISTANCE BETWEEN SPINDLES ....... 48"
TABLE FEEDS ............................. (12) .200 TO .500 IPM
NUMBER OF SPINDLE SPEEDS ................ 48
(4) SPINDLES WITH ....................... #50 NS TAPER
(2) SPINDLES/HEAD - ONE ABOVE THE OTHER . 8" CENTERS
VERTICAL ADJUSTMENT OF SPINDLES ......... 4"
CENTER OF SPINDLE TO TABLE - MINIMUM .... TOP 7" - BOTTOM 3"
DOUBLE OVERARM MACHINE .................. YES
SPINDLE MOTORS (4-SPEED) ................ 5 HORSEPOWER EACH HEAD
TABLE FEED MOTOR ........................ 10 HORSEPOWER
