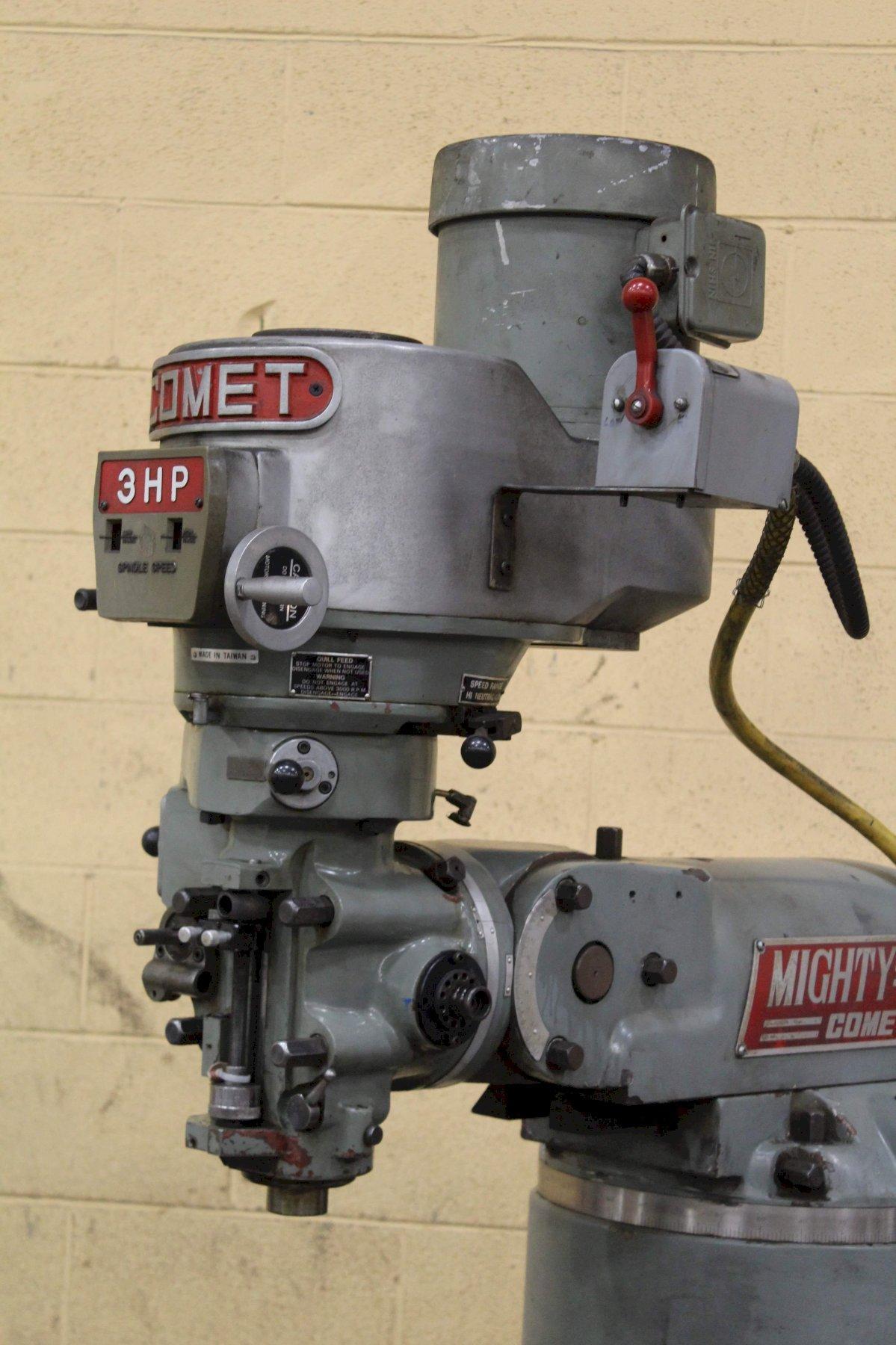

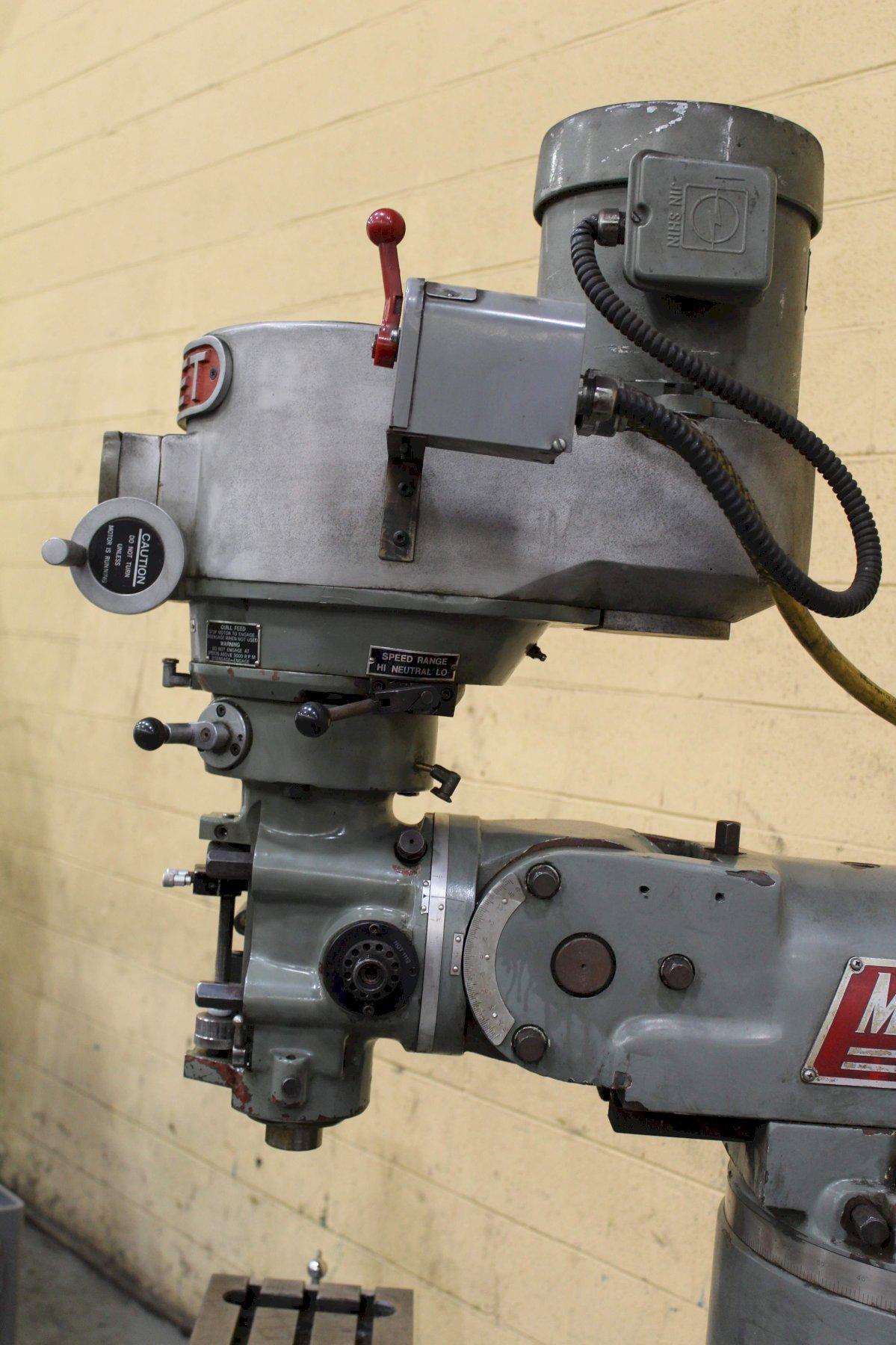

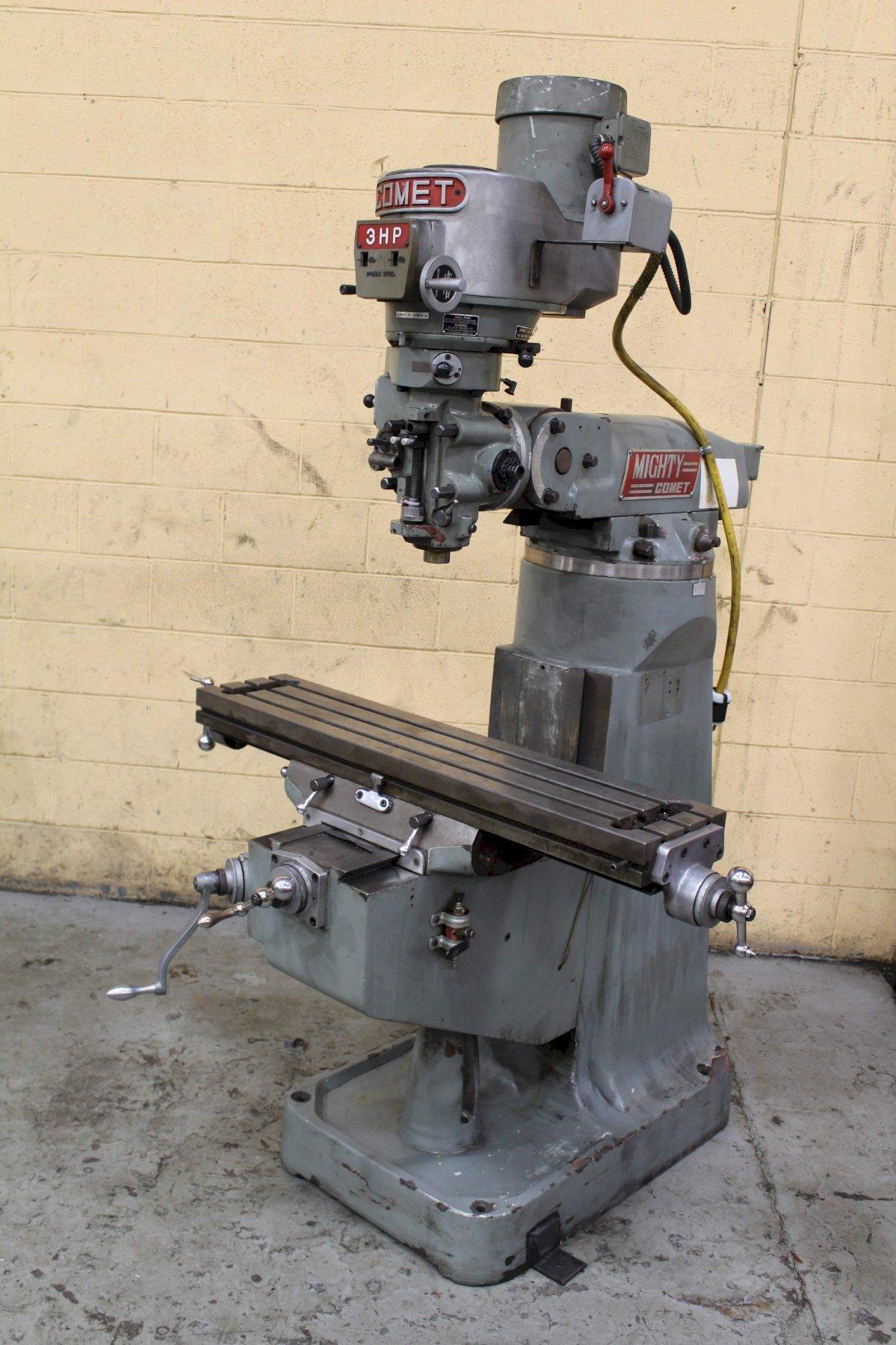

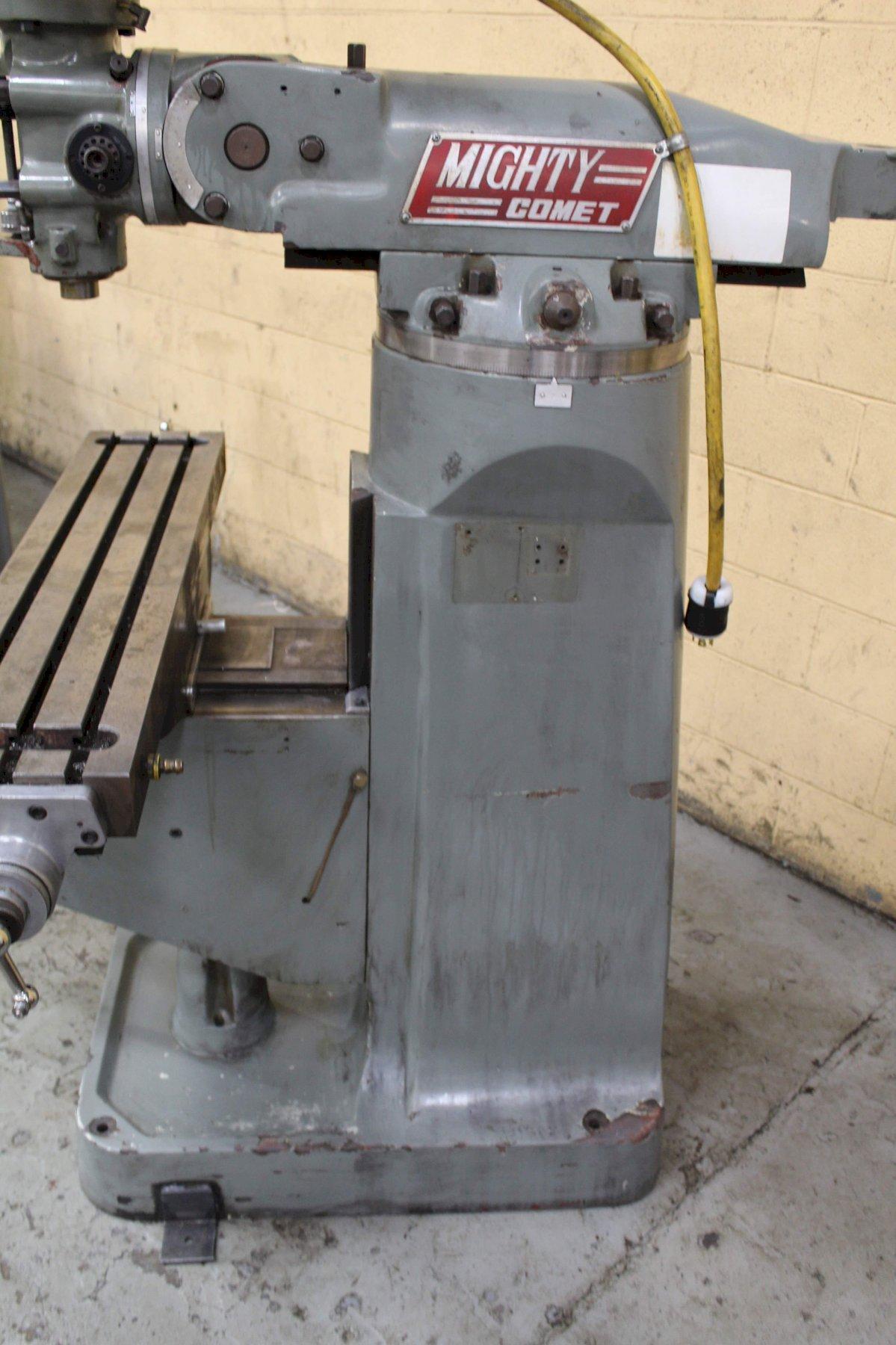

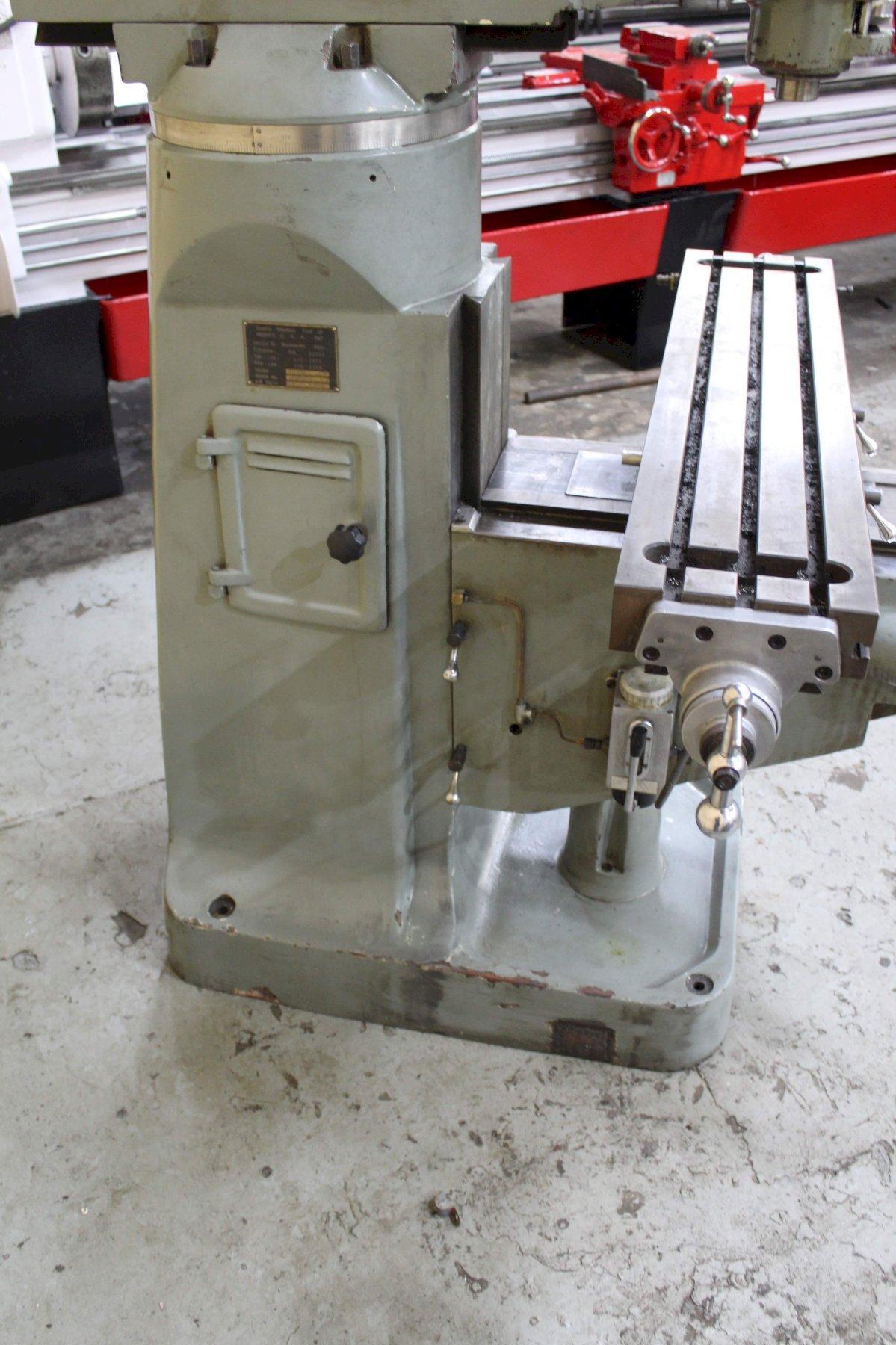

3 HP COMET RAM TYPE VERTICAL MILL: STOCK #72388

Manufacturer

Category

Milling Machines

Type

MILLERS, VERTICAL/UNIVERSAL, CNC

Stock

72388

Model

None listed

Dealer Location

Ohio

Request a Quote
View Contact Information

Spec Sheet

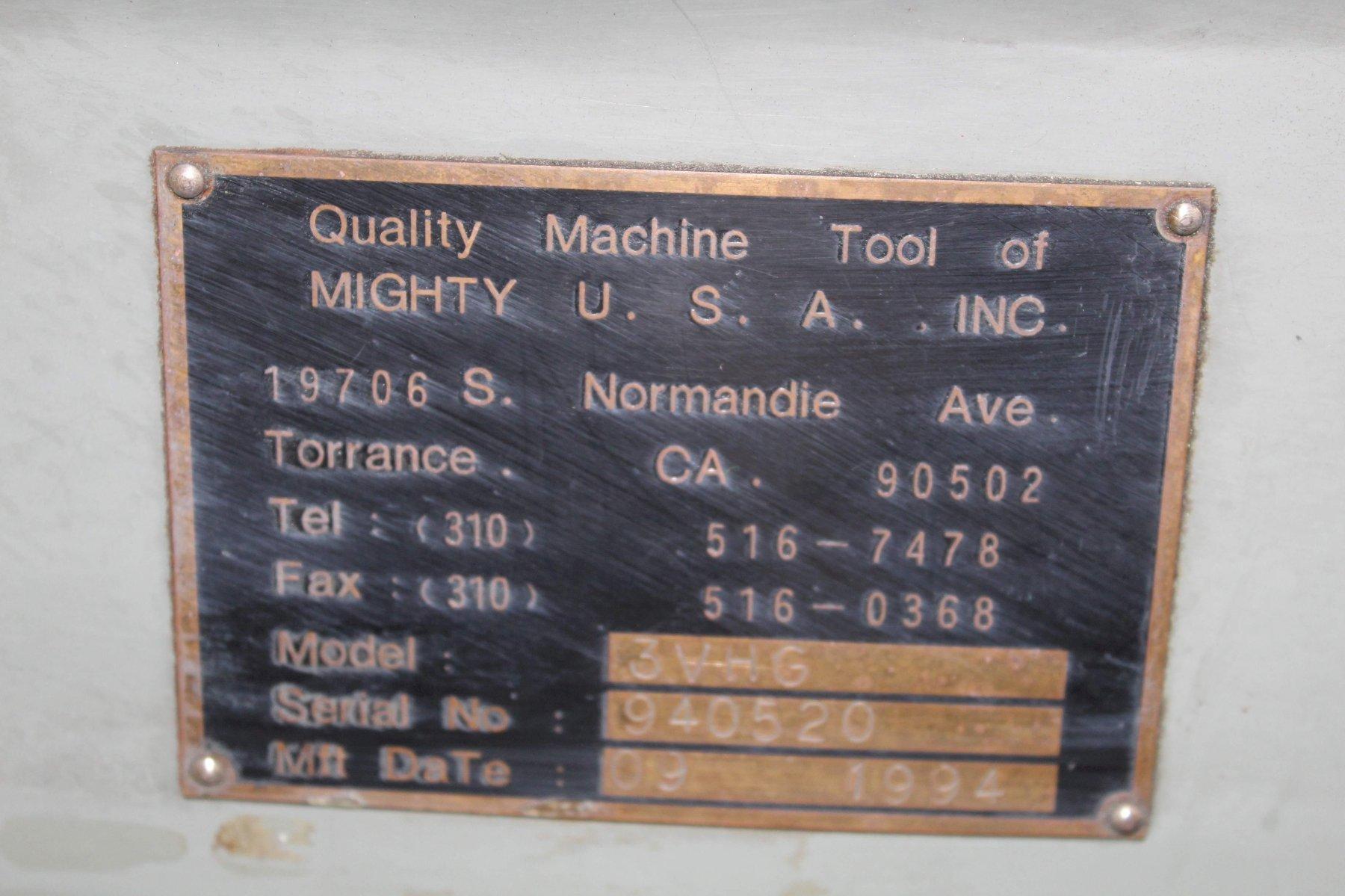

SERIAL ................................... 64520
MODEL .................................... 3-VHG
YEAR NEW ................................. 1994

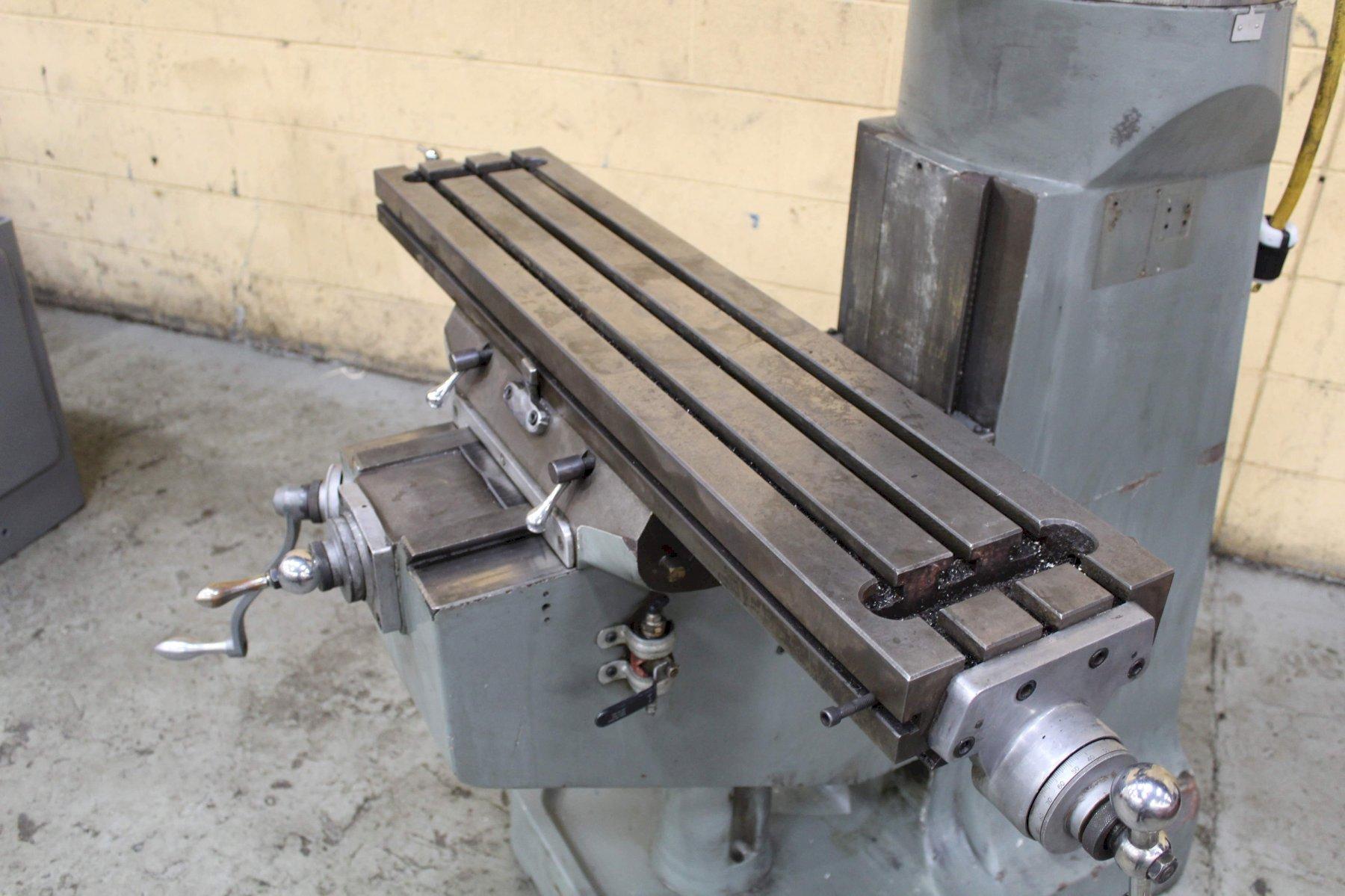

AREA OF TABLE ............................ 9" X 42"
LONGITUDINAL TABLE TRAVEL ................ 30"
CROSS TABLE TRAVEL ....................... 16"
VERTICAL KNEE TRAVEL ..................... 16"
QUILL TRAVEL ............................. 5"
RAM TRAVEL IN/OUT ........................ 24"
SPINDLE SPEEDS VARIABLE SPEED ............ 60 TO 4,200 RPM
SPINDLE TAPER ............................ R-8
POWER QUILL FEEDS ........................ 0015, .003 & .006 IPR
DISTANCE, SPINDLE NOSE TO TABLE .......... 2" MINIMUM 18" MAXIMUM
DISTANCE SPINDLE CENTERLINE OF COLUMN .... 4" MINIMUM 28" MAXIMUM
HEAD TILTS ............................... 45 DEGREES (BACK & FORWARD)
HEAD ROTATES ............................. 90 DEGREES (RIGHT & LEFT)
MOTOR .................................... 3 HORSEPOWER
