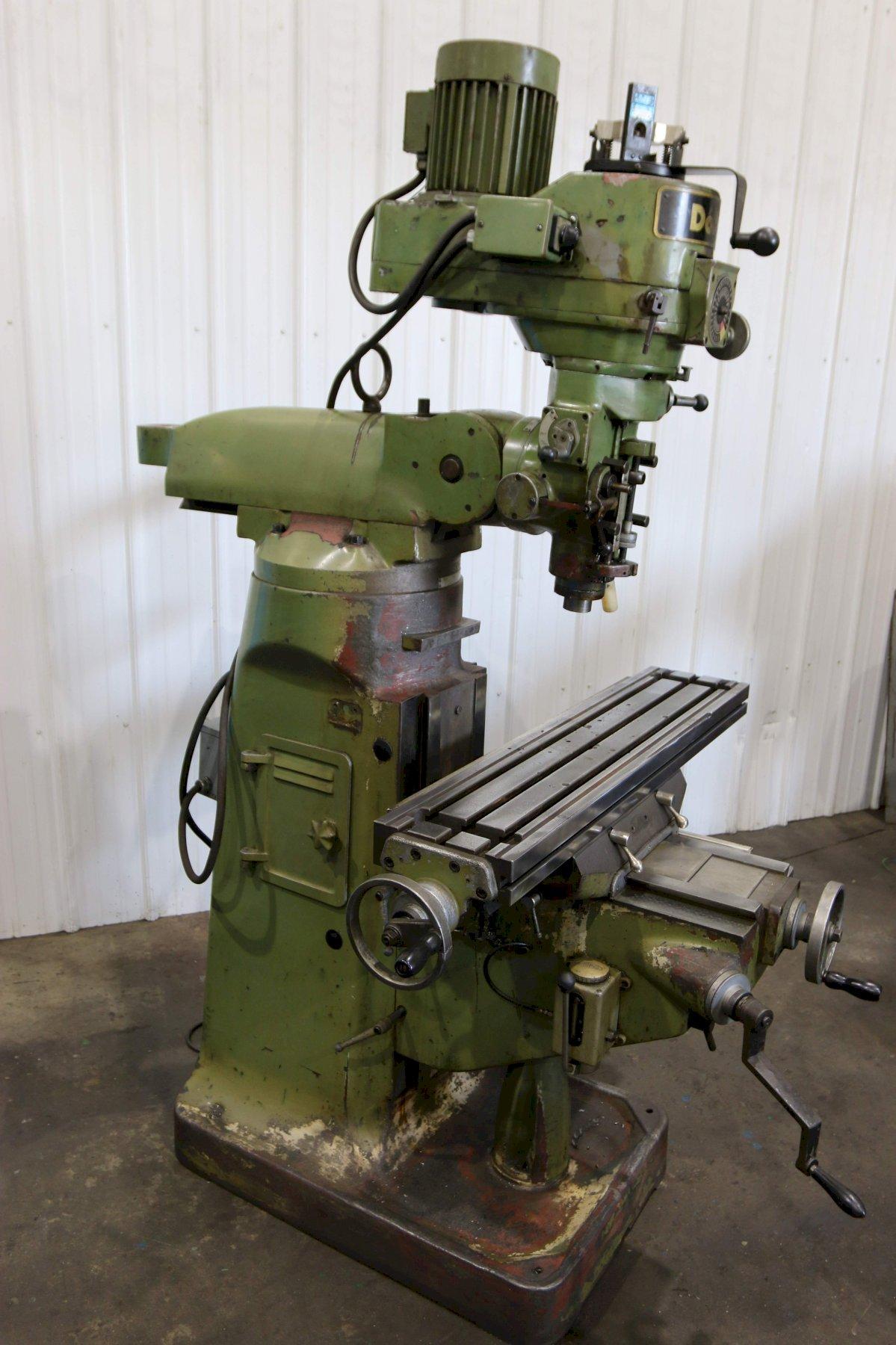

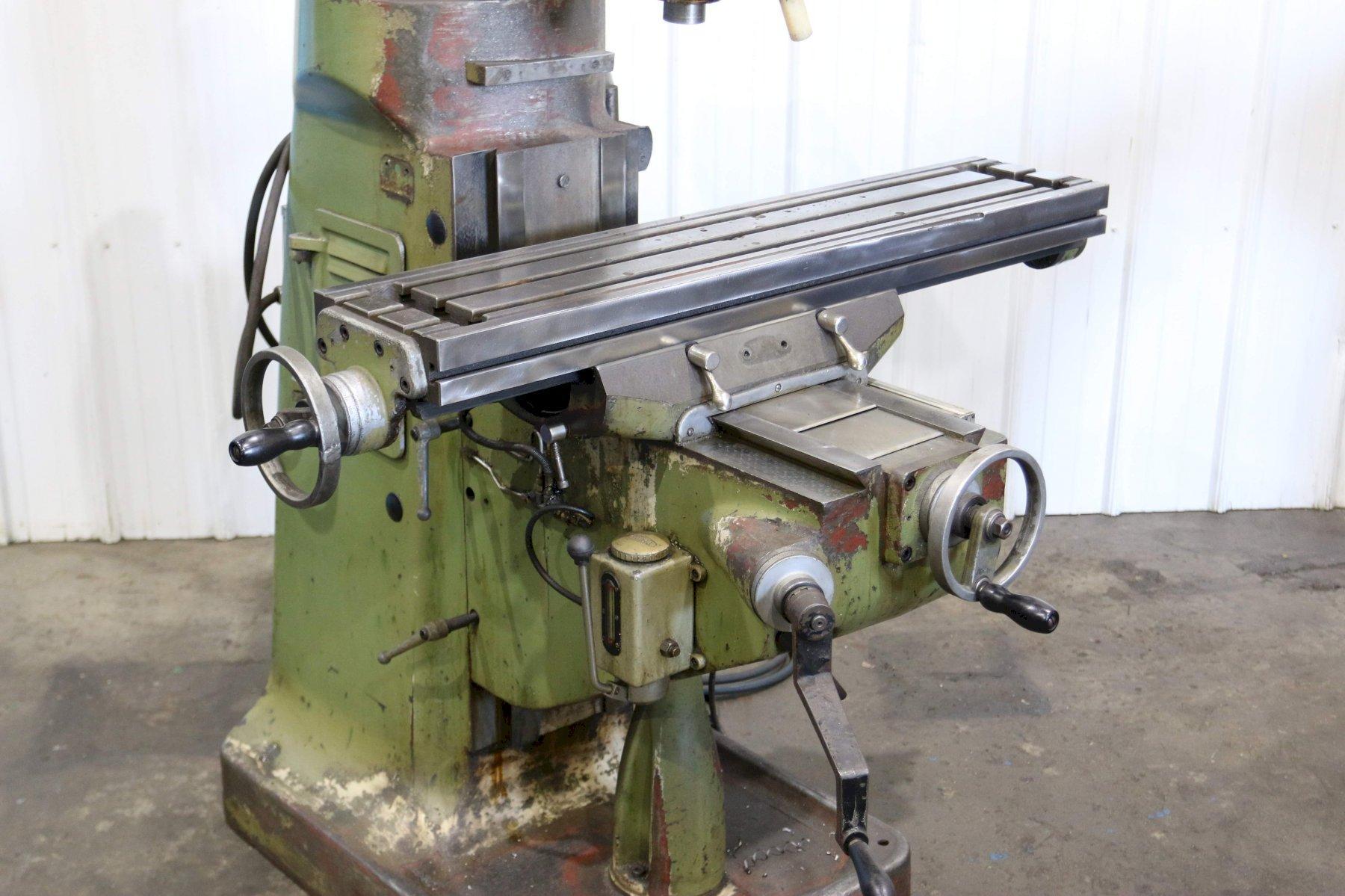

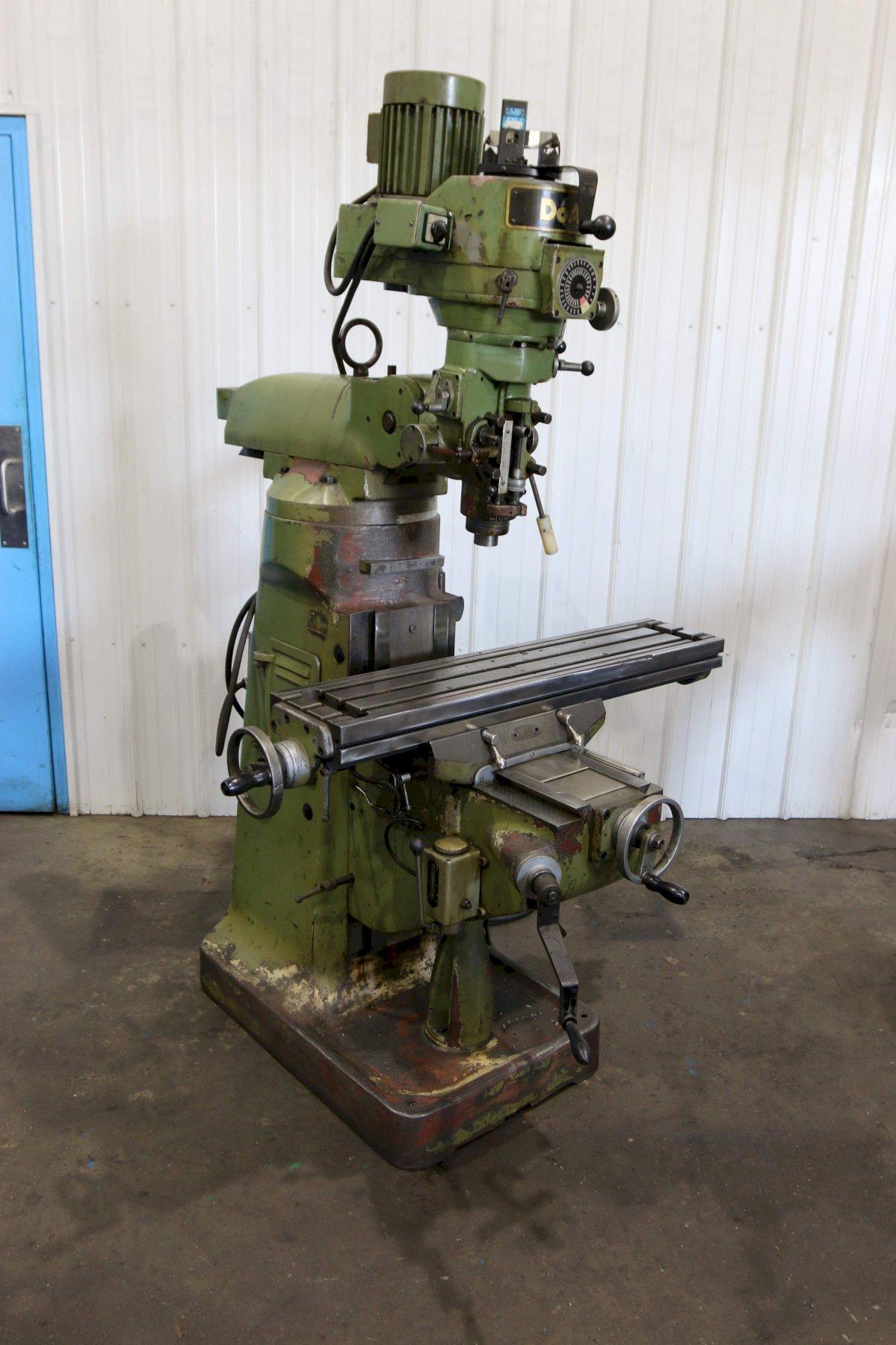

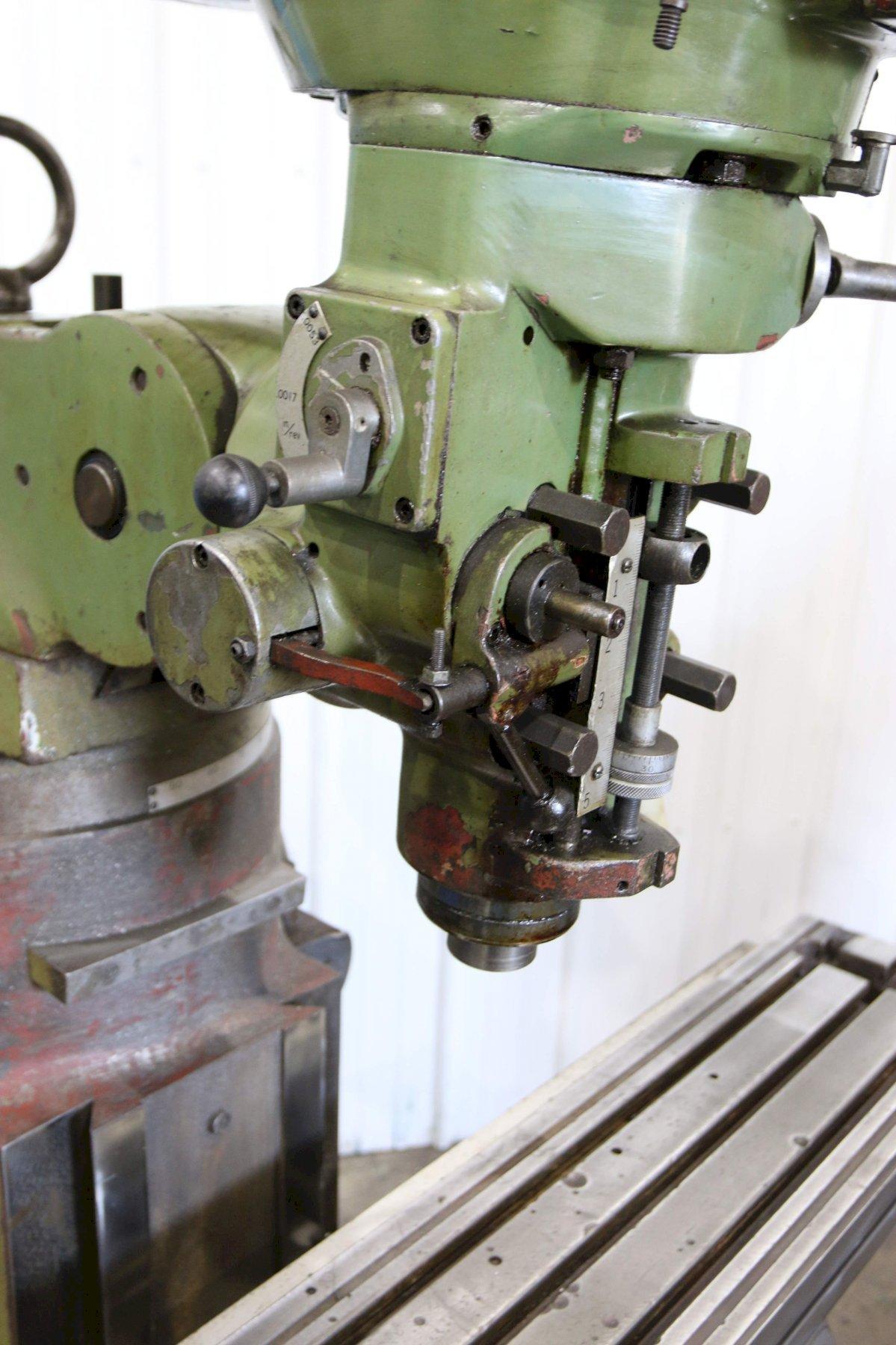

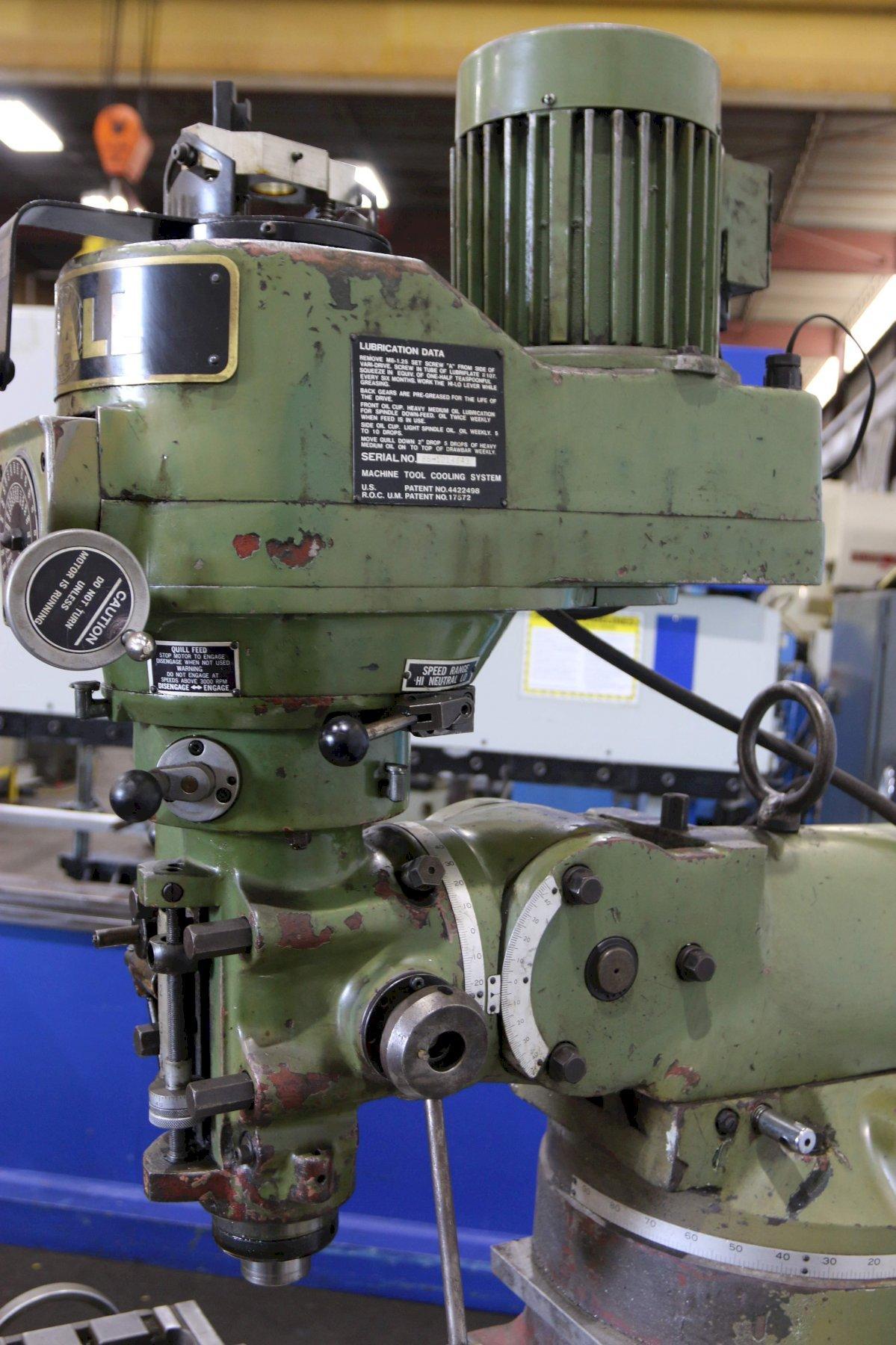

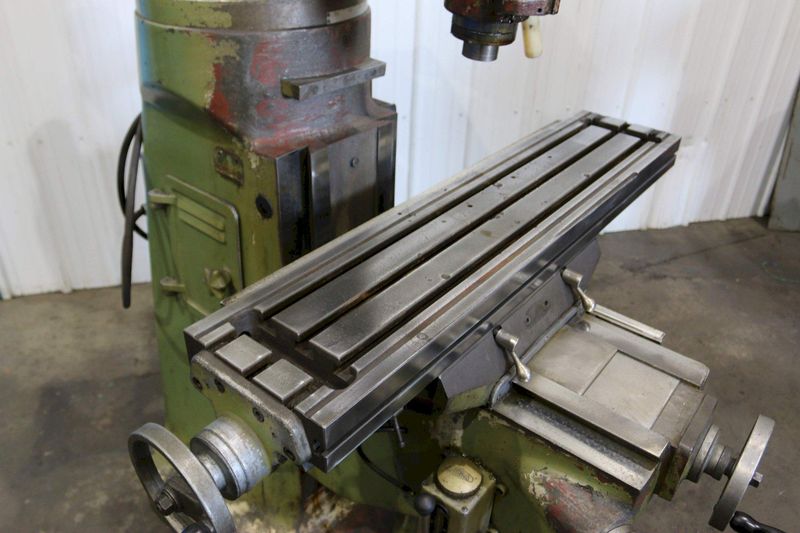

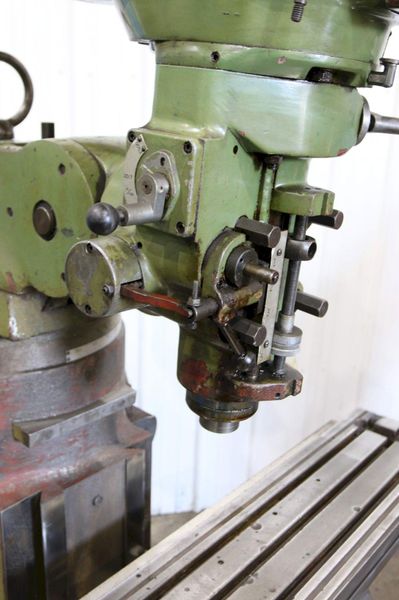

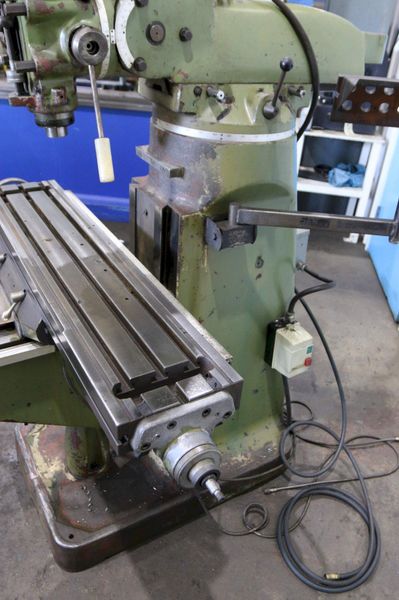

2 HP DOALL MODLE #GPM-200V VERTICAL RAM TYPE MILL: STOCK #71026

Stock

71026

Model

2

Dealer Location

Ohio

Spec Sheet



SERIAL ................................ 1214643-C
MODEL ................................. GPM-200V
TABLE AREA (T SLOTTED) ................ 42" X 9"
LONGITUDINAL TABLE TRAVEL ............. 30"
CROSS FEED TRAVEL ..................... 12"
VERTICAL TABLE TRAVEL ................. 16"
QUILL TRAVEL .......................... 5"
RAM TRAVEL ............................ 12"
SPINDLE SPEEDS ........................ 60 TO 4200 RPM
SPINDLE FEEDS ......................... .0017 - .00032 - .0053 IPR
QUILL DIAMETER ........................ 3-3/8"
SPINDLE TAPER ......................... R-8
FORWARD & REVERSE ..................... YES
1 SHOT LUBE ........................... YES
DRAW BAR .............................. POWER
MOTOR ................................. 2 HP
