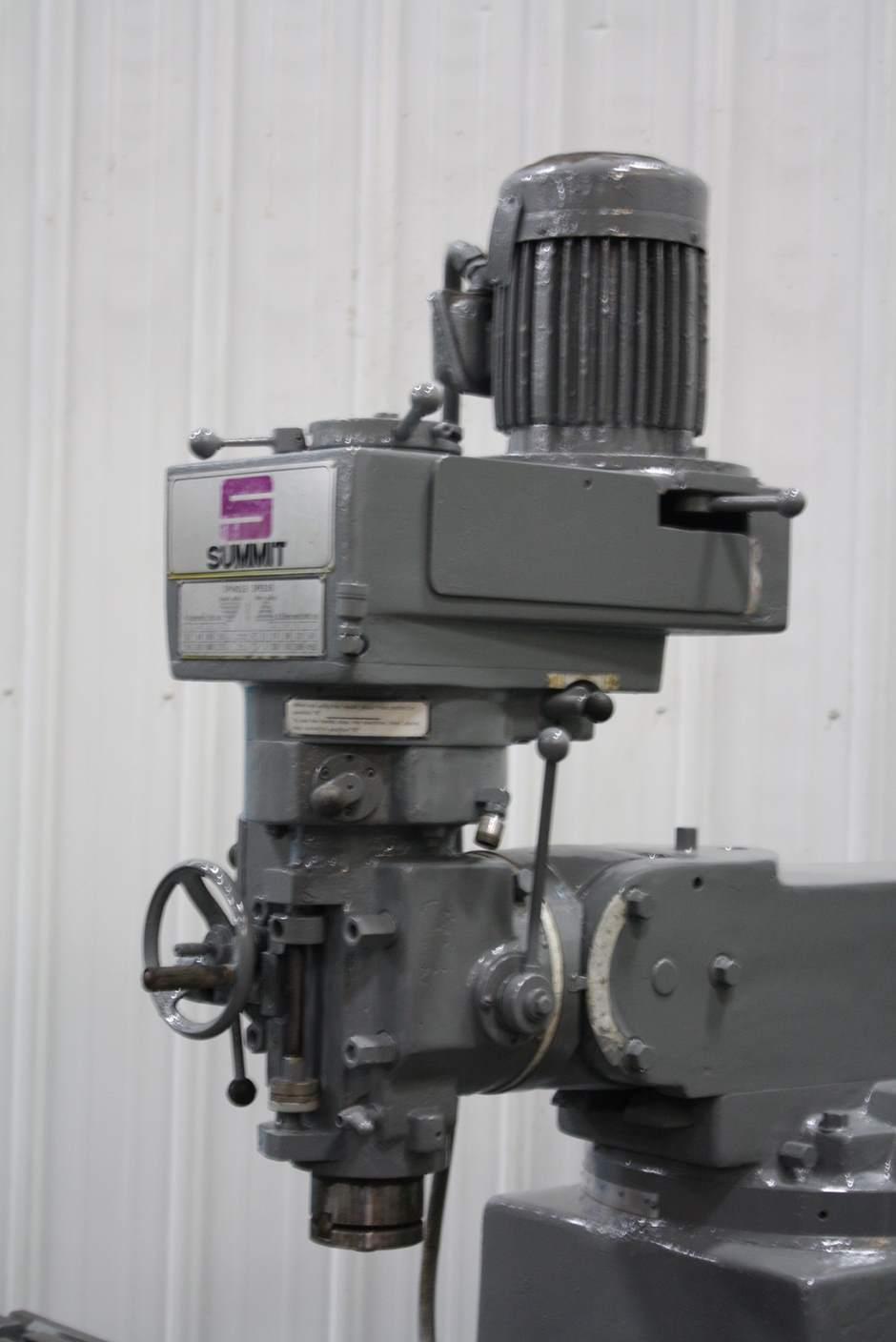

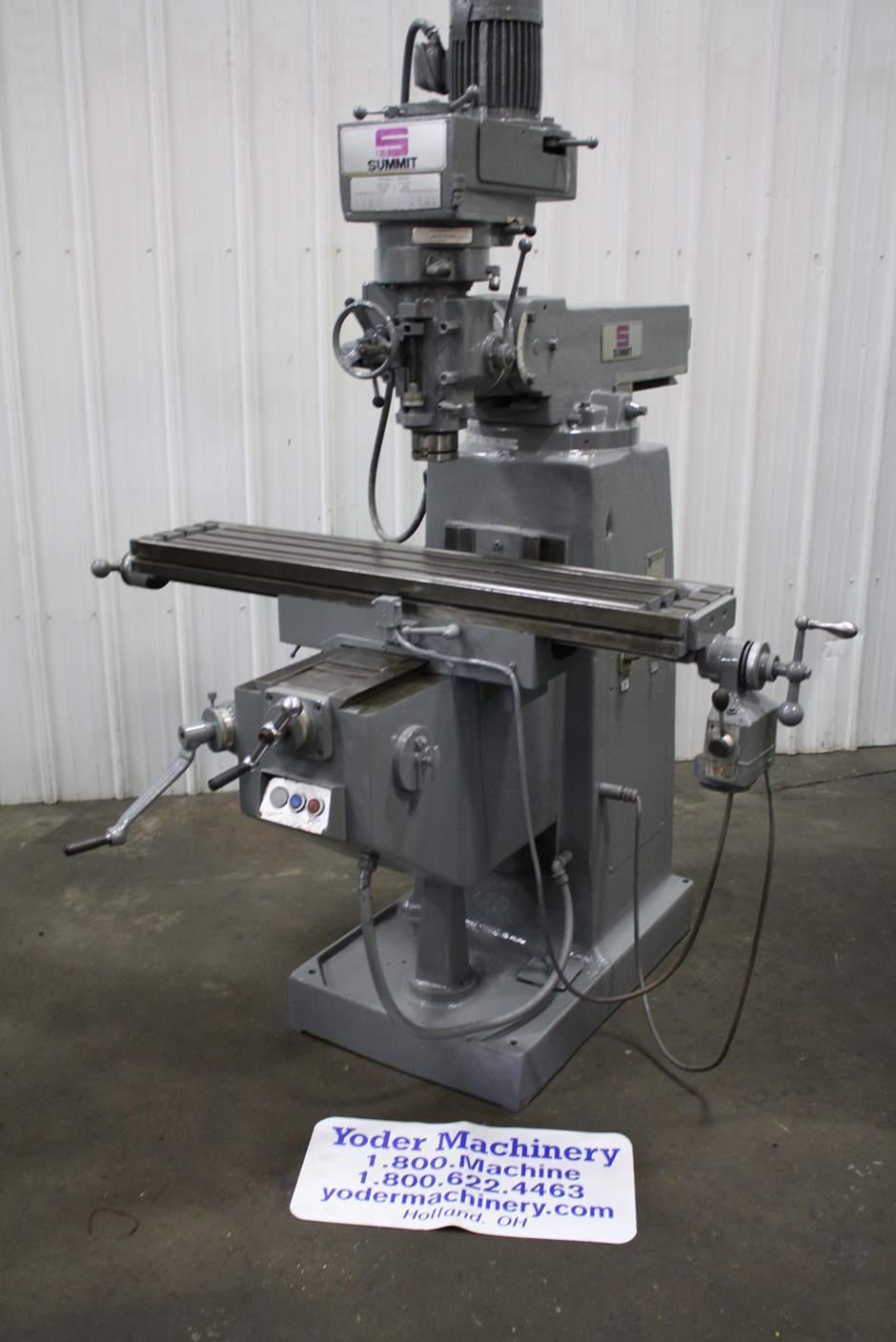

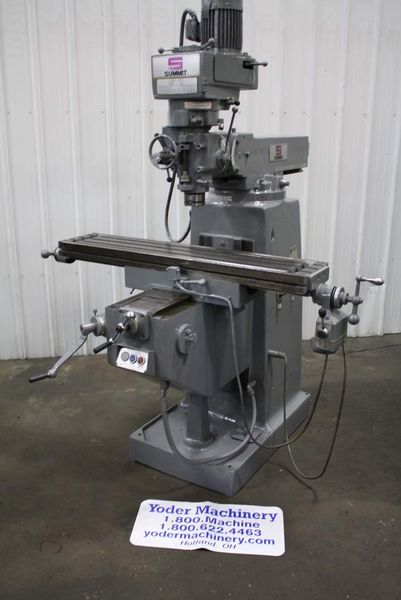

1-1/2 HP SUMMIT RAM TYPE VERTICAL MILL: STOCK #66818

Manufacturer

Category

Milling Machines

Type

MILLERS, PLAIN, HORIZ, (Ram Type)

Stock

66818

Model

1.5

Dealer Location

Ohio

Request a Quote
View Contact Information

Spec Sheet



SERIAL ........................... 2446
MODEL ............................ V348
TABLE SIZE ....................... 10" X 48"
SPINDLE SPEEDS ................... 57 TO 4500 RPM
SPINDLE FEEDS .................... .0015, .003, .006 IPR
LONGITUDINAL TABLE TRAVEL ........ 36"
CROSS TRAVEL ..................... 12"
VERTICAL KNEE TRAVEL ............. 16"
QUILL TRAVEL ..................... 5"
RAM TRAVEL ....................... 12"
DEPTH OF THROAT .................. 6-3/4" TO 18-3/4"
TAPER IN SPINDLE ................. R8
HEAD TILTS, FRONT/BACK ........... 45 DEGREE EITHER WAY
HEAD SWIVELS, LEFT/RIGHT ......... 90 DEGREE EITHER WAY
1 SHOT LUBE ...................... YES
MOTOR ............................ 1-1/2 HORSEPOWER
