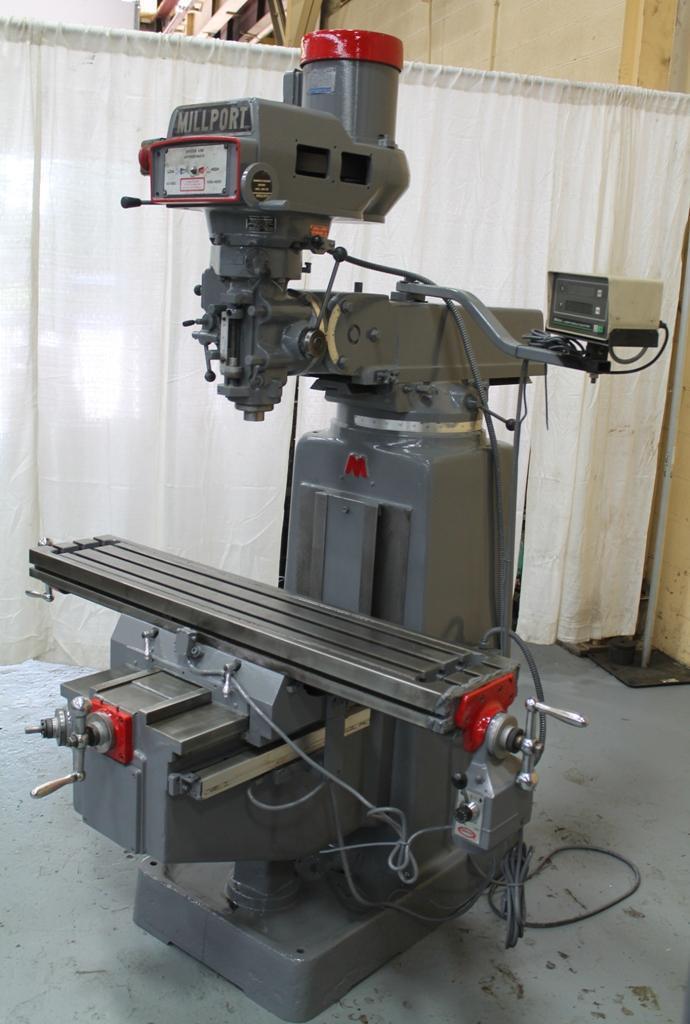

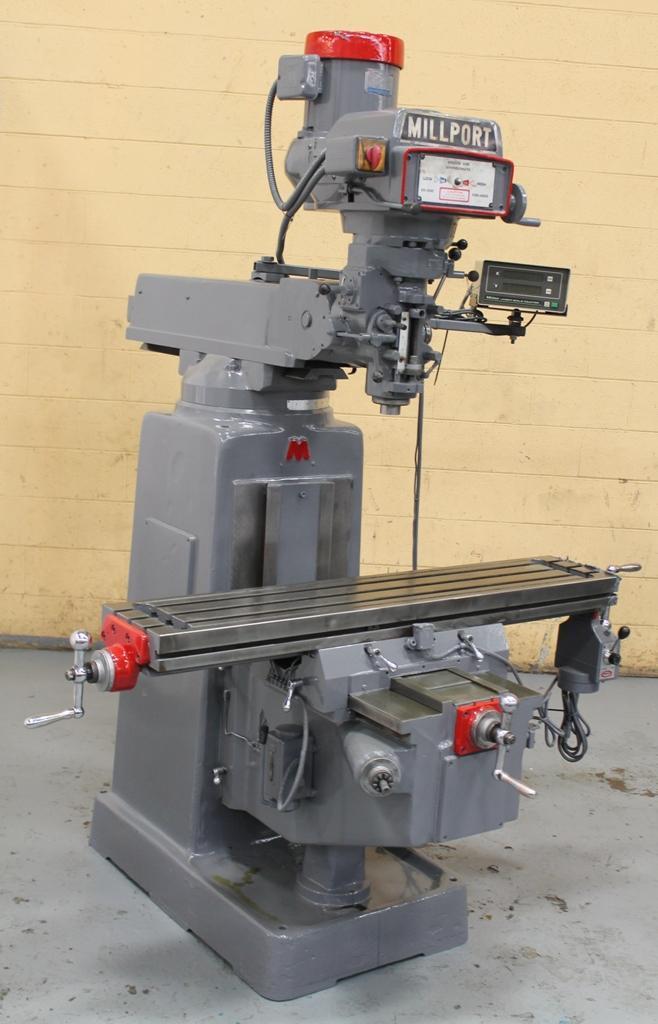

3 HP MILLPORT RAM TYPE VERTICAL MILL: STOCK #62451

Manufacturer

Category

Milling Machines

Type

MILLERS, PLAIN, HORIZ, (Ram Type)

Stock

62451

Model

3

Dealer Location

Ohio

Request a Quote
View Contact Information

Spec Sheet



SERIAL .................................. 4435
MODEL ................................... 3KVH
YEAR NEW ................................ 1984
AREA OF TABLE ........................... 50" X 10"
SPINDLE SPEEDS (VARIABLE) ............... 60 TO 4200 RPM
POWER LONGITUDINAL FEED (VARIABLE) ...... SERVO
LONGITUDINAL TRAVEL ..................... 36"
VERTICAL KNEE TRAVEL .................... 16"
CROSS TRAVEL ............................ 16"
QUILL TRAVEL ............................ 5"
POWER QUILL FEEDS ....................... 003, .006 & 0015 IPR
TAPER IN SPINDLE ........................ R8

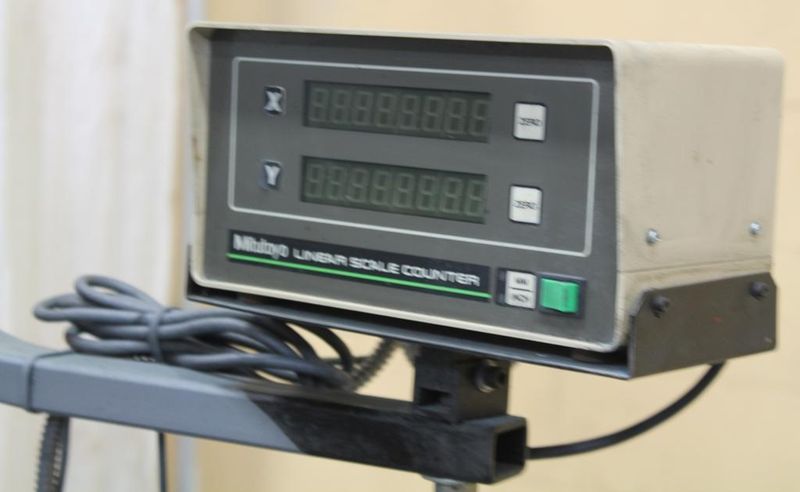

2 AXIS DIGITAL READOUTS ................. MITUTOYO
1 SHOT LUBE ............................. YES
HEAD TILTS (FORWARD & BACKWARDS) ........ 45 DEGREES
HEAD TILTS (LEFT & RIGHT) ............... 90 DEGREES
SPINDLE MOTOR ........................... 3 HORSEPOWER
