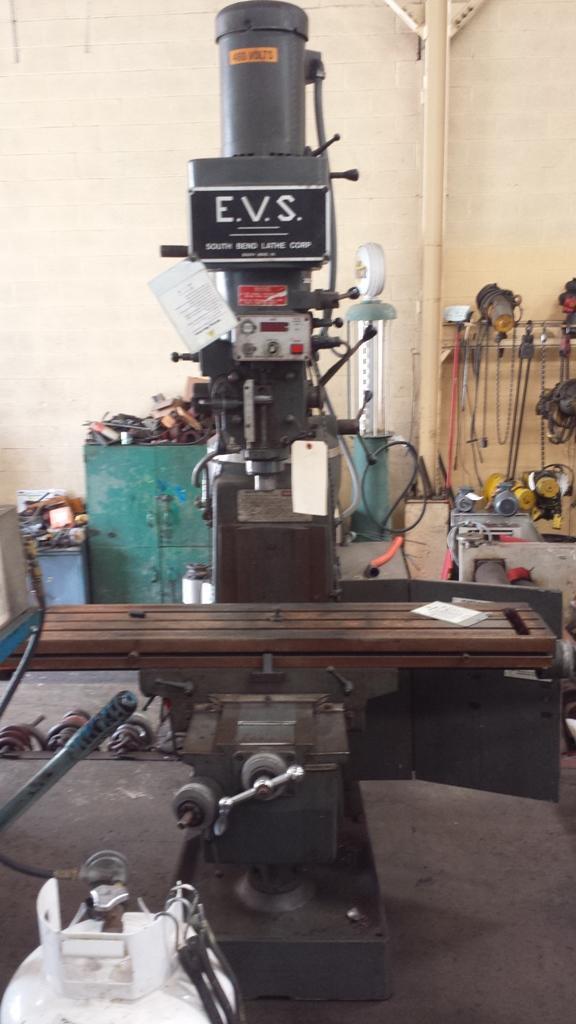

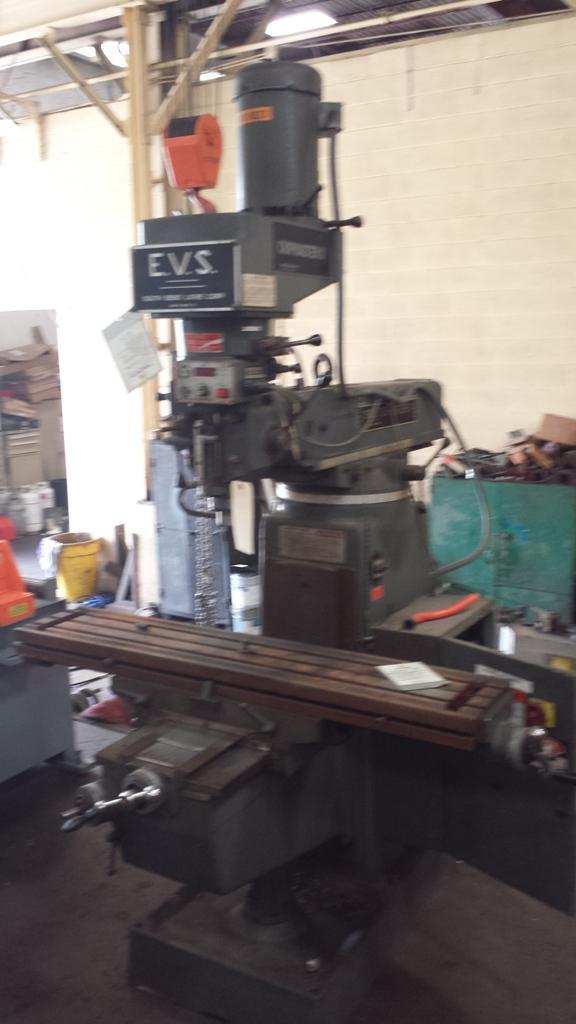

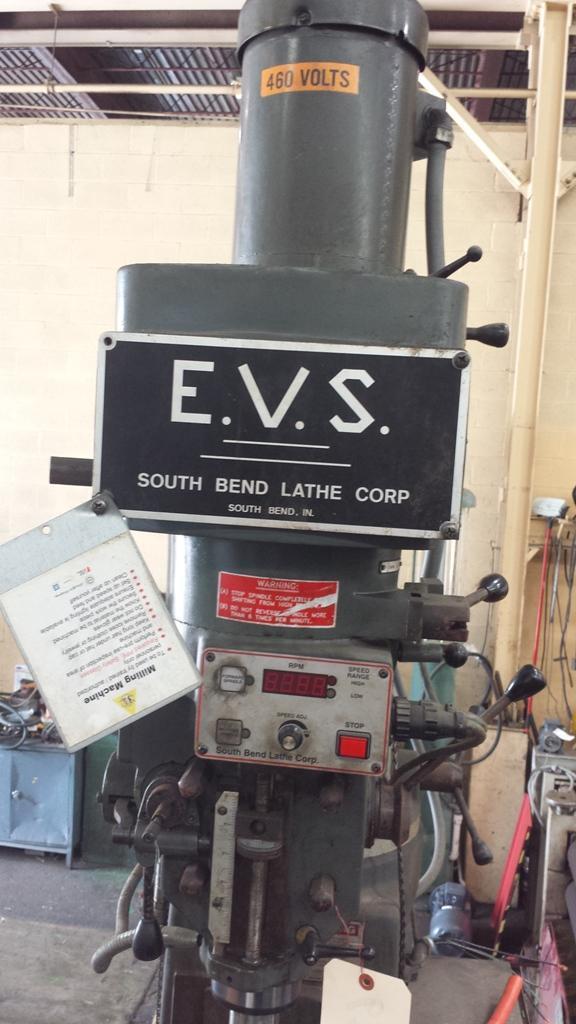

5 HP SOUTHBEND RAM TYPE VERTICAL MILL: STOCK #62333

Manufacturer

Category

Milling Machines

Type

MILLERS, PLAIN, HORIZ, (Ram Type)

Stock

62333

Model

5

Dealer Location

Ohio

Request a Quote
View Contact Information

Spec Sheet



SERIAL ............................... SE39873
MODEL ................................ EVS CHIPMASTER II
AREA OF TABLE ........................ 50" X 10"
SPINDLE SPEEDS, INFINTE VARIABLE ..... 0 TO 5000 RPM
SPINDLE FEEDS (ENGLISH) .............. .0015, .003, .006 IPR
SPINDLE FEEDS (METRIC) ............... .0016,.004 & .008 MMPR
LONGITUDINAL TABLE TRAVEL ............ 33"
CROSS TRAVEL ......................... 16"
VERTICAL KNEE TRAVEL ................. 16"
QUILL TRAVEL ......................... 5"
RAM TRAVEL ........................... 22-3/16"
DISTANCE SPINDLE TO COLUMN ........... 5" TO 27"
TAPER IN SPINDLE ..................... R8
HEAD TILTS, FRONT/BACK ............... 45 DEGREE EITHER WAY
HEAD SWIVELS, LEFT/RIGHT ............. 90 DEGREE EITHER WAY
HARDEN & GROUND ...................... WAYS
AUTOMATIC LUBE ....................... YES
MOTOR ................................ 5 HORSEPOWER
