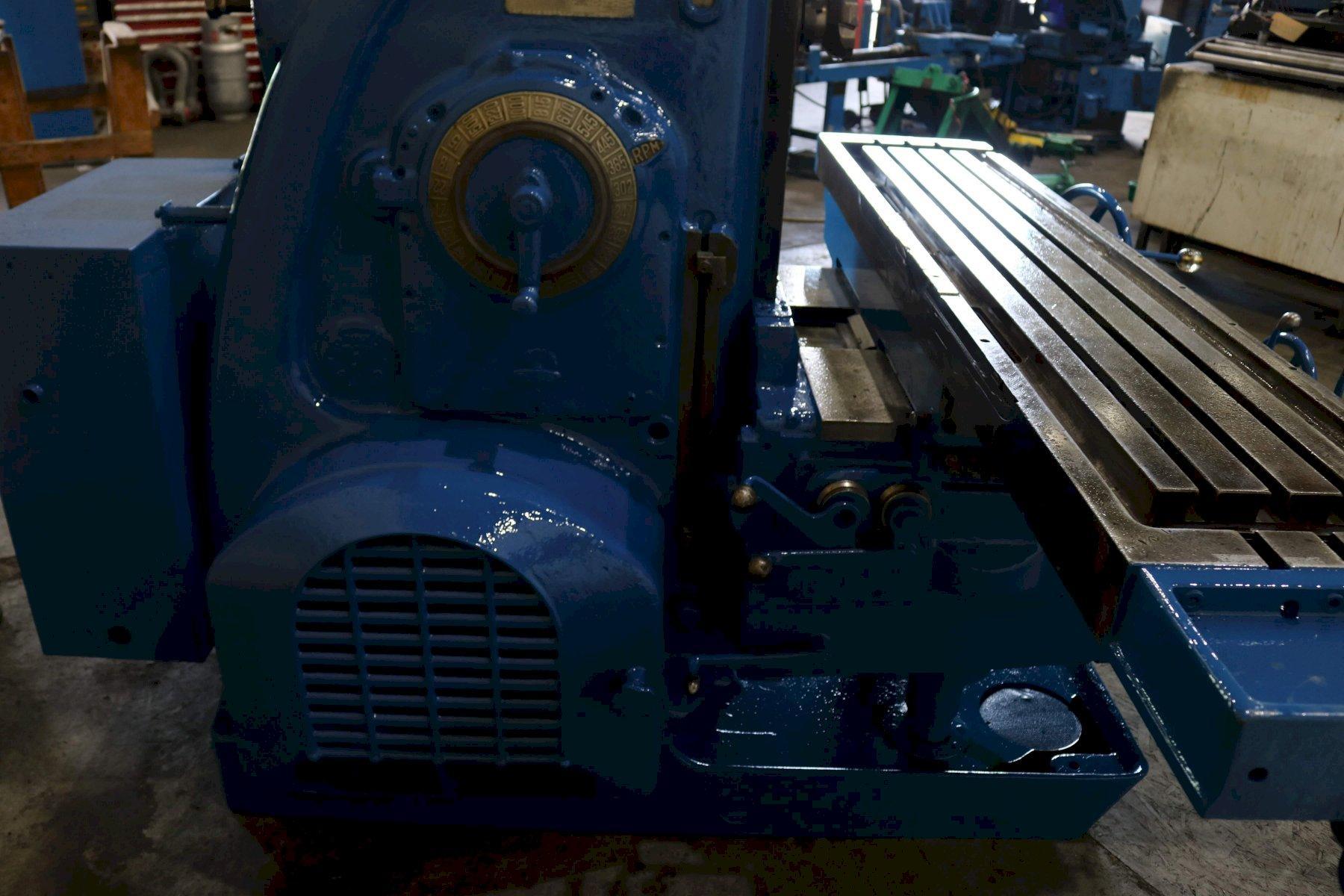

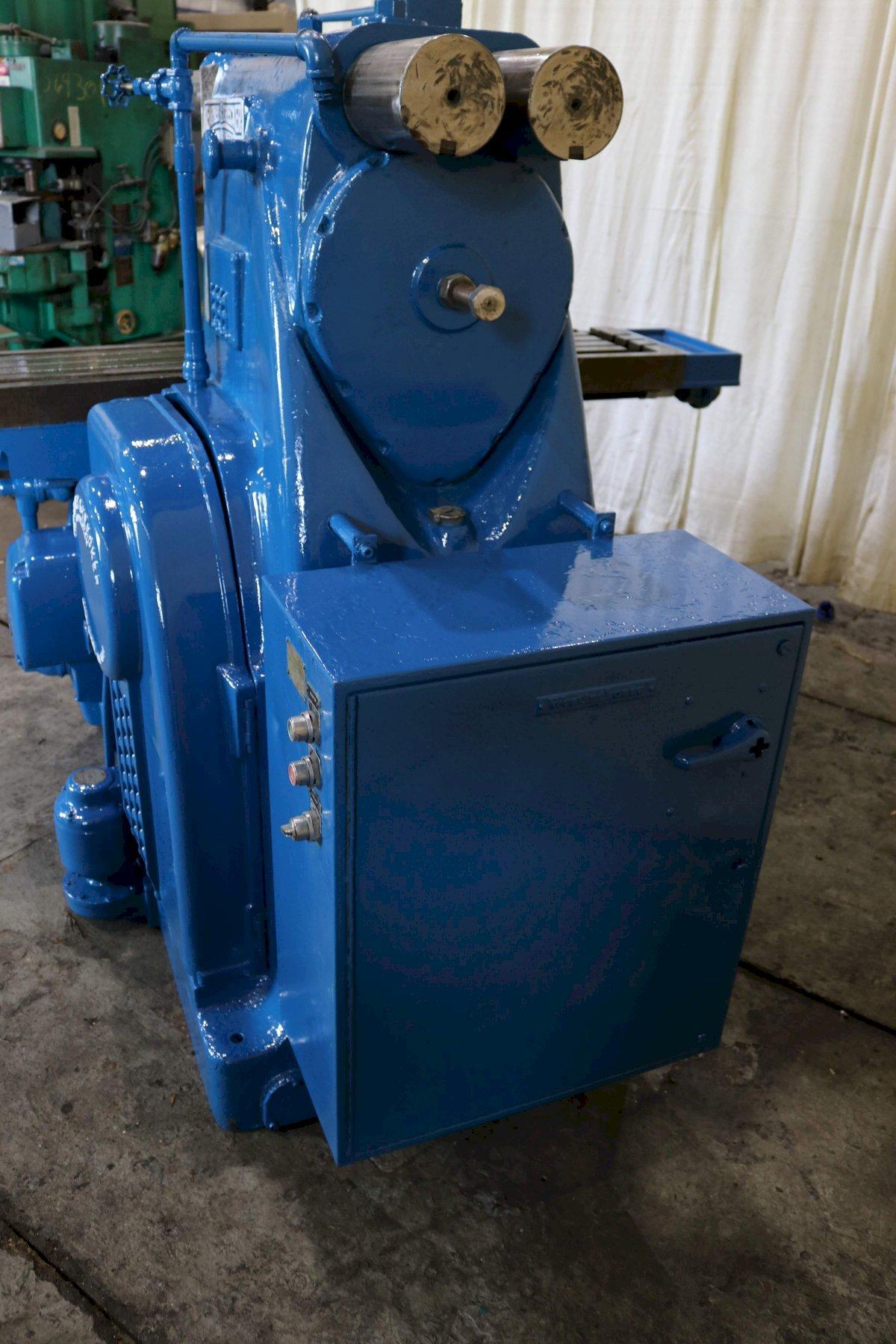

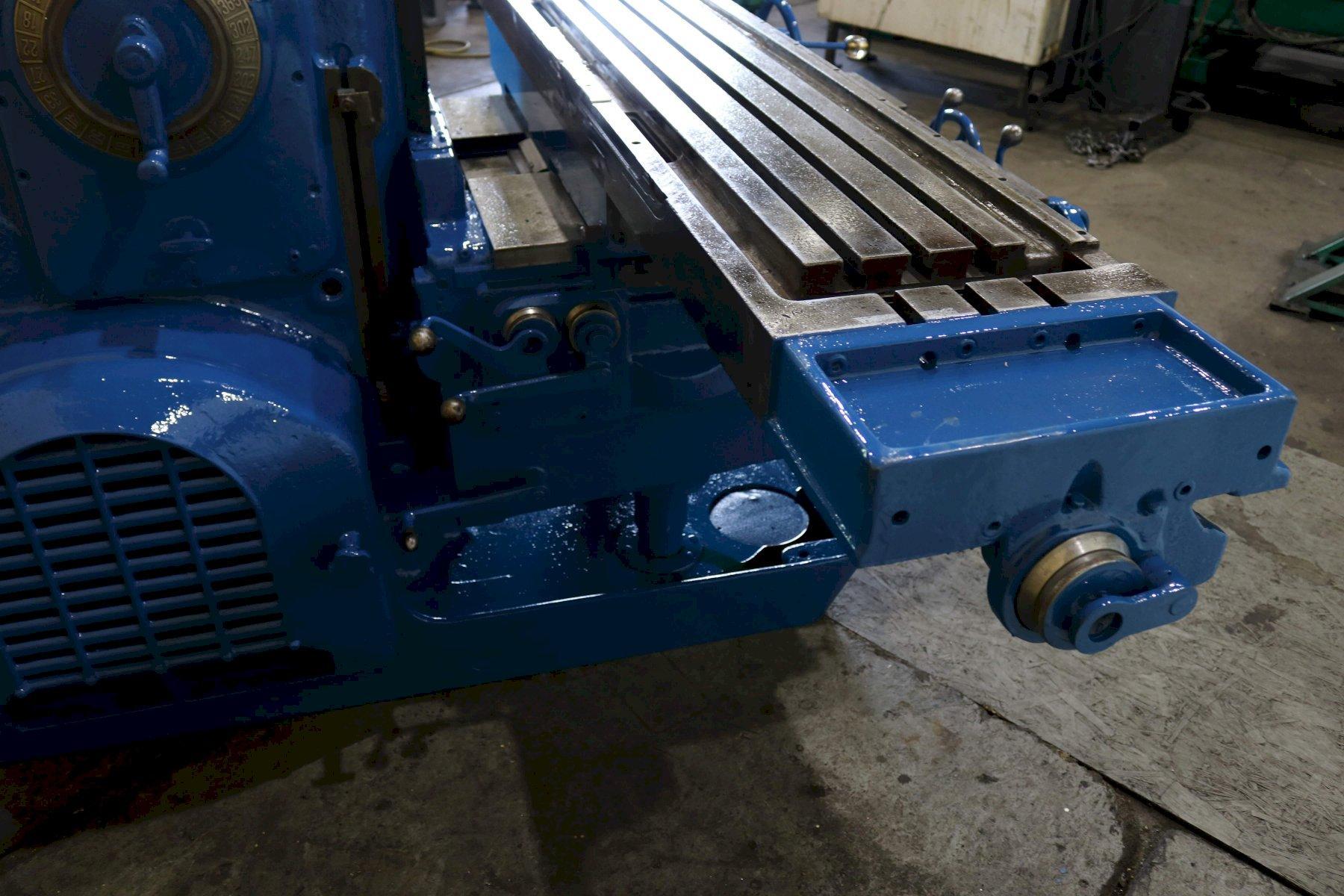

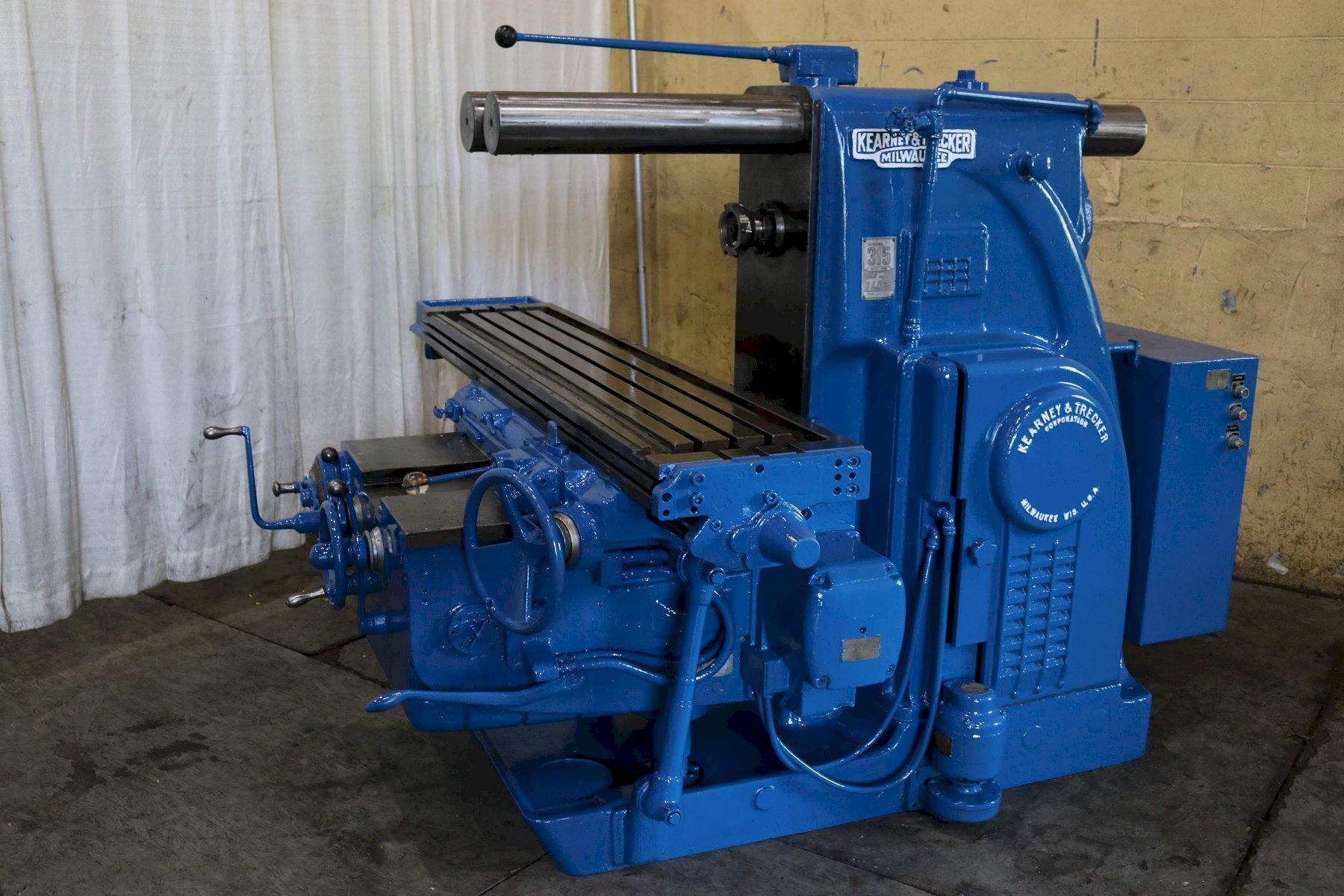

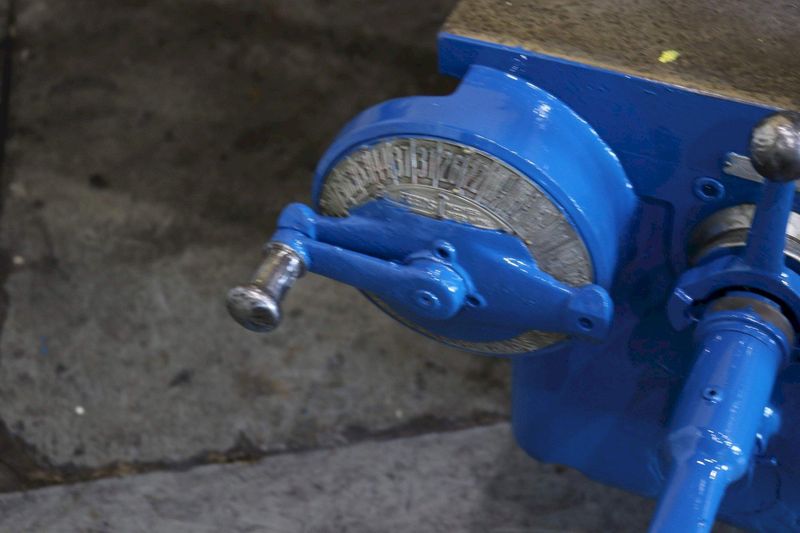

#3 KEARNEY & TRECKER HORIZONTAL MILL: STOCK #72965

Manufacturer

Category

Milling Machines

Type

MILLERS, HORIZONTAL, UNIVERSAL

Stock

72965

Model

None listed

Dealer Location

Ohio

Request a Quote
View Contact Information

Spec Sheet

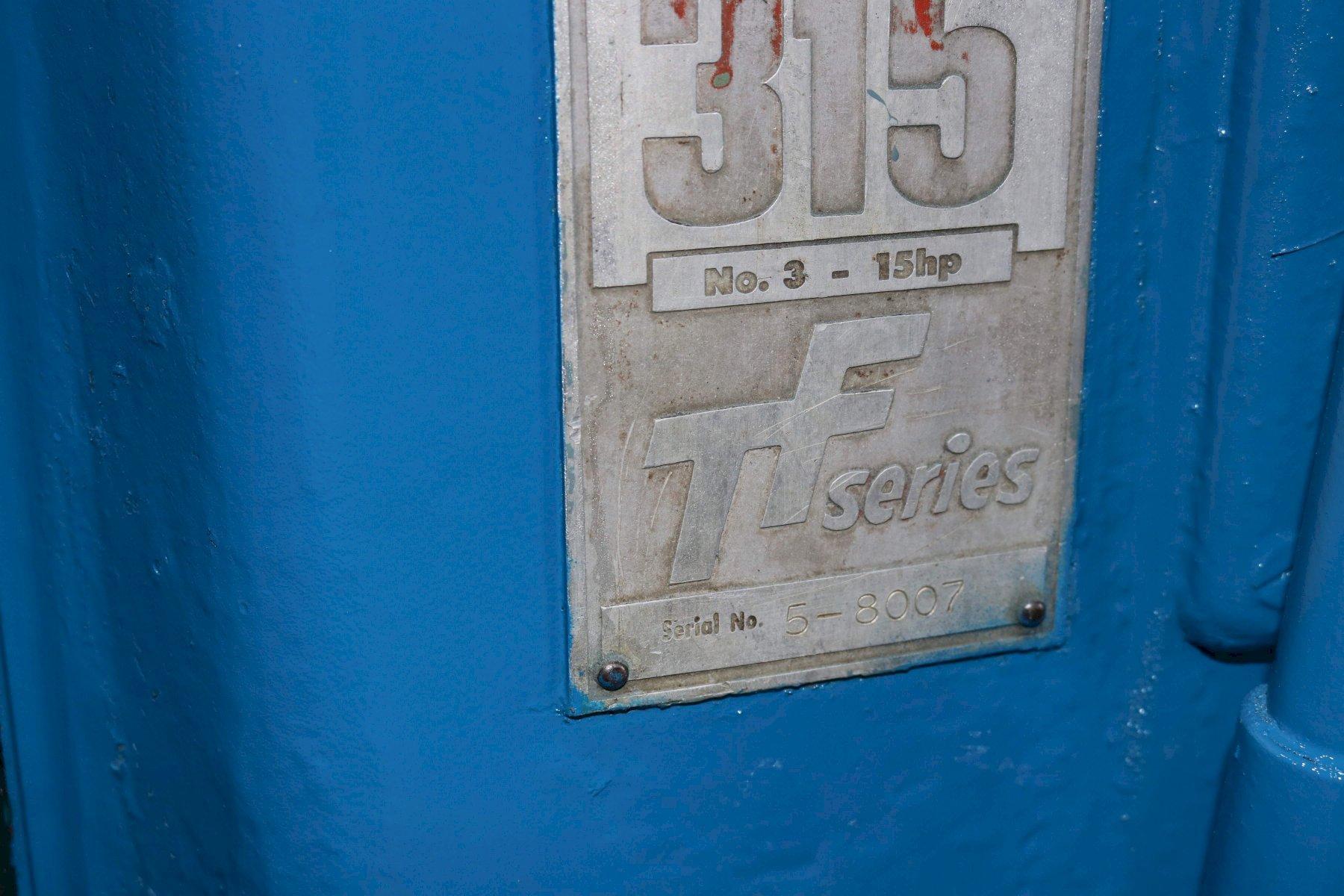

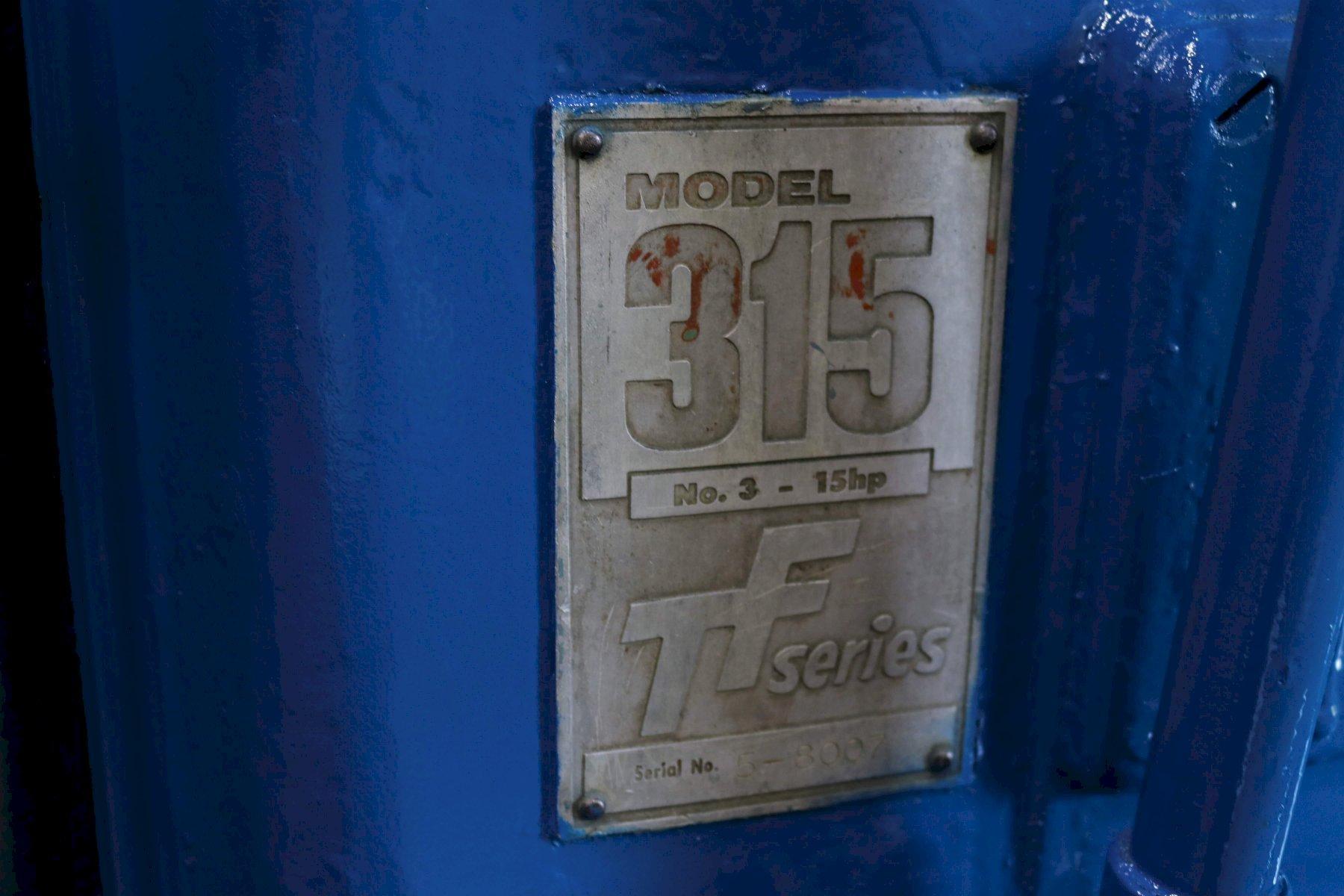

MODEL ................................ 315-TF

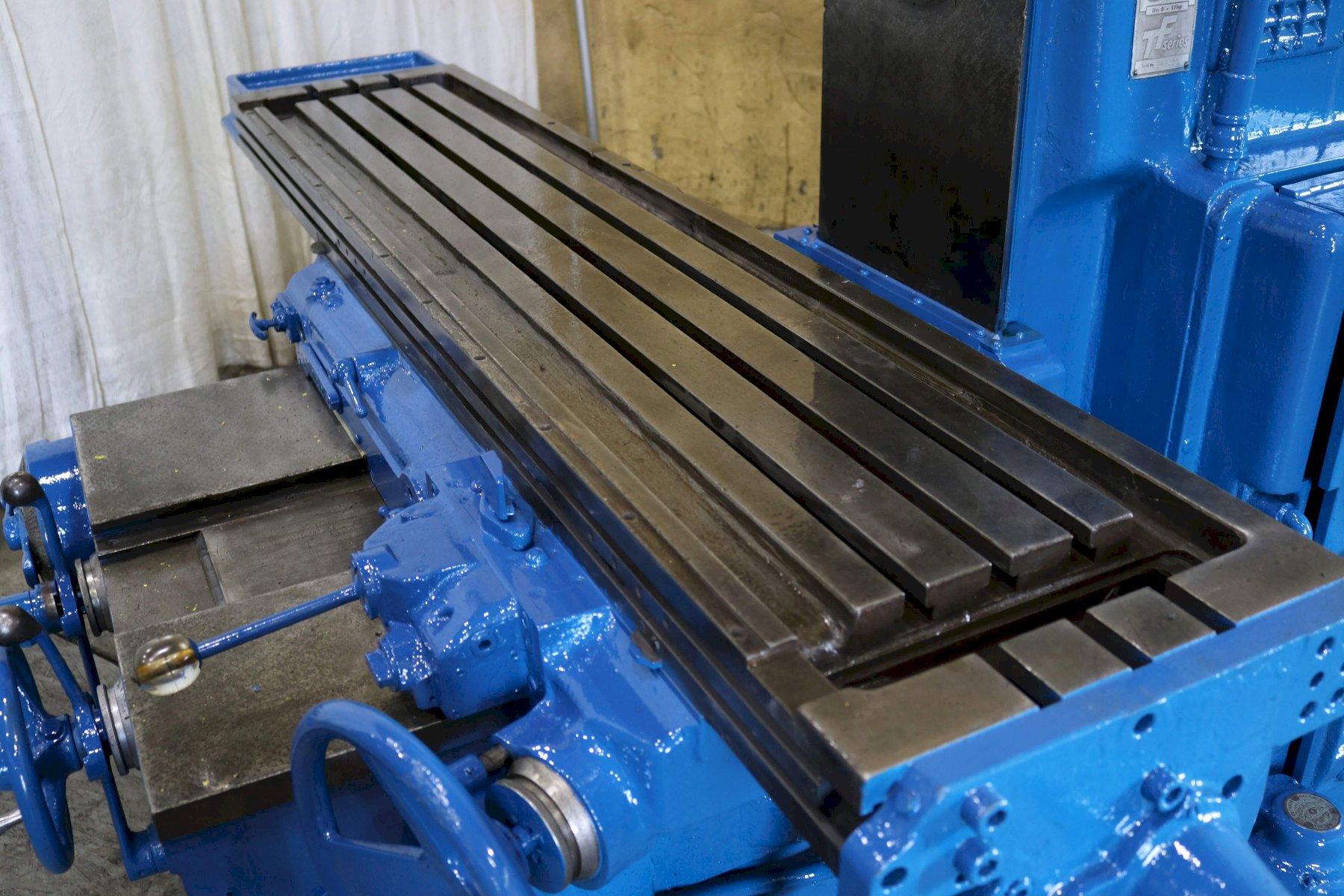

AREA OF TABLE ........................ 68" X 15-3/4"

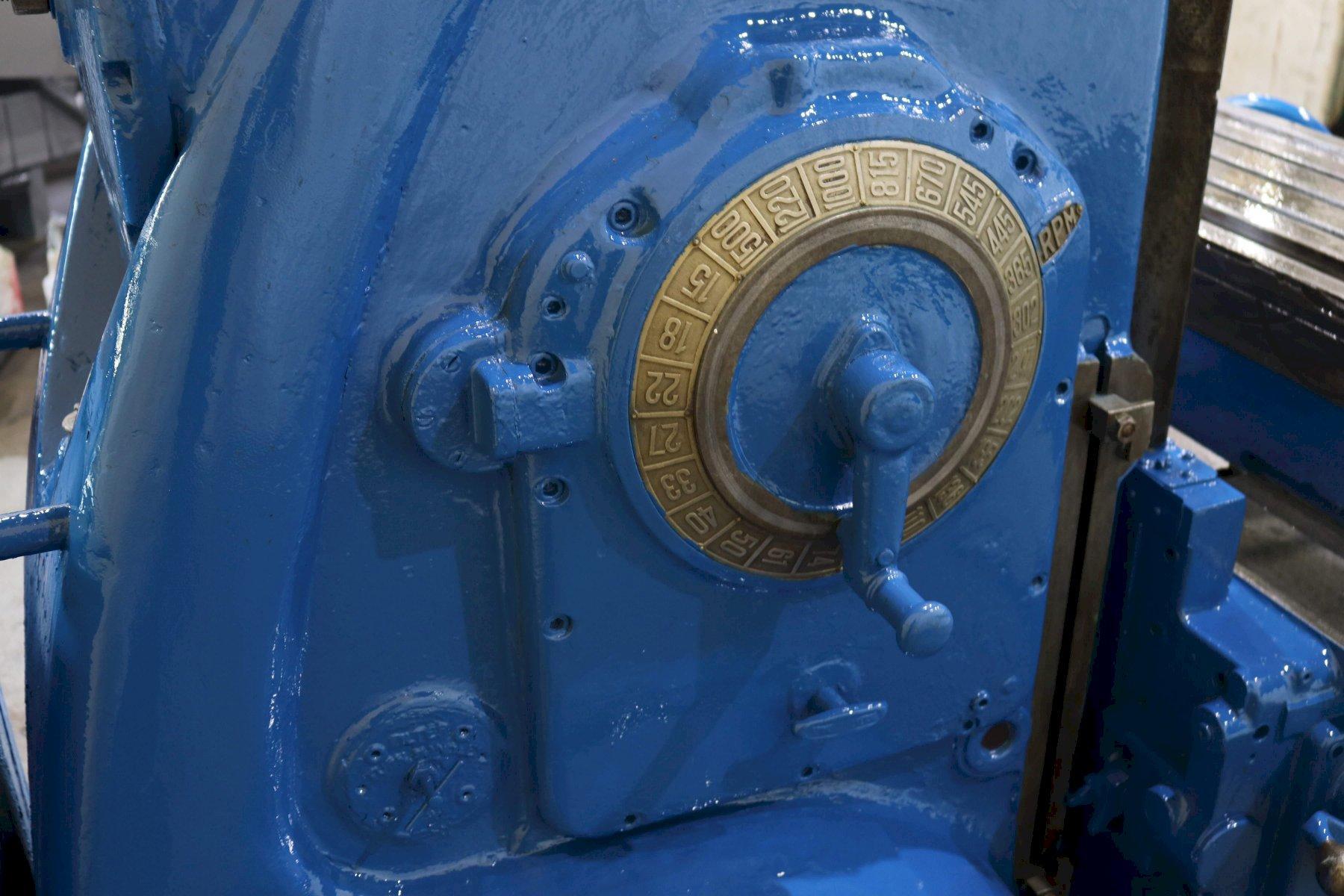

SPINDLE SPEEDS ....................... (24) 50 TO 1500 RPM
LONGITUDINAL AND CROSS FEEDS ......... (32) 3/8 TO 90 IPM
VERTICAL KNEE FEED ................... (32) 1/8 TO 30 IPM
VERTICAL HEAD FEEDS .................. (32) 3/16 TO 45 IPM
LONGITUDINAL TRAVEL .................. 34
CROSS TRAVEL ......................... 14"
VERTICAL KNEE TRAVEL ................. 14"
VERTICAL HEAD TRAVEL ................. 6"
MAXIMUM DISTANCE SPINDLE TO TABLE .... 20-1/2
TAPER IN SPINDLE ..................... #50NS
RAPID TRAVERSE ....................... 150 IPM
COOLANT .............................. YES
4 POSITION TURRET STOP VERTICAL HEAD . YES
MOTOR ................................ 15 HORSEPOWER
