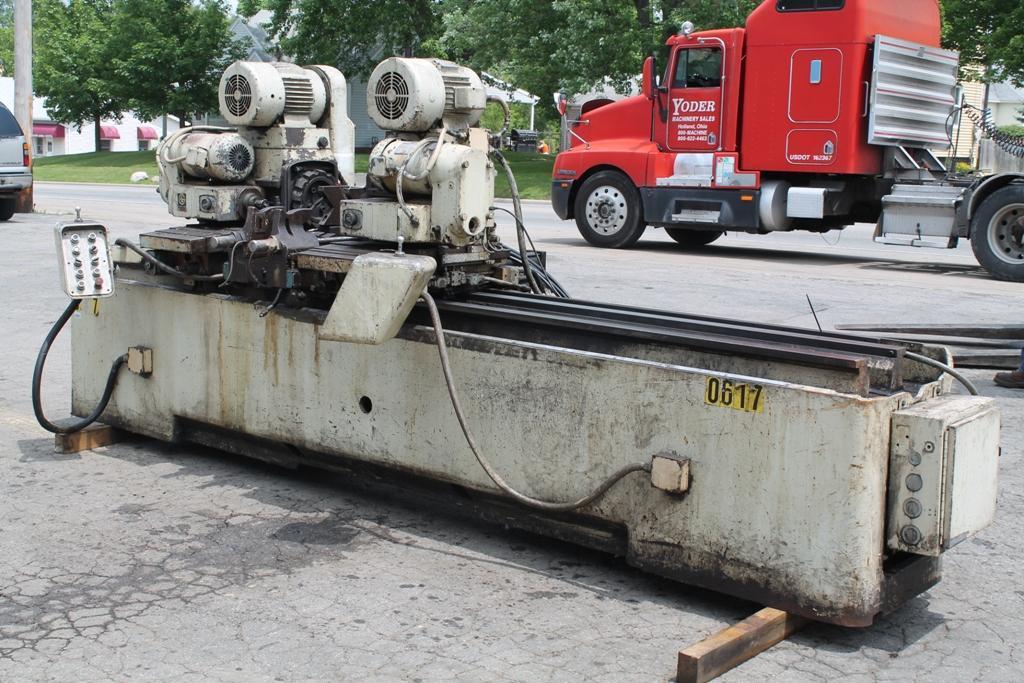

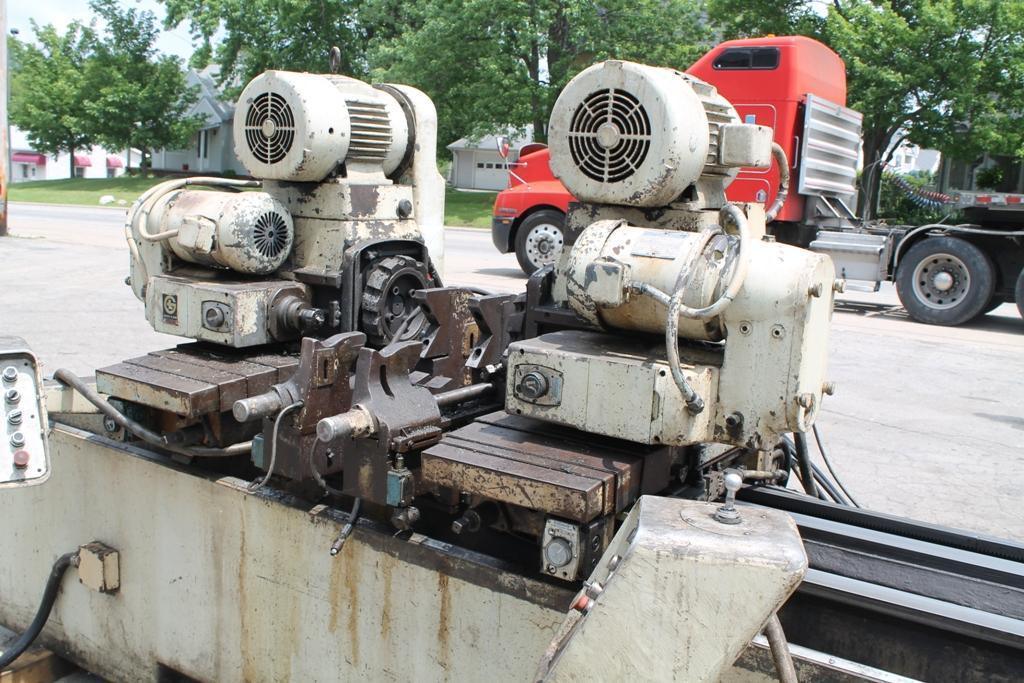

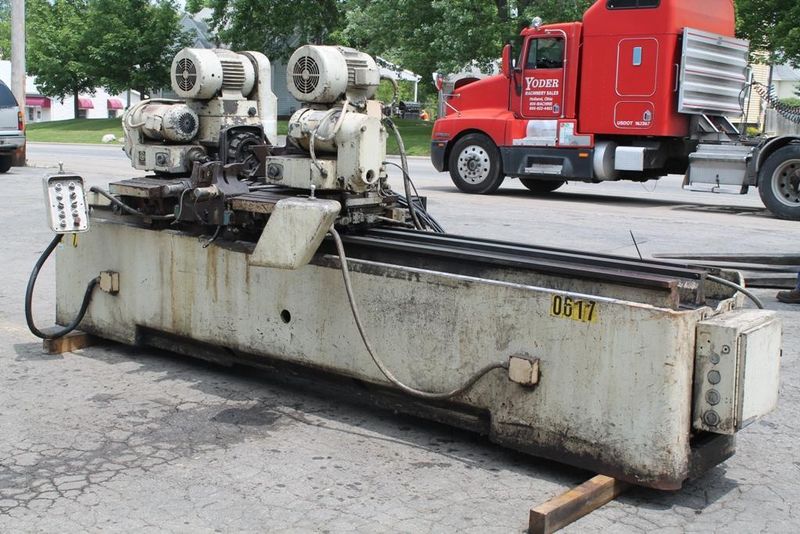

124' GIDDINGS & LEWIS MILLING & FACING CENTERING MACHINE STOCK #64194

Manufacturer

Category

Centering/Facing Machines

Type

CENTERING MACHINES

Stock

64194

Model

124

Dealer Location

Ohio

Request a Quote
View Contact Information

Spec Sheet

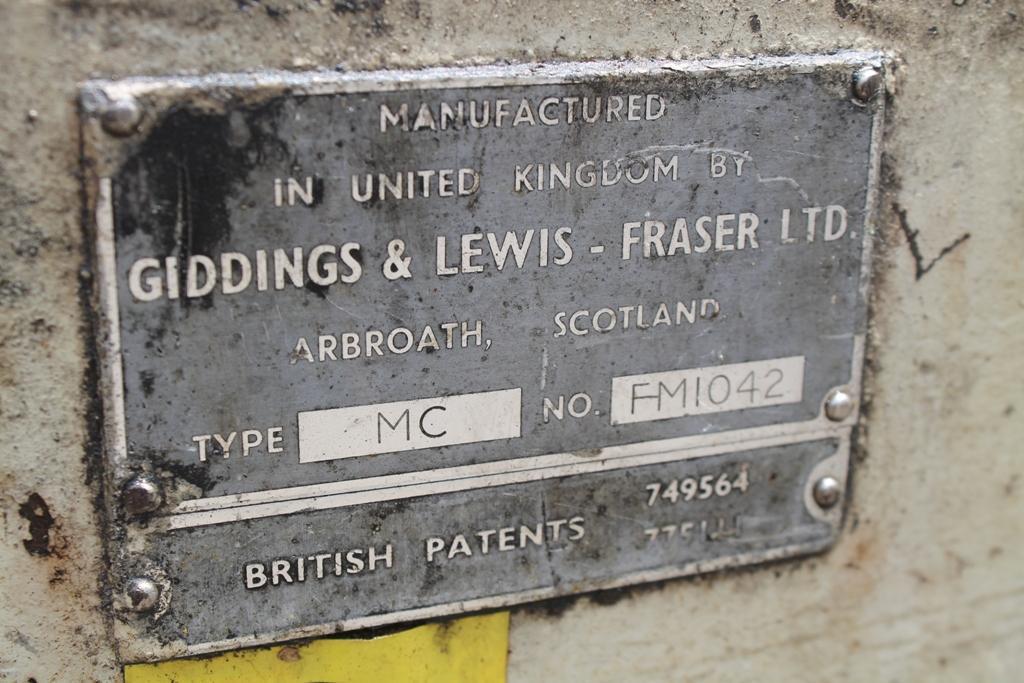

SERIAL .............................................. FM-1042
MODEL ............................................... MC
MAXIMUM CENTERS ..................................... 120"
CROSS HEAD TRAVEL ................................... 10"
MAX DIAMETER MILLING WITH 10" CUTTERS................ 8"
MAX DIAMETER MILLING WITH 8" CUTTERS................. 6.25"
MAX DIAMETER MILLING WITH 6" CUTTERS................. 3.5"
MINIMUM DIAMETER CLAMPING............................ 1/2"
MAXIMUM WORKPIECE LENGTH (10" Cutters)............... 120"
MINIMUM WORKPIECE LENGTH (6" Cutters)................ 4.5"
MILLING SPINDLE SPEEDS (THRU PICK OFF GEARS)......... 42-290 RPM
SIZE OF TAPER IN MILLING SPINDLES.................... #50 NST
RAPID TRAVERSE RATE OF MILLING HEADS................. 100 IPM
FEED RATE OF MILLING HEADS (INFINITELY VARIABLE)..... 0-100 IPM
MAXIMUM MATERIAL REMOVED AT EACH END................ .50"
DRILL SPINDLE SPEEDS (THRU PICK OFF GEARS)........... 377-1145 RPM
DRILL QUILL STROKE................................... 3"
DRILL FEED STROKE.................................... 2.75"
DRILL RAPID TRAVERSE RATE............................ 100 IPM
DRILL FEED RATE (INFINITELY VARIABLE)................ 0-100 IPM
