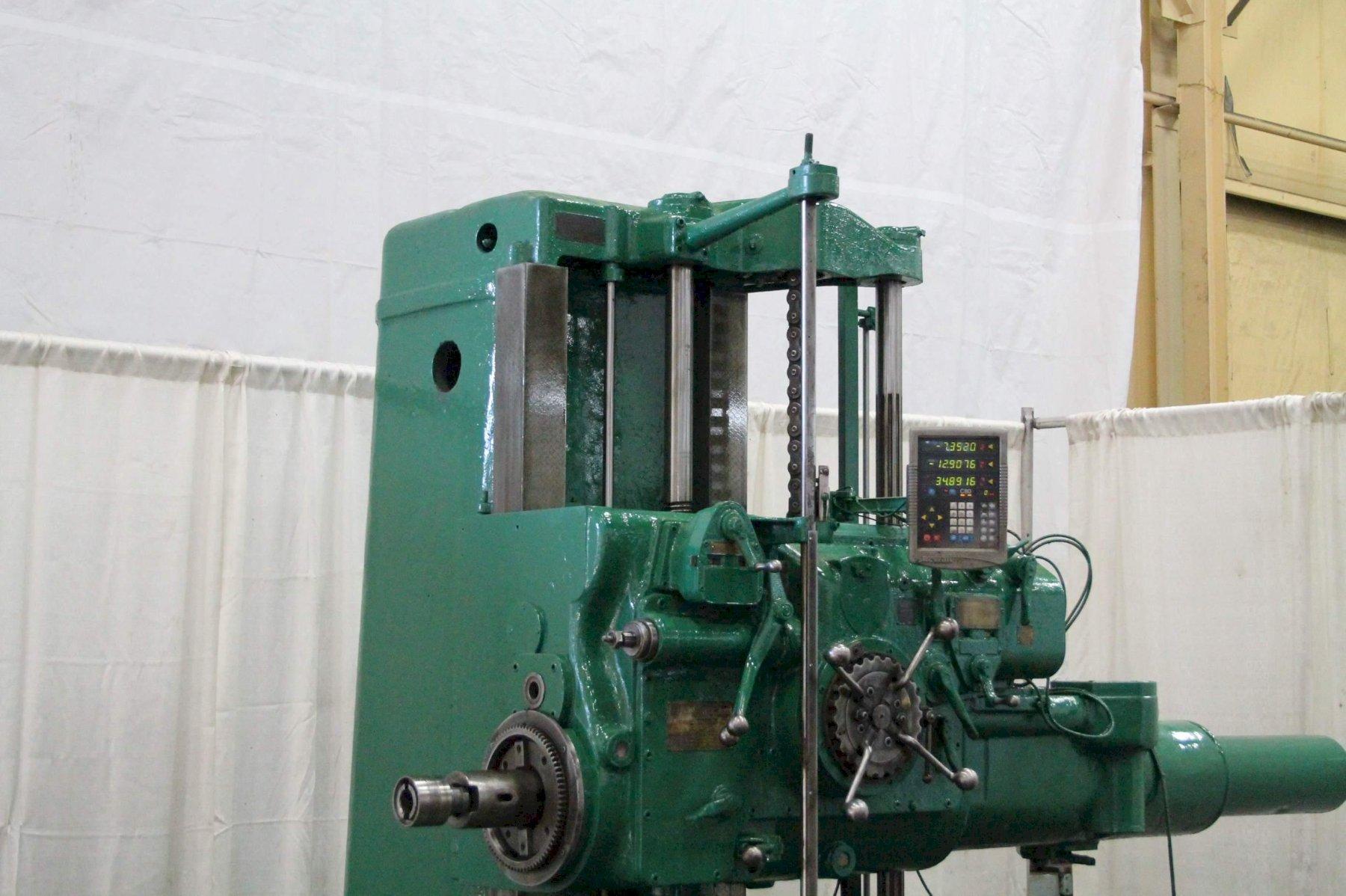

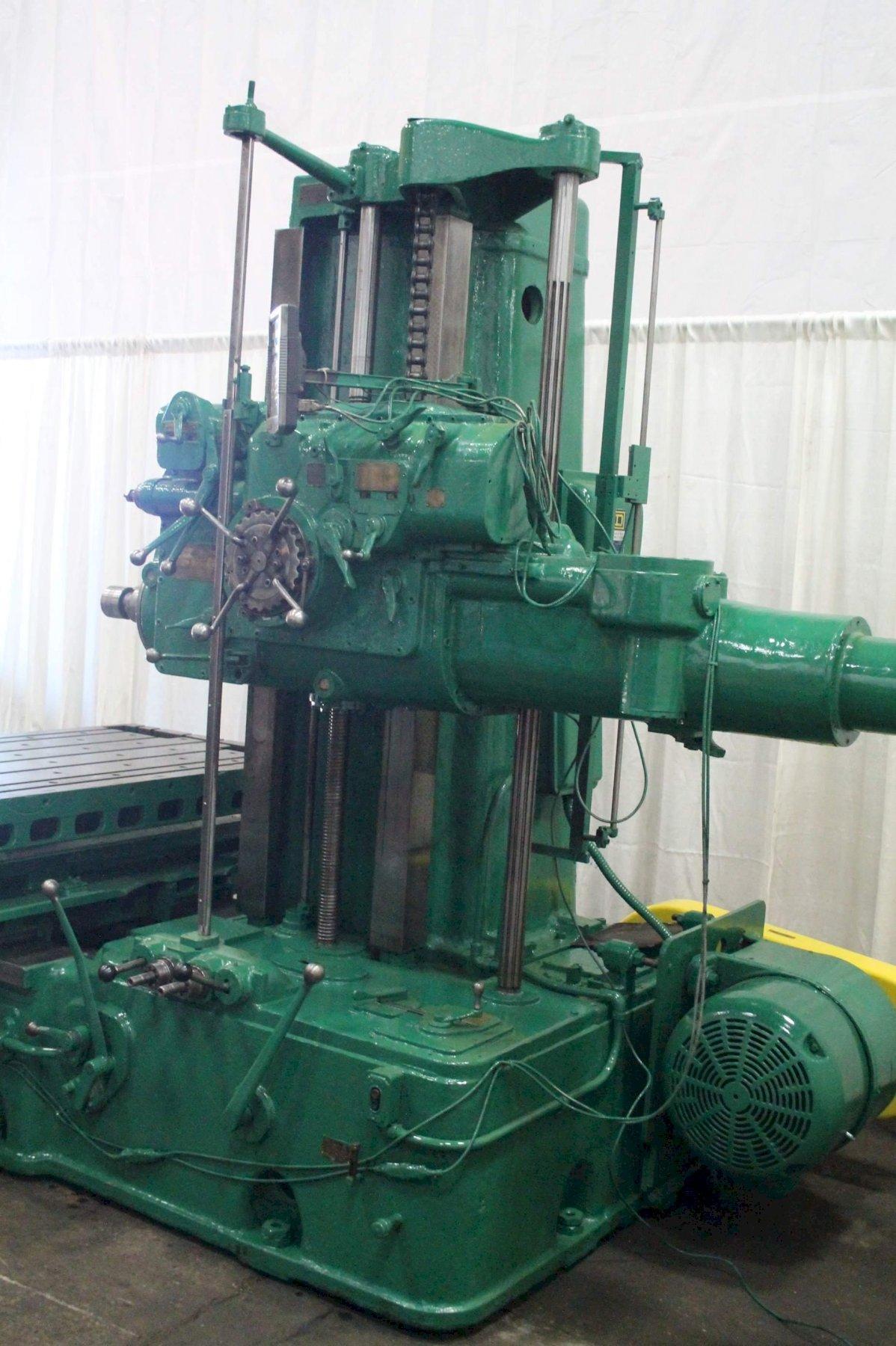

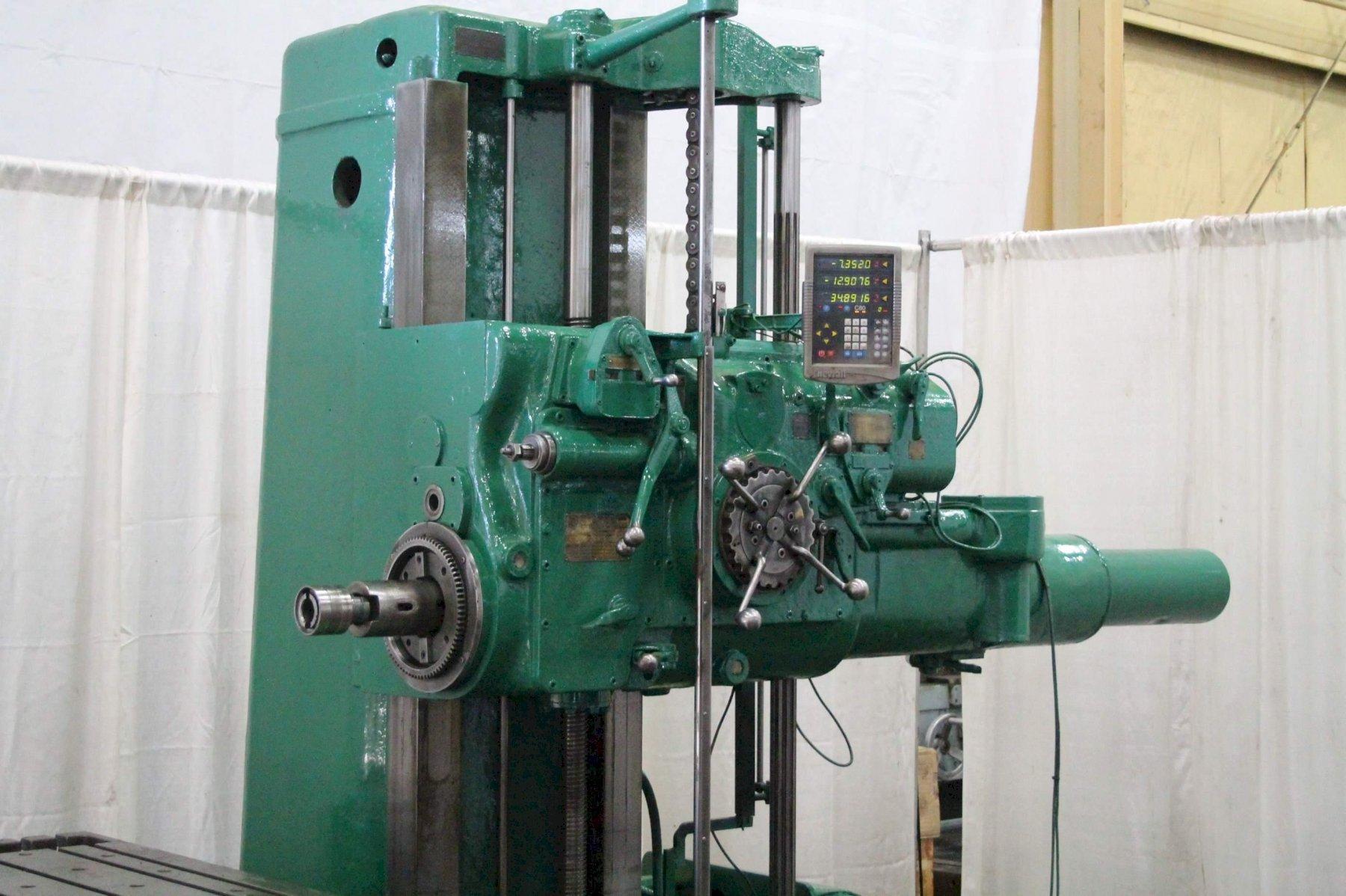

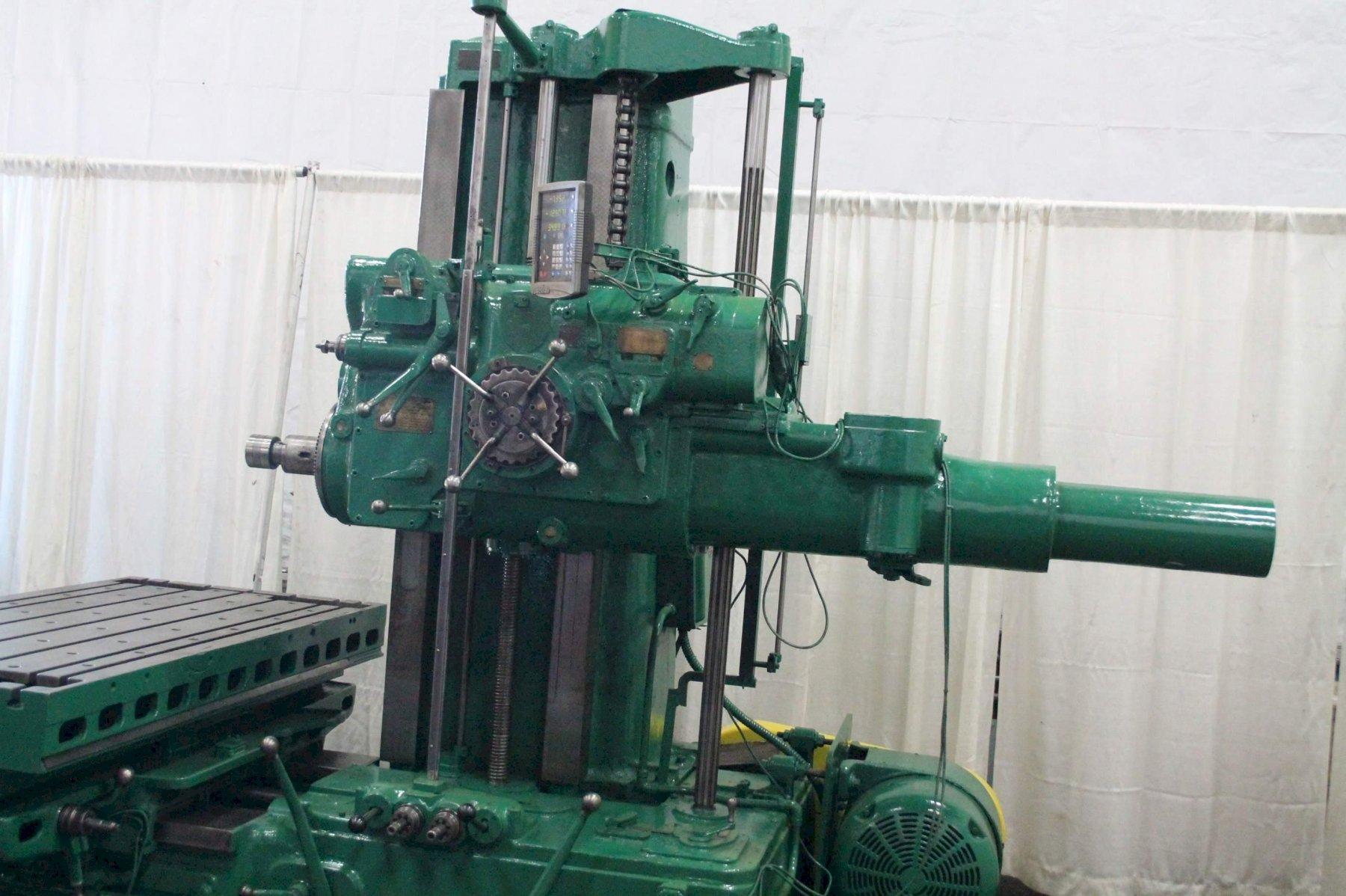

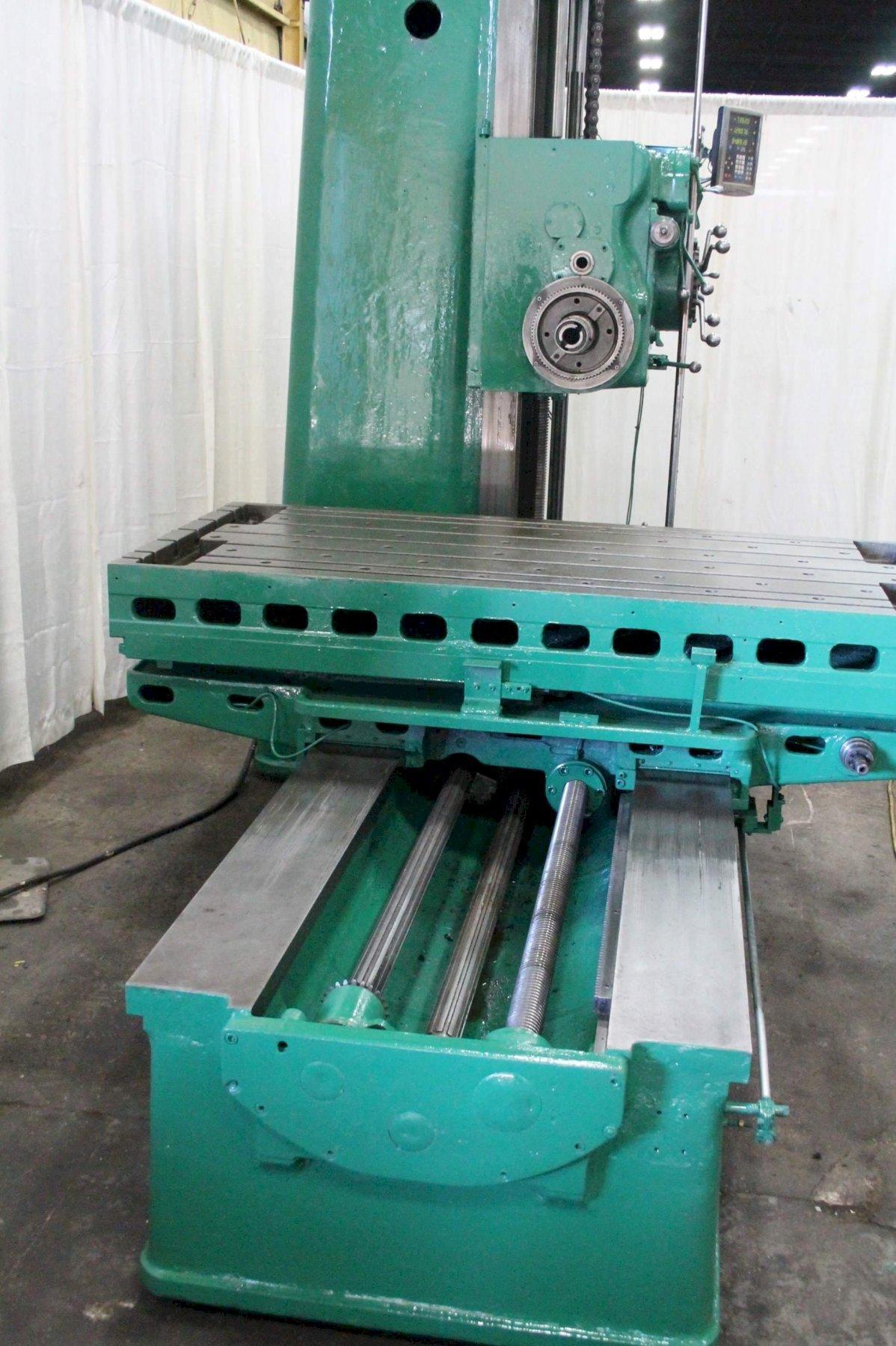

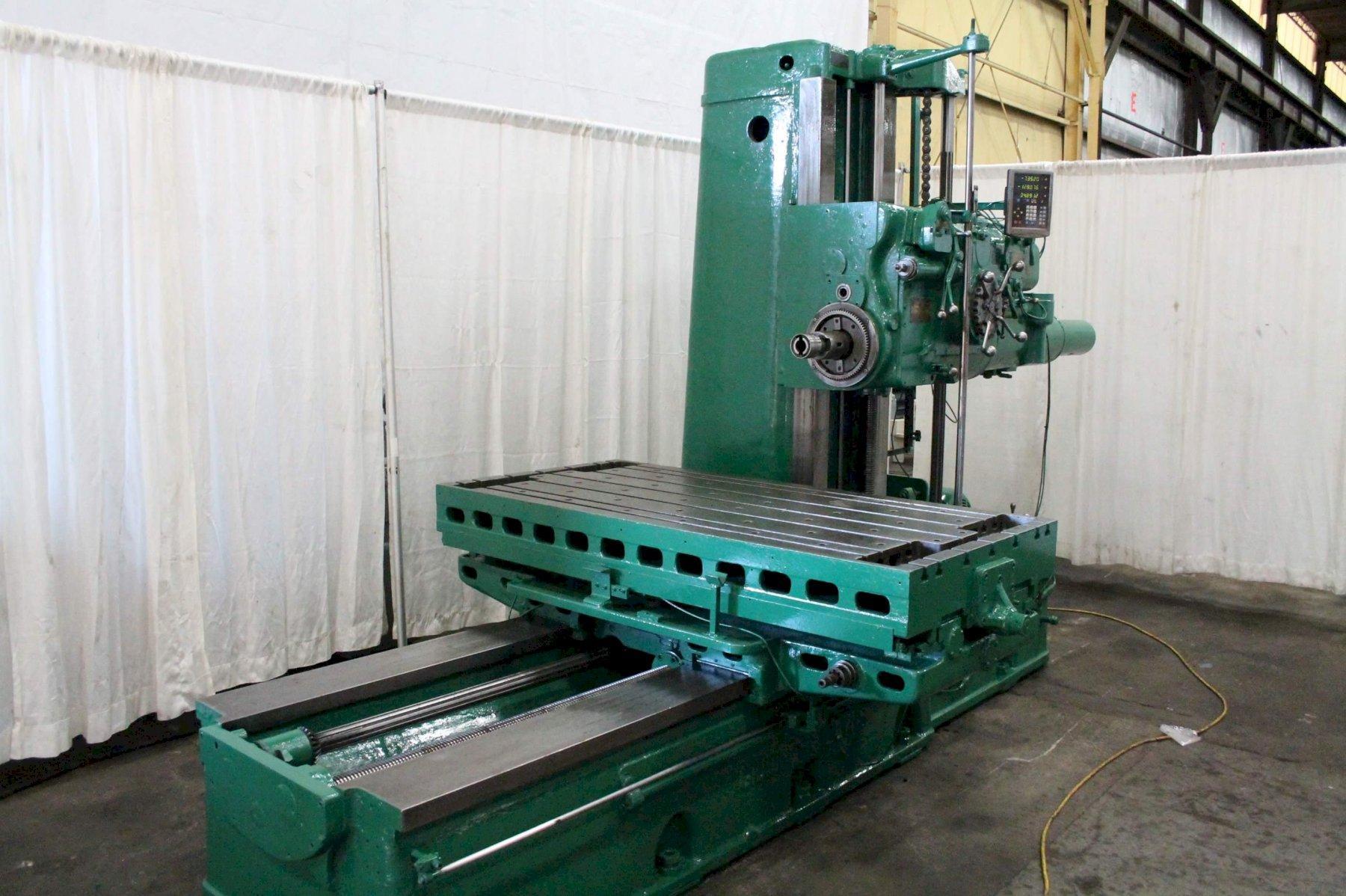

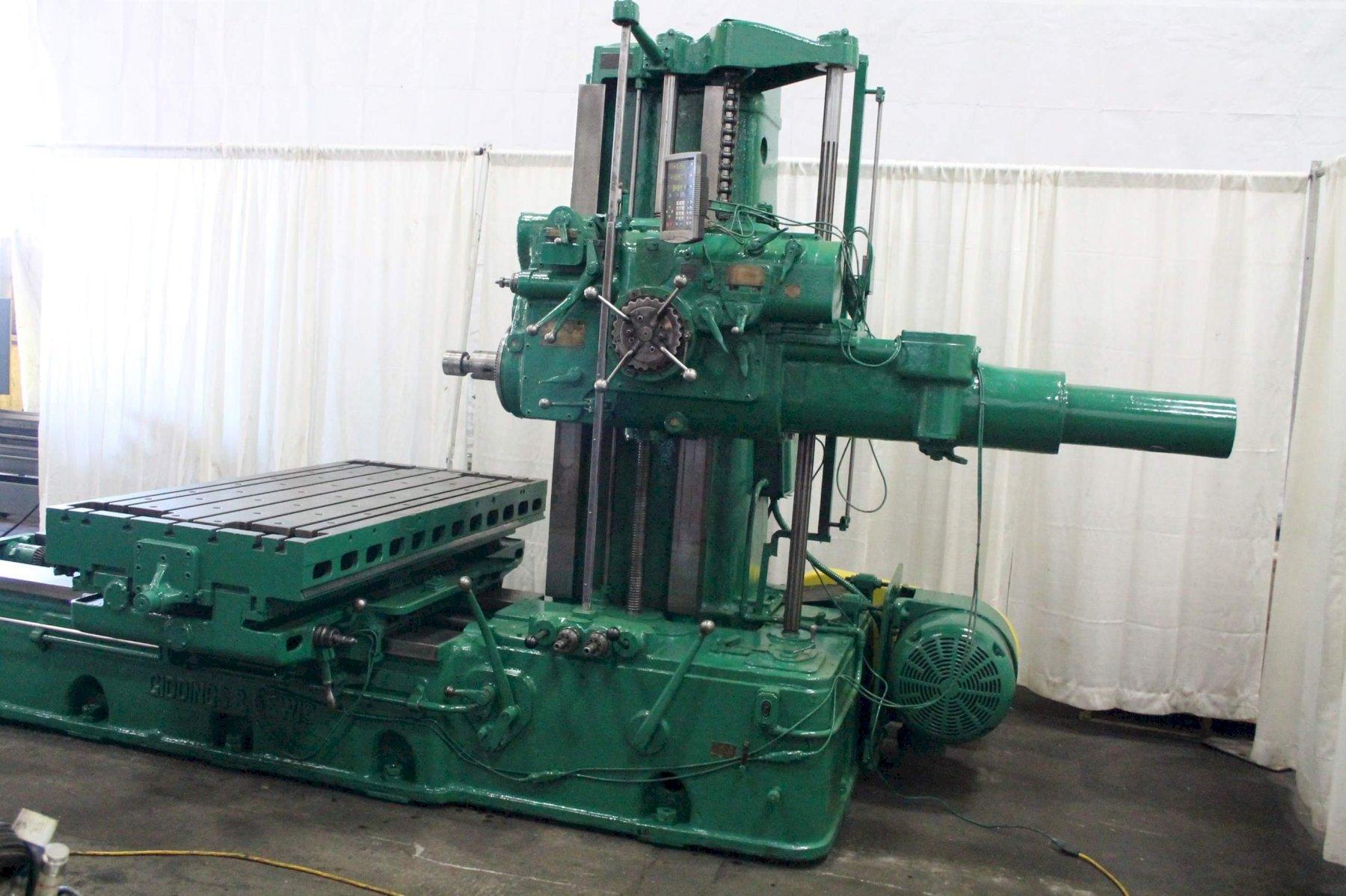

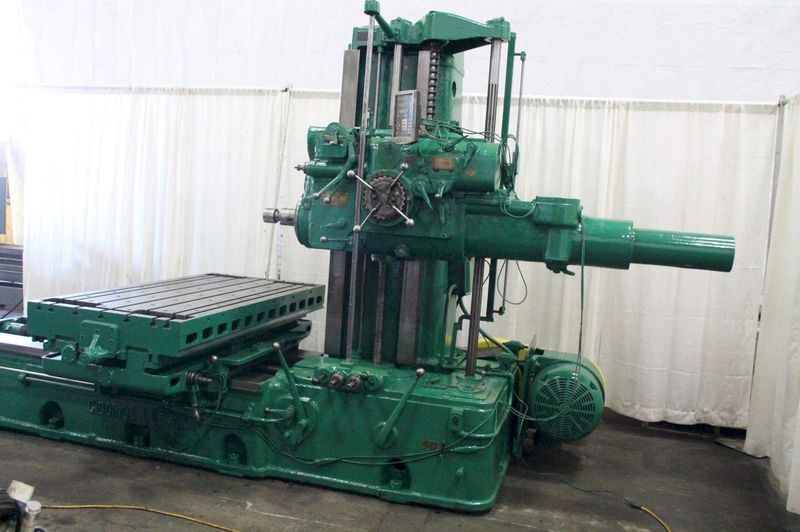

4" GIDDINGS & LEWIS #340-T HORIZONTAL TABLE TYPE BORING MILL: STOCK #72715

Manufacturer

GIDDINGS & LEWIS

Category

Boring Mills

Type

BORING MILLS, HORIZONTAL, TABLE TYPE

Stock

72715

Model

4 340-T

Dealer Location

Ohio

Request a Quote
View Contact Information

Spec Sheet



SERIAL ............................. 6622
MODEL .............................. 340-T
DIAMETER OF SPINDLE ................ 4"
DIAMETER OF AUXILIARY SPINDLE ...... 2"

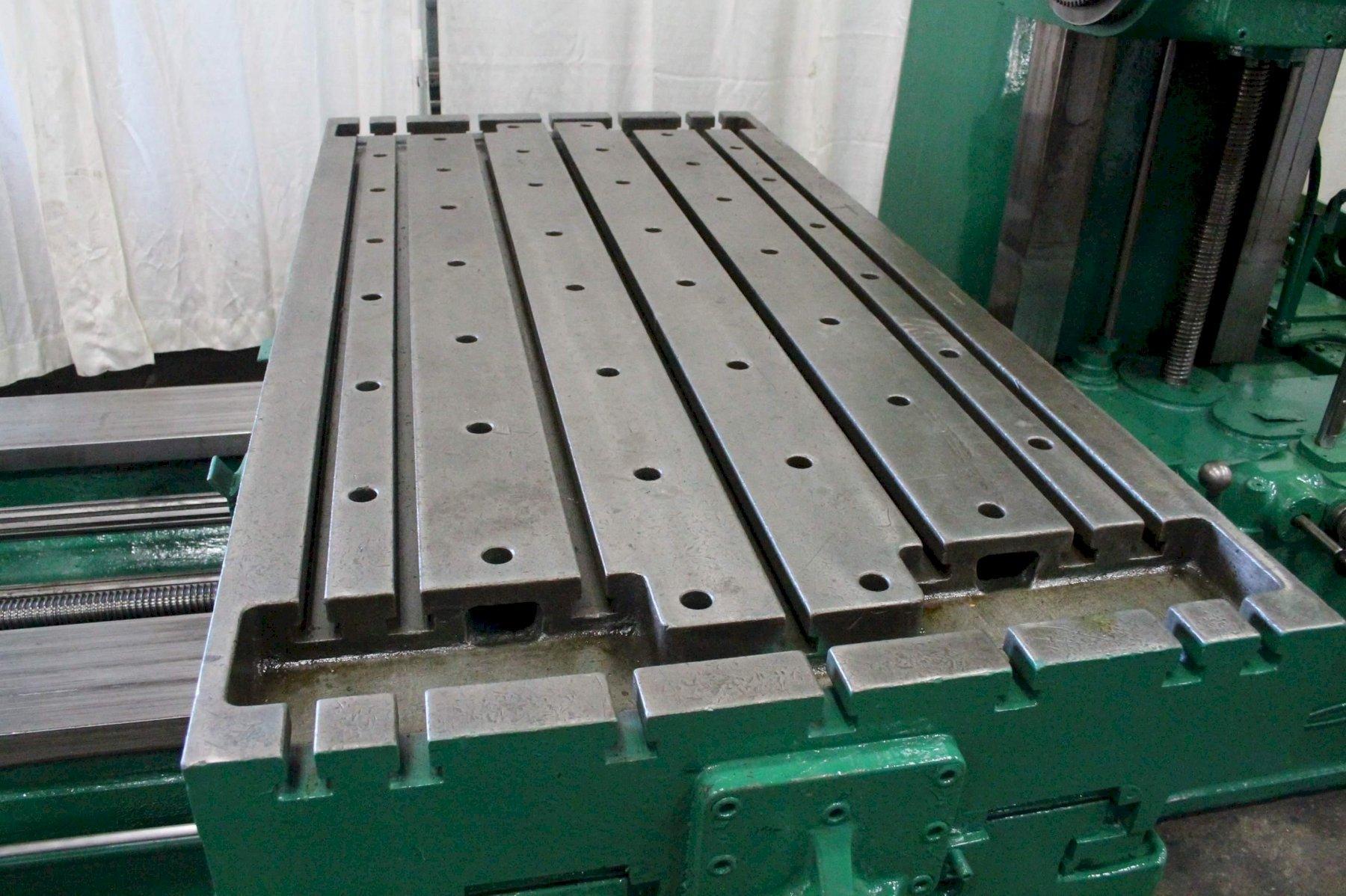

AREA OF TABLE ...................... 48" X 74"
SPINDLE SPEEDS MAIN SPINDLE ........ 7.5 TO 450 RPM
SPINDLE SPEEDS AUXILIARY ............ 25 TO 1500 RPM
SPINDLE FEEDS ...................... (33) .002 TO .250 IPR
VERTICAL SPINDLE FEEDS ............. (18) .5 TO 25 IPM
TABLE FEEDS ........................ (36) .5 TO .625 IPM
SPINDLE TAPER ...................... #5 MT
SPINDLE TRAVEL, IN/OUT ............. 30" & 9"
VERTICAL HEADSTOCK TRAVEL .......... 36"

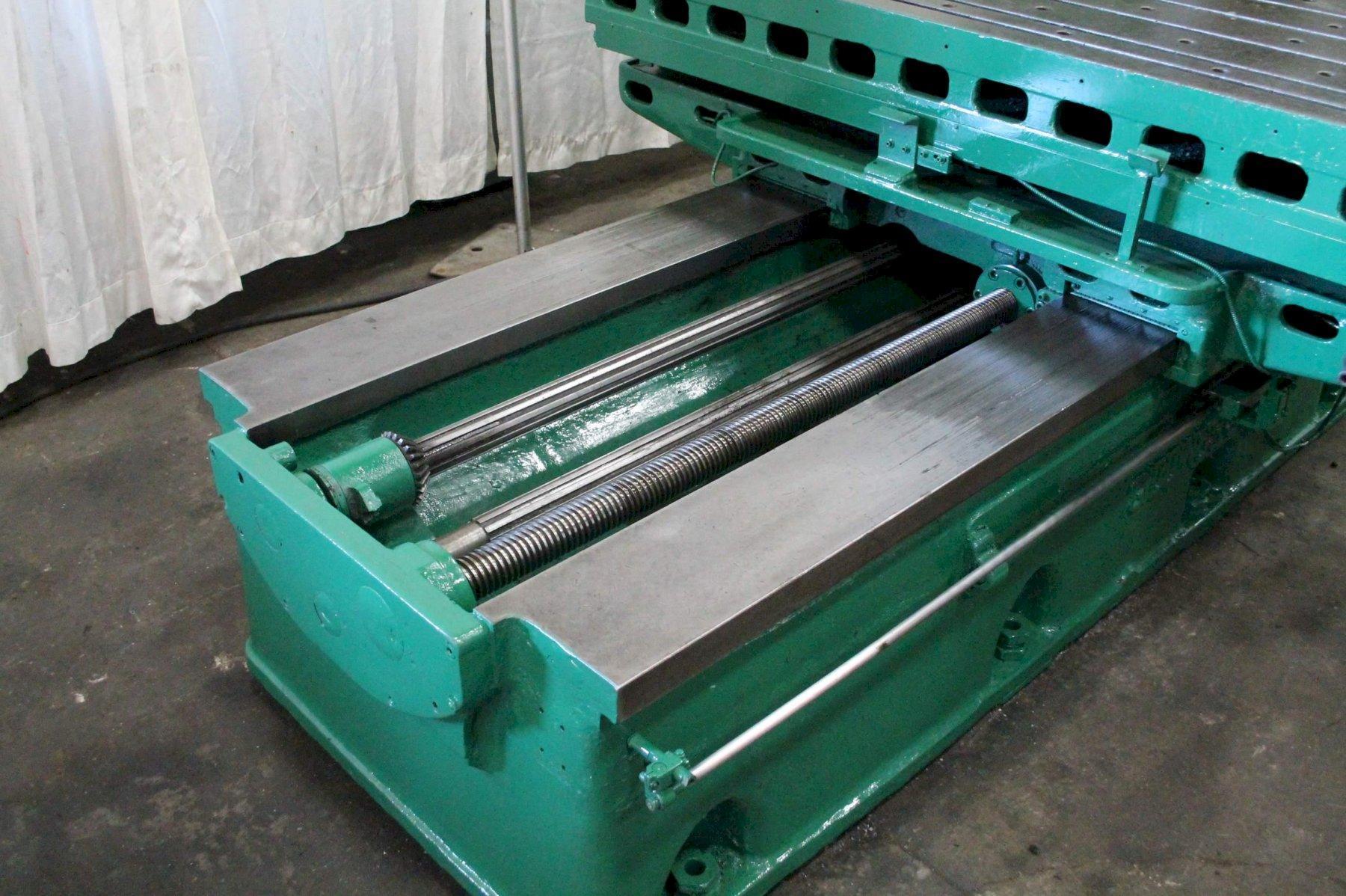

LONGITUDINAL TABLE TRAVEL .......... 72"
CROSS TABLE TRAVEL ................. 60"
FLOOR TO TABLE TOP ................. 36-1/2"
RAPID TRAVERSE ..................... YES
PENDANT CONTROL .................... YES

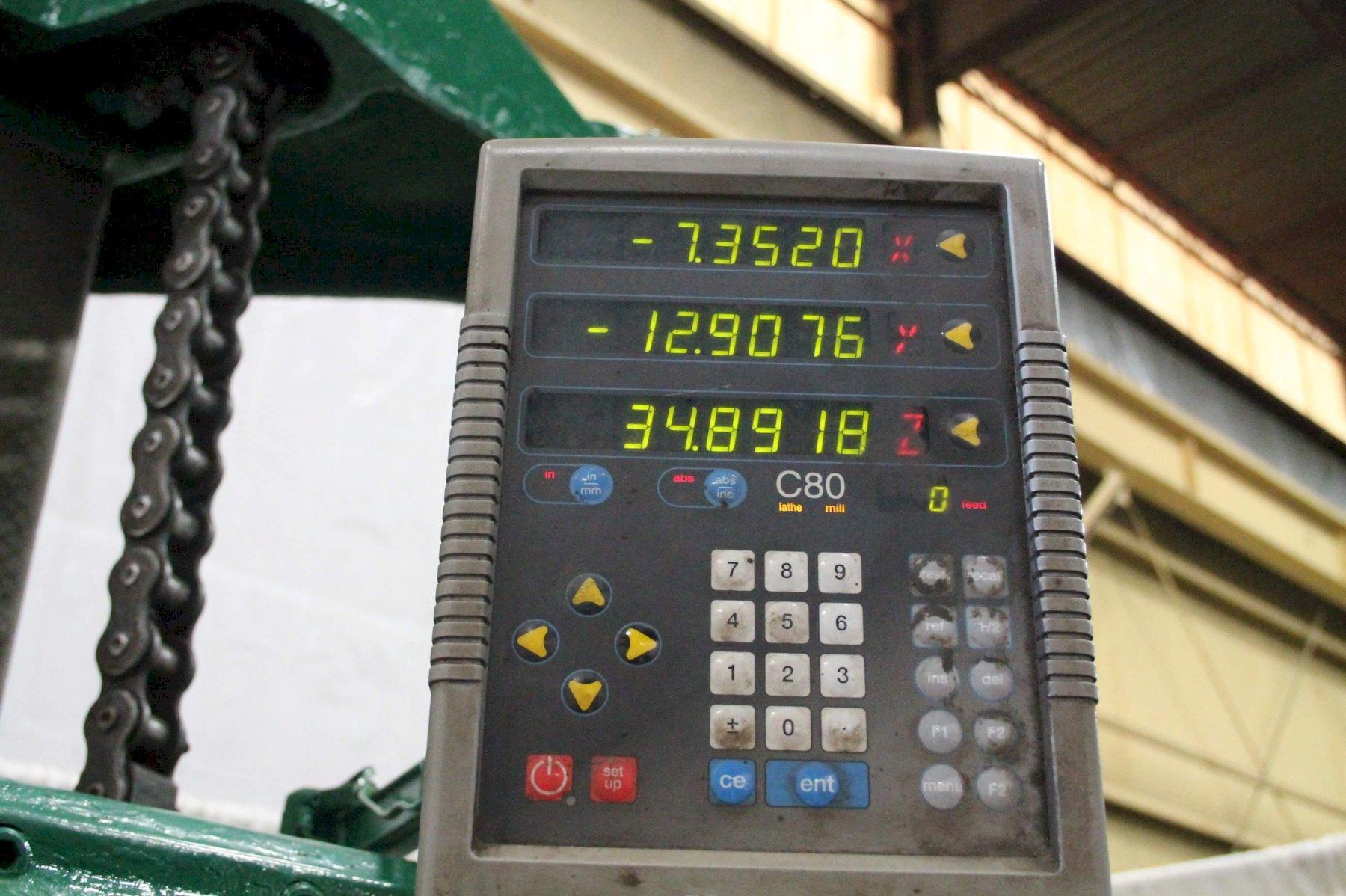

3 AXIS DIGITAL READOUTS ............ NEWALL C80
MOTOR .............................. 15 HORSEPOWER
