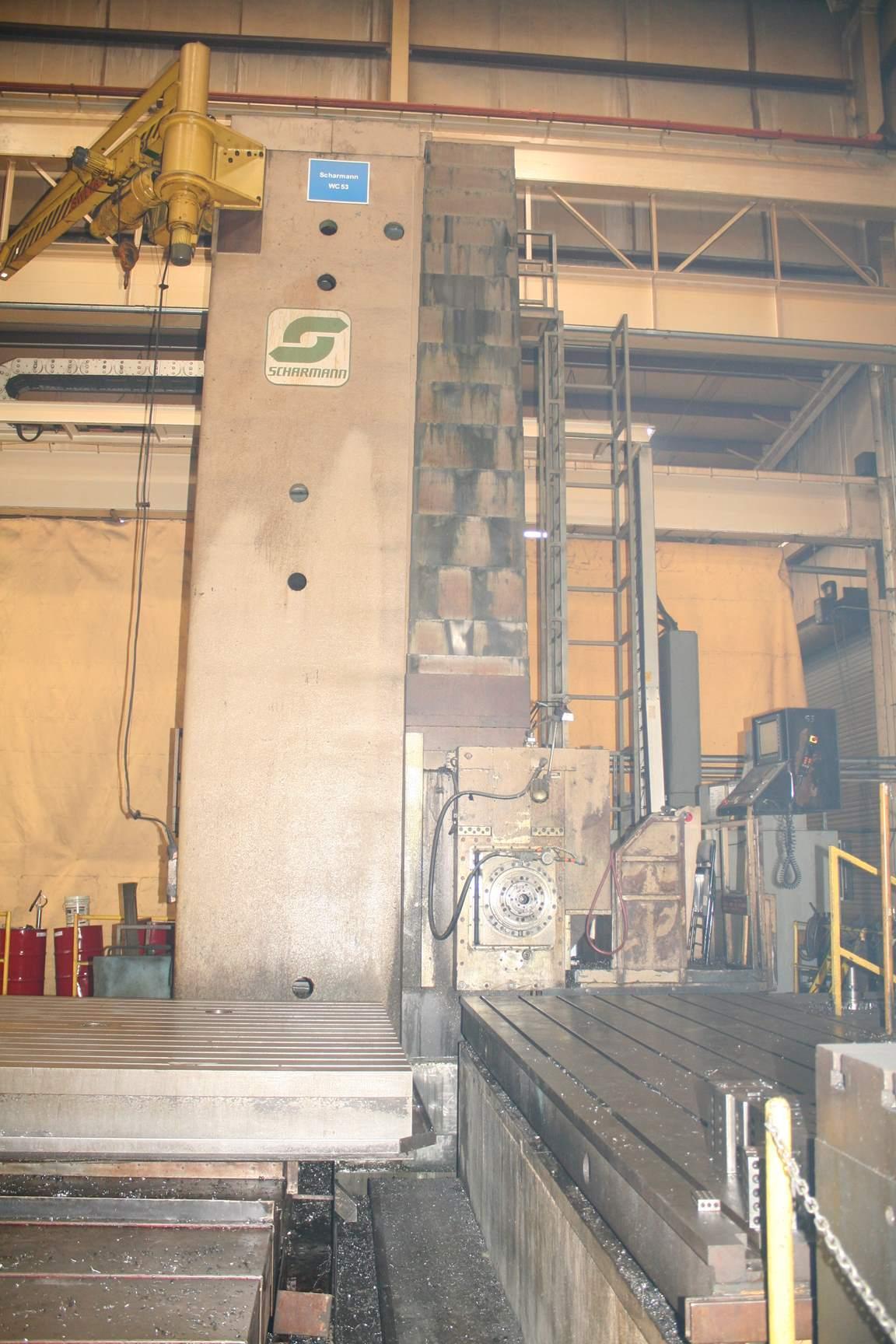

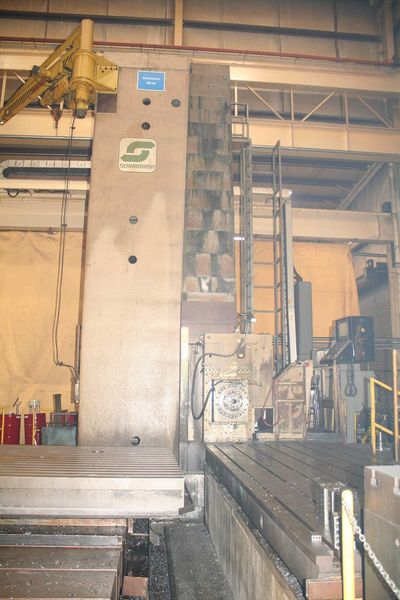

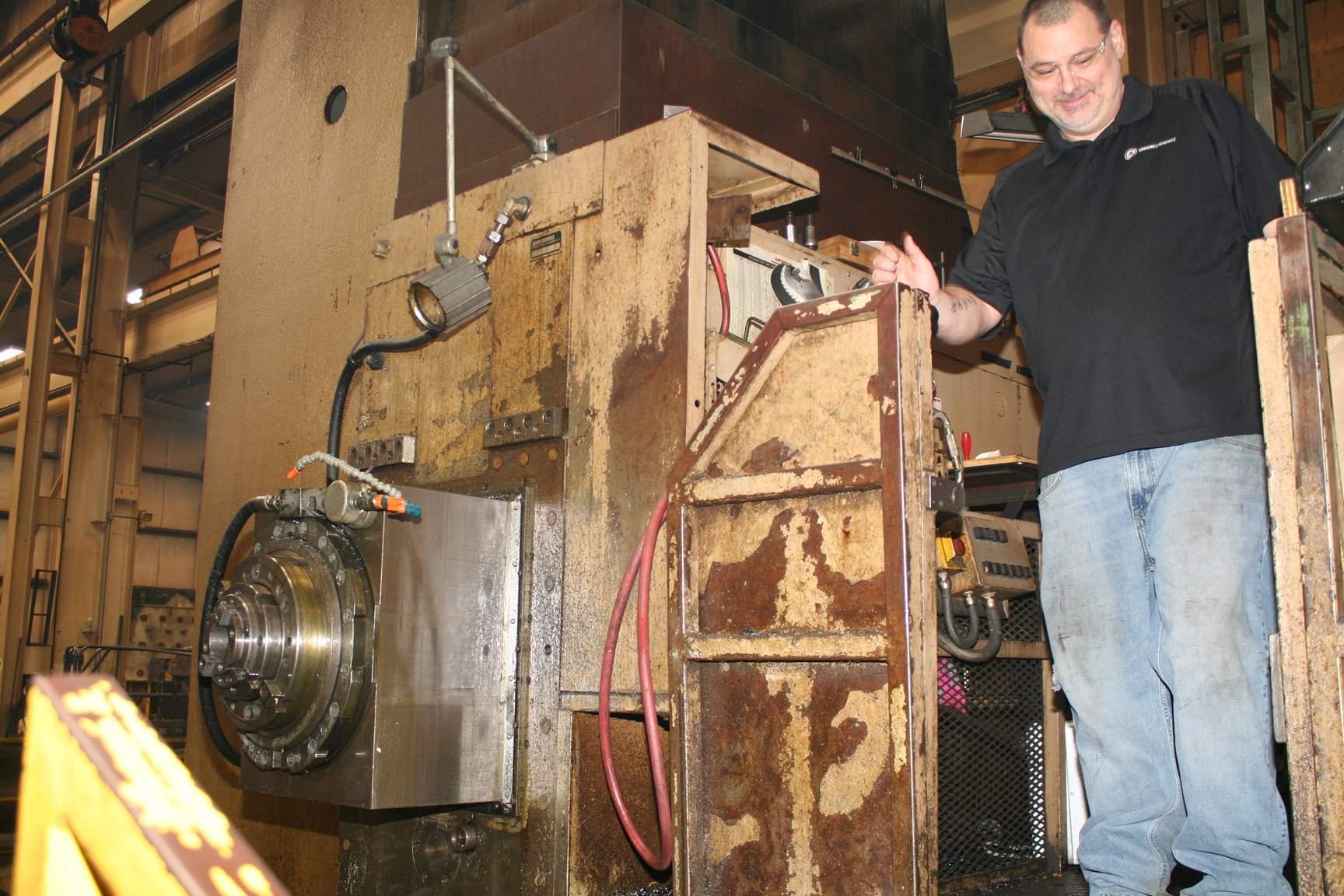

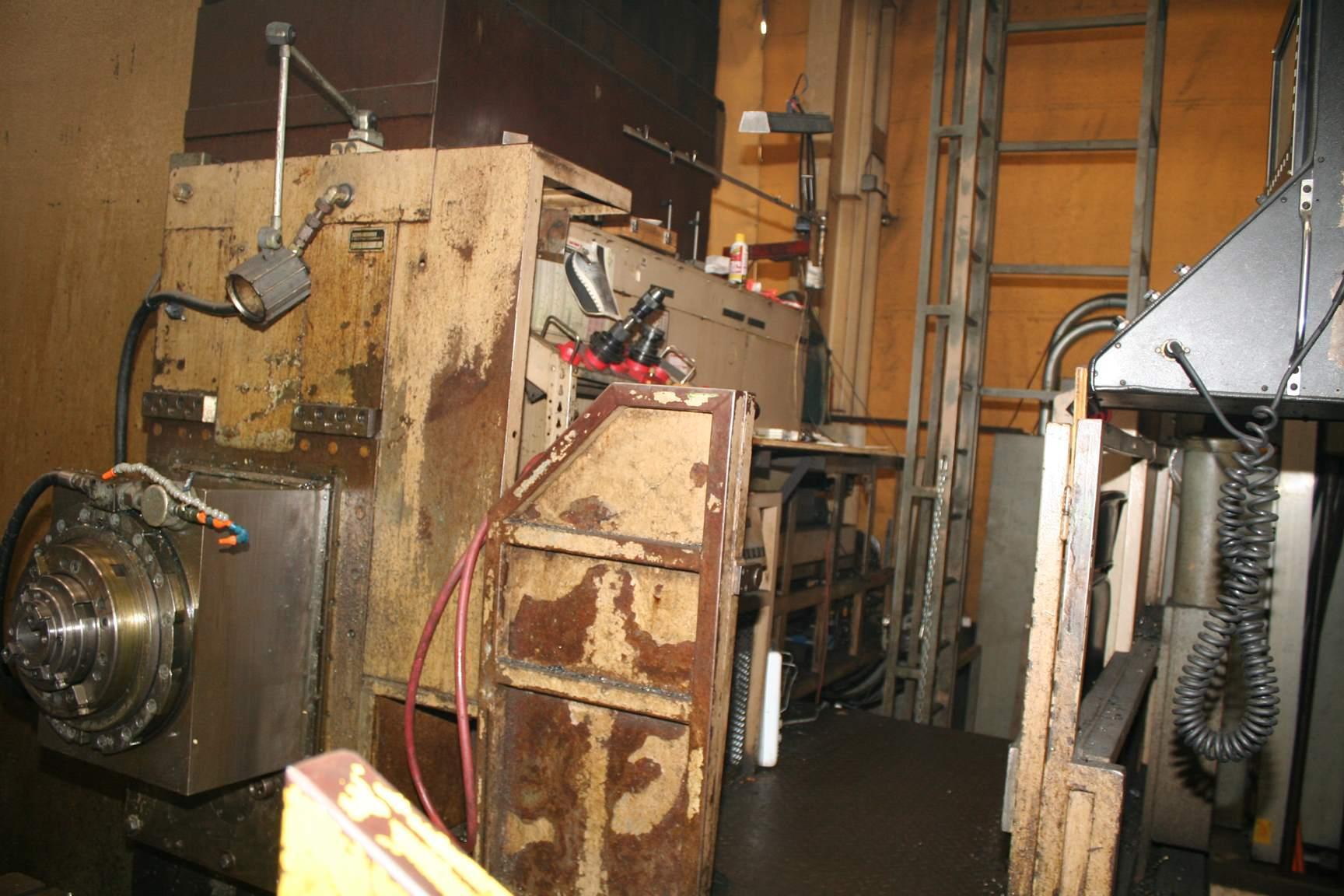

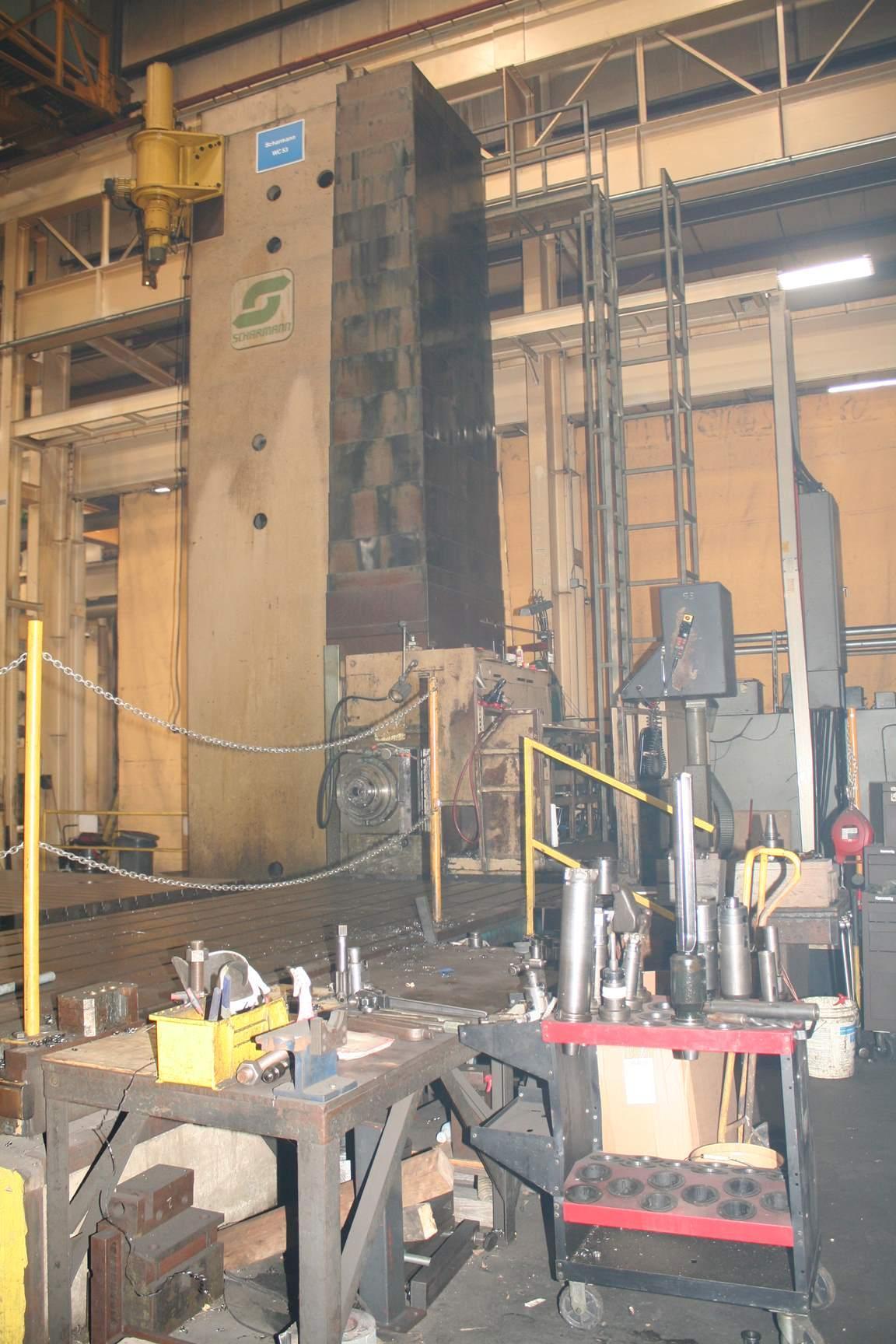

8.78' SCHARMANN FLOOR TYPE HORIZONTAL BORING MILL: STOCK #69635

Manufacturer

Category

Boring Mills

Type

BORING MILLS, HORIZONTAL, TABLE TYPE

Stock

69635

Model

8'

Dealer Location

Ohio

Request a Quote
View Contact Information

Spec Sheet



HEAVY CUT 4.2 HORIZONTAL FLOOR TYPE 7-AXIS
UPDATED ....................... 2000

SPINDLE DIAMETER ............... 8.78
TOOL HOLDER .................... ISO 60
MILLING SLEEVE ................. ISO 70
SPINDLE SPEED .................. 0.09-31.49
SPINDLE MOTOR .................. 181/120 HP

SUPPORT BEAM DIAMETER .......... 18.8" x 23.6"


X-AXIS ......................... 315" (HORIZONTAL TRAVEL OF COLUMN)
Y-AXIS ......................... 197" (VER TRAVEL OF HEAD STOCK)
Z-AXIS ......................... 50"  (IN/OUT TRAVEL OF SPINDLE)

OIL COOLANT .................... YES

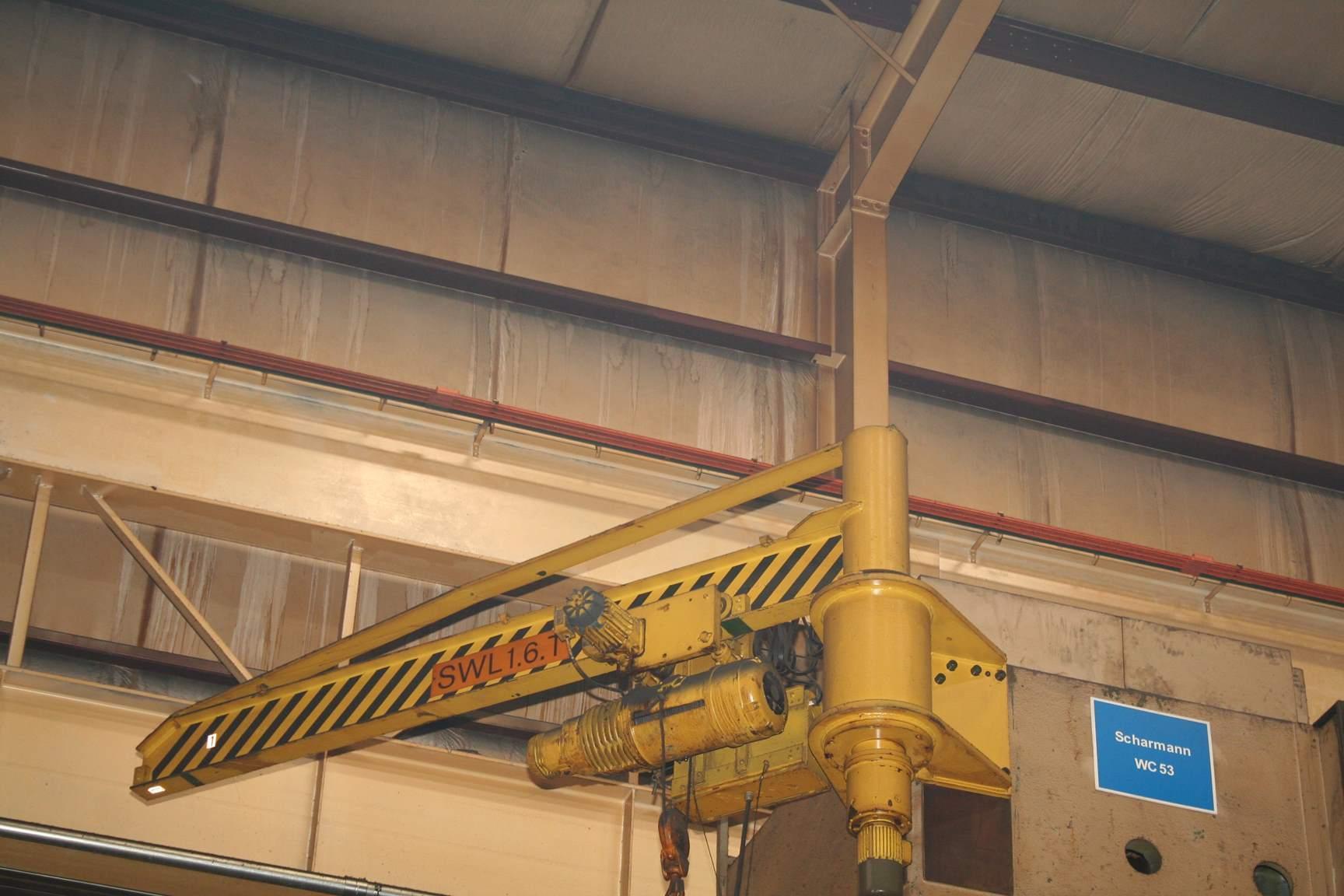

MONORAIL TROLLEY ............... 3,527 LBS

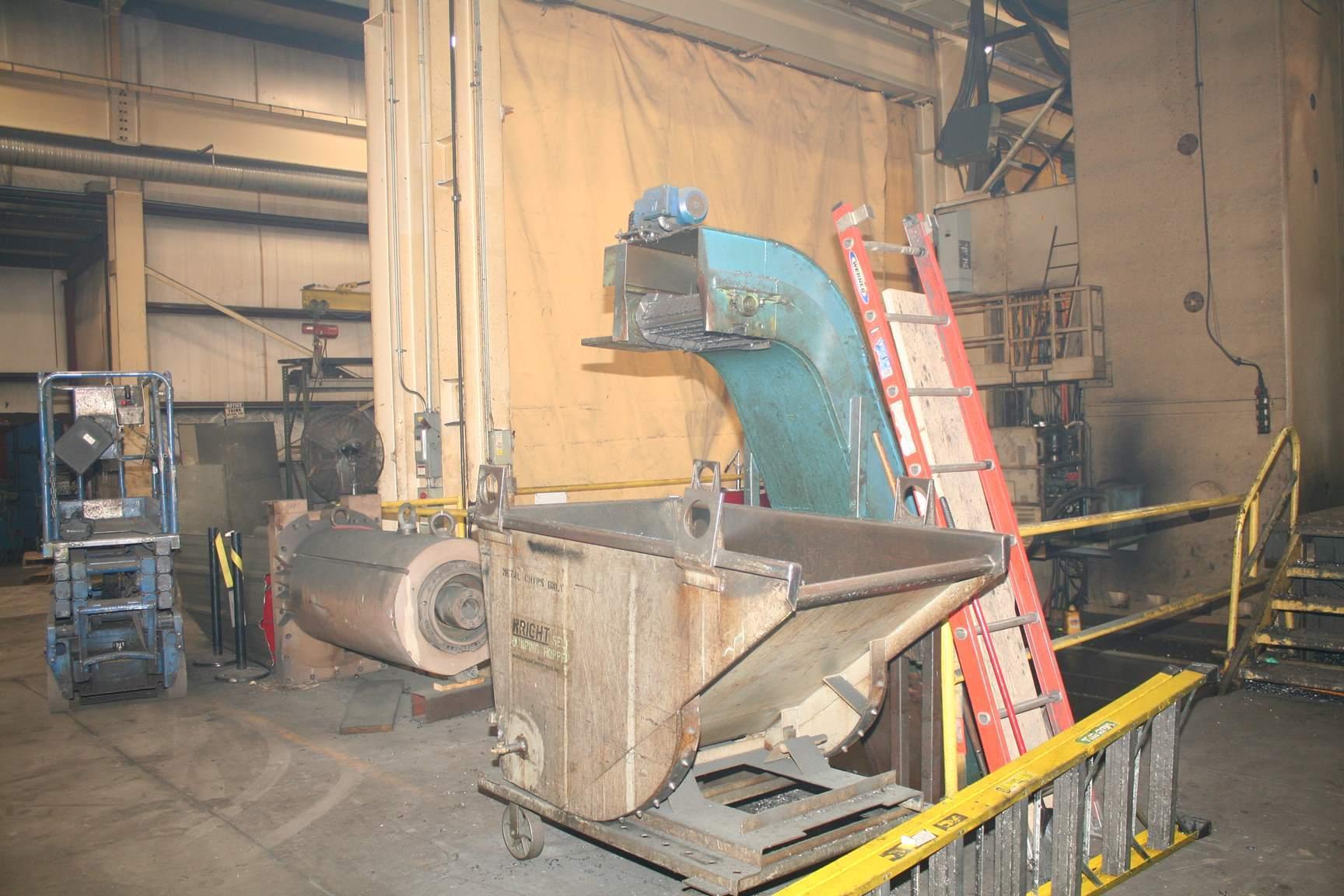

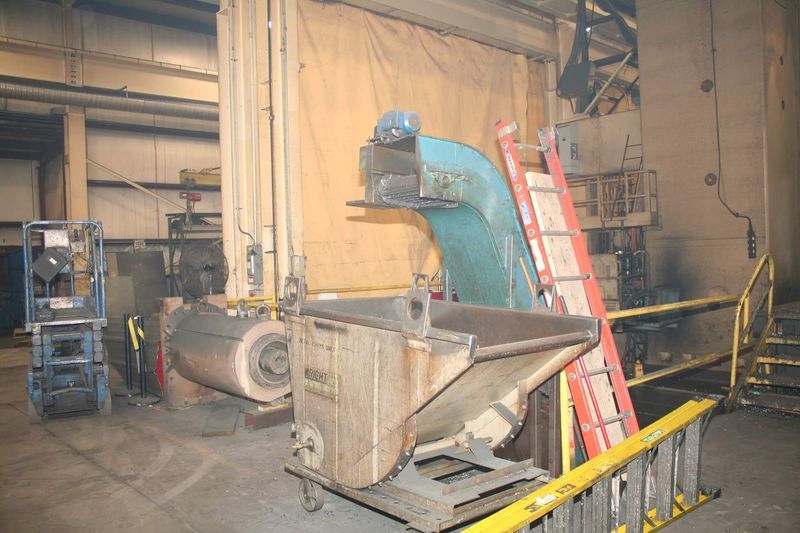

CHIPS CONVEYOR ................. YES

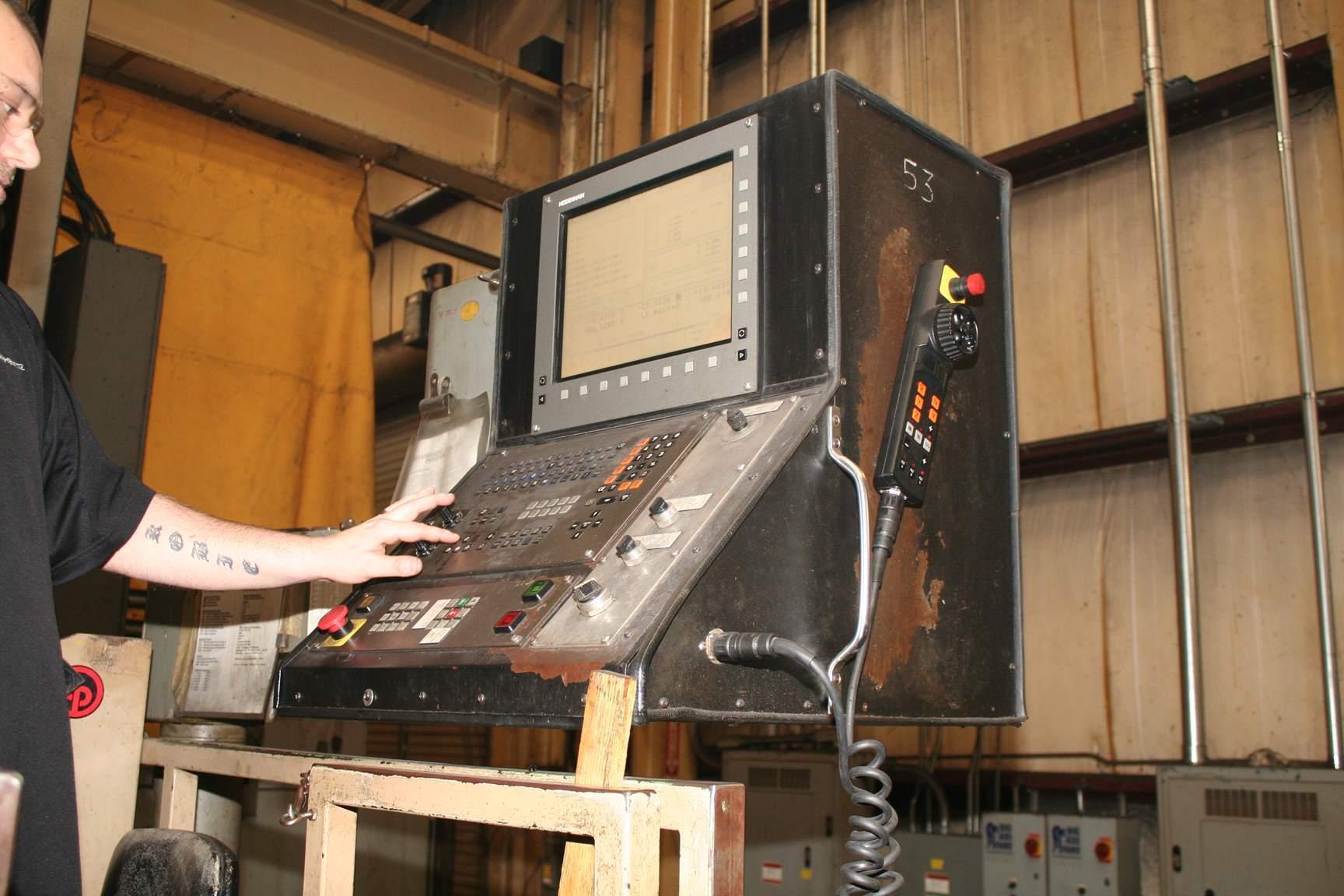

HEIDENHAIN CNC CONTROL 426 ..... YES
SIZE OF RAM .................... 19" X 23.6"
A-AXIS (TRAVEL OF RAM) ......... 50"
COMBINED Z & W TRAVEL .......... 100"

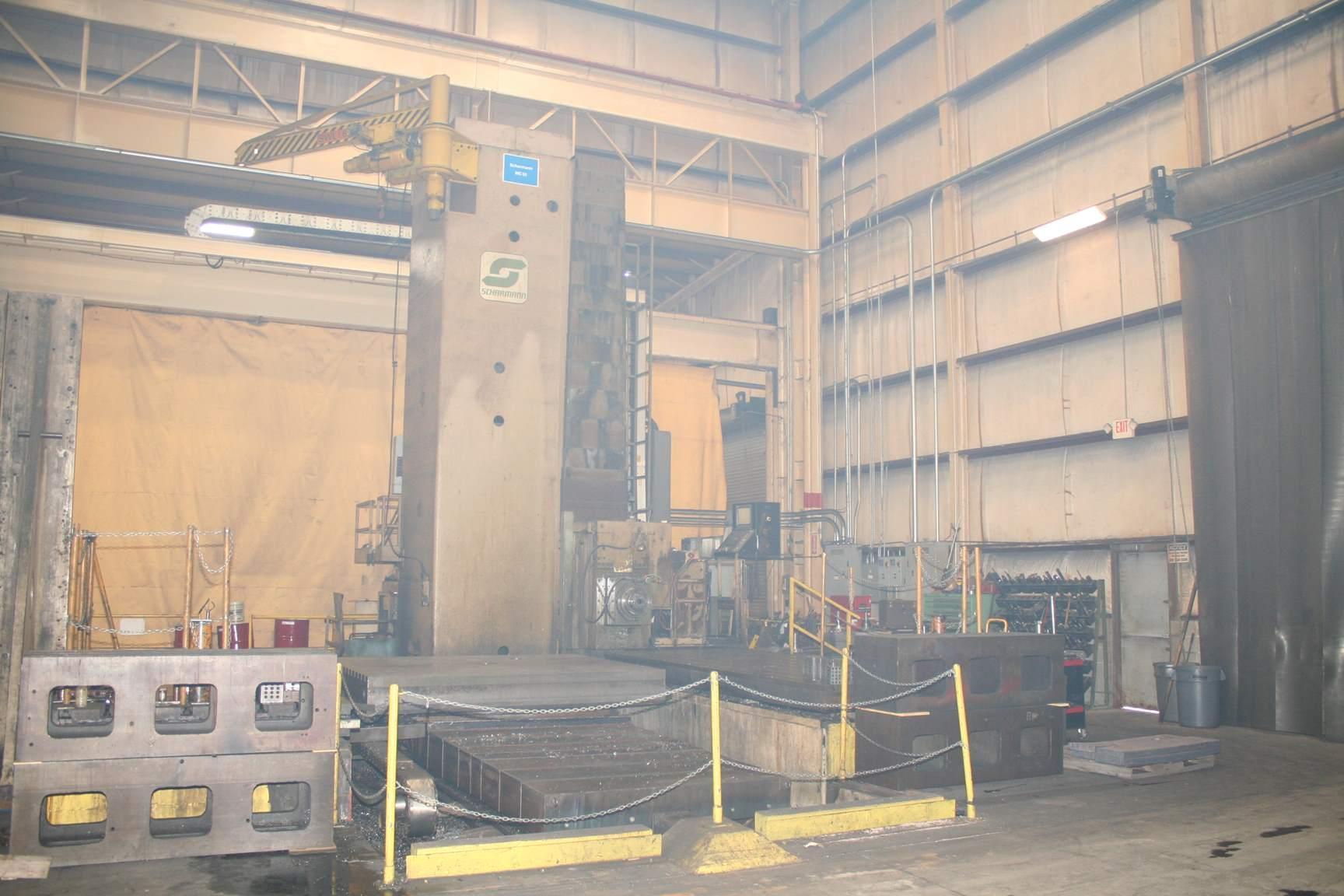

TABLE GROUP:
V-AXIS TABLE LONGITUDINAL ...... 118"
B-AXIS TABLE ROTARY ............ 360 DEGREES
TABLE WORKING AREA ............. 315" X 192.5"
TABLE HEIGHT ................... 98" X 118"
ROTARY TABLE CAPACITY .......... 88,000 LBS
V-AXIS ......................... 0.039 - 236.2
B-AXIS ......................... 0.039 - 236.2
RAPID TRAVERSE V-AXIS .......... 393.7
RAPID TRAVERSE B-AXIS .......... 1.53

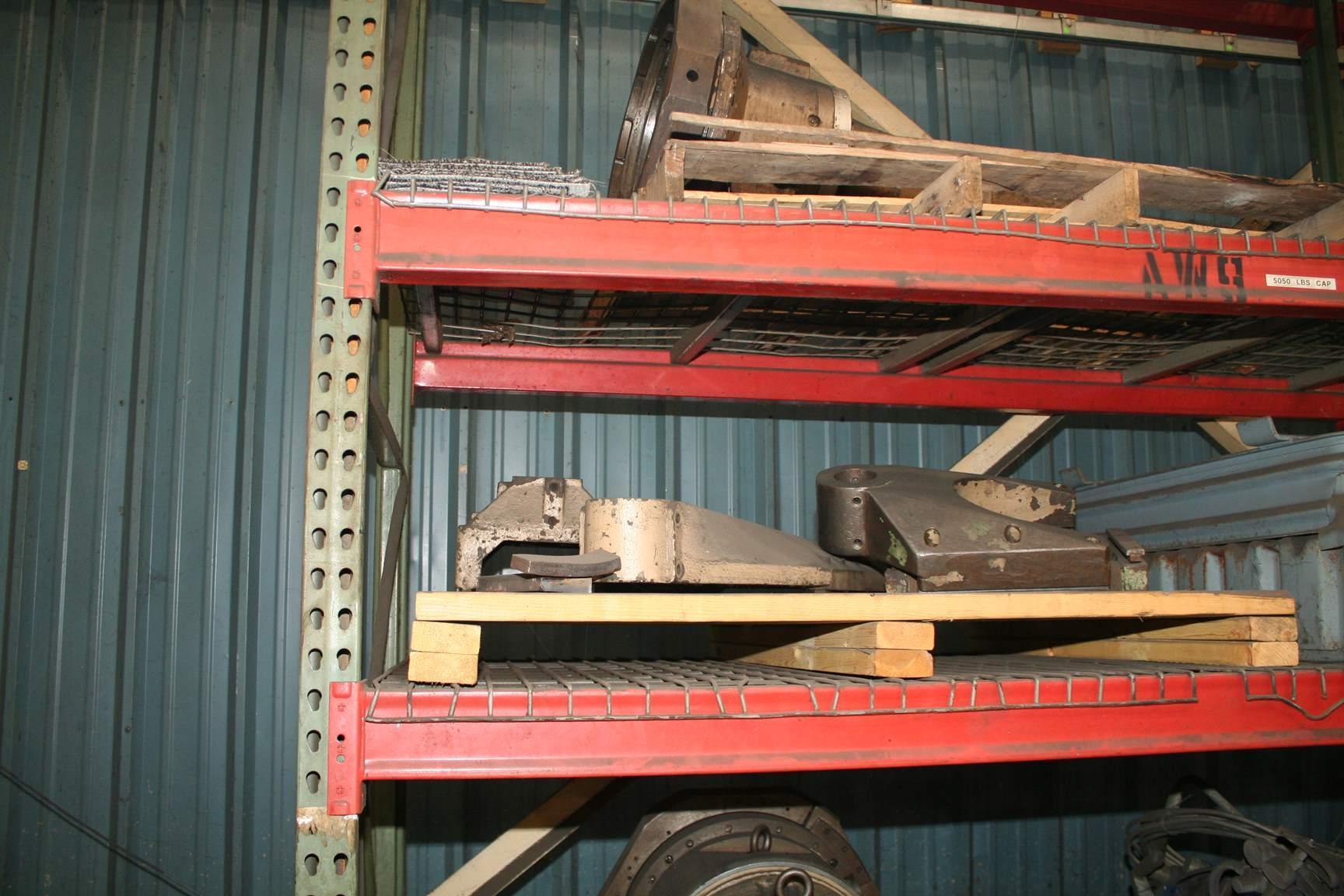

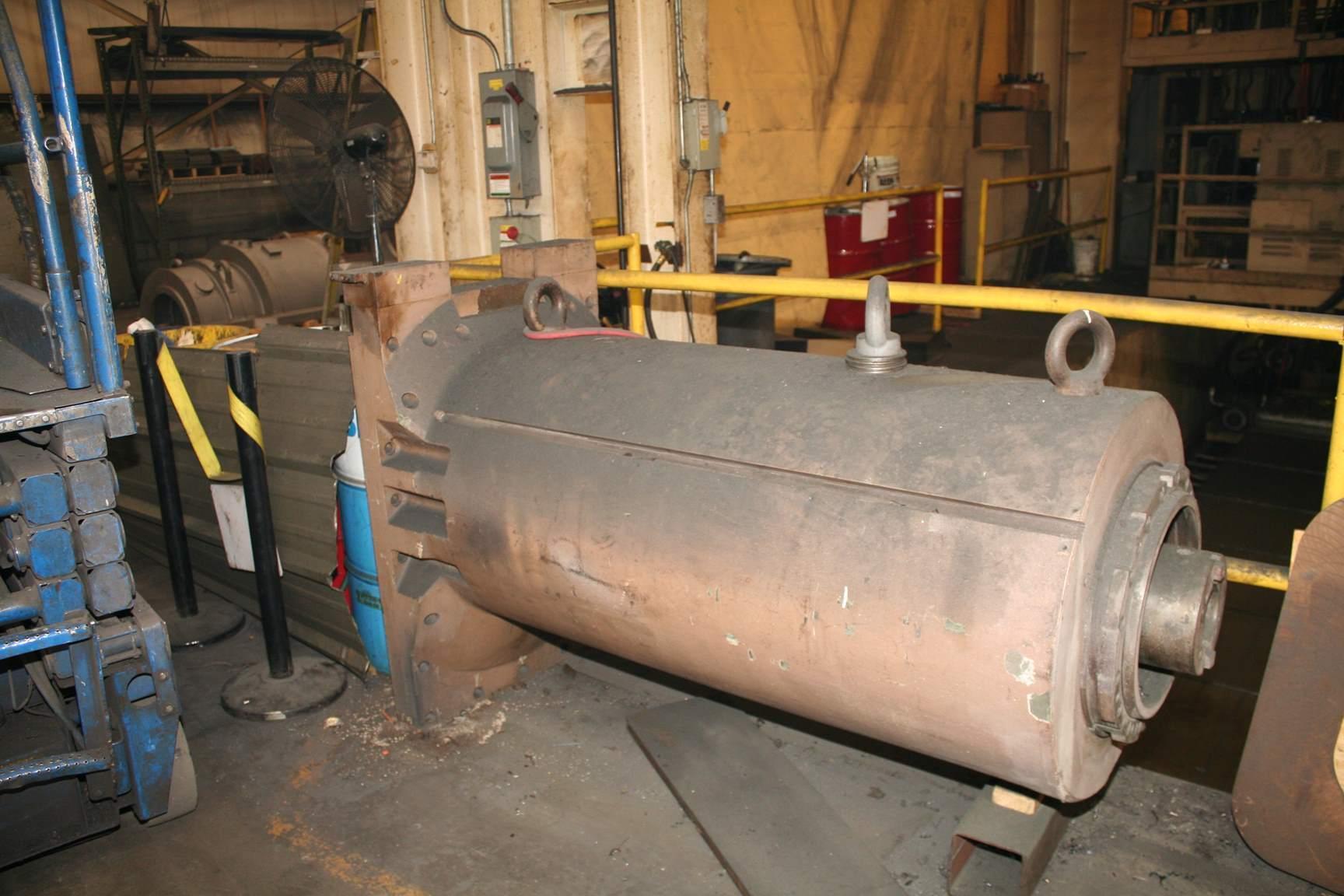

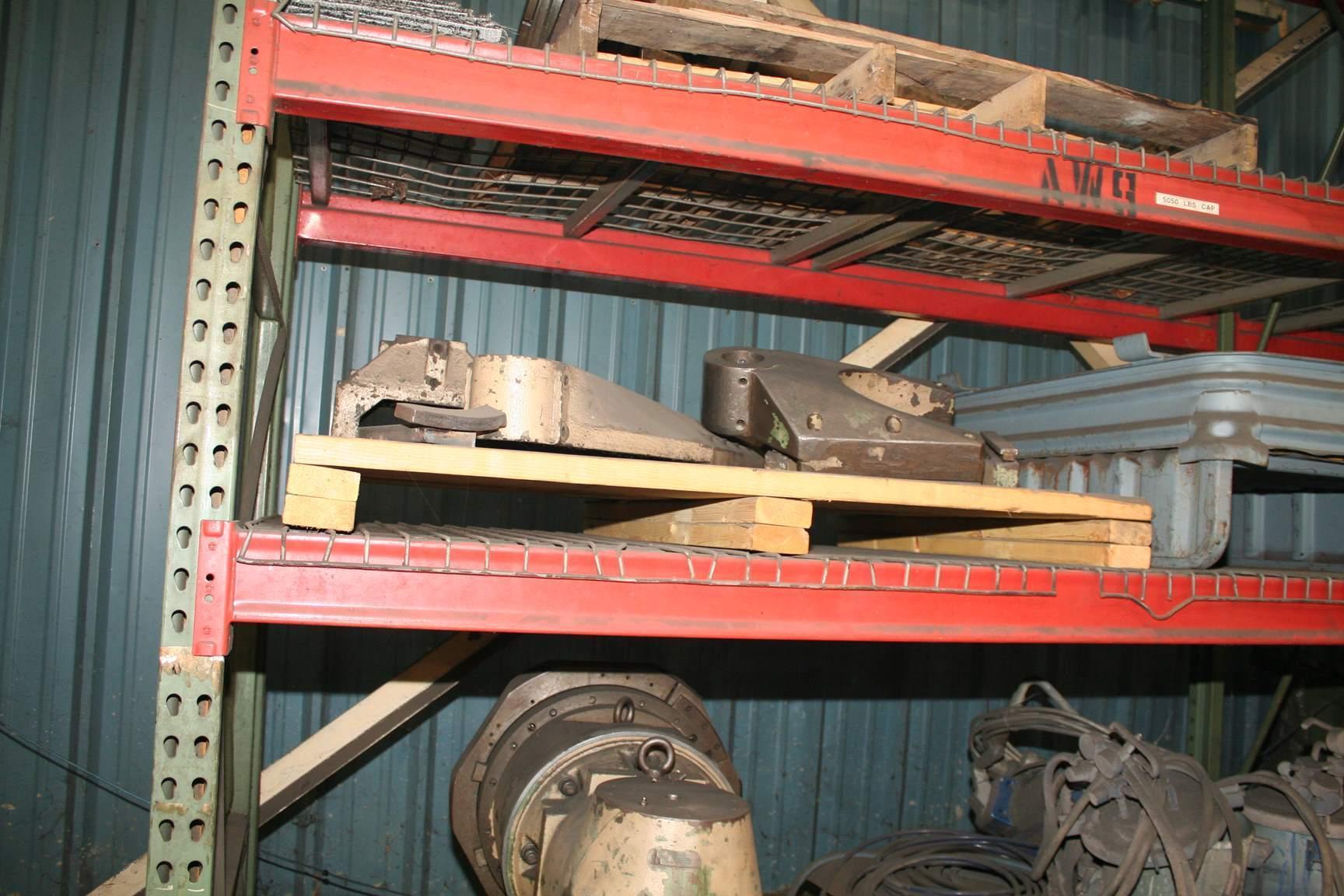

EQUIPPED WITH:

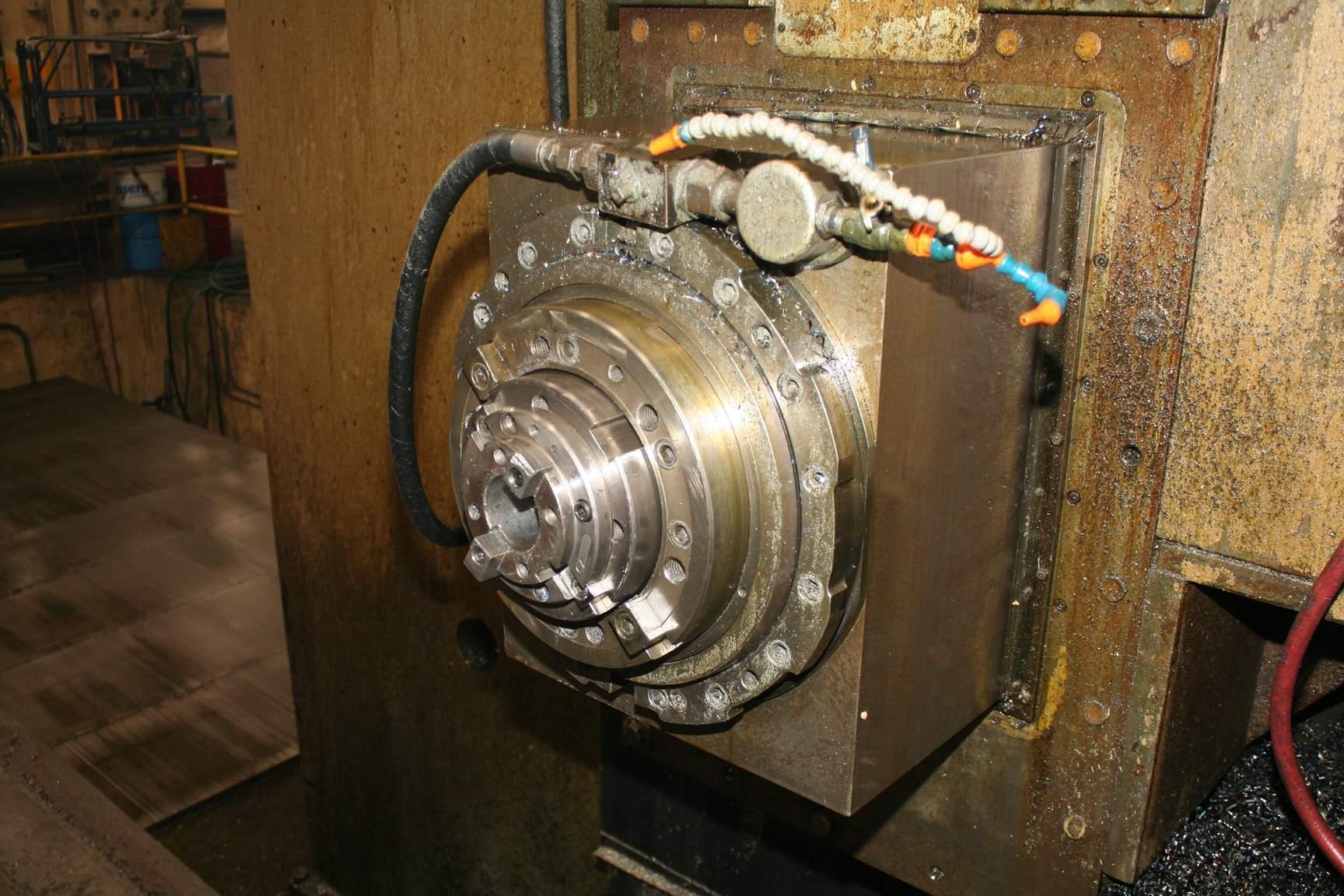

(2) CONTOURING HEADS

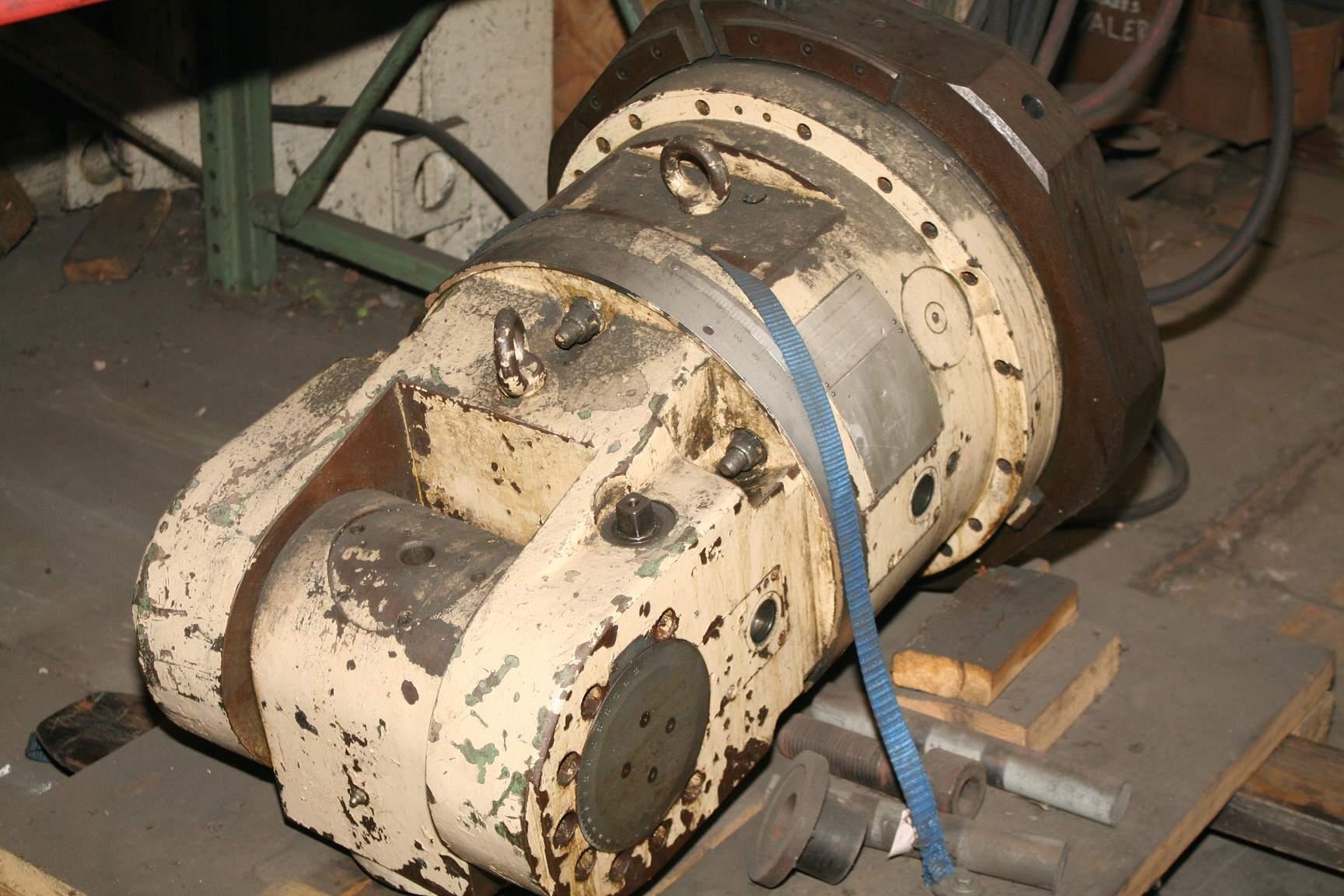

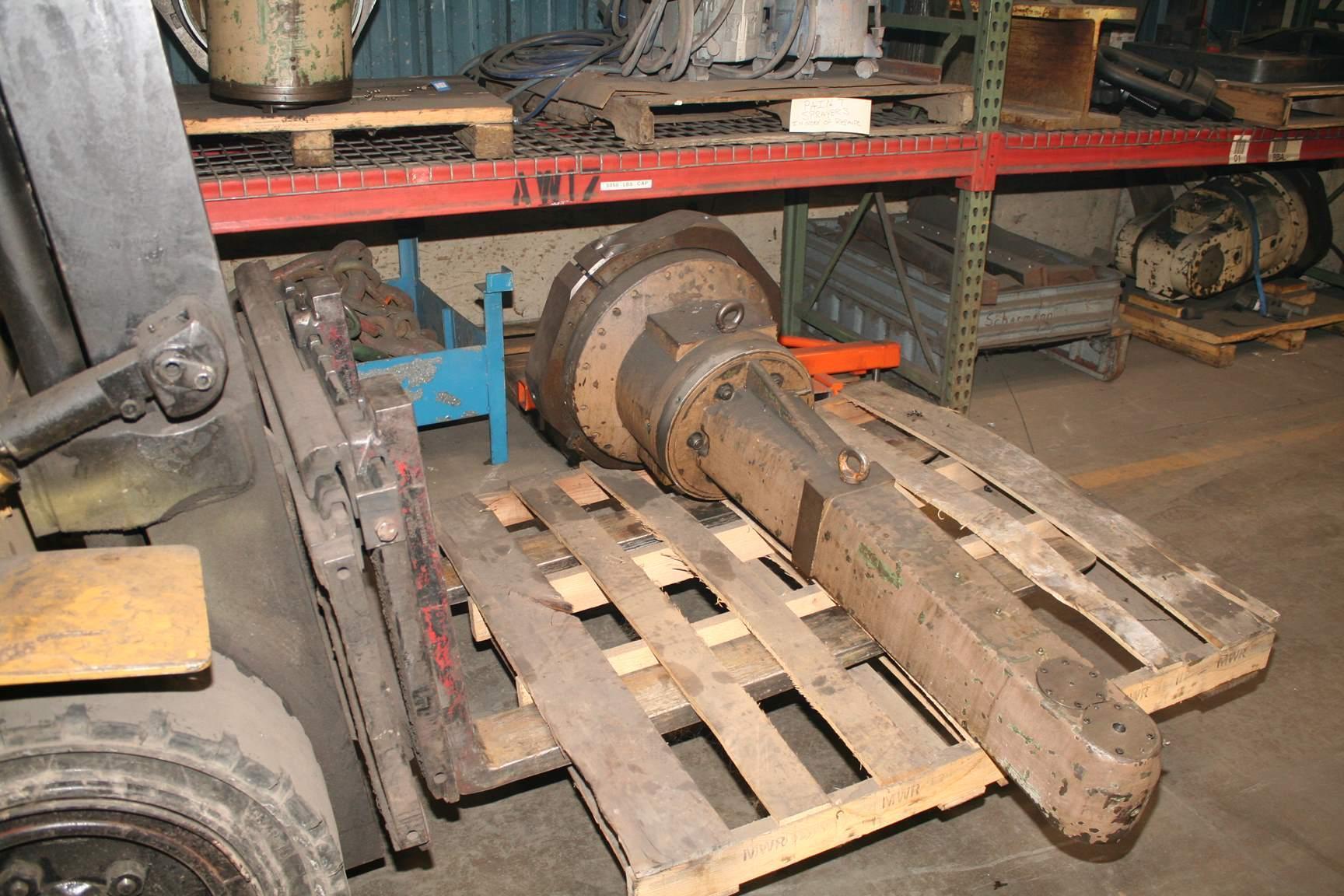

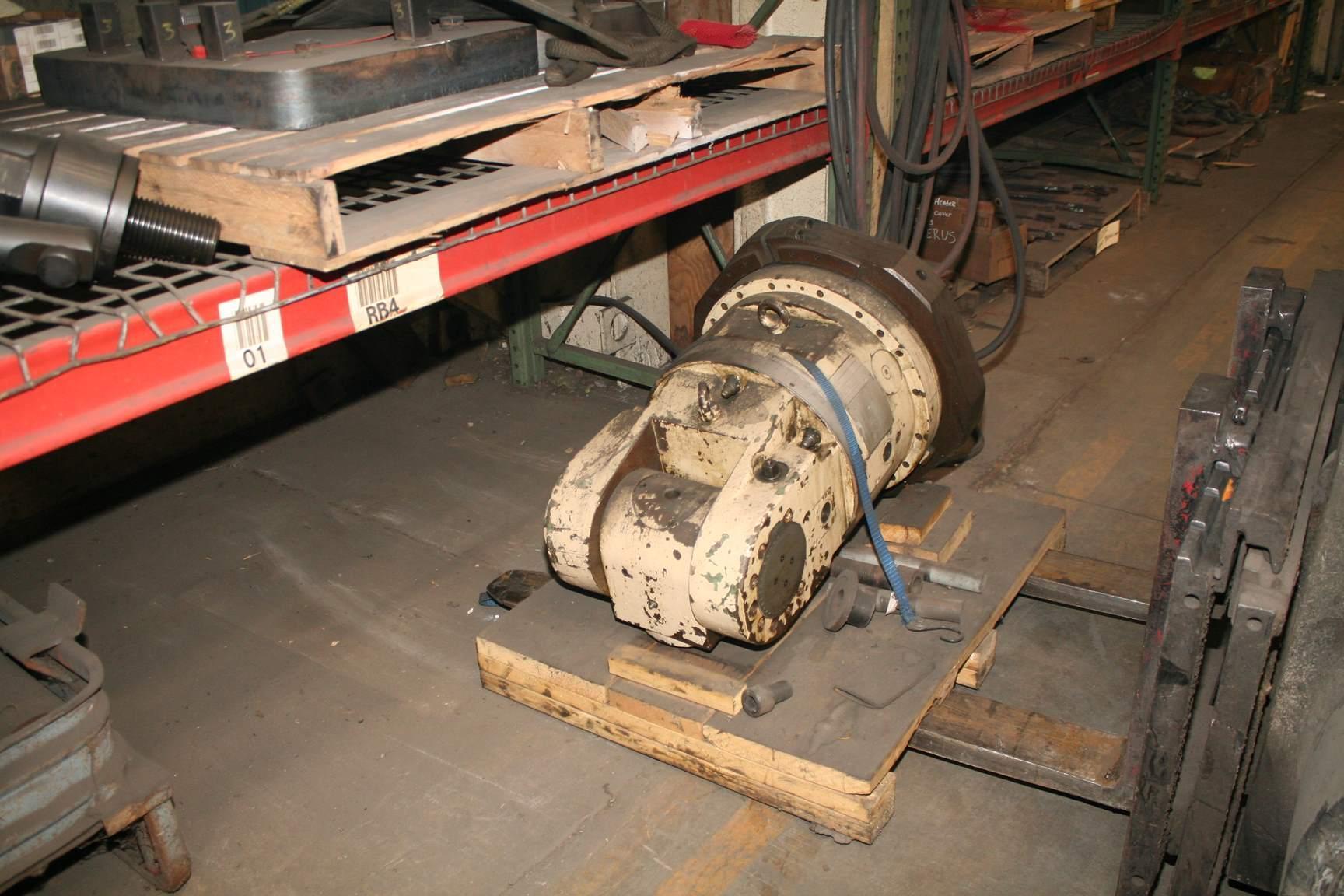

(2) ANGLE HEADS

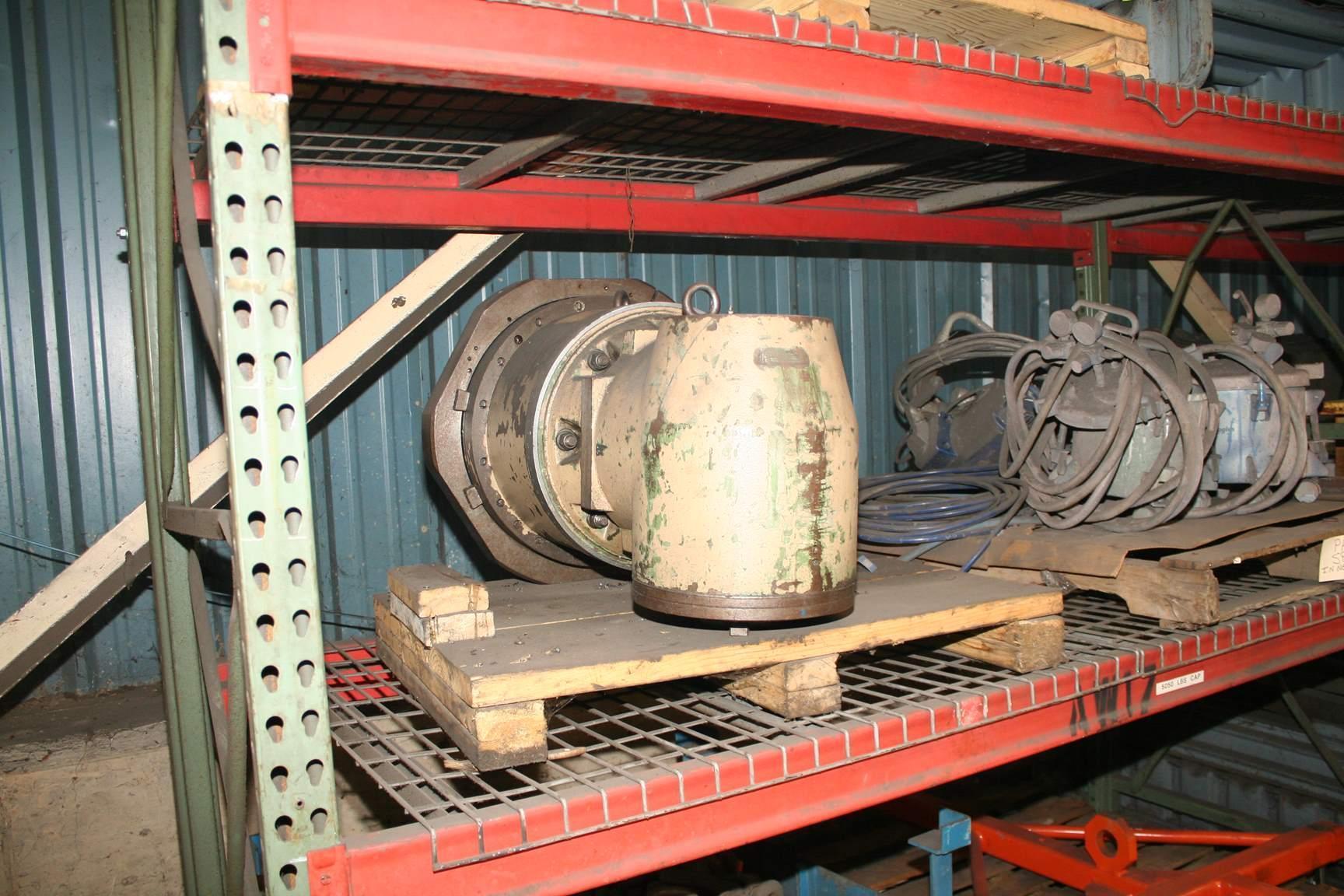

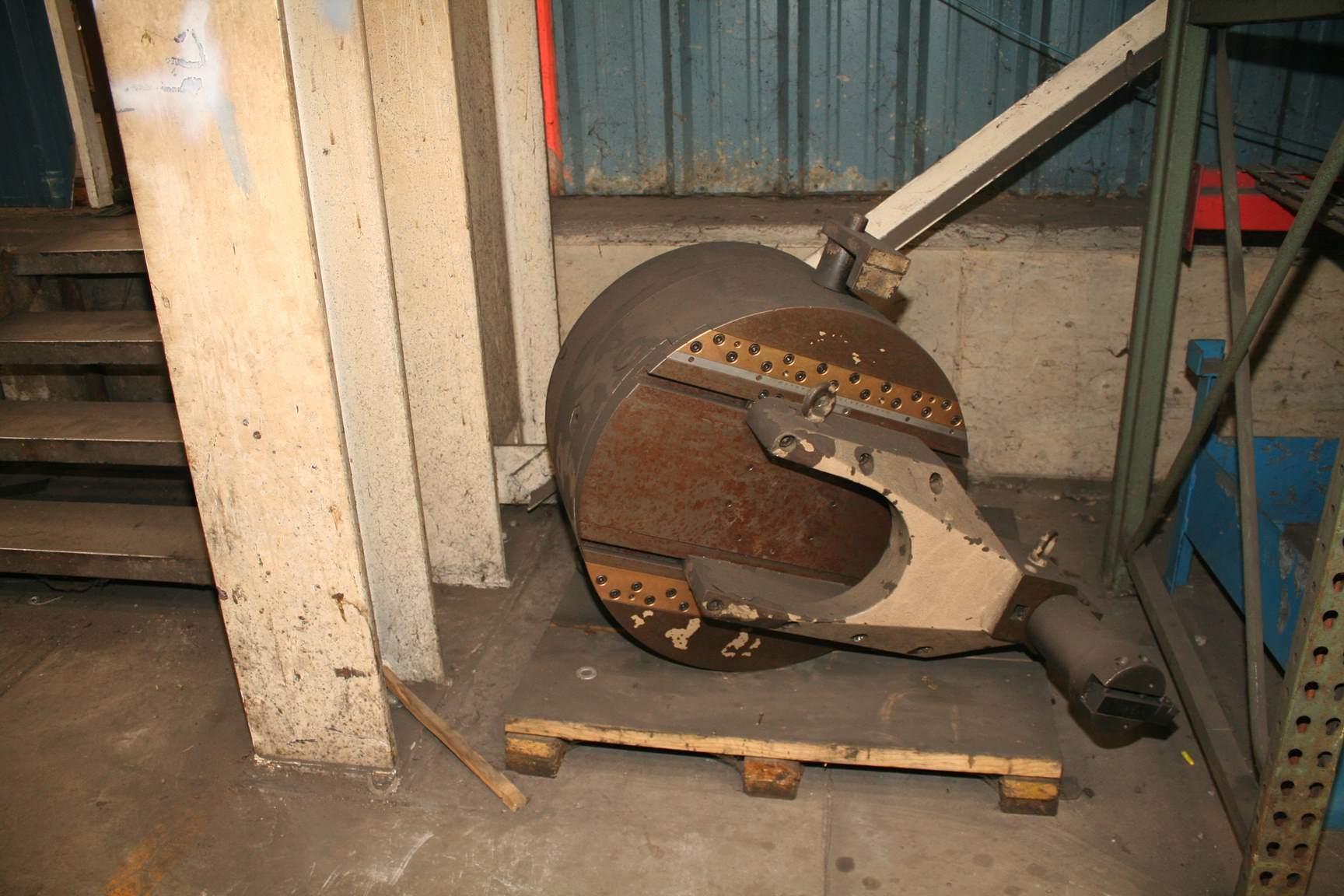

FACING HEAD P650
FACING HEAD P900
ANGULAR MILLING HEAD WFK 400/600
ANGULAR MILLING HEAD WFK 50S/1305
UNIVERSAL ANGULAR MILLING HEAD UFK 125/550
