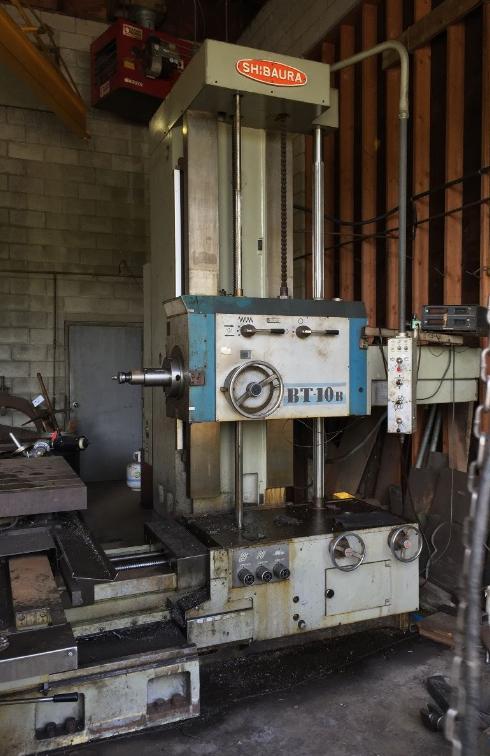

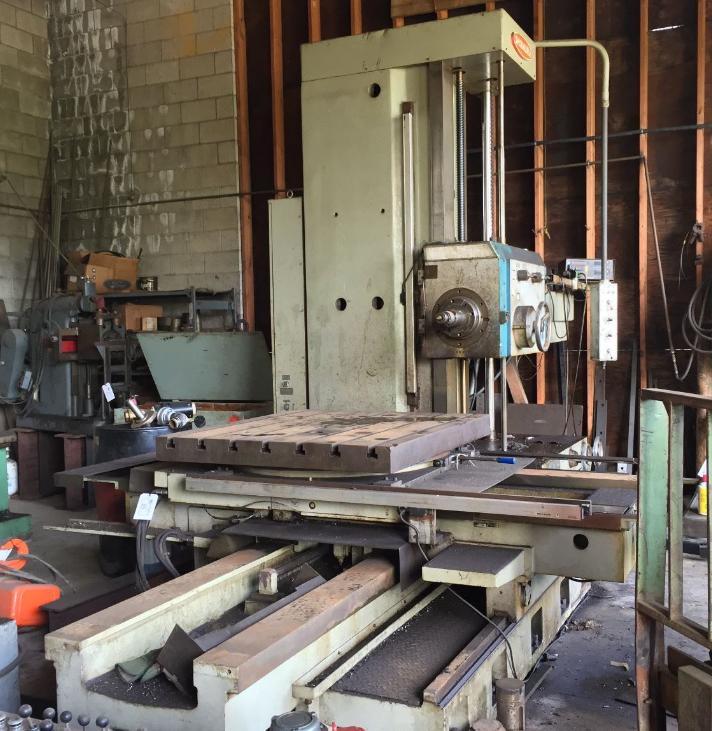

4" SHIBAURA MODEL BT-10BRI HORIZONTAL BORING MILL: STOCK #66485

Manufacturer

SHIBAURA

Category

Boring Mills

Type

BORING MILLS, HORIZONTAL, TABLE TYPE

Stock

66485

Model

4

Dealer Location

Ohio

Request a Quote
View Contact Information

Spec Sheet



SERIAL ........................... S-61544
NEW .............................. 1977
MODEL ............................ BT-10BRI
BASE ............................. 4 WAY TYPE
DIAMETER OF SPINDLE .............. 4"
SPINDLE SPEEDS ................... (16) 20 TO 1000 RPM
FEEDS ............................ (24) .0008 TO .14 IPR
TABLE TRAVEL ..................... 55.2"
SADDLE TRAVEL .................... 55.5"
VERTICAL TRAVEL OF SPINDLE ....... 55.2"
SPINDLE TRAVEL ................... 28"
AREA OF BUILT IN ROTARY TABLE .... 49" X 44"
TAPER IN SPINDLE ................. 50 NS
POWER DRAWBAR .................... YES
PENDANT CONTROL .................. YES
DIGITAL READOUTS ................. 2 AXIS
MAIN MOTOR ....................... 15 HORSEPOWER
