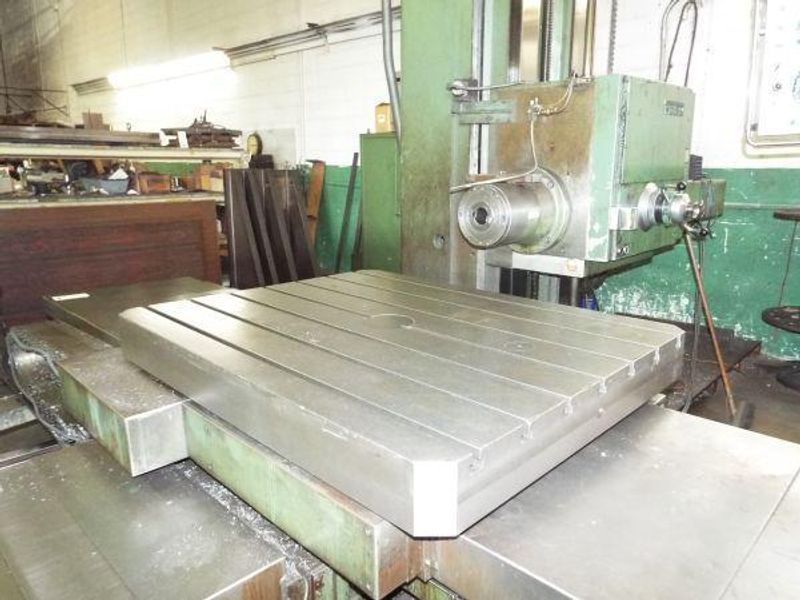

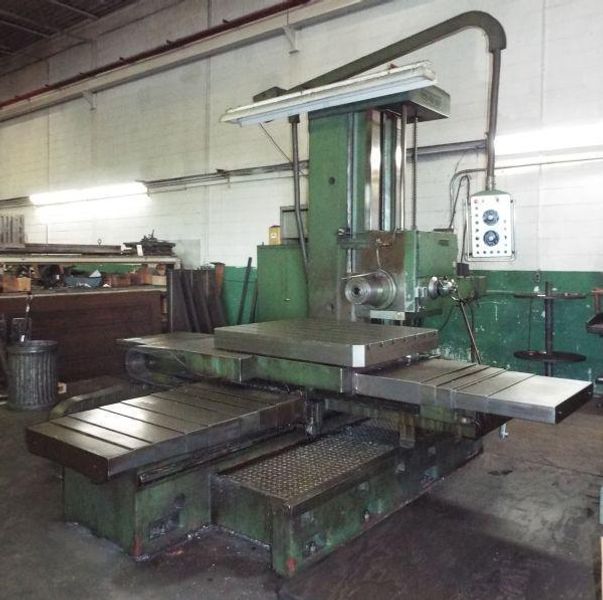

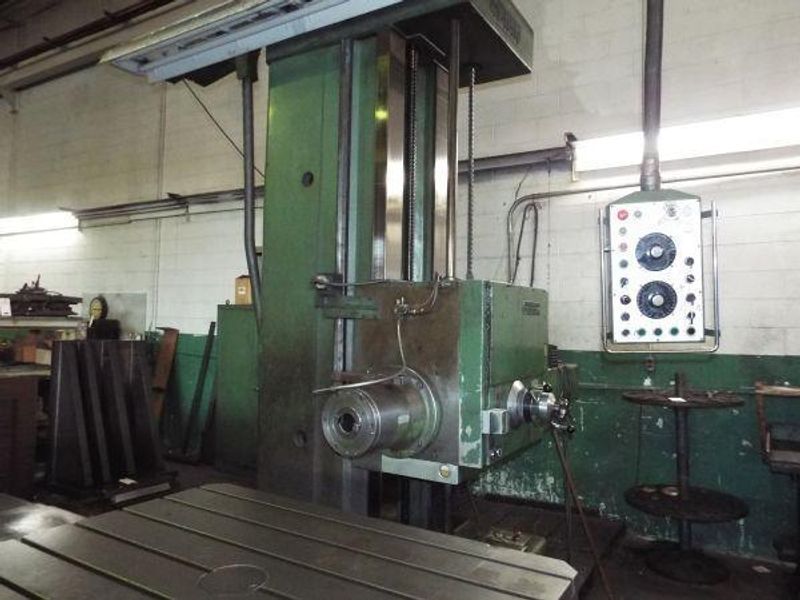

4-3/4" WOTAN MODEL B105/120M BORING MILL: STOCK #65061

Manufacturer

WOTAN

Category

Boring Mills

Type

BORING MILLS, HORIZONTAL, TABLE TYPE

Stock

65061

Model

4.75

Dealer Location

Ohio

Request a Quote
View Contact Information

Spec Sheet



SERIAL ............................ 50033
MODEL ............................. B105/120M
SERIAL ............................ 52905
YEAR NEW .......................... 1979
SPINDLE DIAMETER .................. 4-3/4"
SPINDLE TAPER ..................... ISO #50
SPINDLE TRAVEL .................... 27-1/2"
SPINDLE SPEED RANGE ............... 0 TO 1600 RPM
SPINDLE, HEADSTOCK, & TABLE FEEDS . (27) .0013 TO .416 IPR
SPINDLE FEEDS ..................... .10 TO 66.5 MM PER REV
THREADS ........................... (12) 3 TO 96
VERTICAL TRAVEL OF HEADSTOCK ...... 60"
TABLE CROSS TRAVEL ................ 72"
LONGITUDINAL TABLE TRAVEL ......... 56"
POWER ROTARY TABLE ................ 47" x 59"
ROTARY TABLE LOAD CAPACITY ........ 8,800 LBS
ROTARY TABLE ROTATION ............. 360 DEGREES
RAPID TRAVERSE .................... 110 IPM
PENDANT CONTROL ................... YES
POWER DRAW BAR .................... YES
HARDENED WAYS ..................... YES
MOTOR .............................
