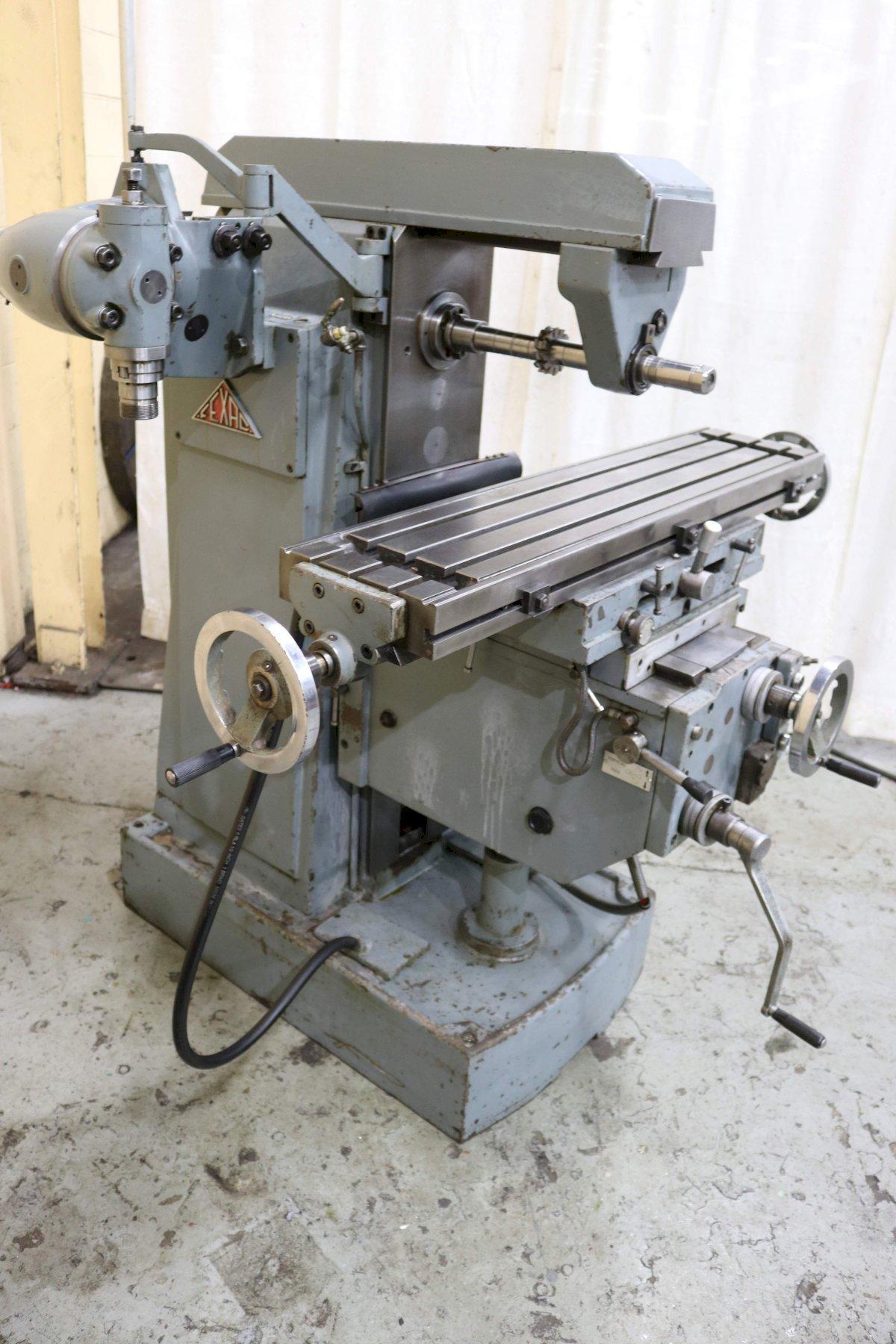

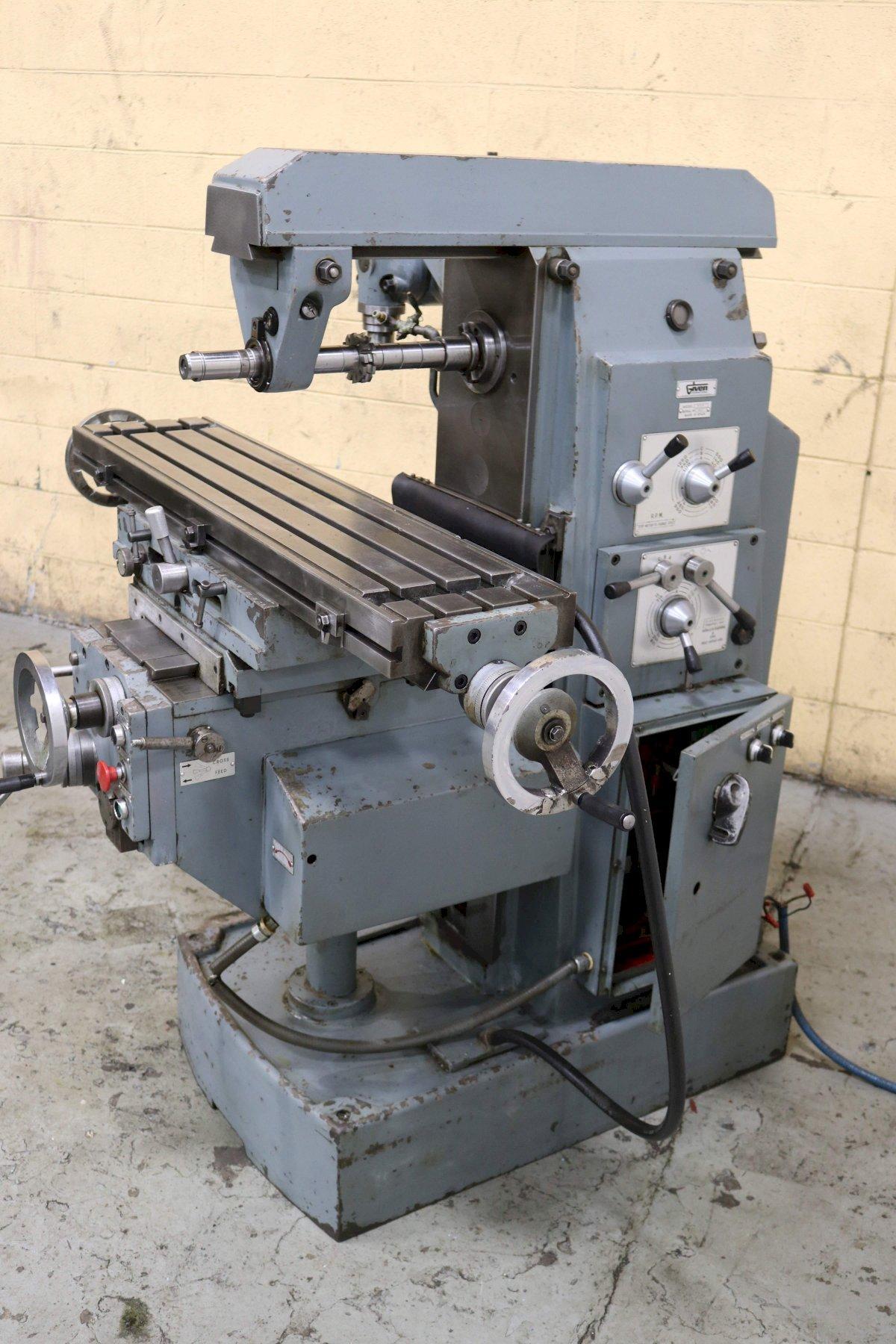

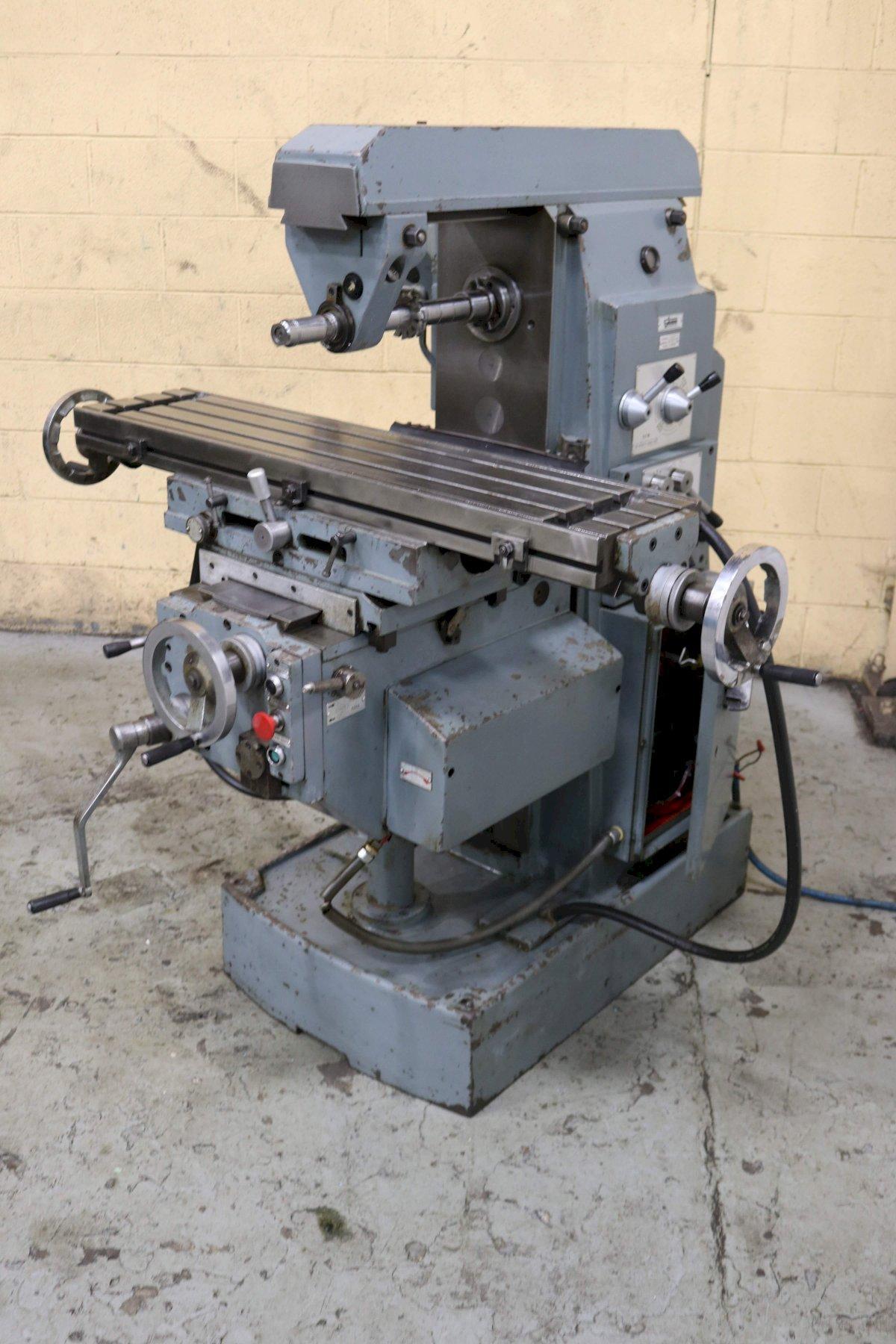

FEXAL HORIZONTAL MILL WITH VERTICAL HEAD: STOCK #72578

Manufacturer

Category

Drilling Machines

Type

DRILLS, FLOOR TYPE, HORIZONTAL, (Manual)

Stock

72578

Model

VER

Dealer Location

Ohio

Request a Quote
View Contact Information

Spec Sheet

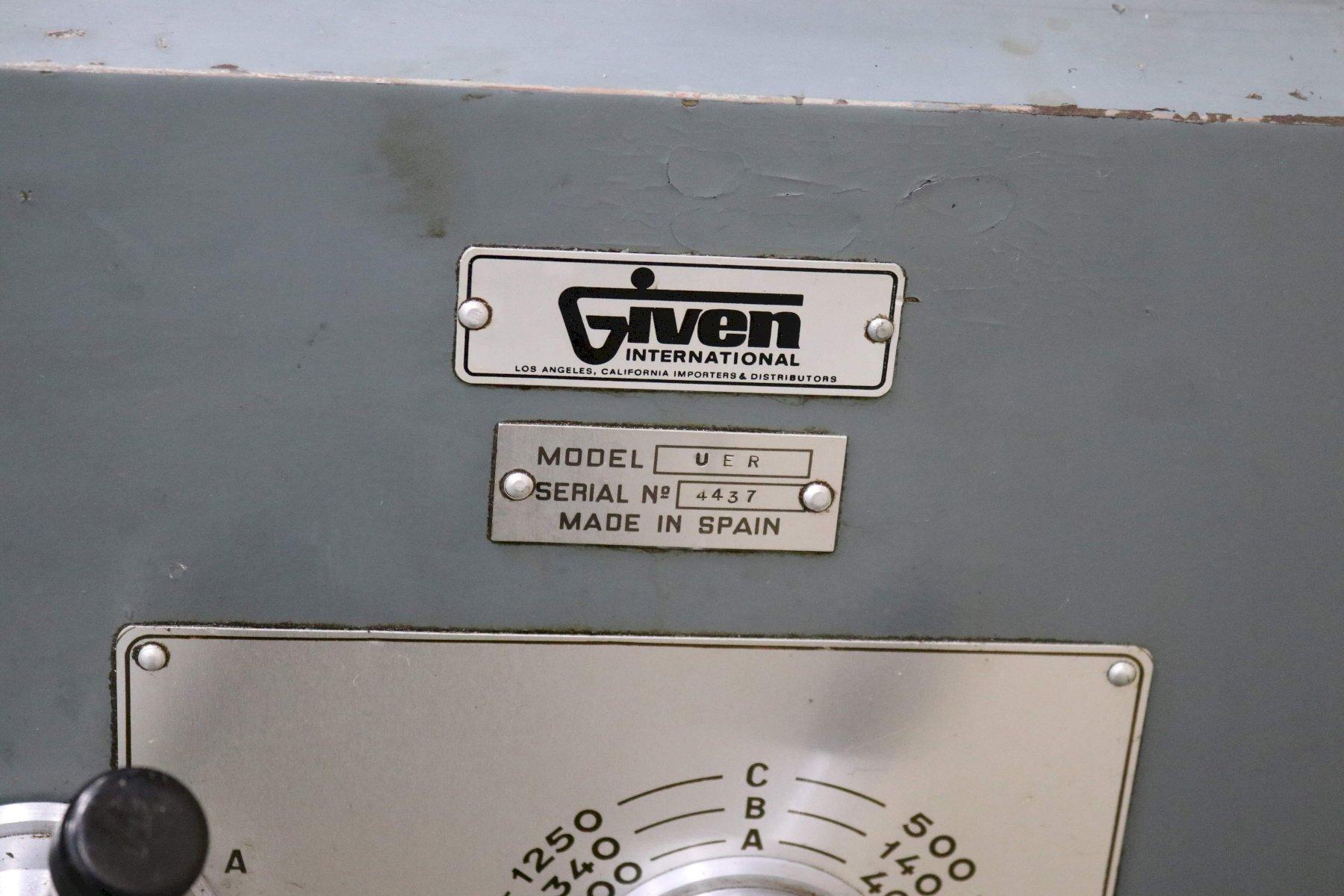

SERIAL .................................... 4437
MODEL ..................................... UER

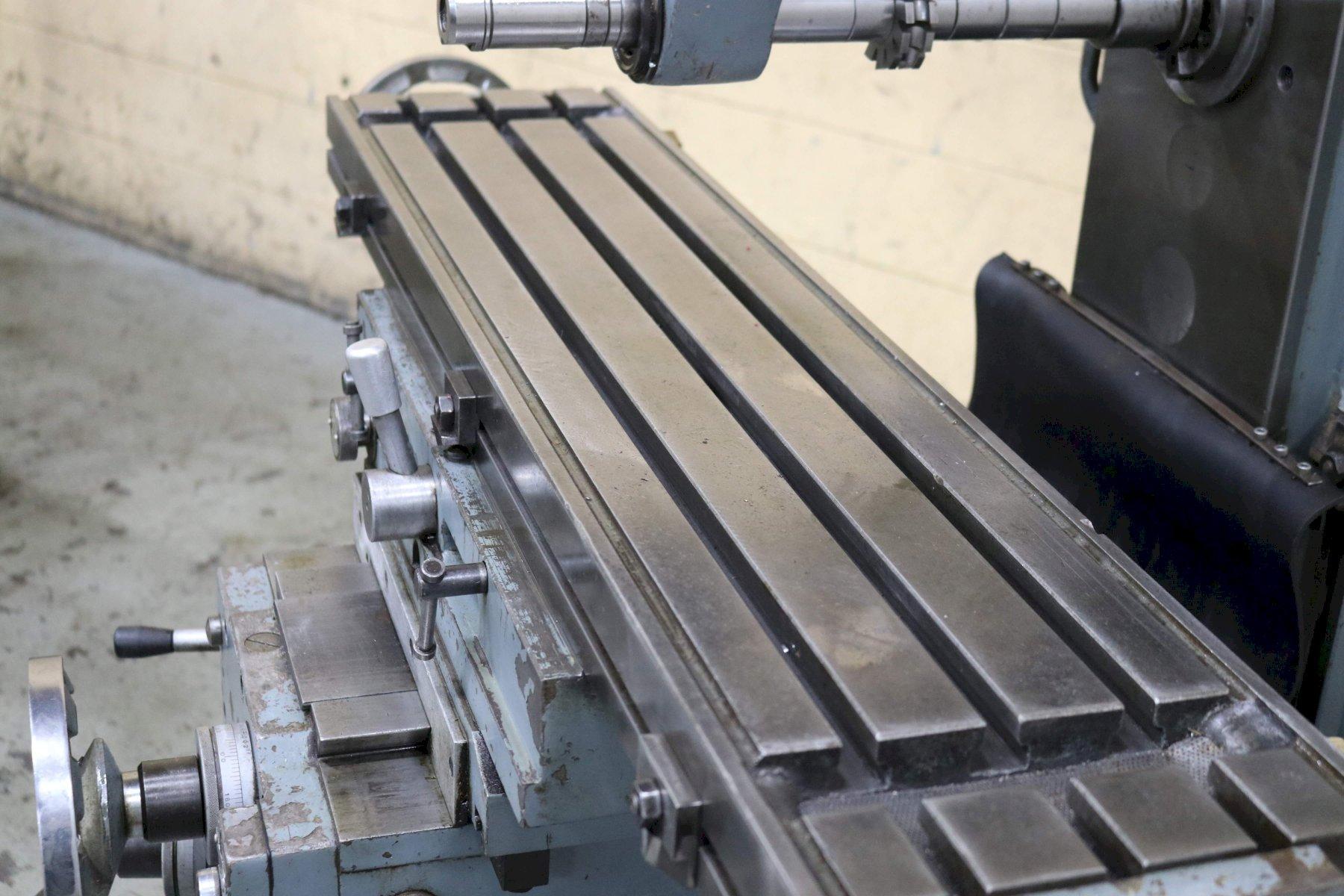

AREA OF TABLE ............................. 43-5/16" X 9-3/8"

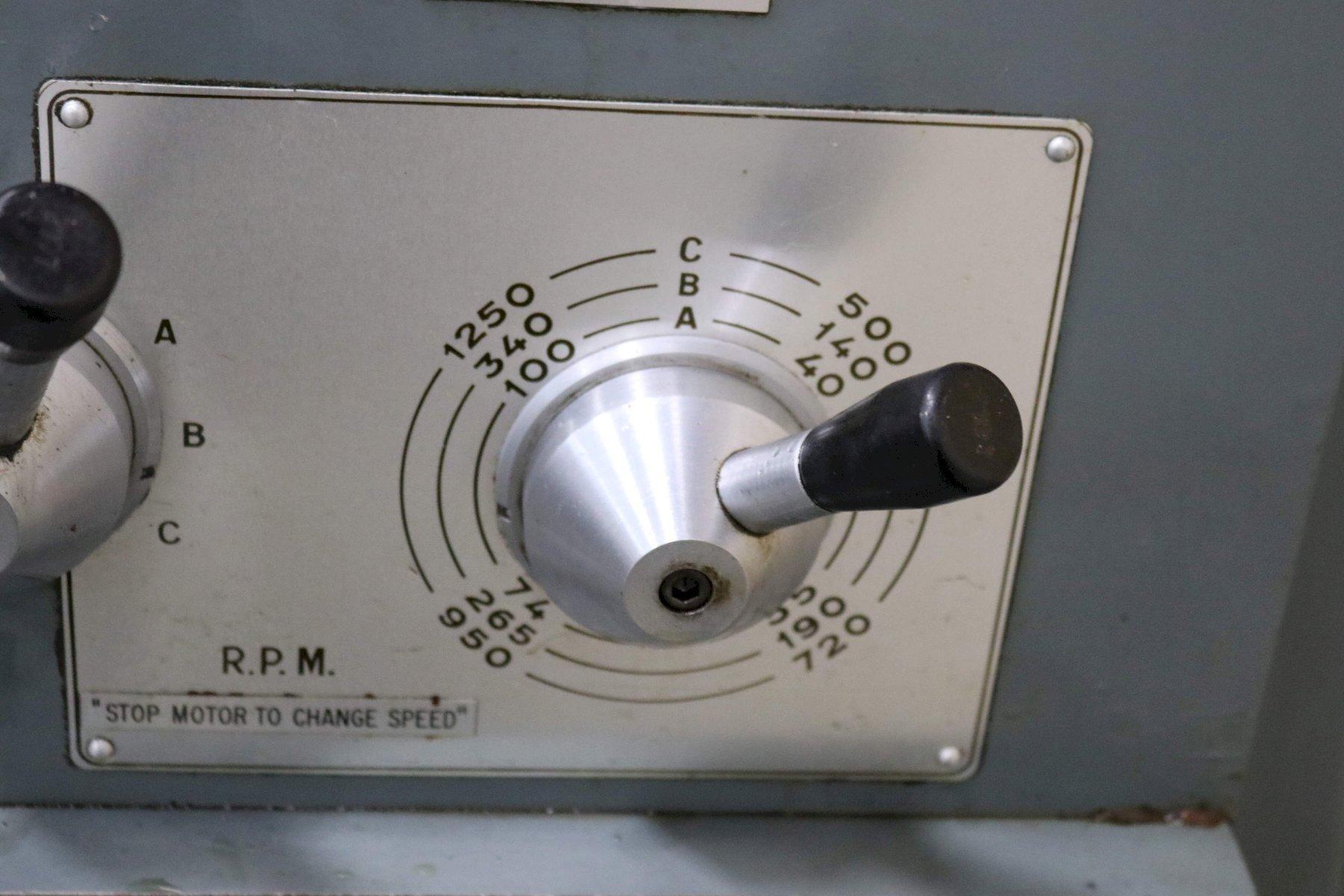

SPINDLE SPEEDS HORIZONTAL SPINDLE ......... (16) 55 TO 1200 RPM

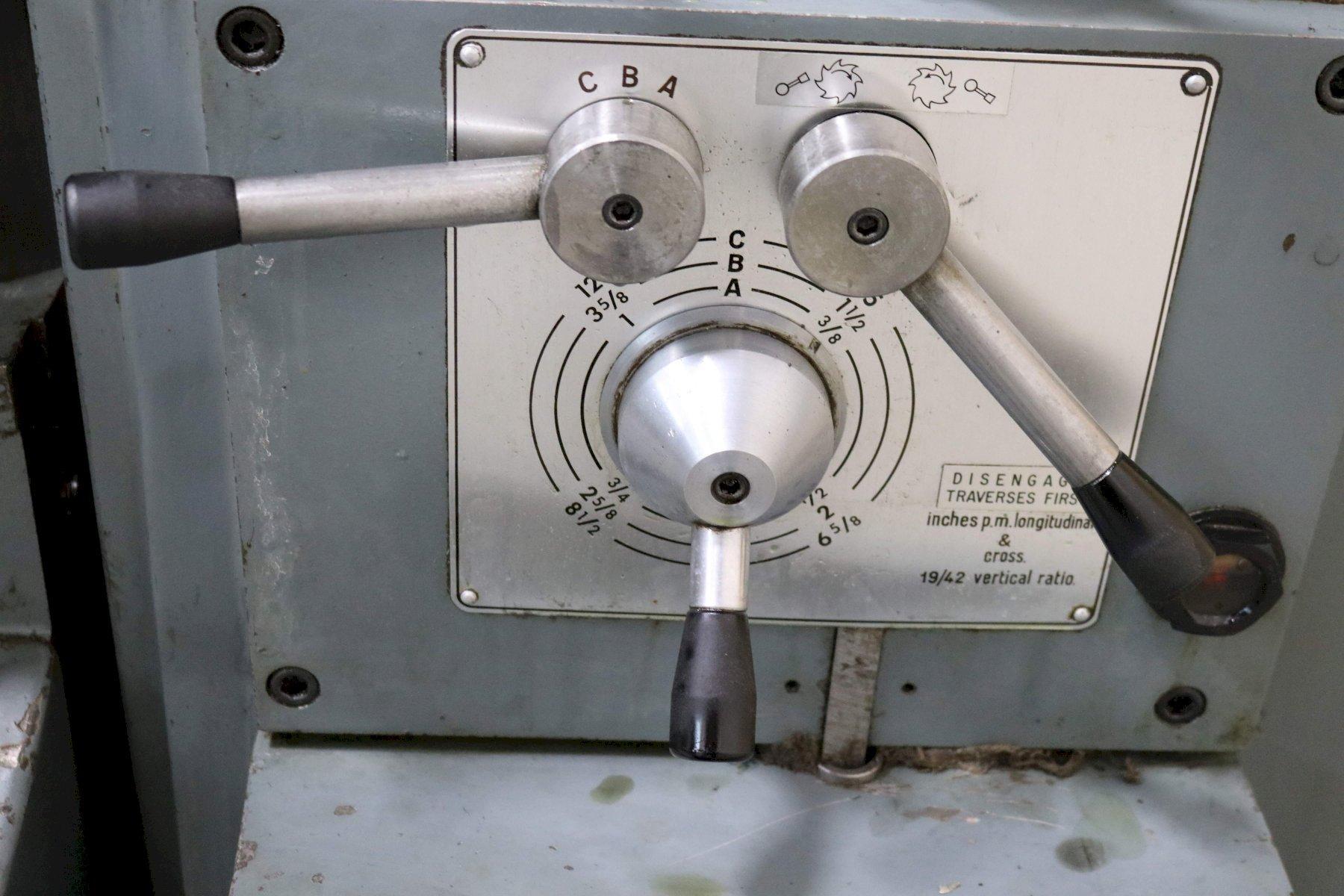

LONGITUDINAL & CROSS FEEDS ................ 7/16 TO 19-5/8 IPM
VERTICAL FEEDS ............................ 3/16" TO 7-7/8 IPM
LONGITUDINAL TRAVEL ....................... 321/2"
CROSS TRAVEL .............................. 9-1/2"
VERTICAL KNEE TRAVEL ...................... 17"
DISTANCE CENTER OF SPINDLE TO TABLE ....... 0" MINIMUM, 17" MAXIMUM
TAPER IN SPINDLE .......................... #40 ISO
LONG & CROSS POWER RAPID TRAVERSE ......... 100 IPM
VERTICAL POWER RAPID TRAVERSE ............. 40 IPM

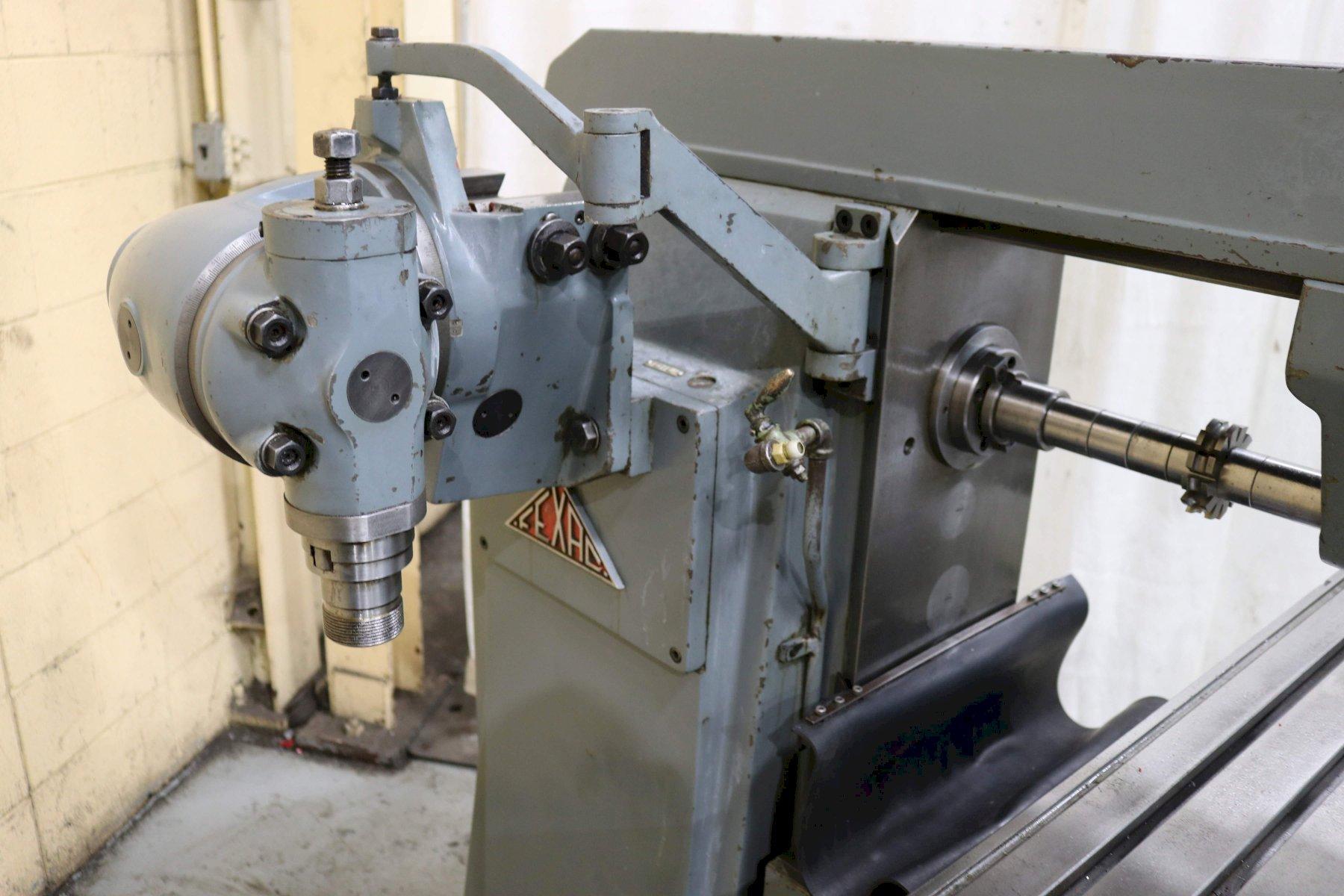

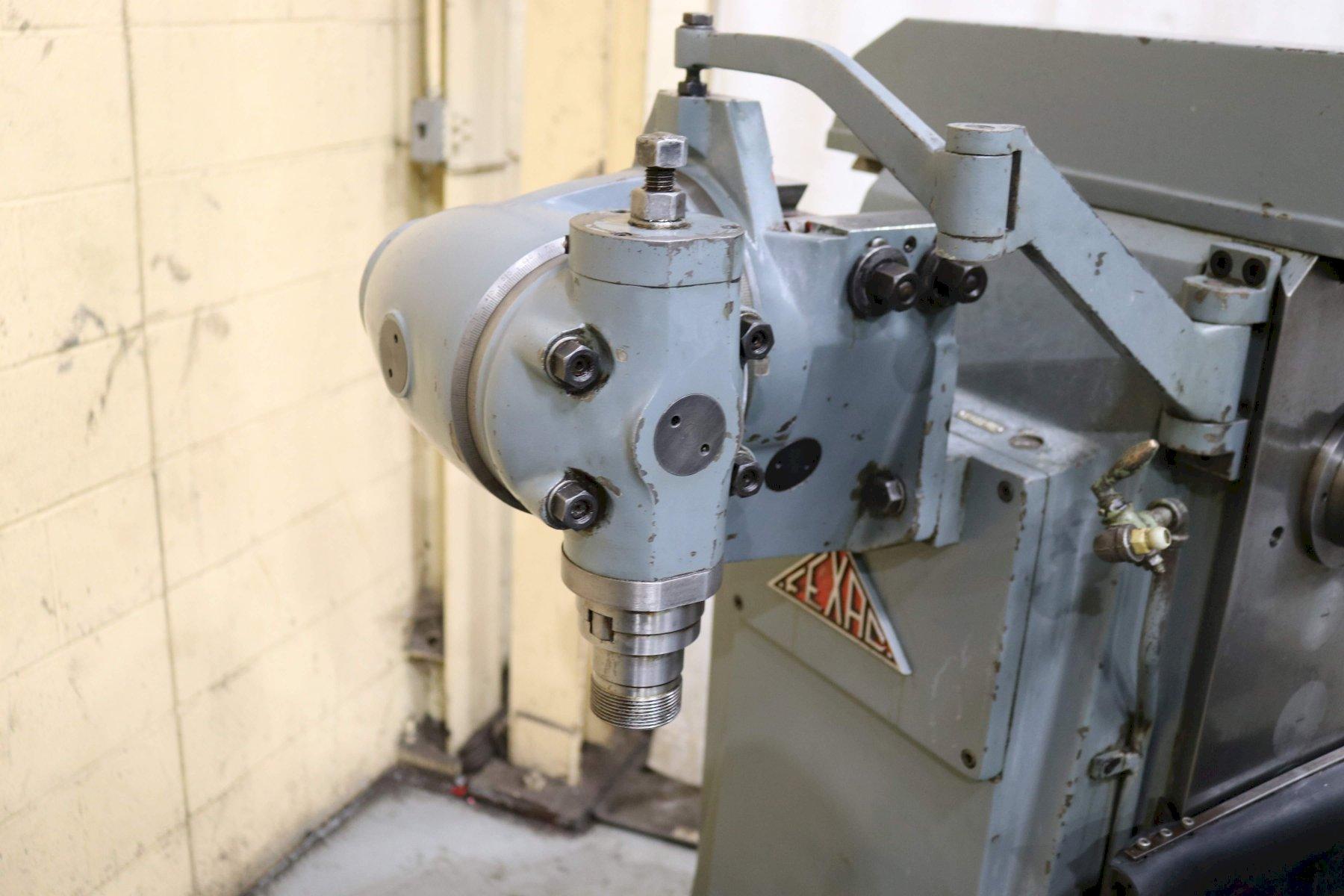

DUAL UNIVERSAL HEAD ....................... YES
HORSEPOWER SPINDLE MOTOR .................. 3
HORSEPOWER FEED MOTOR ..................... 1-1/2
