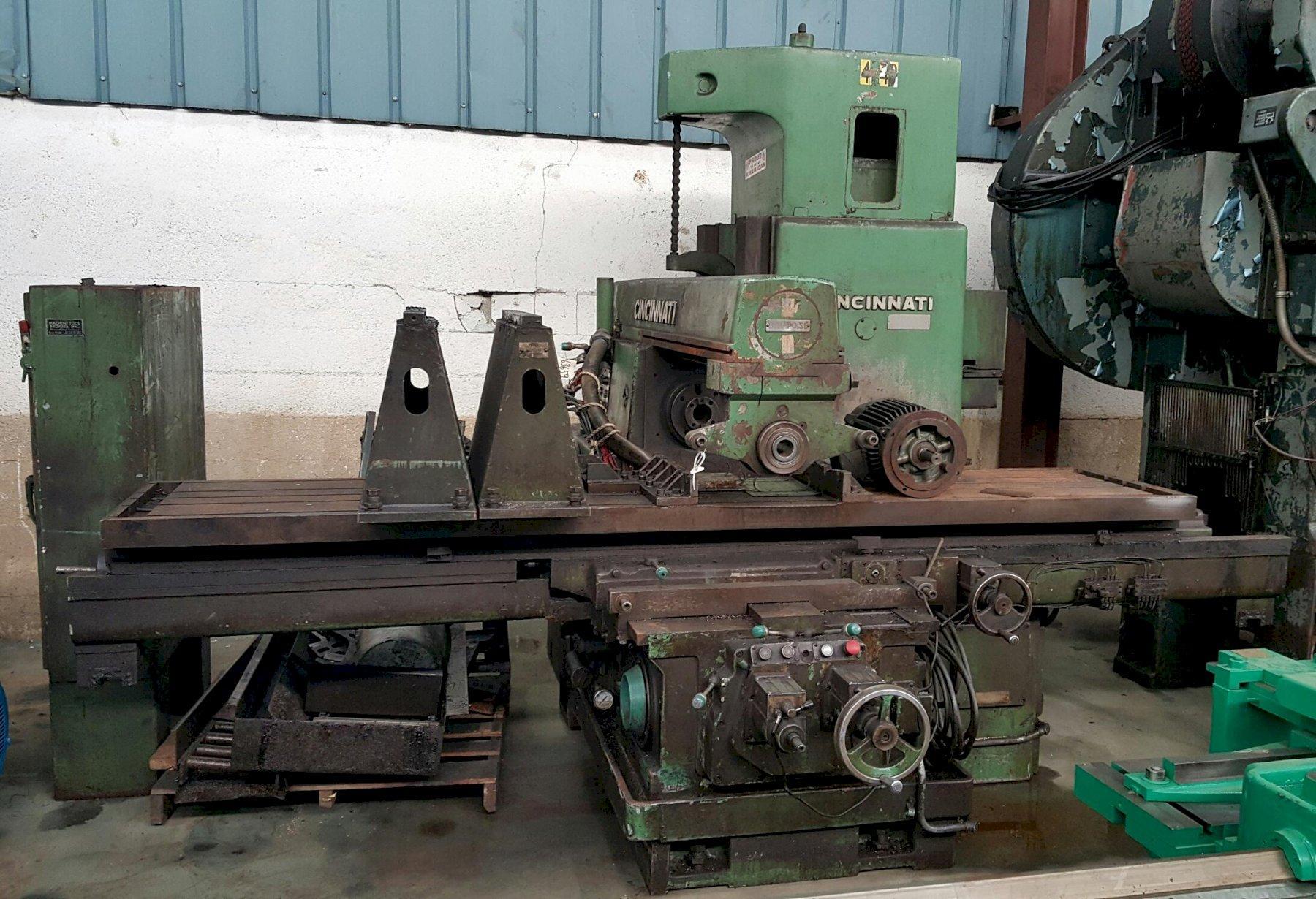

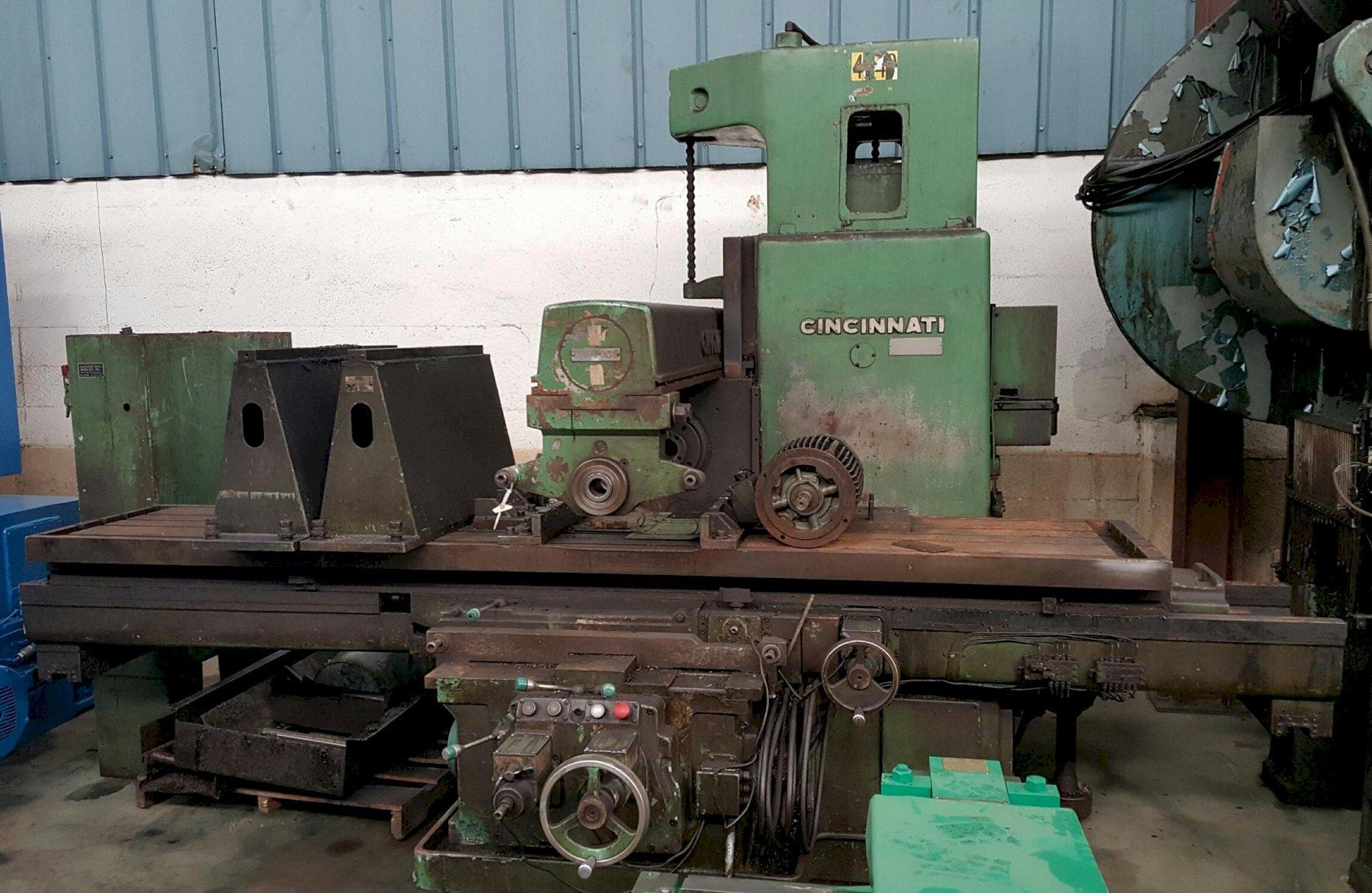

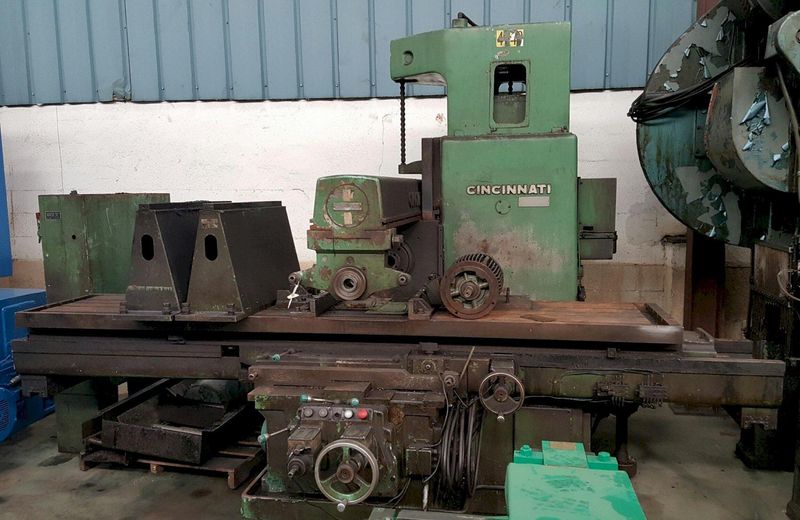

750-25 CINCINNATI VERCIPOWER HORIZONTAL MILL: STOCK #63659

Manufacturer

Category

Boring Mills

Type

Boring Mills, Horizontal, Attachments & Accessories

Stock

63659

Model

750-25

Dealer Location

Ohio

Request a Quote
View Contact Information

Spec Sheet



SERIAL ................................. 311073H5V-1
MODEL .................................. 750-2
AREA OF TABLE .......................... 128" X 25"
SPINDLE SPEEDS ......................... (24) 14 TO 1400 RPM
LONGITUDINAL AND CROSS FEEDS ........... (32) 3/8 TO 90 IPM
VERTICAL HEAD FEEDS .................... (32) 3/16 TO 45 IPM
LONGITUDINAL TRAVEL .................... 72"
CROSS TRAVEL ........................... 18"
VERTICAL TRAVEL OF HEAD ON COLUMN ...... 24"
CENTERLINE OF SPINDLE TO TOP OF TABLE .. 3" MIN, 27" MAX
CENTER OF TABLE TO COLUMN .............. 13-3/4 TO 31-3/4"
RAPID TRAVERSE ......................... 150 IPM
TAPER IN SPINDLE ....................... #50 NS
FLOOR TO TABLE CENTER .................. 39-1/2"
OVER ARM SUPPORT ....................... YES
OUT BOARD TABLE SUPPORTS ............... YES
SNAP SET READERS ....................... YES
SPINDLE MOTOR .......................... 50  HORSEPOWER
FEED MOTOR ............................. 7-1/2 HORSEPOWER
