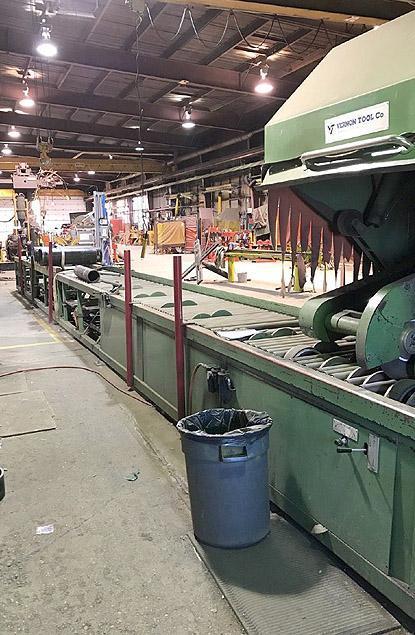

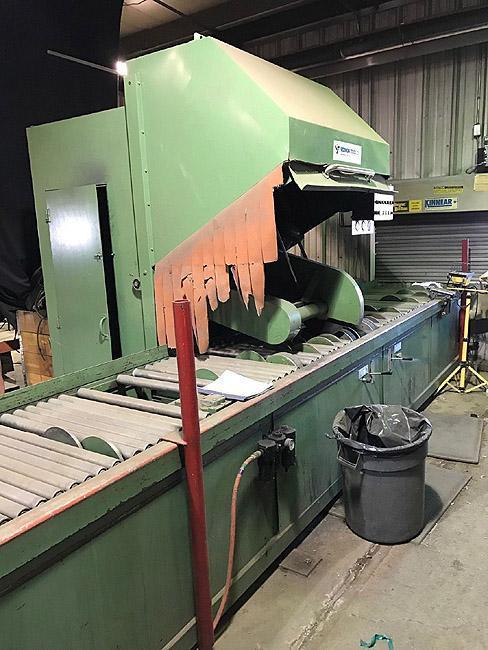

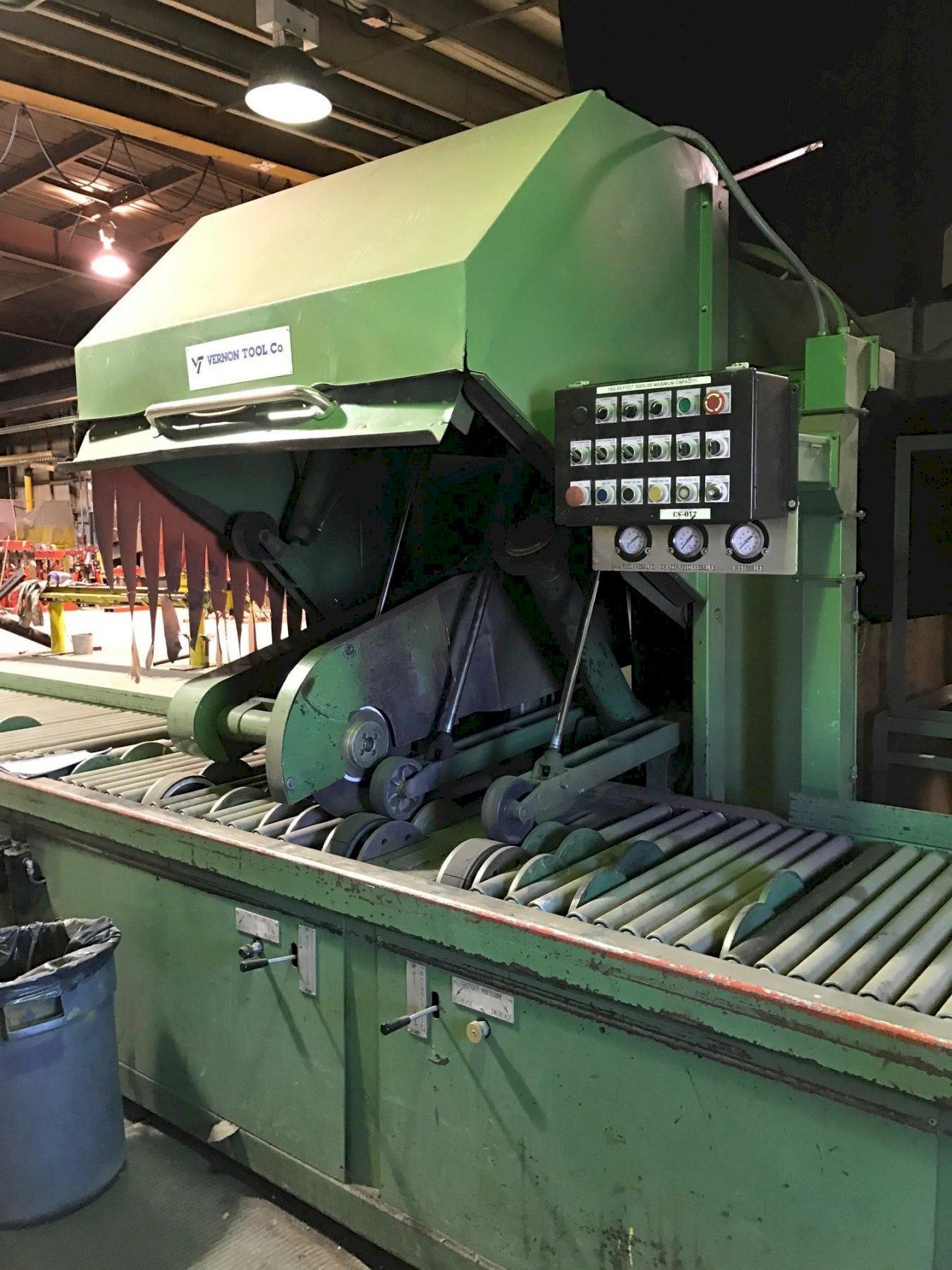

24' VERNON ABRASIVE PIPE SAW & BEVELING: STOCK 71552

Manufacturer

Category

Saws

Type

SAWS, COLD & CARBIDE

Stock

71552

Model

24

Dealer Location

Ohio

Request a Quote
View Contact Information

Spec Sheet



Model VAS-0124

15 HP Abrasive Wheel, Hydraulic Operated Pipe Rollers, (3) Pneumatic
Pipe Hold Downs, Auxiliary Bevel Grinding Spindle, 40' Length Capacity, Cuts
Pipe up to 24" Diameter.

Abrasive wheels can cut, bevel, and groove materials including carbon steel,
black iron, ductile, alloy, stainless steel, ceramic, cement-lined,
glass-lined and plastic pipe. Straight cuts and bevels with or without a
land on diameters from 1" to 24" O.D.

Pipe Diameter 1"- 24" (25-610 mm)
O.D. Structural Shapes Up to 6" (150 mm)
Bed Length (Std./Opt.) 60'
Min.-Max. Cut Length (Std/Opt) 1/2"- 40'
Min. Length w/ Beveled Ends 1/2"
Weight per Foot 150 lbs/ft (3000 lbs. MAXIMUM)
Cutting Method Abrasive Wheel
Max. Rotation Speed 360 surface inches per minute
Average Material Removal 0.0328 cubic inches per second
Motors: Cutter 15 HP
Motor Pipe Rotation Drive 1 HP
Motor Hydraulic Power Unit 5 HP
Motor Dust Collection 7-1/2 HP

No Video Available
