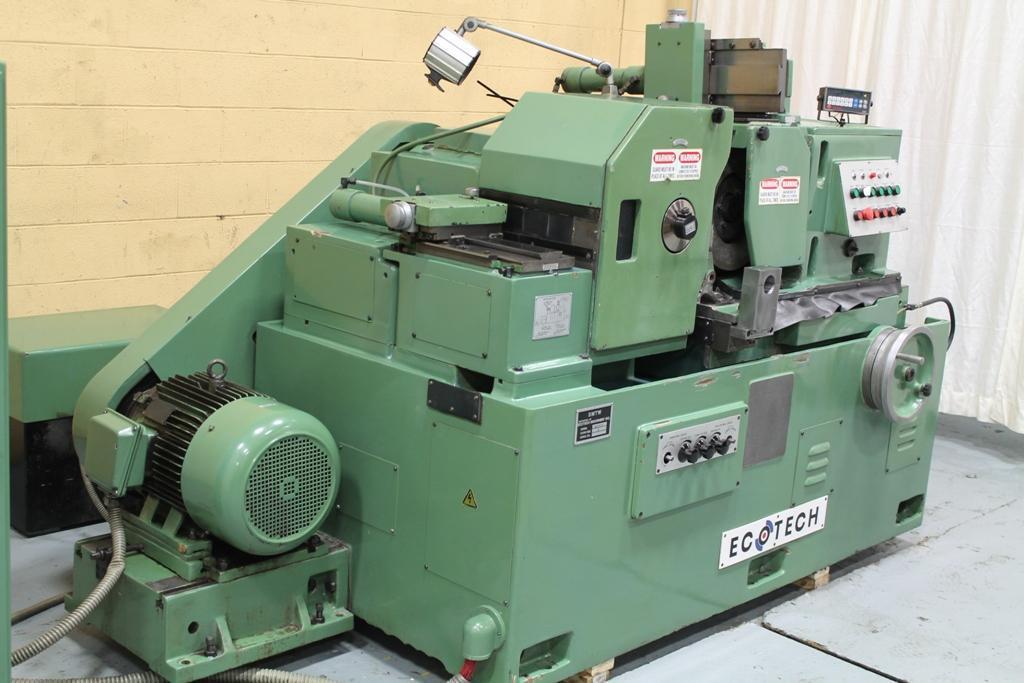

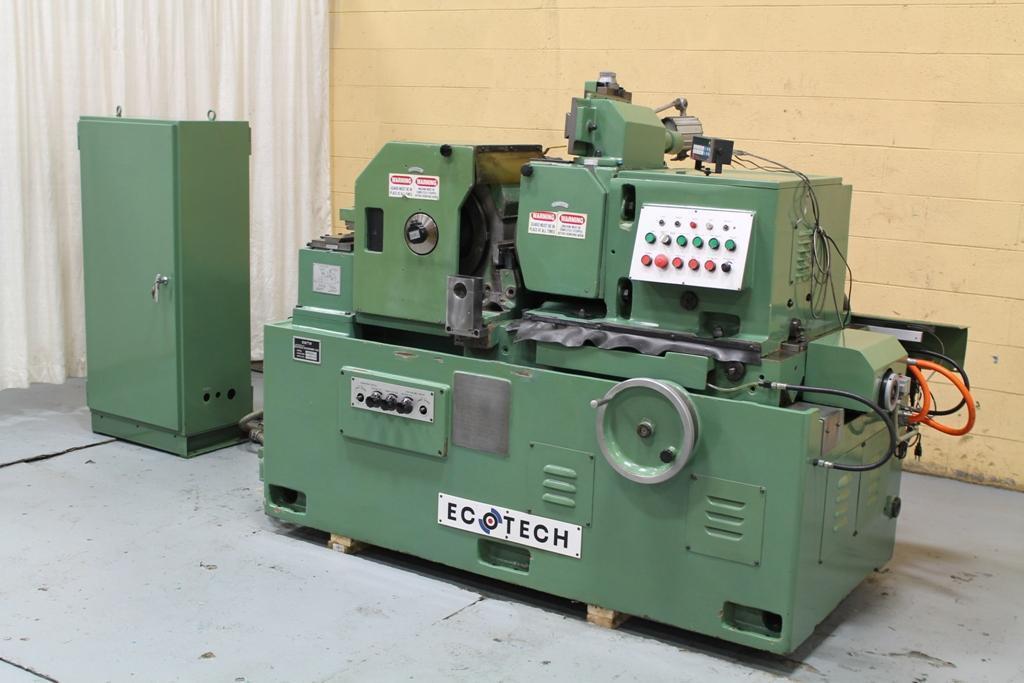

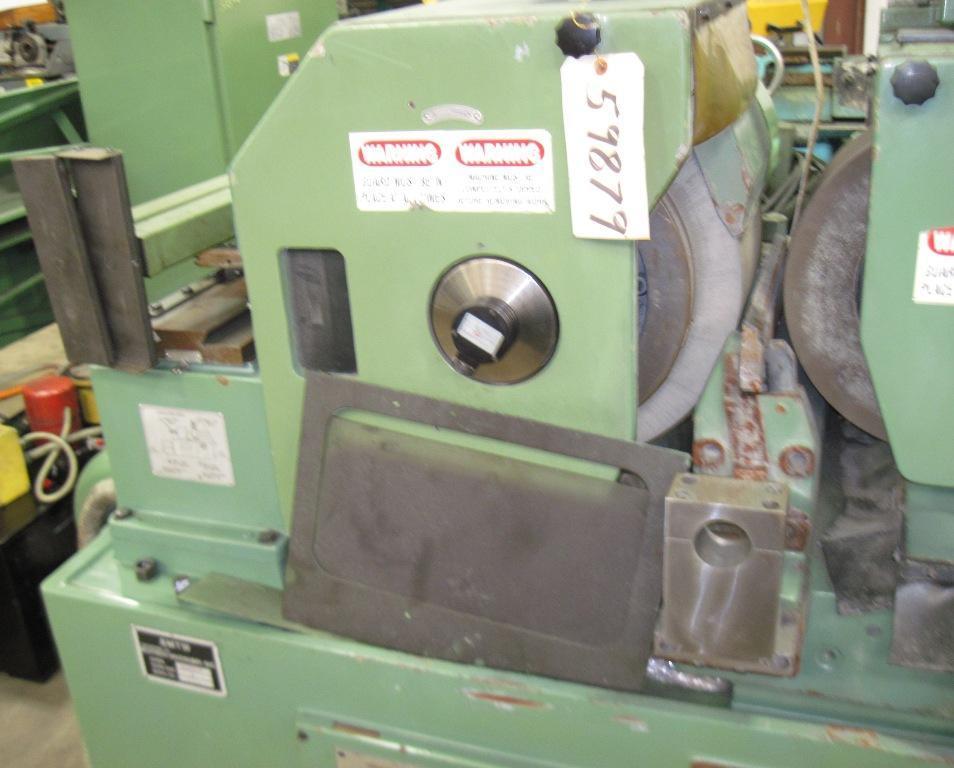

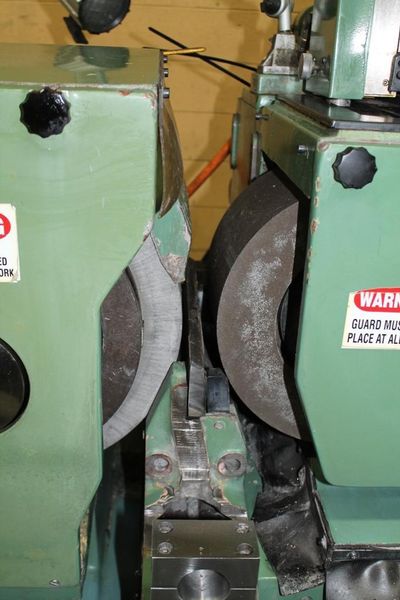

4' SMTW/ECOTECH CENTERLESS GRINDER: STOCK #59879

Manufacturer

Category

Grinding Machines

Type

GRINDERS, CENTERLESS-ACCESSORIES

Stock

59879

Model

04

Dealer Location

Ohio

Request a Quote
View Contact Information

Spec Sheet

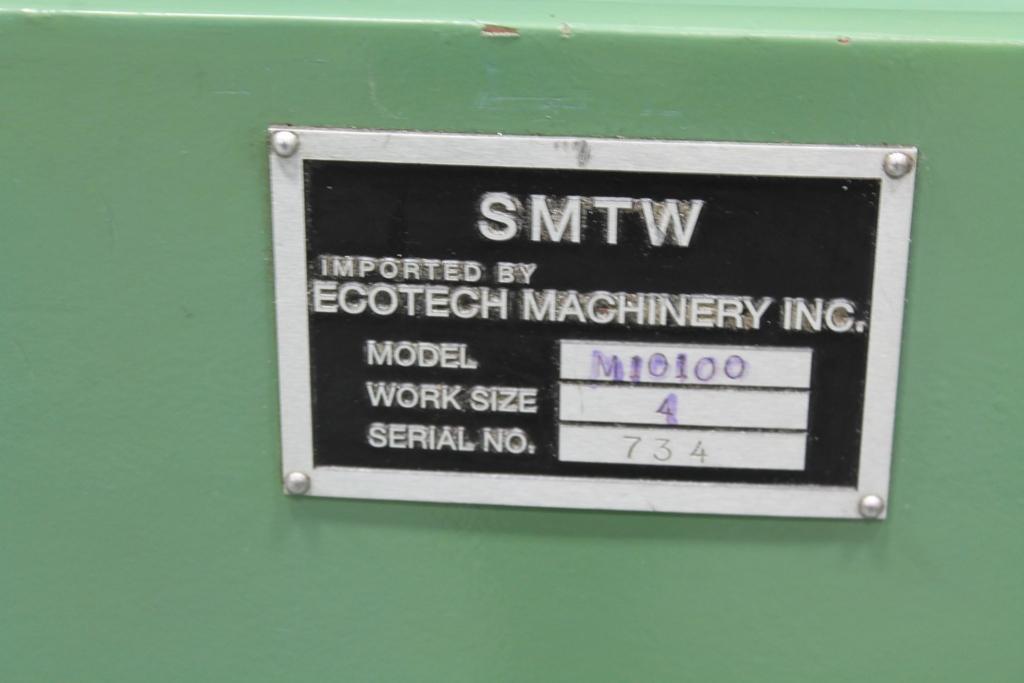

SERIAL ................ 734
MODEL ................. M10100
YEAR .................. 2006

INFEED:
DIAMETER .............. 0.39/4.0" MAX (LIMITED BY WORKREST)
LENGTH ................ 7.67 MAX

THROUGH FEED:
DIAMETER .............. 0.39/4.0" MAX (LIMITED BY WORKREST)
LENGTH ................ CONTINUOUS
CENTER HEIGHT ......... 8.66" (FROM WORK TABLE)
MAX WORK LOAD ......... 50 LBS (INFEED)
NET WEIGHT ............ 15,500 LBS
DIMENSIONS ............ 154.0"L X 129.0"W X 85.0"H

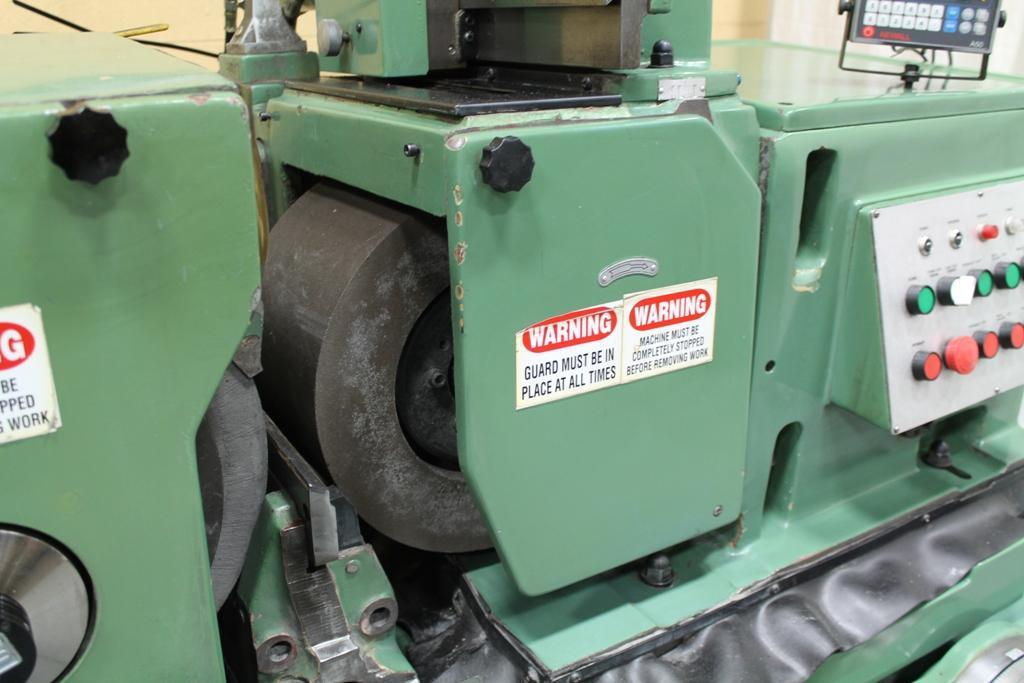

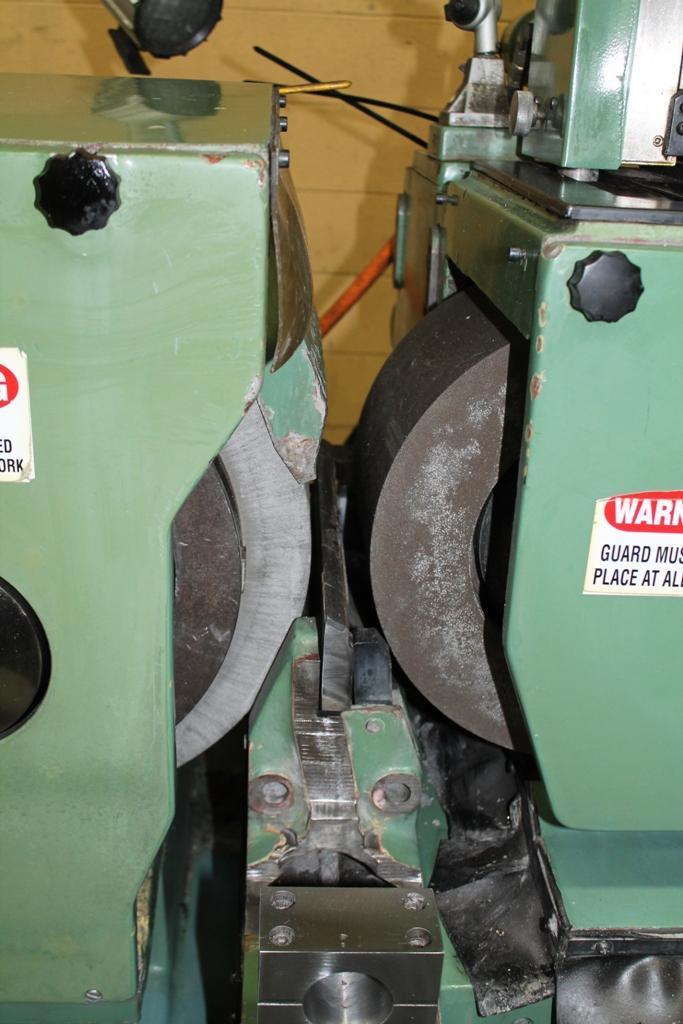

GRINDING WHEEL:
HORSEPOWER ............ 30
WHEEL SIZE ............ 20"D X 8"W X 12"B
WHEEL SPEED ........... 1,100 RPM
SURFACE SPEED ......... 6,801 SFM
DRESSER UNIT .......... STEPPING MOTOR INFEED W/TEMPLATE
DRESS SWIVEL .......... 1 AXIS + OF -3°
SPINDLE TAPER ......... 1:5 TAPER
SPINDLE BEARING ........ CANTILEVER TYPE/4 SHOE HYDRODYNAMIC

REGULATING WHEEL:
RAPID TRAVEL .......... 30 IPM
MAX TRAVEL RP ......... .78"
OIL RESERVOIR ......... 5.3 GAL - 60 ISO VISCOSITY GRADE
HORSEPOWER ............ 4 (DC)
WHEEL SPEED ........... 10-300 RPM / VARIABLE
VERTICAL SWIVEL ....... -2° / +5°
HORIZONTAL SWIVEL ..... -1° / +3°
WHEEL SIZE ............ 13.7" X 7.87" X 8"
SPINDLE BEARING ....... CANTILEVER TYPE/3 SHOE HYDRODYNAMIC
DRESSER UNIT .......... VARIABLE HYDRO FEED/TEMPLATE FORMING
DRESS SWIVEL .......... 2 AXIS / 1ST-2 TO +5 / 2ND -3 TO +3°

HYDRAULIC SYSTEM:
FLOW RATE ............. 5.2 GPM
PRESSURE .............. 241 TO 284 PSI (WORKING) 14/21 PSI (LUBE)
RESERVOIR ............. 66 GAL
HORSEPOWER ............ 1.5
