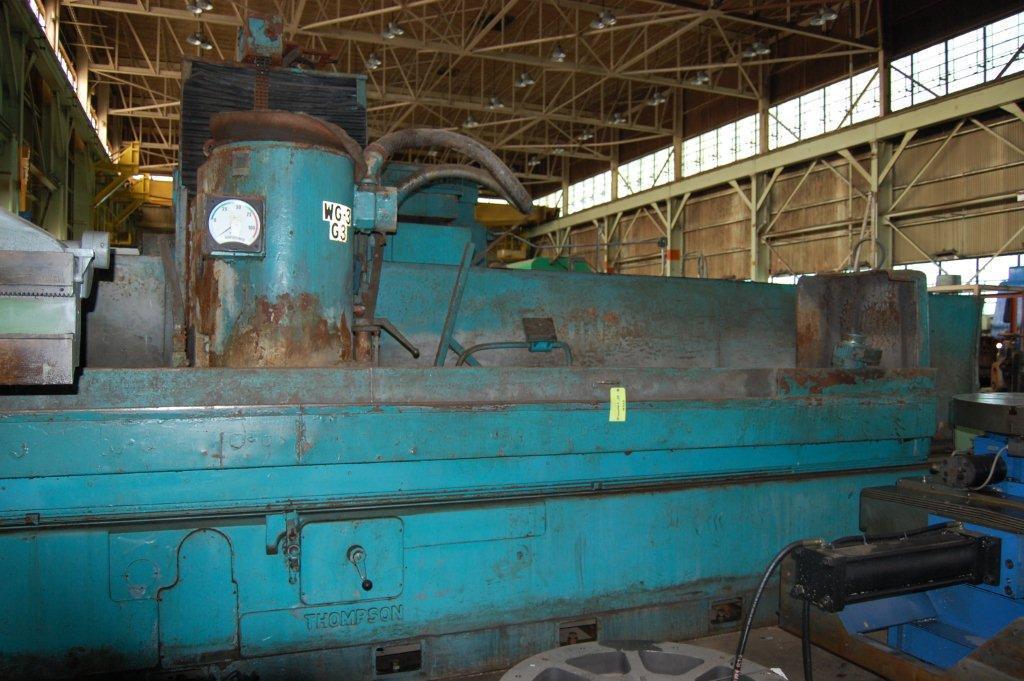

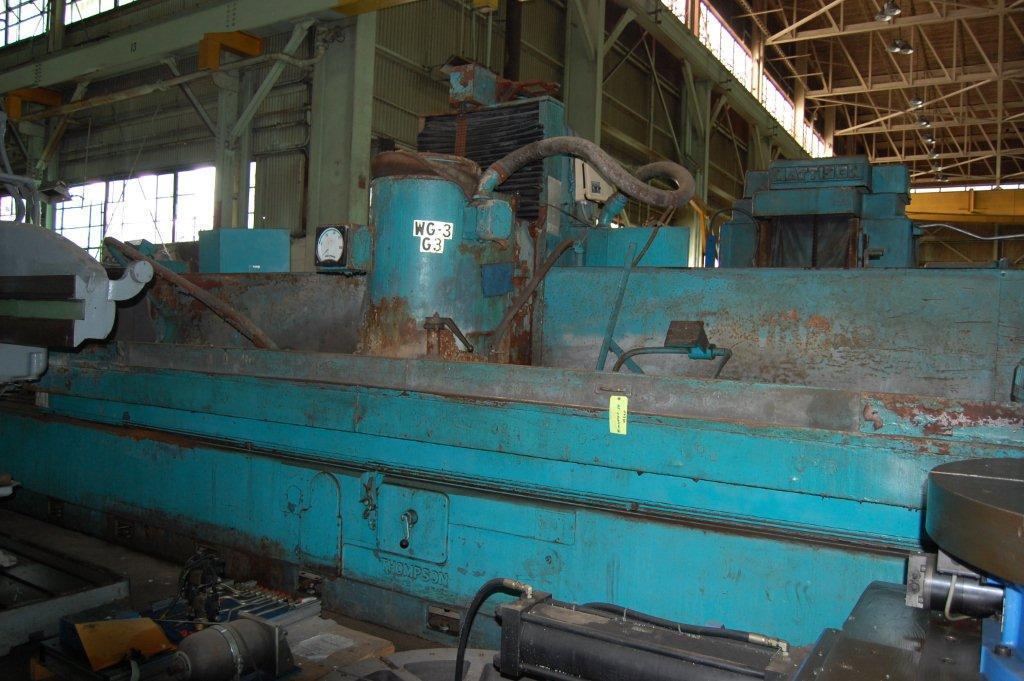

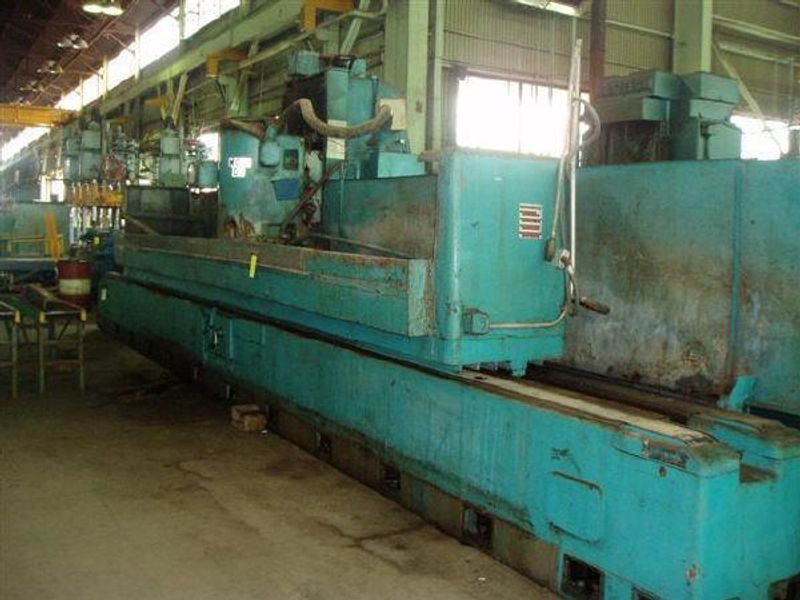

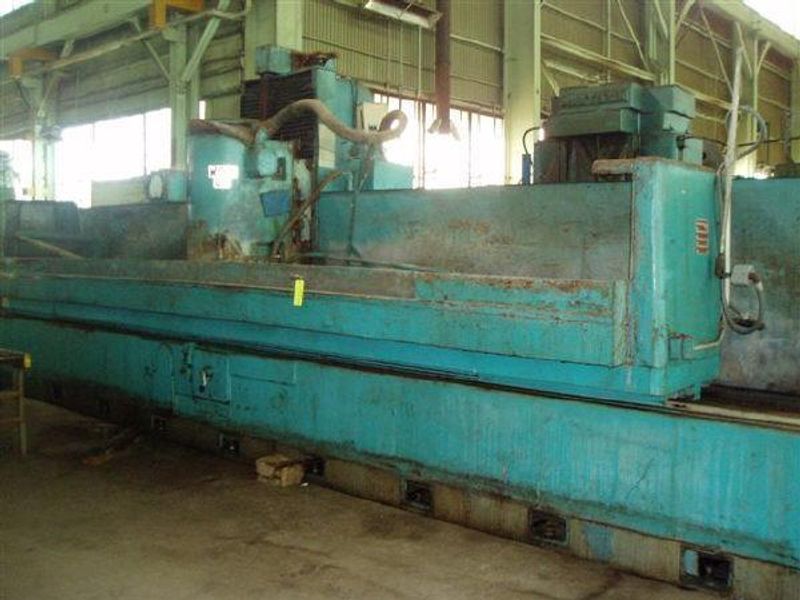

18" X 168" THOMPSON HYD VERTICAL SPINDLE SURFACE GRINDER: STOCK #50561

Stock

50561

Model

18 X 168

Dealer Location

Ohio

Spec Sheet



SERIAL NUMBER ........................ 14PV6469-45
MODEL ................................ 14PV
YEAR ................................. 1964

CATALOGUE SPECIFICATIONS:
TABLE WORKING SURFACE ................ 18" W X 168" L
GRINDING WHEEL DIAMETER .............. 30"
LONGITUDINAL TABLE FEEDS - RANGE ..... TO 90 FPM
MOTOR ................................ 75 HP/595 RPM/220-440/3/60
OVERALL DIMENSIONS ................... 36'L X 8'4"W
OVERALL HEIGHT ....................... 11'

EQUIPPED WITH:

(2) 18" X 60" ELECTRO-MAGNETIC CHUCKS
(1) 18" X 48" ELECTRO-MAGNETIC CHUCK
SEGMENTED GRINDING WHEEL
NEUTROFIER - SWING-AWAY DRESSER
