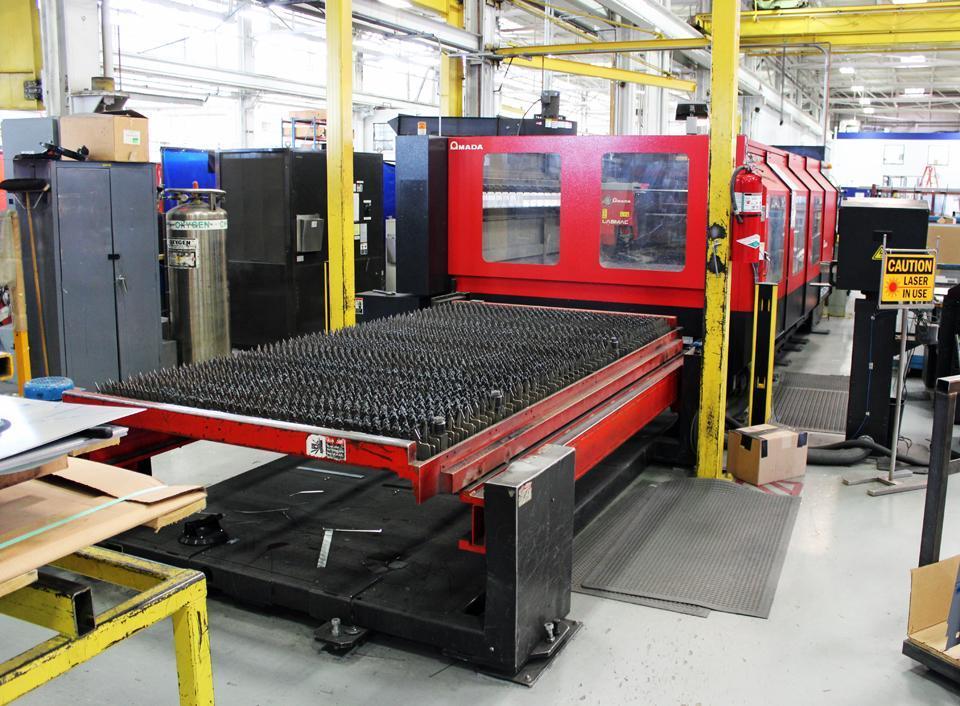

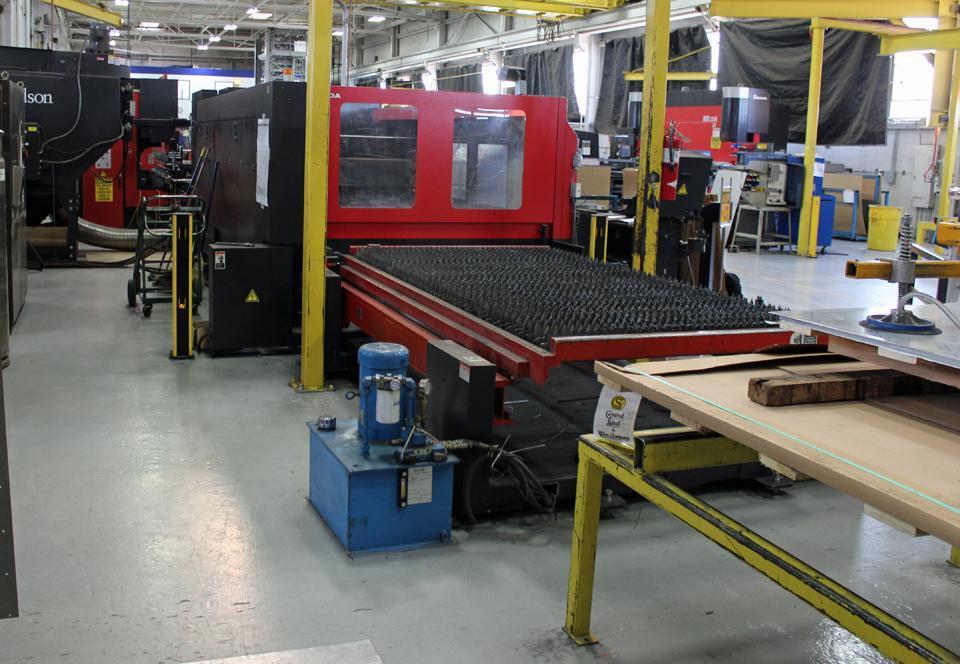

4000 WATT AMADA MODEL F0-3015 NT CNC CO2 LASER CUTTER: STOCK # 70005

Manufacturer

Category

Laser Cutting

Type

LASERS

Stock

70005

Model

4000

Dealer Location

Ohio

Request a Quote
View Contact Information

Spec Sheet



MODEL ............................... F0-3015 NT
YEAR ................................ 2005
WATTAGE ............................. 4000 WATT
TABLE SIZE .......................... 61" X 122.8"

IPM    3149
X axis travel    122.8"
Y Axis Travel    61"
Z Axis Travel    11.8"
Control Type    Fanuc NT
Rebuilt 24000 Turbo, Vacuum pump , Slats and Optics

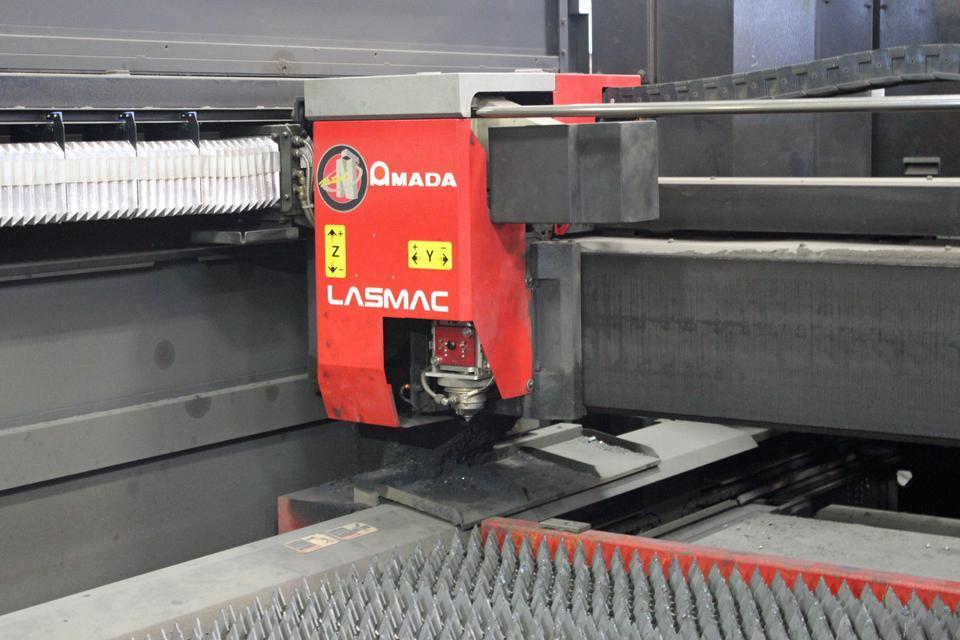

1.1 Motion Package
Travel Method: Stationary table, X, Y and Z-axis movement for cutting
Control Method: X, Y and Z simultaneous 3 axis control
Drive Motors: Fanuc AC servo motors
Maximum Sheet Size: 61" (Y) x 122.8" (X)
Maximum Axis Travel: 61" (Y) x 122.8" (X) x 7.87" (Z) *
Maximum Axis Positioning Speed: 3,150 inches per minute (80m/min)
Per axis: 4,554 inches per minute 45o vector. *
Maximum Speed Z-Axis: 2,362 inches per minute
Positioning Accuracy: 0.0004"/20"
Maximum Material Weight: 1,875 lbs.
Assist Gas: 4 ports with NC pressure Control
Machine Footprint: 385" x 107"
Machine Weight: 34,250 lbs
Electrical Requirement: 208V, 3 Phase, 60Hz, 10KVA

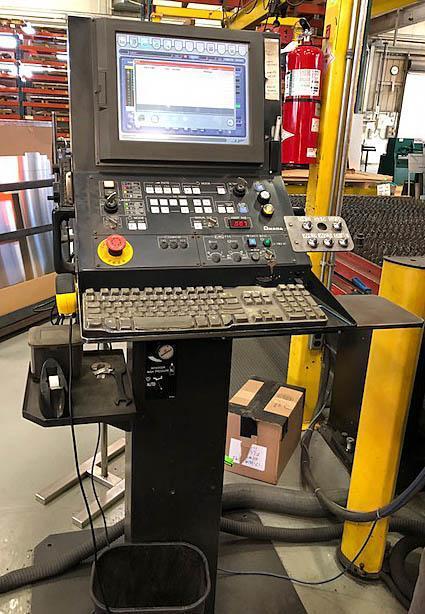

Model: Fanuc NT
Display: LCD Color Graphics Display
Minimum Command Unit: 0.0001" (X, Y, Z)
Minimum Travel Unit: 0.0001" (X, Y, Z)

Operating Modes: Automatic, MDI and Manual

Display Modes:
Program Contents, Position Information, Program Check, Settings, Parameters,
Beam Diameter Compensation, Assist Gas Status, Self Diagnostics Interlock
Displays

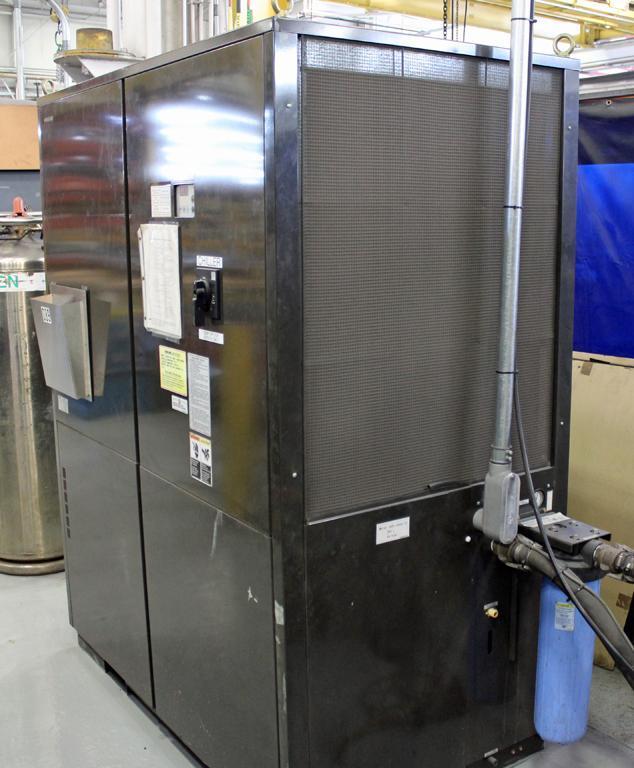

Cooling Water Status, Gas Pressure Status, Vacuum Status, Turbo Blower
Malfunction, Shutter Status, Beam Power, Resonator Discharge, Door Open,
WACS.

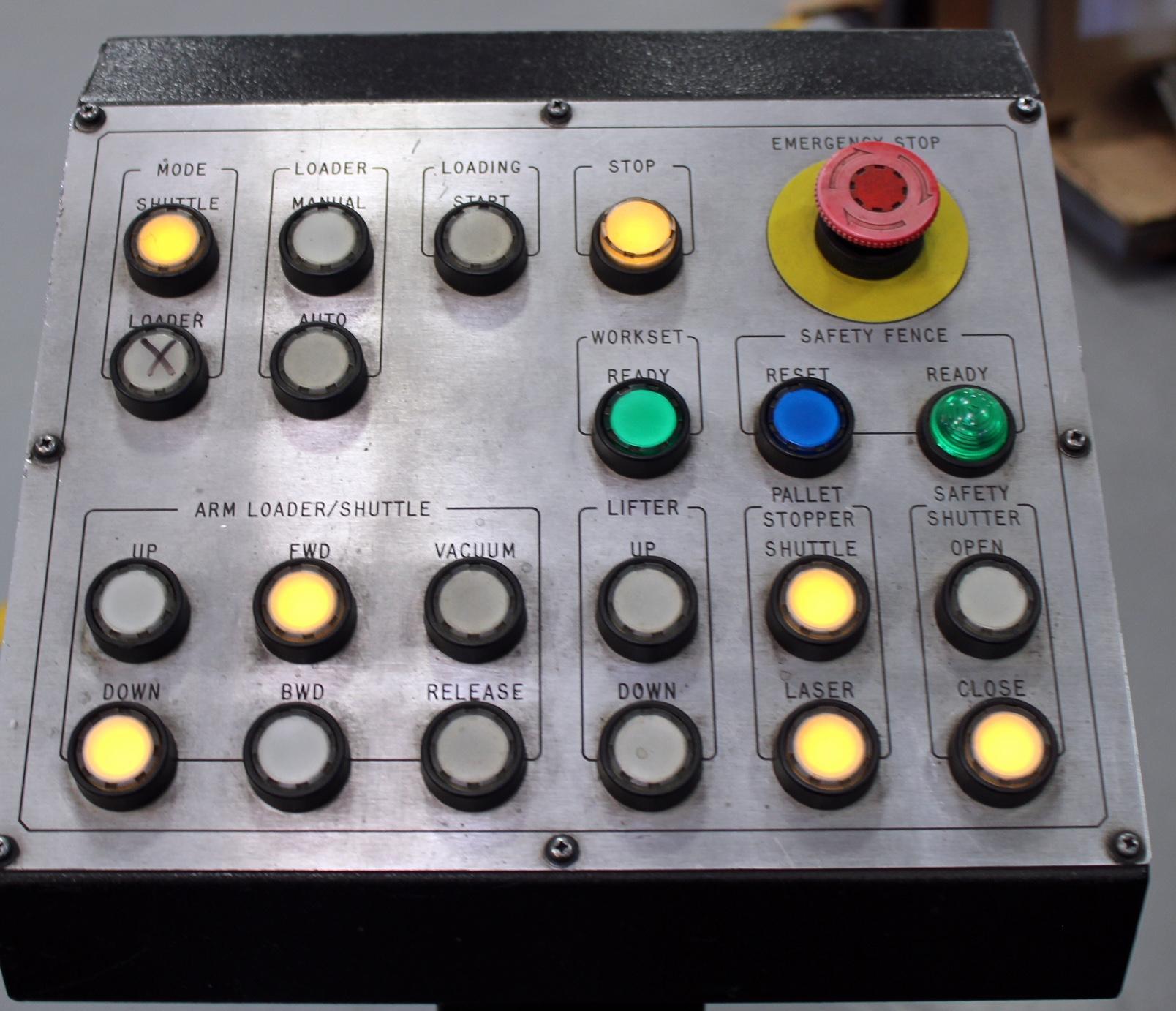

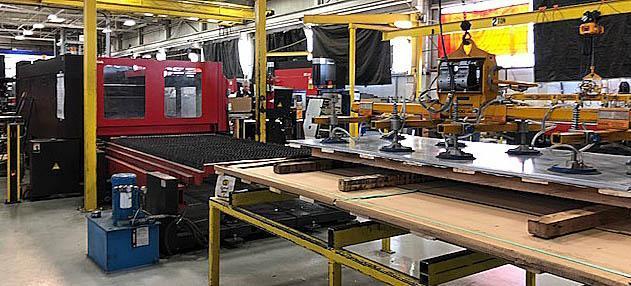

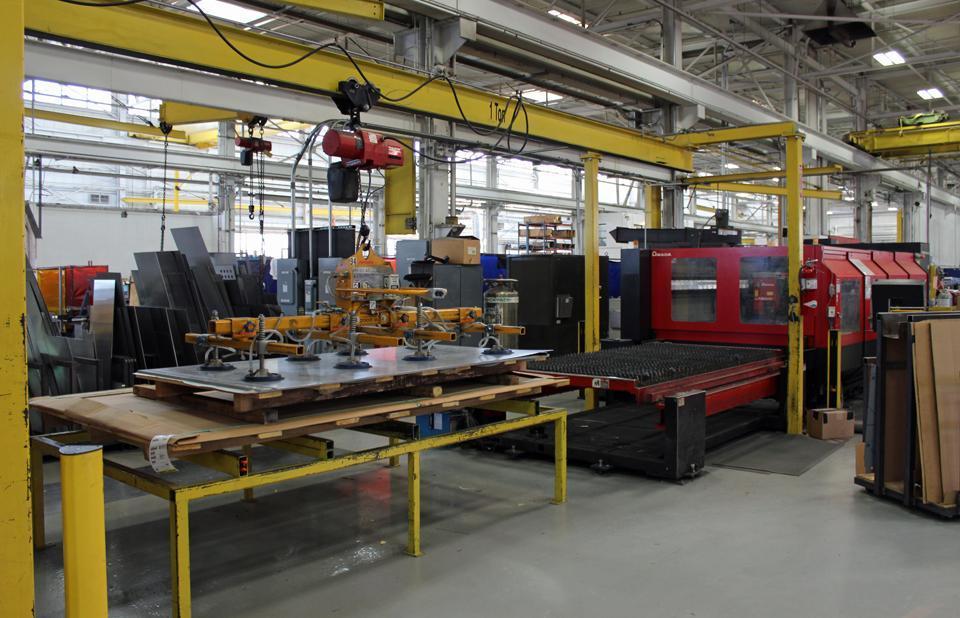

1 Ton Lift for material.

*LASER SOLD AS IS WHERE IS CAN BE INSPECTED UNDER POWER
