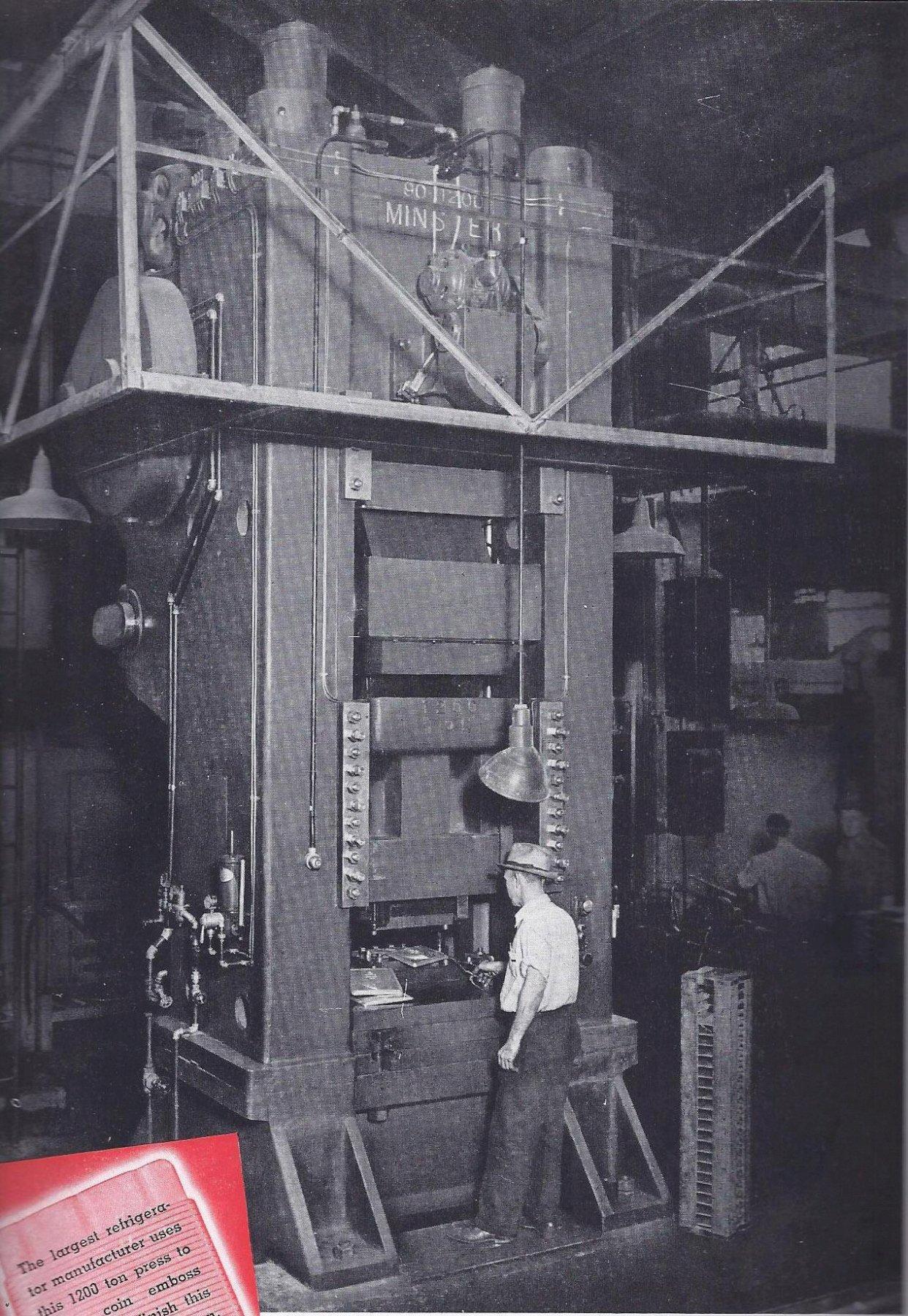

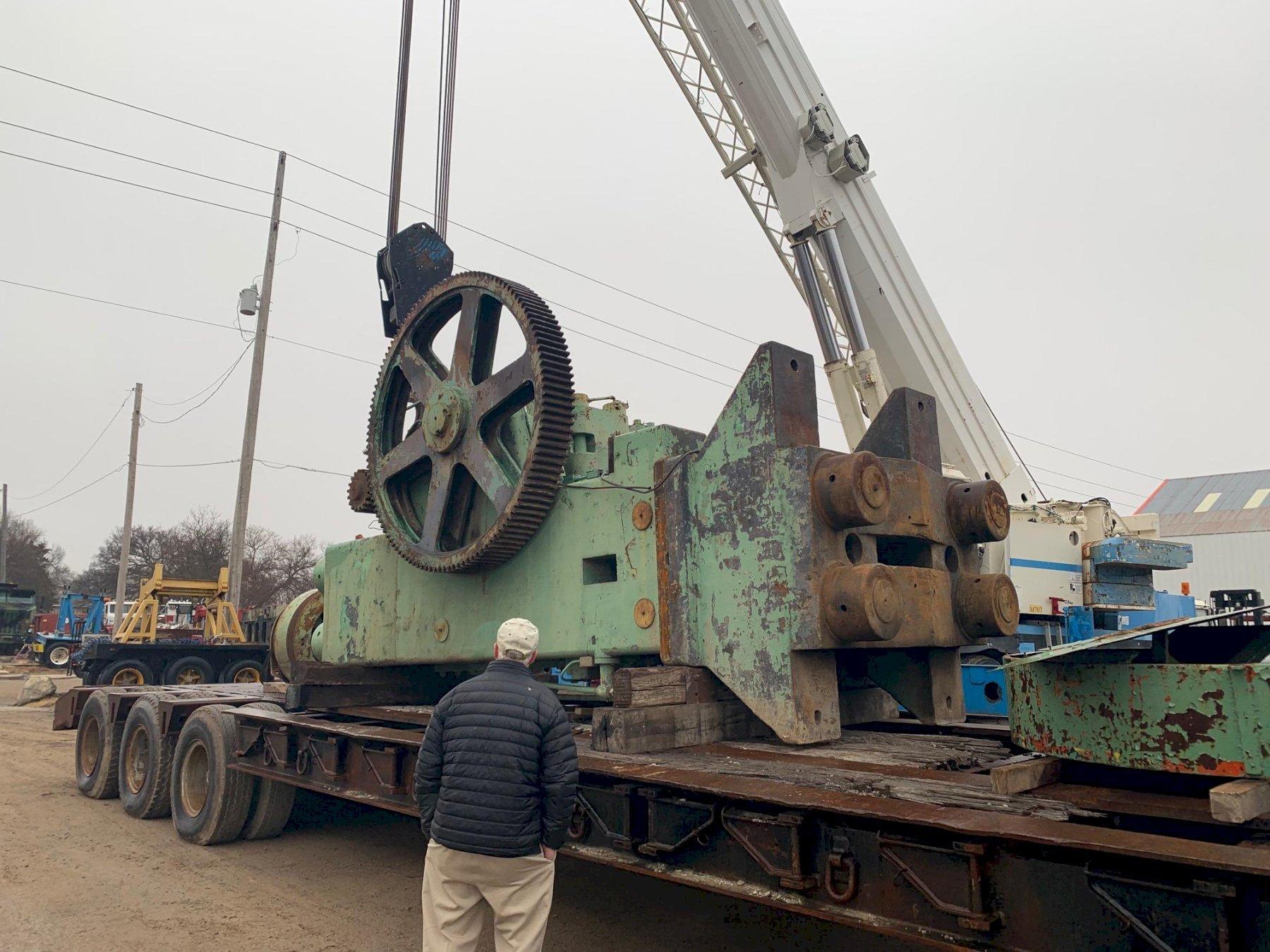

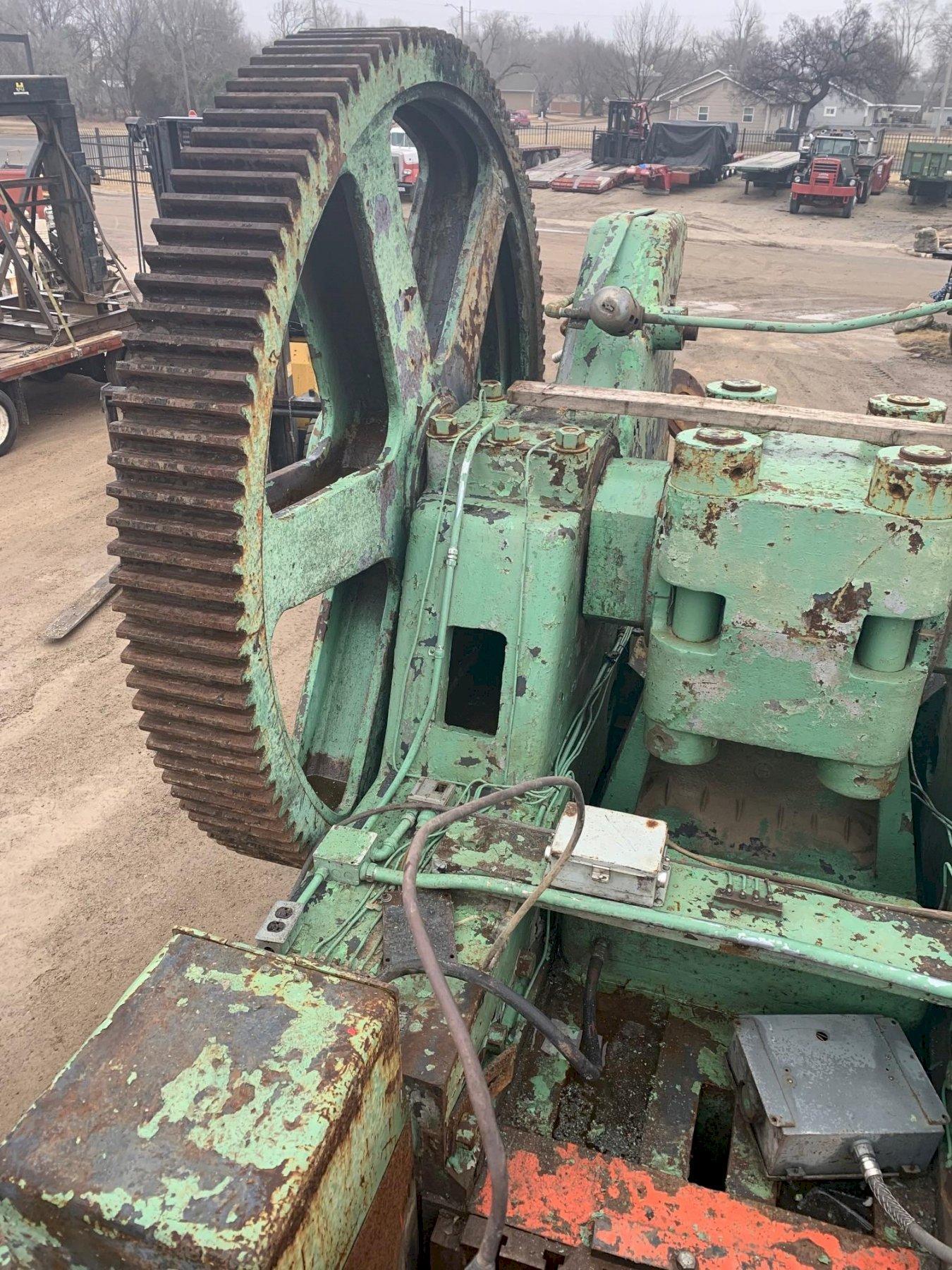

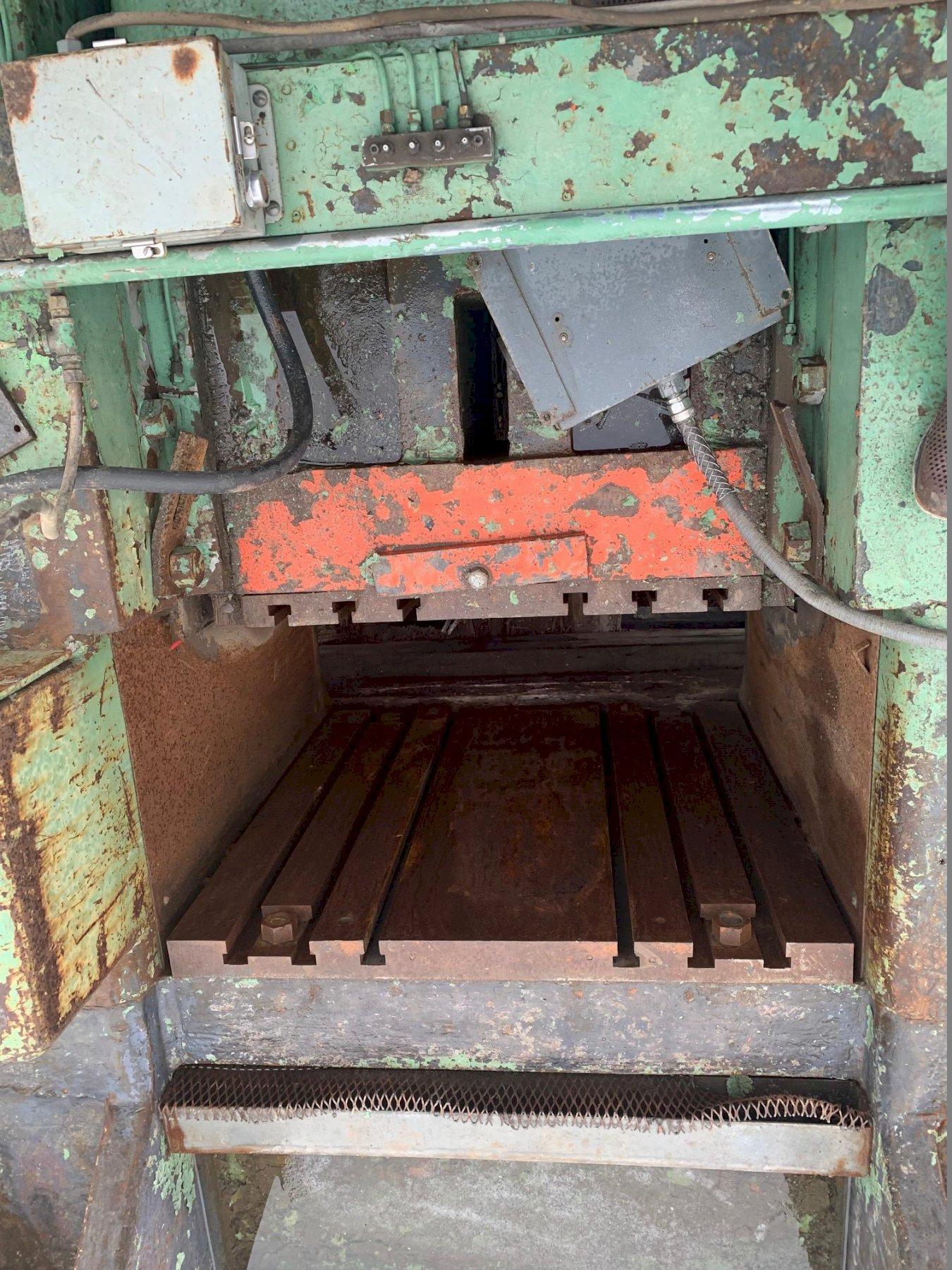

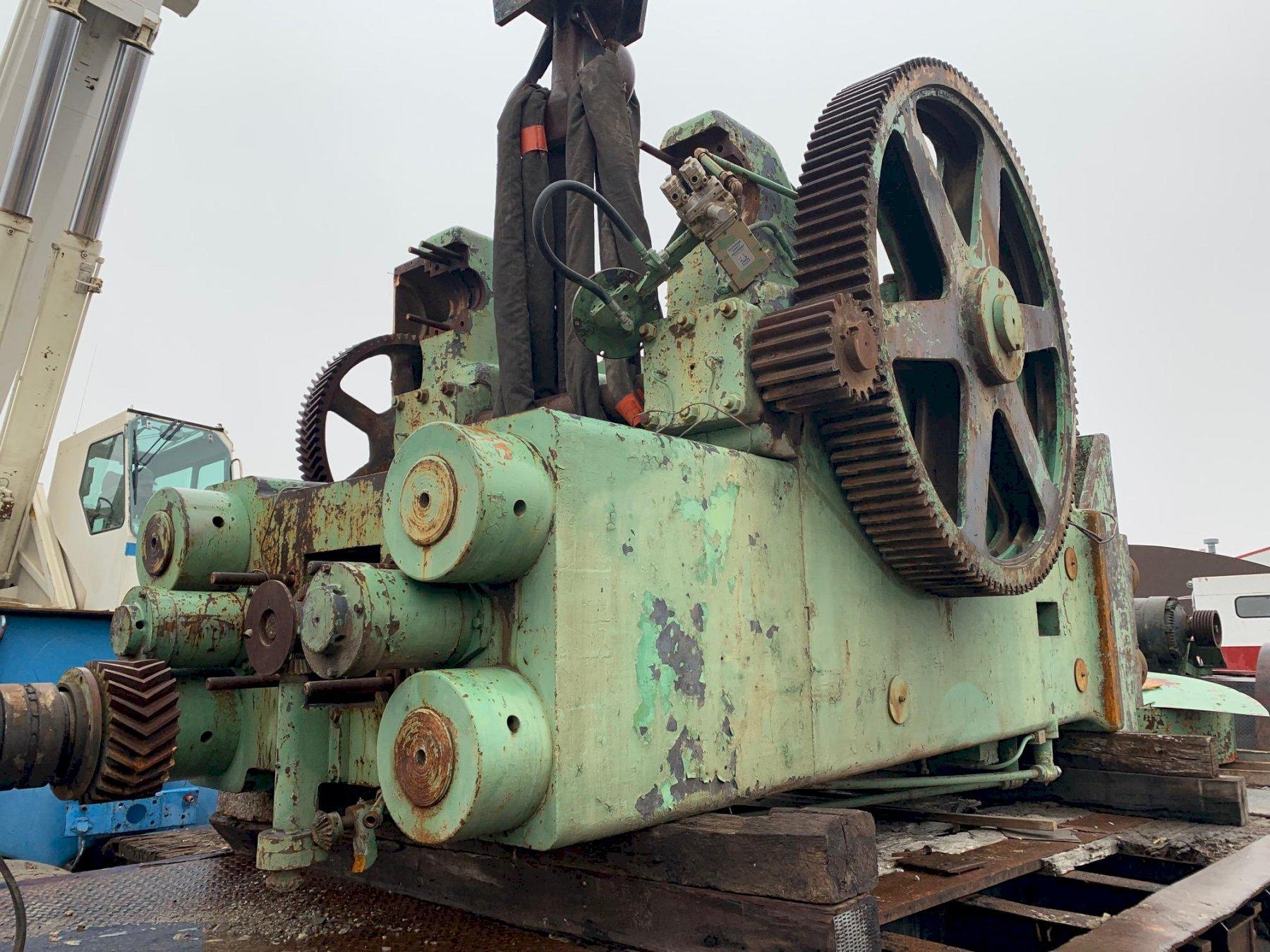

1200 TON MINSTER KNUCKLE JOINT PRESS: STOCK #71516

Manufacturer

MINSTER

Category

Presses

Type

PRESSES, KNUCKLE JOINT, (Coining & Embossing)

Stock

71516

Model

1200

Dealer Location

Ohio

Request a Quote
View Contact Information

Spec Sheet



MODEL ................................. #90
PRESSURE EXERTED ...................... 1200
STANDARD STROKE OF SLIDE .............. 9"
ADJUSTMENT OF SLIDE ................... 1/2"
DISTANCE BTWN UPRIGHTS TO CLEAR ....... 38"
DISTANCE BETWEEN GIBS ................. 31-1/2"
AREA OF SLIDE F-B R-L ................. 24 X 31-1/4"
WIDTH OF DOVETAIL IN SLIDE ............ 5"
DEPTH OF DOVETAIL IN SLIDE ............ 1-3/4"
AREA OF BED F-B R-L ................... 46 X 38"
OPENING DIAMETER IN BED ............... 4"

STANDARD DIE SPACE DISTANCE FROM TOP OF BOLSTER TO BOTTOM OF SLIDE

STROKE DOWN ADJ UP .................... 14"
THICKNESS OF PLAIN BOLSTER PLATE ...... 7"
DISTANCE BED TO GIBS .................. 21-1/2"
DIA OF CRANK  AT BEARING &  PIN ....... 9-13-1/2"
DIA OF KNUCKLE PINS ................... 7-1/4"
DIA OF TIE RODS ....................... 8-1/2
