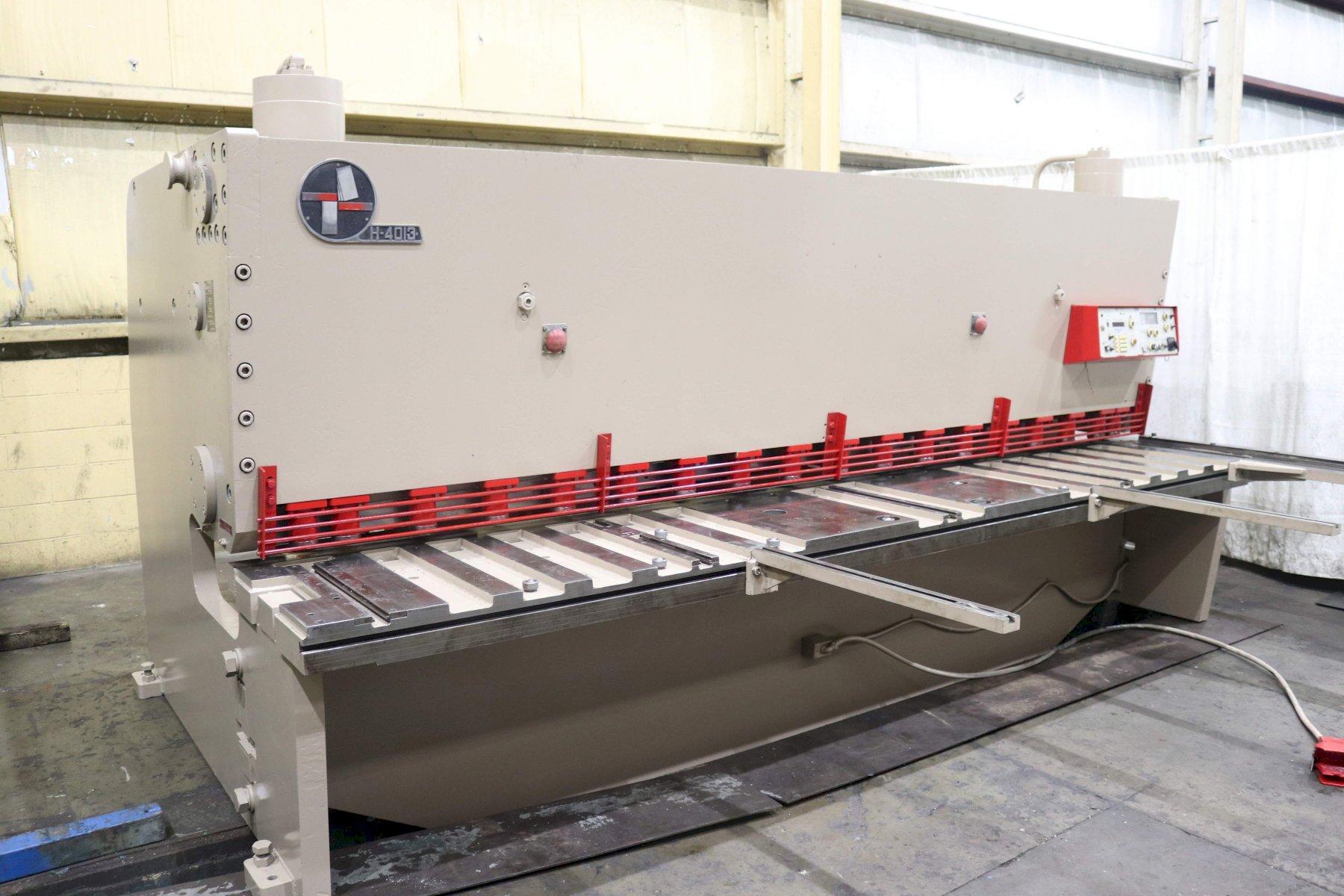

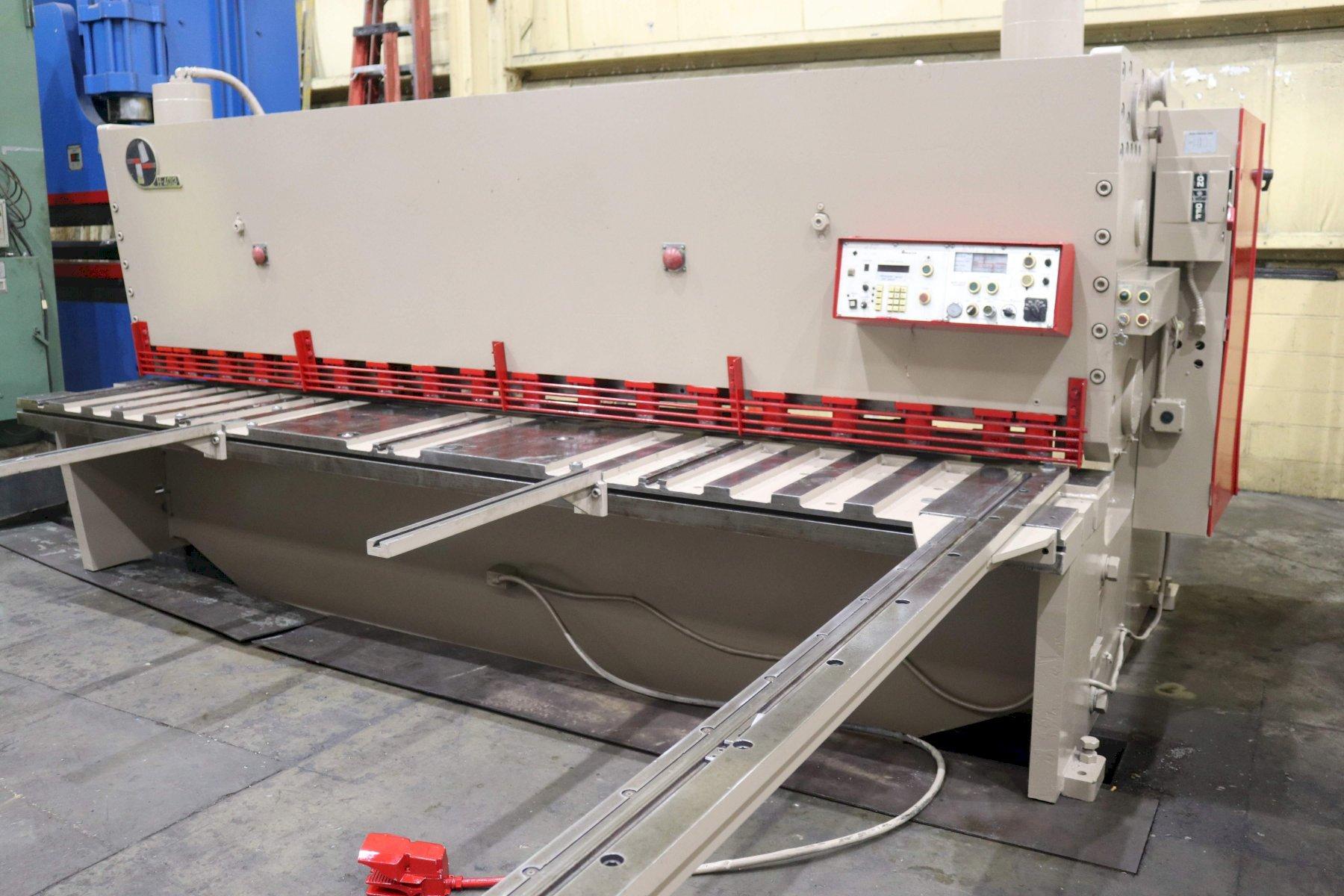

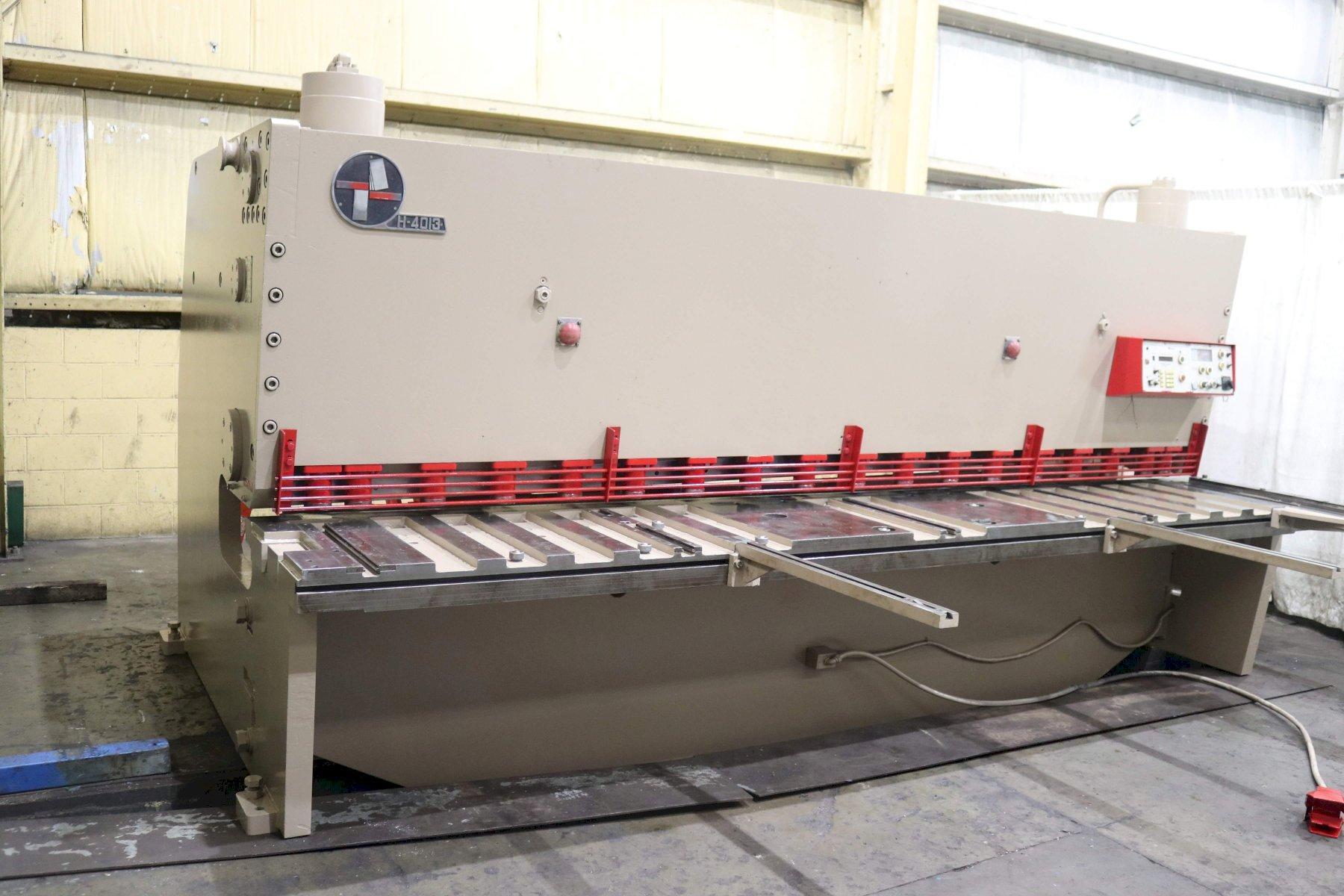

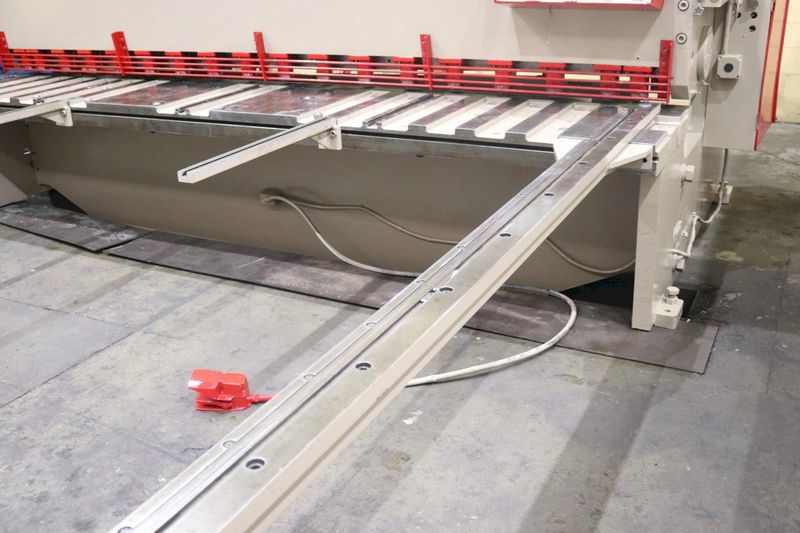

13' X 1/2' AMADA HYDRAULIC POWER SQUARING SHEAR: STOCK #72684

Manufacturer

Category

Fabricating Machines

Type

CIRCLE & RING CUTTING MACHINES

Stock

72684

Model

13 X 0500

Dealer Location

Ohio

Request a Quote
View Contact Information

Spec Sheet



SERIAL ............................. 40130002
MODEL .............................. H4013
YEAR NEW ........................... 1986
CAPACITY, MILD STEEL ............... 1/2"
LENGTH OF CUT ...................... 157.50"
LENGTH OF BLADE .................... 162"
FRONT OPERATED POWER BACK GAUGES ... 39.36" E/M DISPLAY
NUMBER OF HOLD DOWNS ............... 18
STROKE PER MINUTE .................. 9 FULL WIDTH
STROKE PER MINUTE .................. 25 @ HALF CYCLE
RAKE ANGLE (POWER) ................. 2 DEGREES PER FOOT
ELECTRIC FOOT TRIP ................. YES
SQUARING ARM ....................... 96"
DEPTH OF THROAT .................... 20"
FRONT ARM SUPPORTS ................. 5
CENTRAL LUBE ....................... YES
FLOOR TO TABLE TOP ................. 32"
ROLLER BALLS IN TABLE .............. YES
INCH, SINGLE & CONTINUOUS CONTROLS .. YES
MOTOR............................... 40 HORSEPOWER
