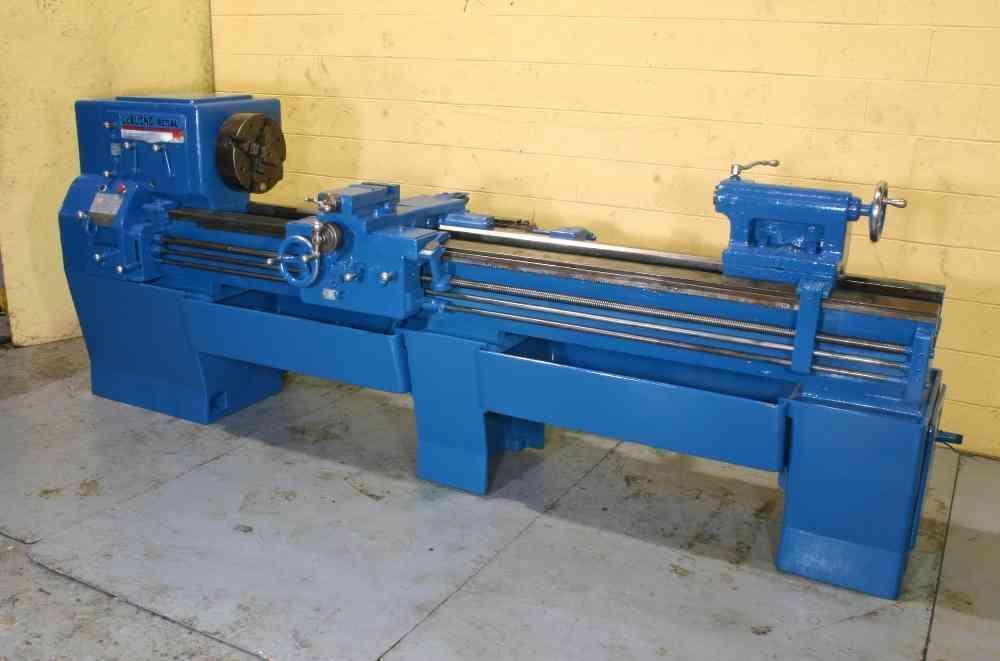

17" X 78" LEBLOND REGAL ENGINE LATHE: STOCK #4615

Manufacturer

LEBLOND

Category

Lathes

Type

LATHES, ENGINE

Stock

4615

Model

17 X 078

Dealer Location

Ohio

Request a Quote
View Contact Information

Spec Sheet



SERIAL ............................. 2D924
MODEL .............................. REGAL
SWING OVER WAYS .................... 18"
SWING OVER CROSS SLIDE ............. 11"
DISTANCE BETWEEN CENTERS ........... 84"
SPINDLE SPEEDS ..................... (12) 38 TO 1500 RPM
FEEDS .............................. (48) .0036 TO .116 IPR
THREADS ............................ (48) 2 TO 64 TPI
DIAMETER OF SPINDLE HOLE............ 1-1/2"
TAPER ATTACHMENT.................... YES
THREAD DIAL ........................ YES
CHIP PAN WITH COOLANT .............. YES
CARRIAGE STOP ...................... YES
CHUCK .............................. 12" 4 JAW
FORWARD & REVERSING ................ YES
HARDEN REPLACEABLE WAYS ............ YES
MOTOR .............................. 5 HORSEPOWER

No Video Available
