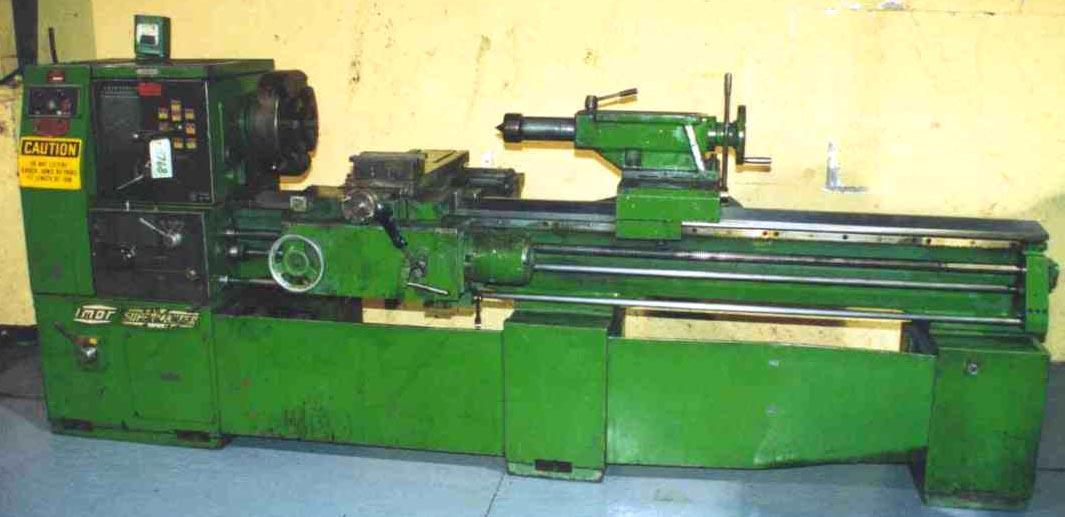

22' X 84' SUPERMASTER ENGINE LATHE: STOCK #8768

Manufacturer

Category

Lathes

Type

LATHES, ENGINE

Stock

8768

Model

22 X 084

Dealer Location

Ohio

Request a Quote
View Contact Information

Spec Sheet



SWING OVER WAYS .................. 22"
SWING OVER CROSS SLIDE ........... 10-1/2"
DISTANCE BETWEEN CENTERS ......... 84"
SPINDLE SPEEDS ................... (18) 16 TO 1250 RPM
LONGITUDINAL FEEDS ............... (72) .00328 TO .08328 IPR
CROSS FEEDS ...................... (72) .00136 TO .03456 IPR
STANDARD THREADING ............... 3 TO 60 TPI
METRIC THREADING ................. 7.5 TO .0536 TPMM
MODULAR PITCH .................... (36) .25" TO 3.75"
DIMENSIONAL PITCH ................ (36) 8 TO 120 TPI
DIAMETER OF SPINDLE HOLE ......... 2-3/4"
TAPER ATTACHMENT
16" 4-JAW CHUCK
RAPID TRAVERSE
HARDENED BED WAYS
