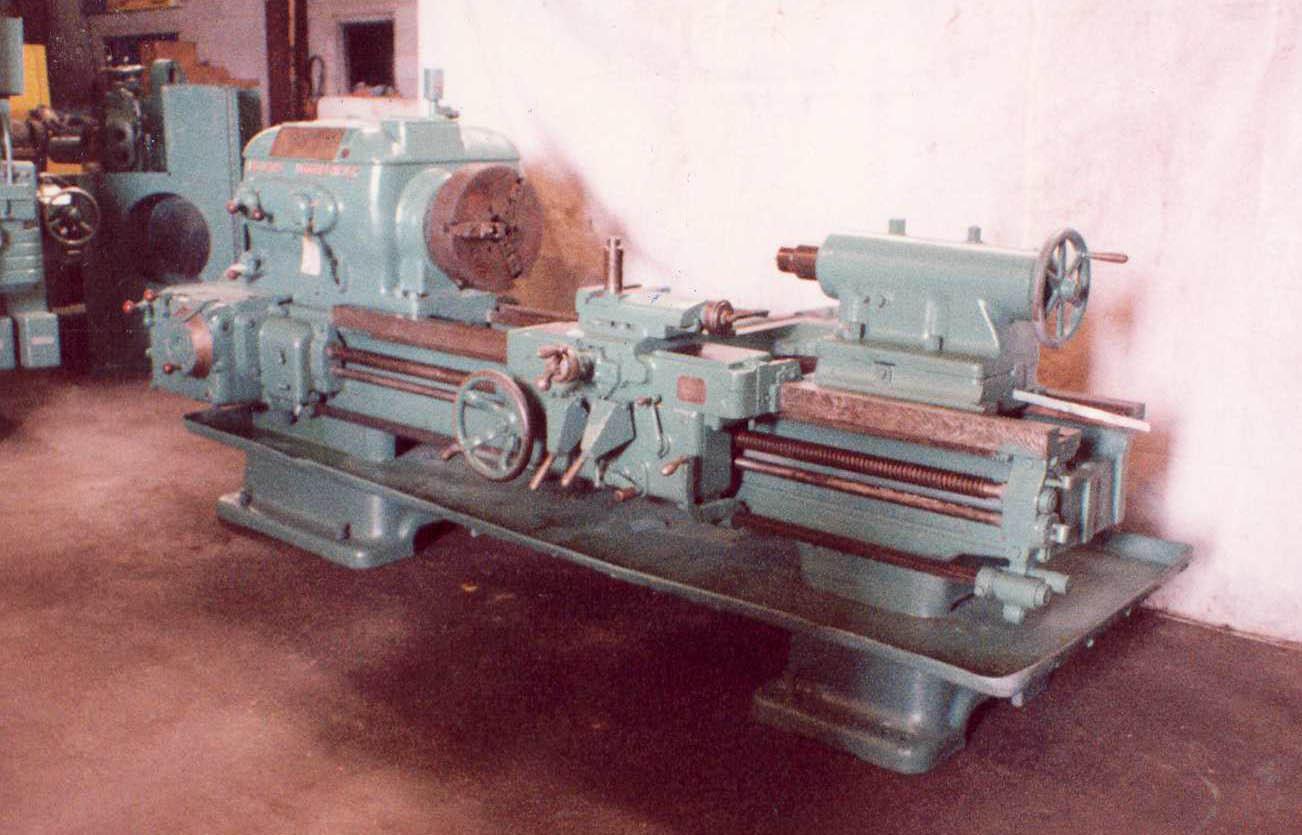

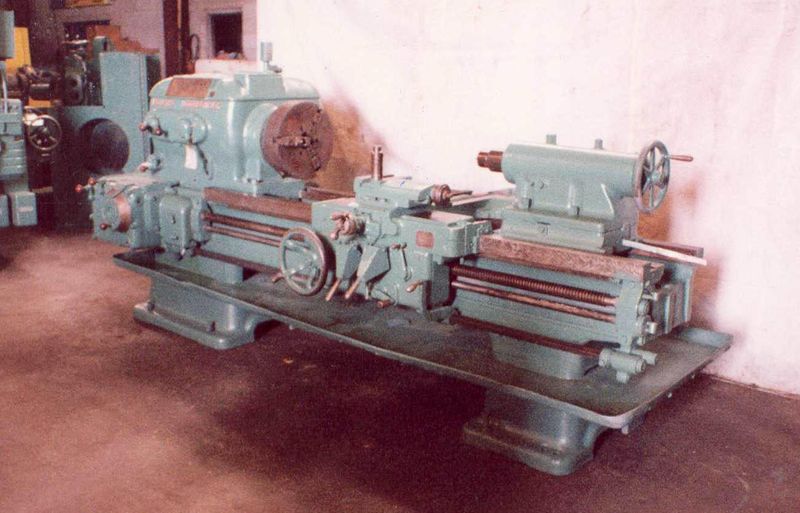

20" X 60" LODGE AND SHIPLEY ENGINE LATHE: STOCK #10521

Manufacturer

LODGE & SHIPLEY

Category

Lathes

Type

LATHES, ENGINE

Stock

10521

Model

20 X 060

Dealer Location

Ohio

Request a Quote
View Contact Information

Spec Sheet



SERIAL .............................. 34593
MAXIMUM SWING OVER WAYS ............. 23"
SWING OVER CROSS SLIDE .............. 16"
DISTANCE BETWEEN CENTERS ............ 60"
SPINDLE SPEEDS ...................... (24) 9 TO 500 RPM
FEEDS ............................... (60) .005 TO .025 IPM
THREADING ........................... (60) 1 TO 64 TPI
DIAMETER OF HOLE IN SPINDLE ......... 2-1/2"
CROSS TRAVEL OF CROSS SLIDE ......... 16"
TAPER ATTACHMENT .................... YES
TOOL HOLDER ......................... YES
MAIN MOTOR .......................... 3 HP
