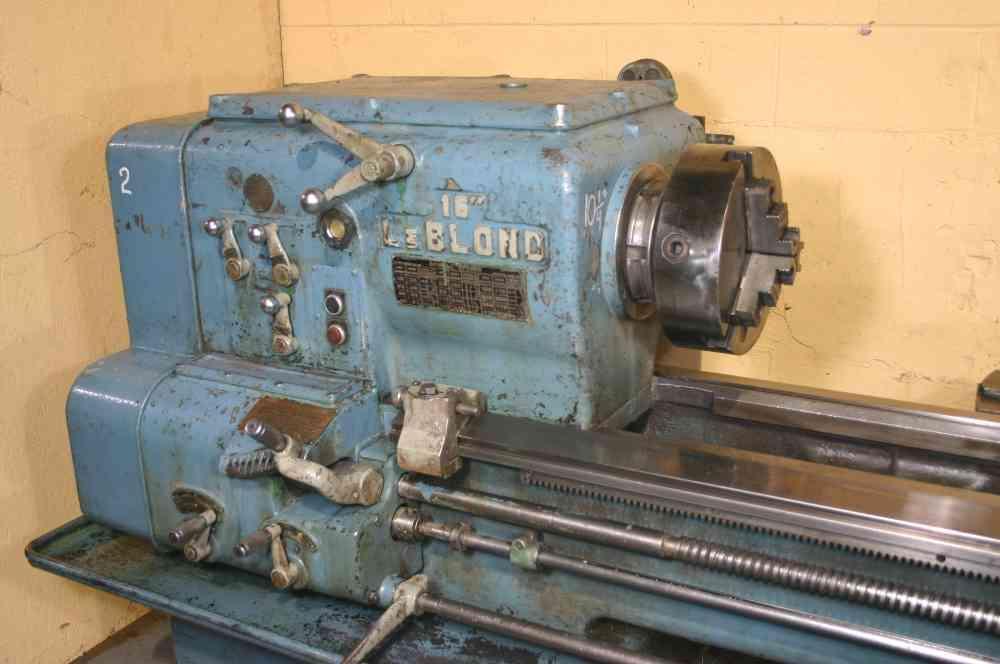

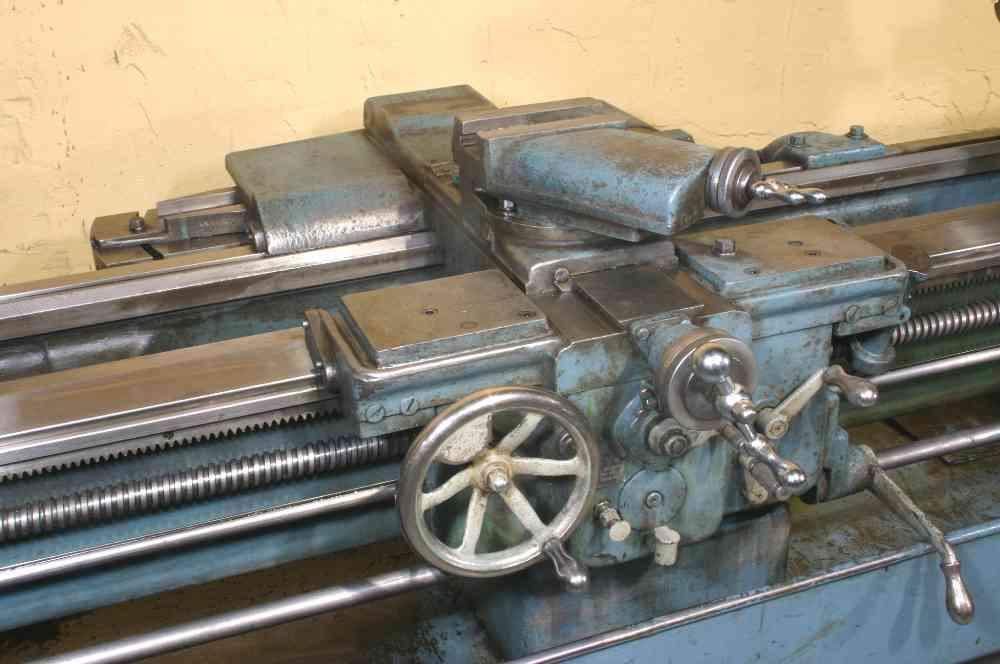

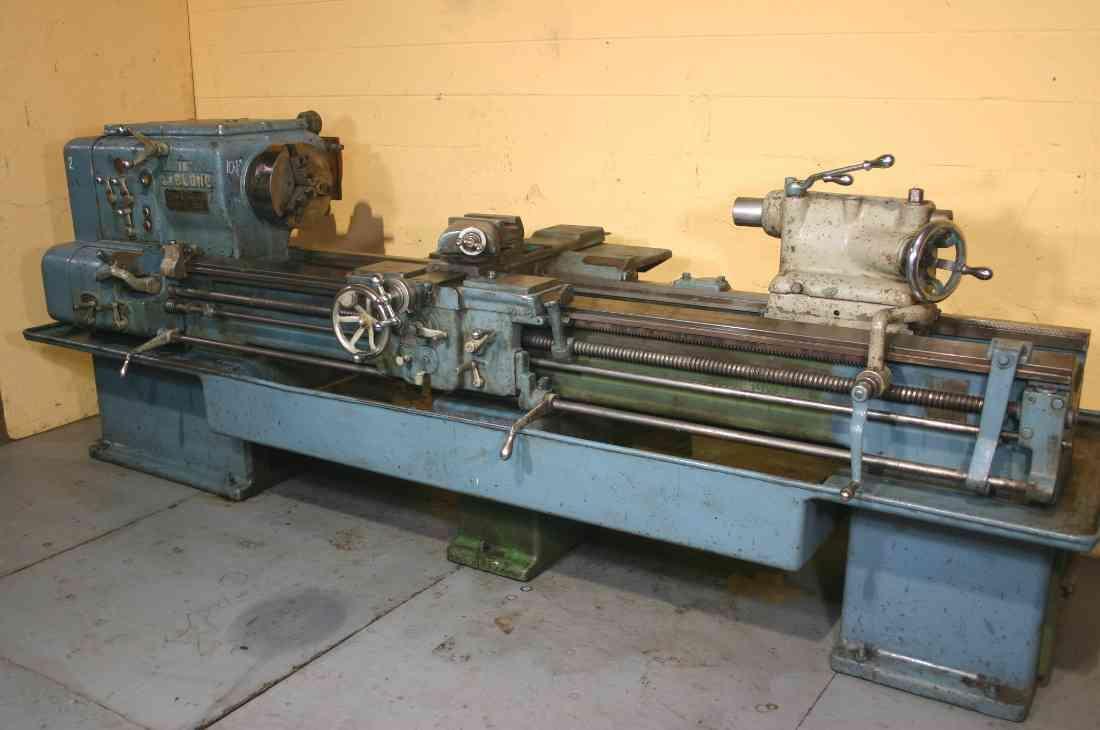

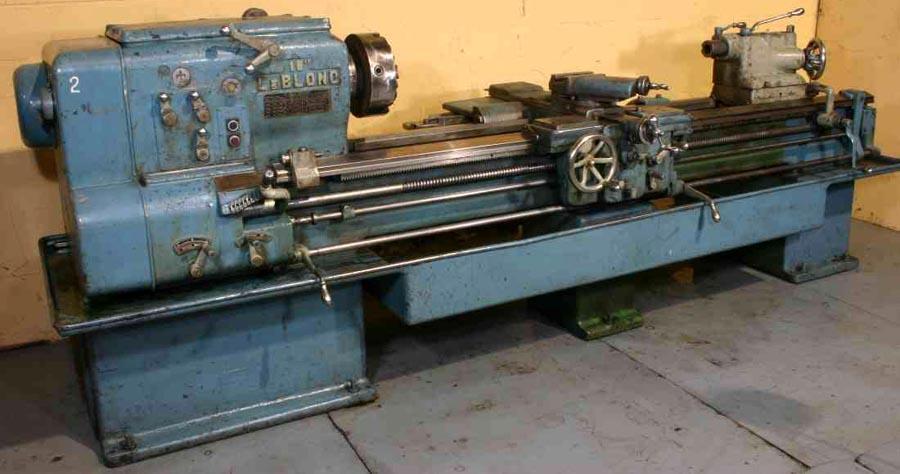

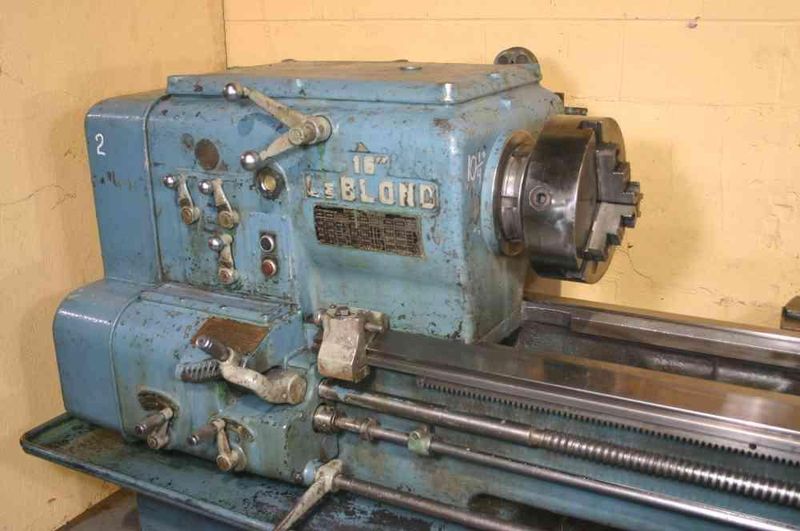

20" X 78" LEBLOND ENGINE LATHE: STOCK #17676

Manufacturer

LEBLOND

Category

Lathes

Type

LATHES, ENGINE

Stock

17676

Model

20 X 078

Dealer Location

Ohio

Request a Quote
View Contact Information

Spec Sheet



SERIAL ....................... NE6469
SWING OVER BED ............... 20-1/2"
SWING OVER CROSS SLIDE ....... 13-1/2"
DISTANCE BETWEEN CENTERS ..... 78"
SPINDLE SPEEDS ............... (24) 16 TO 1010 RPM
FEEDS ........................ (60) .0025" TO .152" IPR
THREADS ...................... (60) 1 TO 60 TPI
DIAMETER OF SPINDLE HOLE ..... 1-3/4"
CHUCK ........................ 12" 3-JAW
TAILSTOCK TAPER .............. 4MT
TAPER ATTACHMENT ............. YES
CARRIAGE STOP ................ YES
COOLANT & CHIP PAN ........... YES
MOTOR ........................ 20 HORSEPOWER
