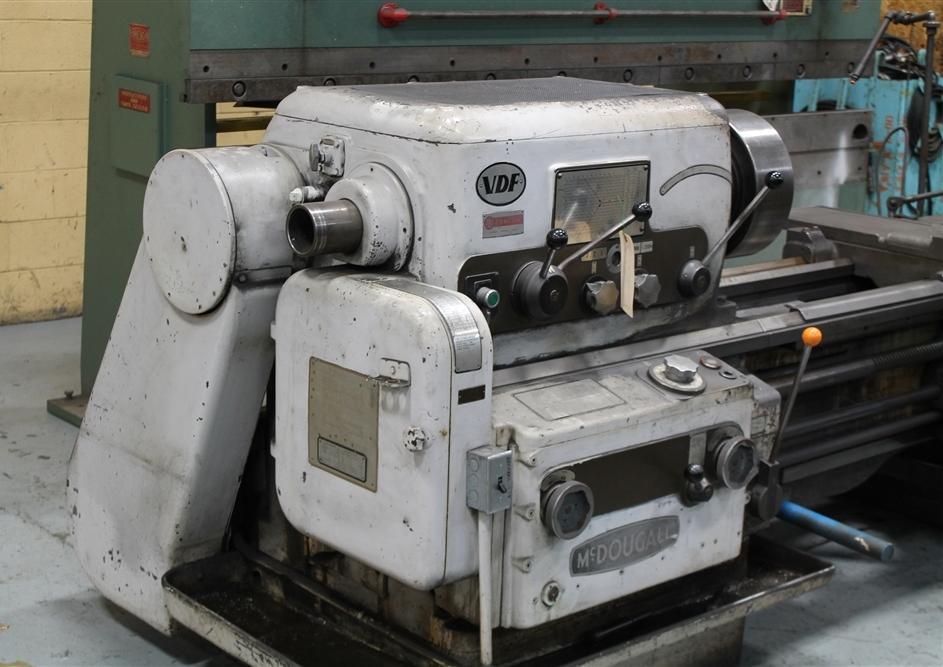

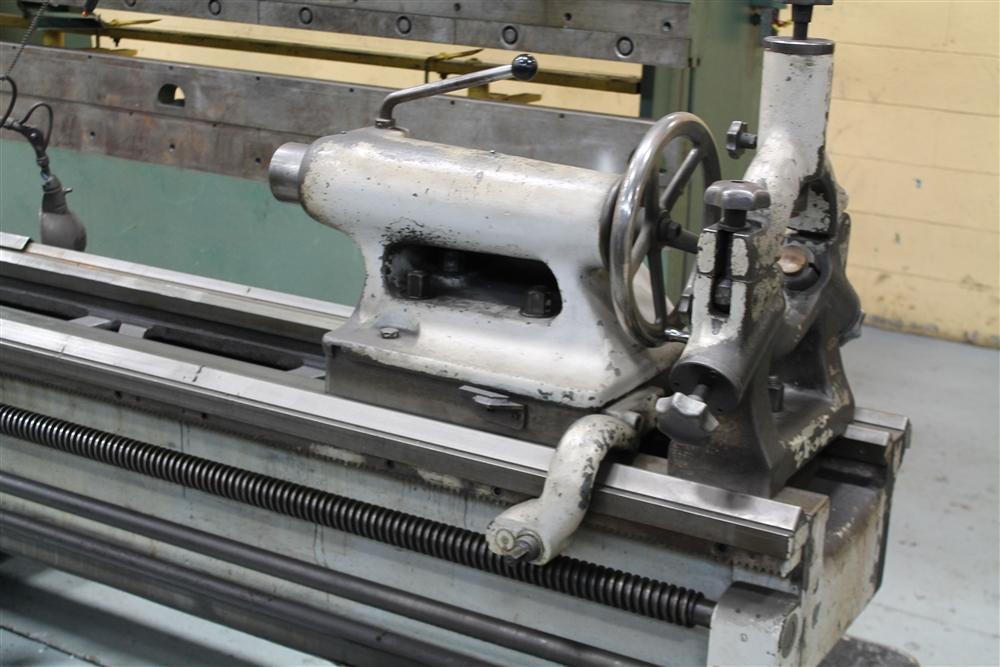

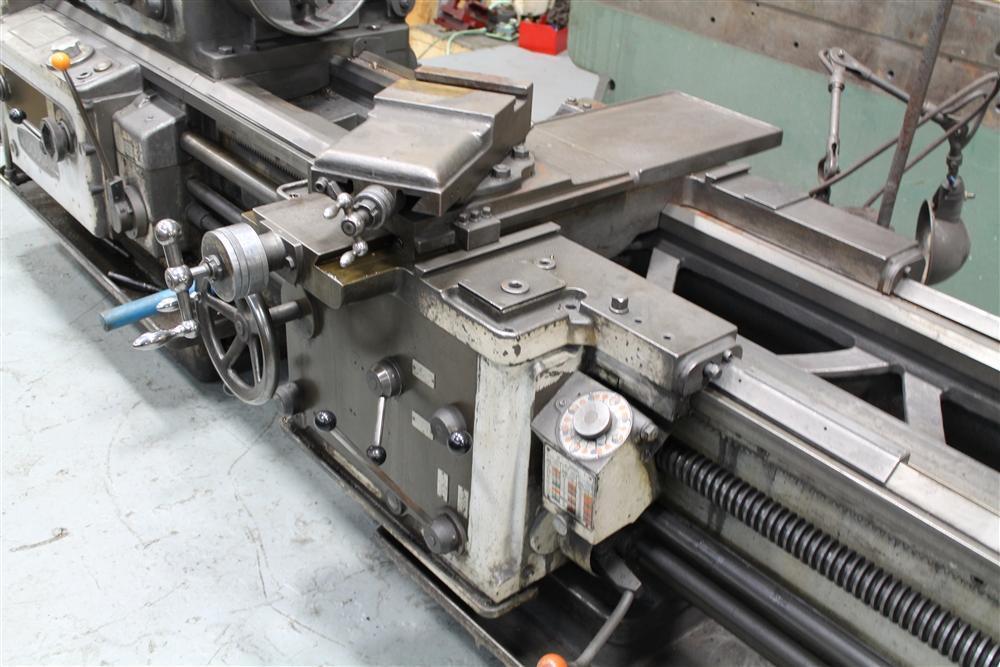

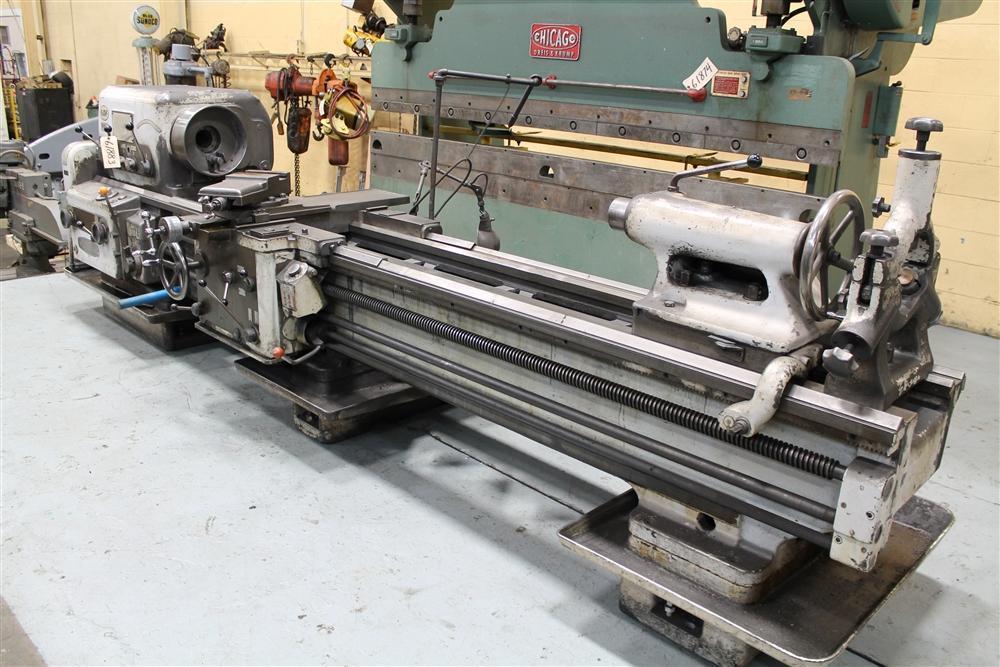

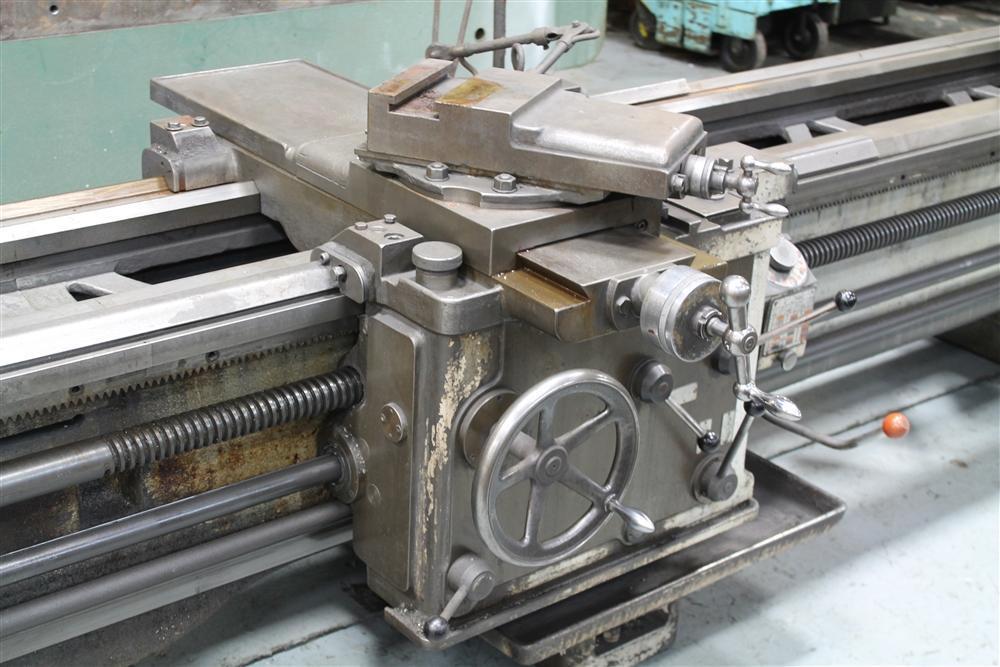

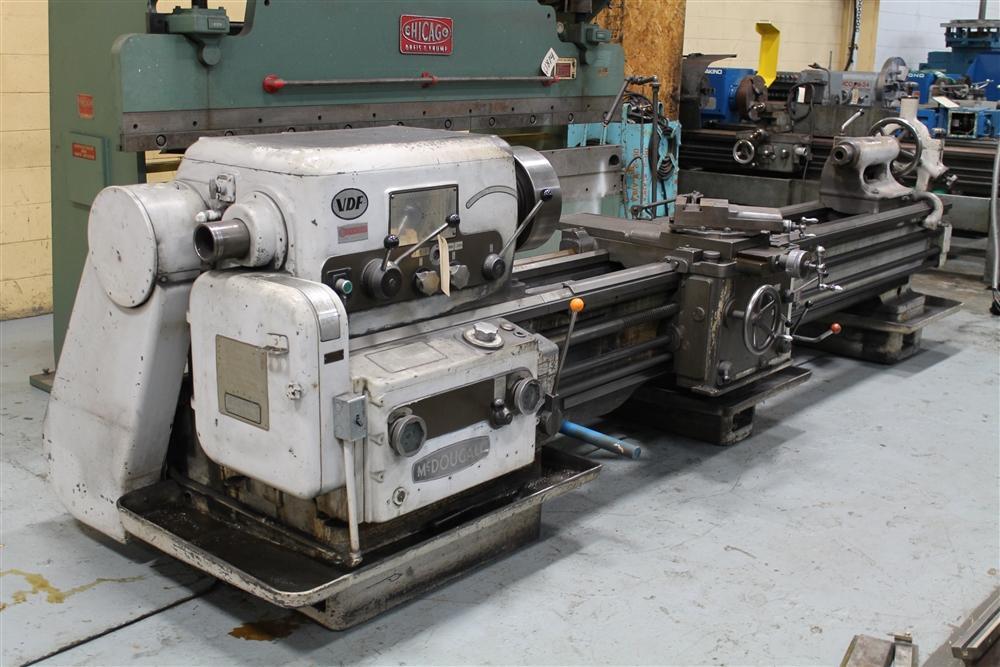

23" X 96" VDF GAP BED ENGINE LATHE:STOCK #61883

Manufacturer

VDF

Category

Lathes

Type

LATHES, ENGINE

Stock

61883

Model

23 X 096

Dealer Location

Ohio

Request a Quote
View Contact Information

Spec Sheet



SERIAL ........................ 4983
SWING OVER WAYS ............... 23"
SWING OVER CROSS SLIDE ........ 17"
SWING IN GAP .................. 36"
DISTANCE BETWEEN CENTERS ...... 96"
LENGTH OF GAP ................. 18"
SPINDLE SPEEDS ................ 14 TO 710 RPM
FEEDS LONGITUDINAL ............ (32) .0028 TO ..098 IPR
FEEDS CROSS ................... (32) .0016 TO 0.055 IPR
THREADS ....................... (81) 1/8 TO 70 TPI
METRIC THREADS ................ (67) .04 TO 224 MM
DIAMETER OF SPINDLE HOLE ...... 3.15"
THREAD DIAL ................... YES
STEADY REST ................... 7-1/2" 3 POINT
HARDEN BED WAYS ............... YES
COOLANT & WITH CHIP PANS ...... YES
SPINDLE DRIVE MOTOR ........... 15 HORSEPOWER
