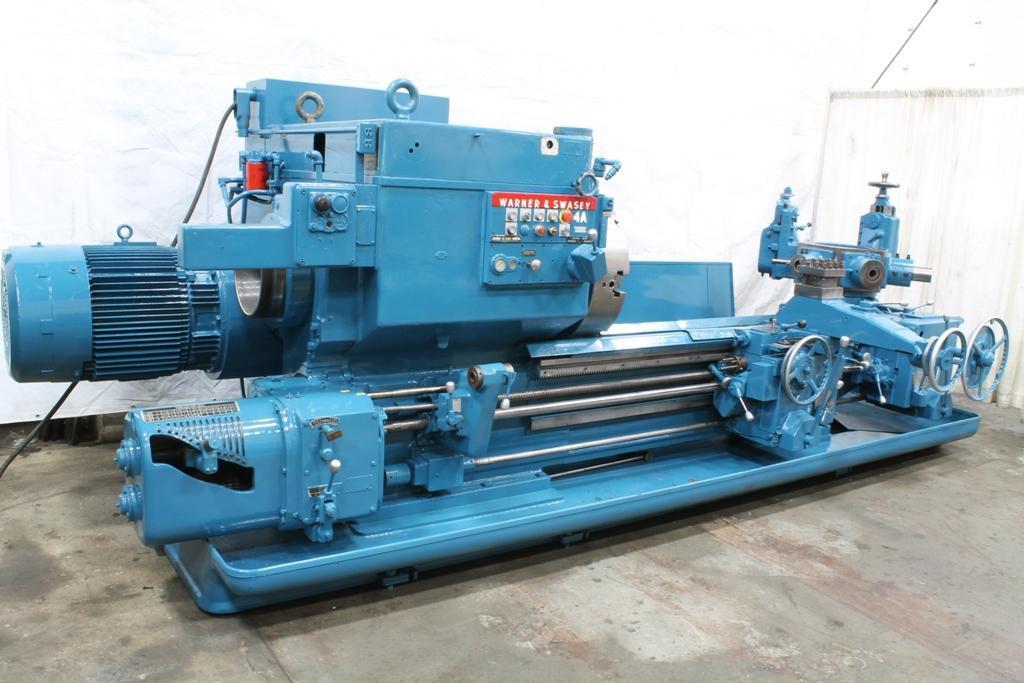

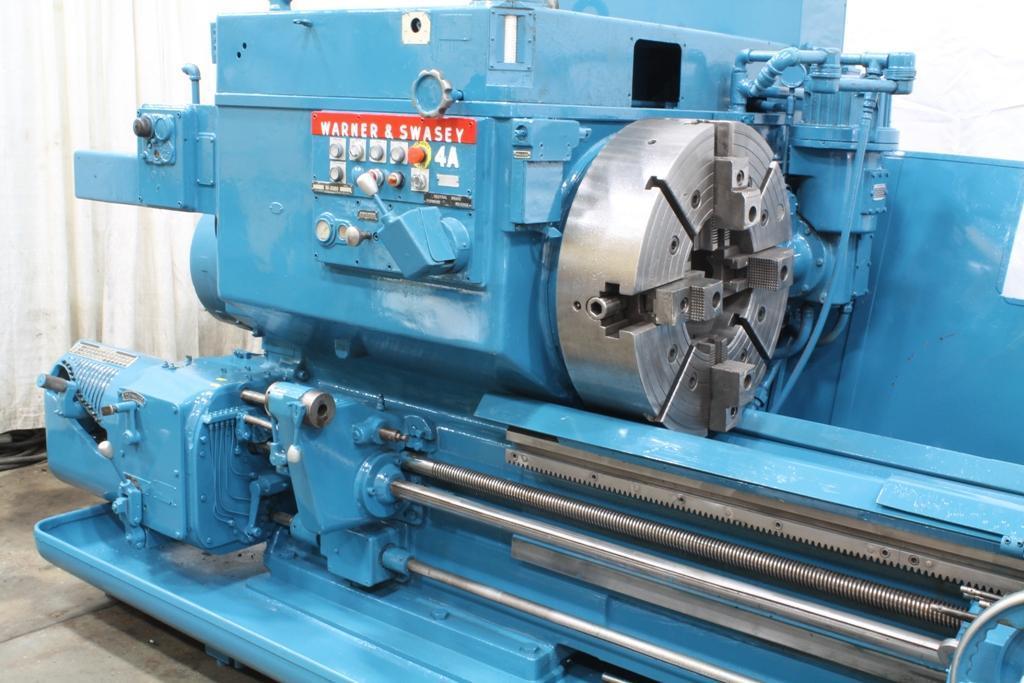

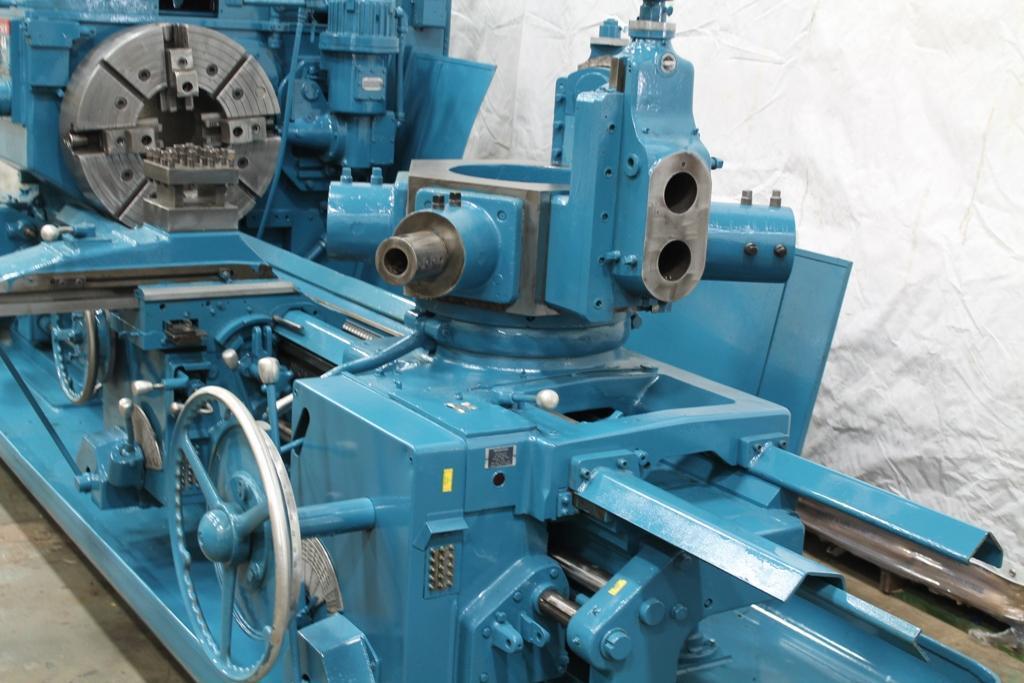

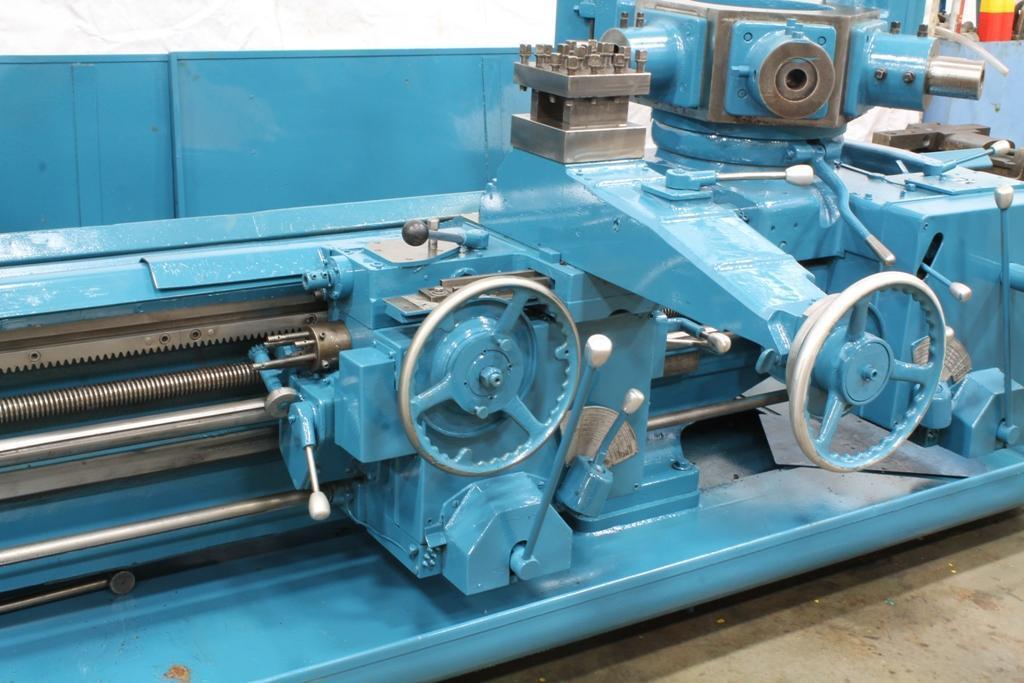

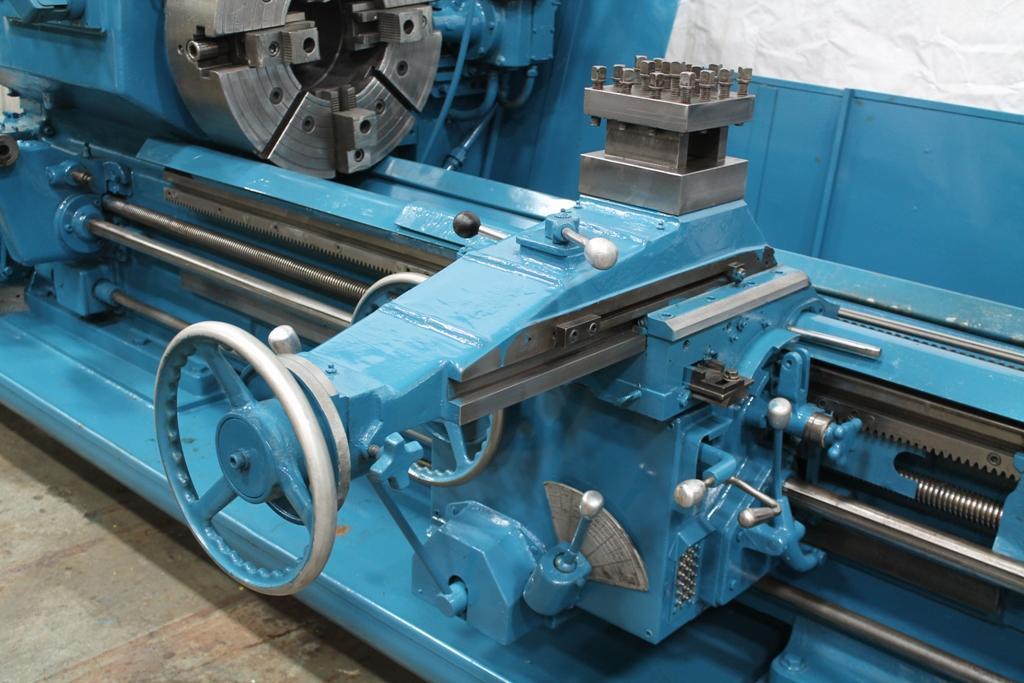

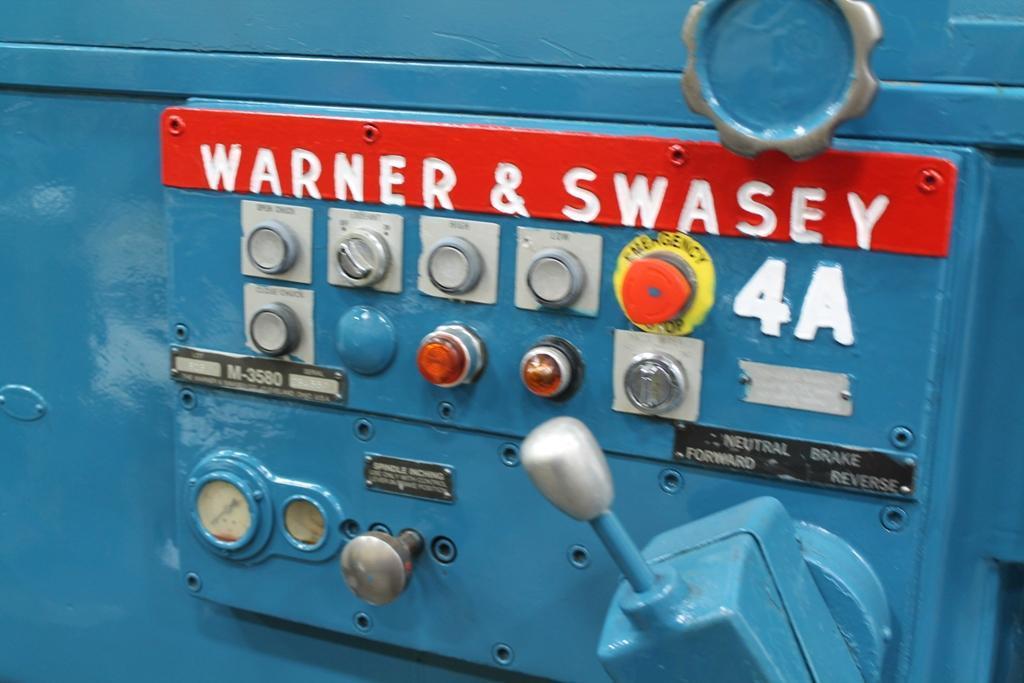

WARNER & SWASEY MODEL #4A TURRET SADDLE TYPE LATHE: STOCK #61382

Manufacturer

WARNER & SWASEY

Category

Lathes

Type

LATHES, ENGINE

Stock

61382

Model

4A

Dealer Location

Ohio

Request a Quote
View Contact Information

Spec Sheet

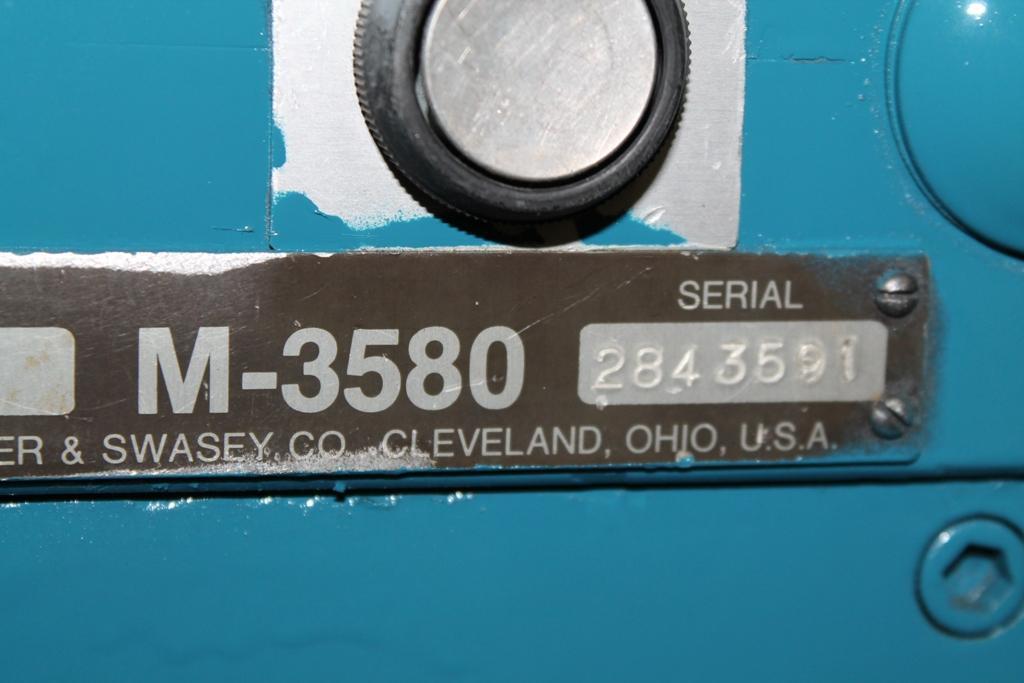

SERIAL ............................ 2843591
MODEL ............................. M3580
YEAR NEW .......................... 1980
SWING OVER WAYS ................... 29-1/2"
SWING OVER CARRIAGE ............... 22-7/16
DISTANCE SPINDLE TO TURRET FACE ... 80-3/16"
SPINDLE SPEEDS .................... (32) 10 TO 526
TURRET FEEDS ...................... (16) .005 TO 167 IPR
CROSS SLIDE FEEDS ................. (16) .003 TO .090 IPR
DIAMETER OF SPINDLE HOLE .......... **12-1/2"**

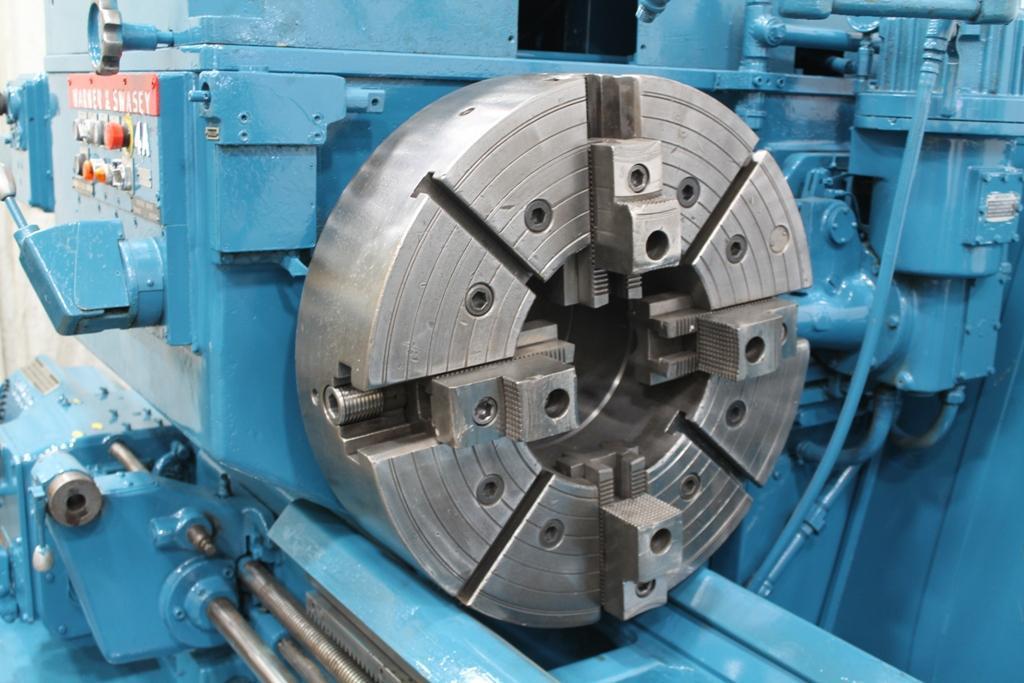

CHUCK ............................. 28" 4 JAW

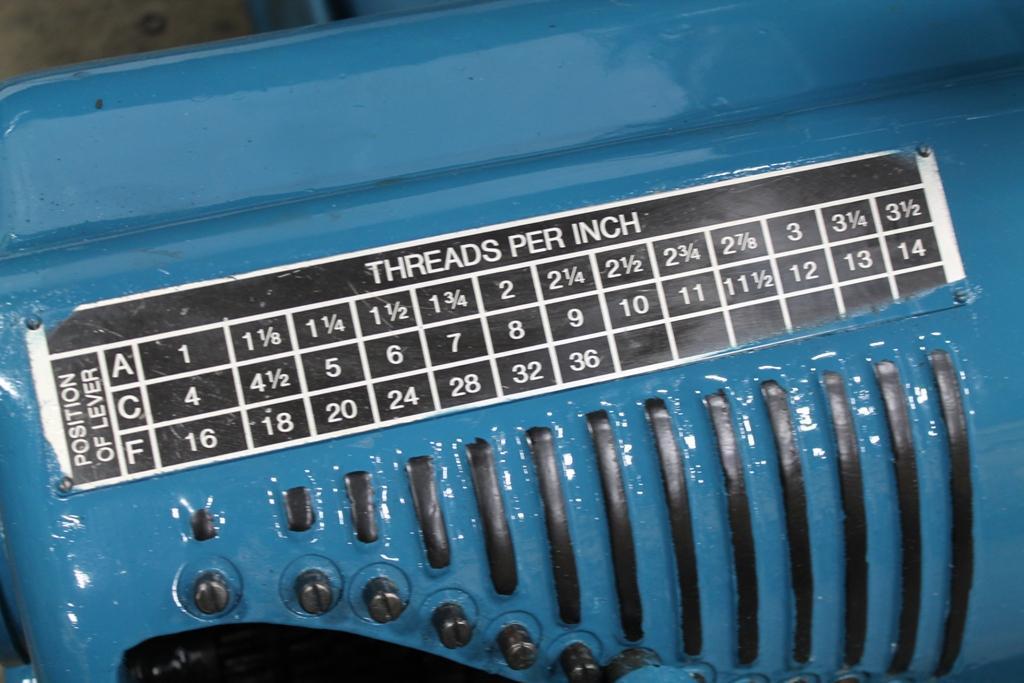

FULL LENGTH THREADING ............. 1 TO 36 IPR
TAPER ON CARRIAGE ................. YES
POWER CHUCK WRENCH ................ YES
RAPID TRAVERSE .................... YES
FLANGE HOLDERS .................... (4)
ADJUSTABLE SLIDE TOOLS ............ (2)
CHIP PAN AND COOLANT .............. YES
MOTOR ............................. 75 HORSEPOWER
