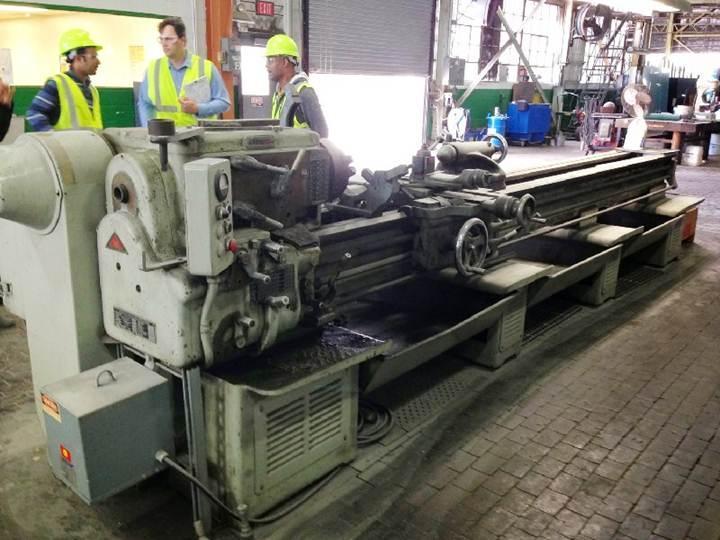

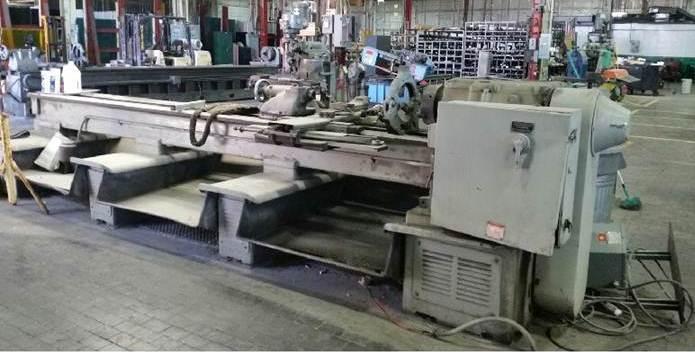

16" X 150" SIDNEY ENGINE LATHE: STOCK #62778

Manufacturer

SIDNEY

Category

Lathes

Type

LATHES, ENGINE

Stock

62778

Model

16 X 150

Dealer Location

Ohio

Request a Quote
View Contact Information

Spec Sheet



SERIAL .................... 10237
MODEL ..................... 169 MODEL 16
SWING OVER BED ............ 16-1/2"
SWING OVER CROSS SLIDE .... 9-3/4"
DISTANCE BETWEEN CENTERS .. 150"
SPINDLE SPEEDS ............ (16) 14 TO 562 RPM
SPINDLE NOSE .............. D1-6
HOLE THROUGH SPINDLE ...... 1-9/16"
THREADS, INCH ............. (60) 1/2 TO 92 TPI
FEEDS ..................... 0.0028" TO 0.174"
CROSS SLIDE TRAVEL ........ 8"
TAILSTOCK QUILL ........... #4MT
TAILSTOCK QUILL TRAVEL .... 6"
CHUCK ..................... 3 JAW
TAPER ..................... YES
STEADY REST ............... 2
COOLANT ................... YES
HORSEPOWER ................ 5
