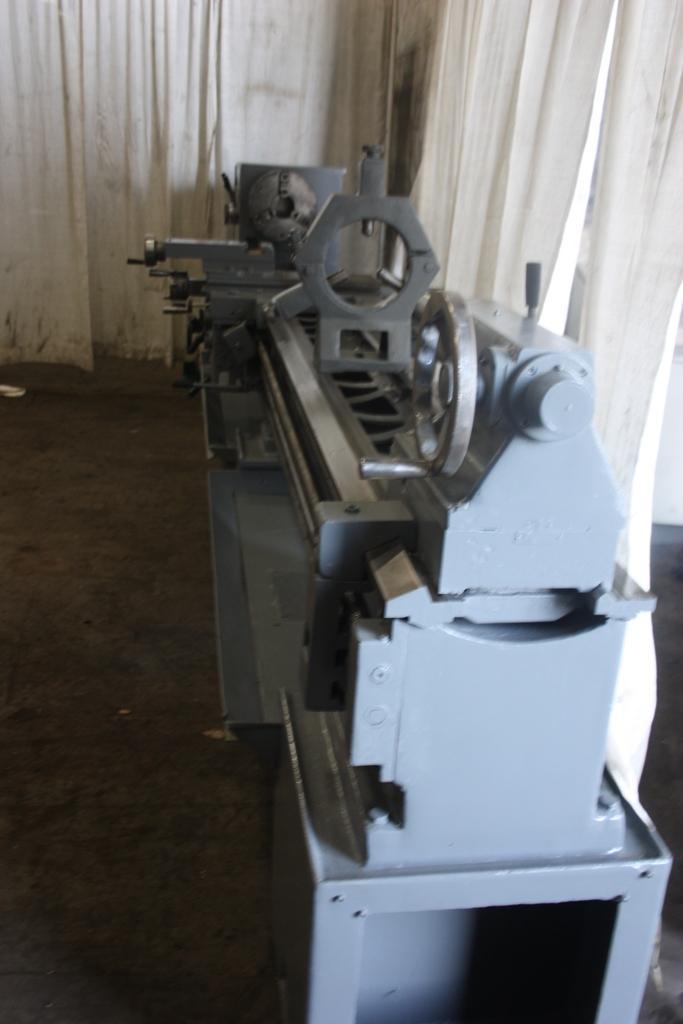

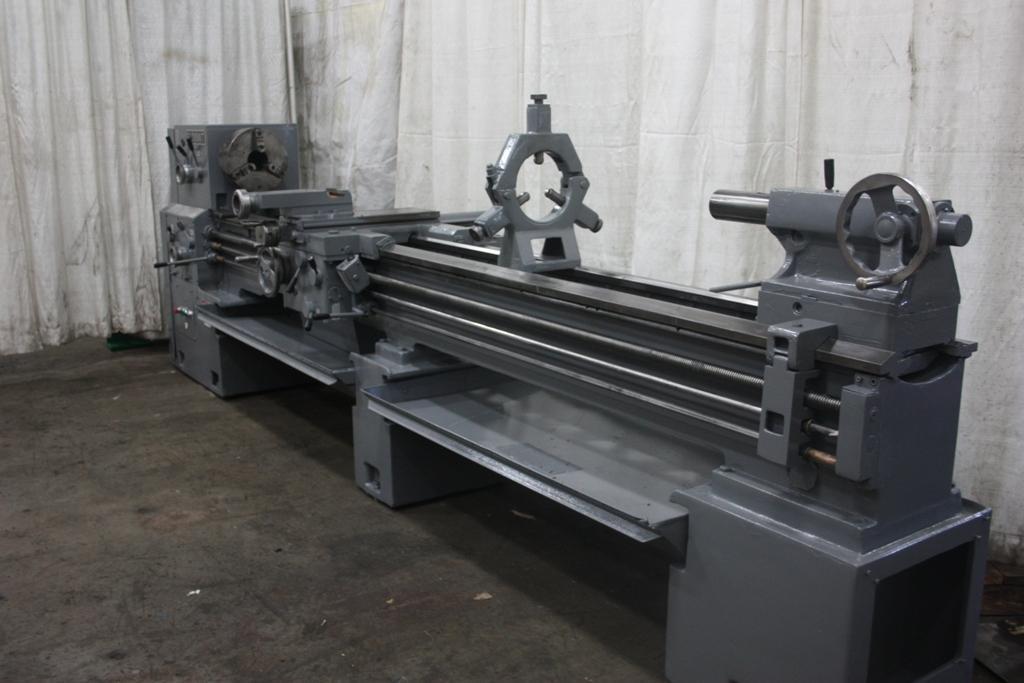

20" X 120" SUMMIT GAP BED ENGINE LATHE: STOCK #65971

Manufacturer

SUMMIT

Category

Lathes

Type

LATHES, ENGINE

Stock

65971

Model

20 X 120

Dealer Location

Ohio

Request a Quote
View Contact Information

Spec Sheet



SERIAL .................... 03476459
SWING OVER BED ............ 20"
SWING IN GAP .............. 28"
SWING OVER CROSS SLIDE .... 12.5"
DISTANCE BETWEEN CENTERS .. 120"
SPINDLE SPEEDS ............ (12) 22 TO 1,500 RPM
SPINDLE NOSE .............. D1-8
HOLE THROUGH SPINDLE ...... 4"
THREADS, INCH ............. 3/4 TO 92 TPI
THREADS, METRIC ........... .25 TO 23 MM
THREAD DIAL ............... YES
FEEDS ..................... 0.004" TO 0.112"

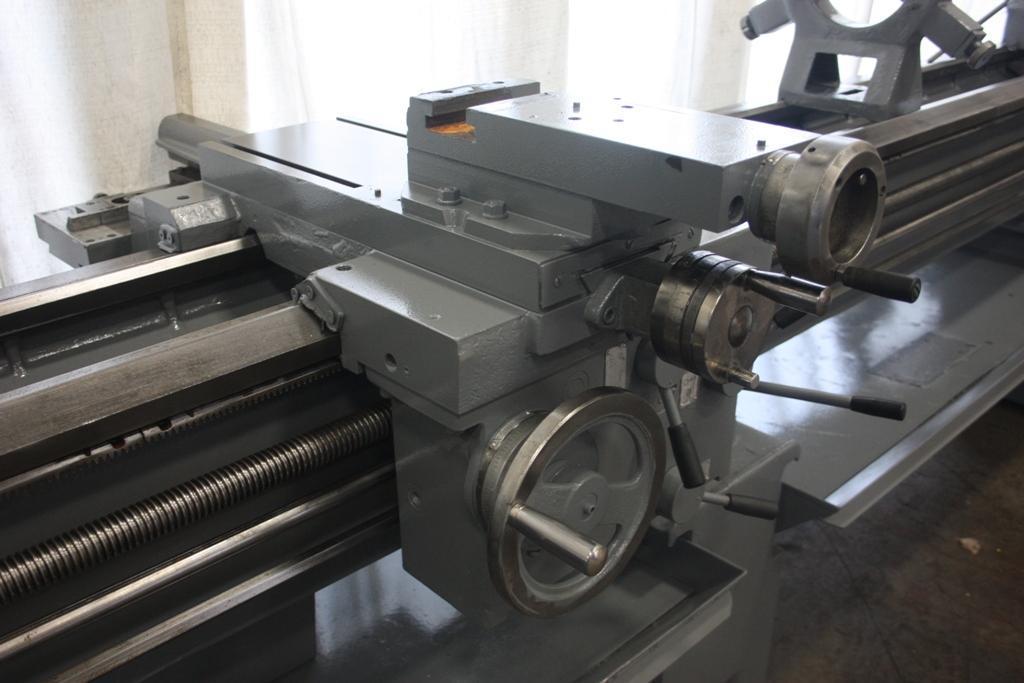

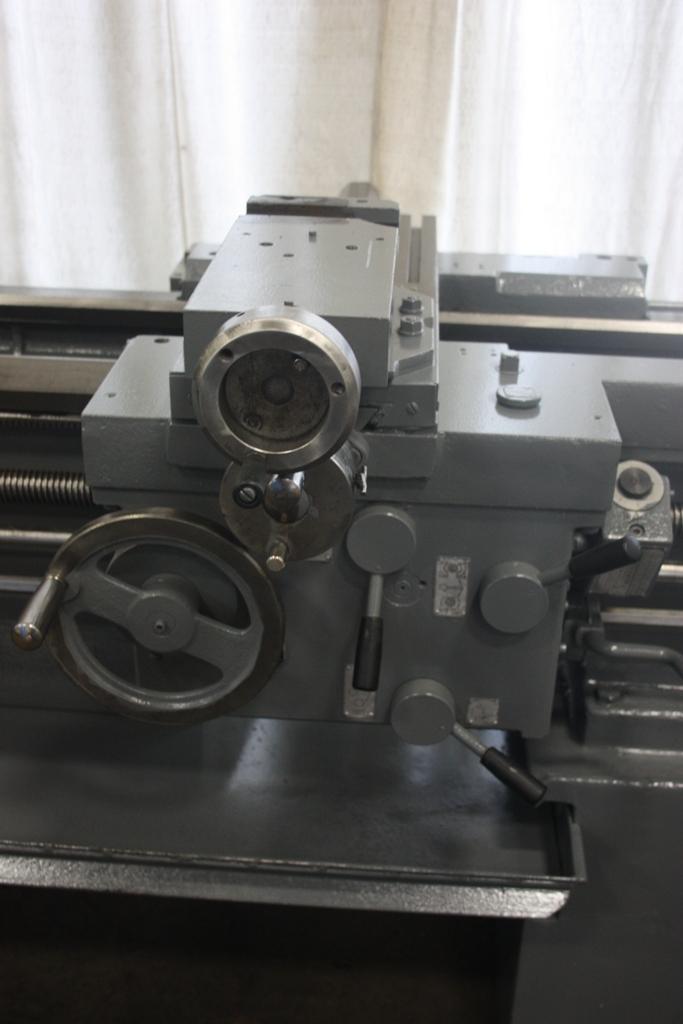

CROSS SLIDE TRAVEL ........ 13.75"

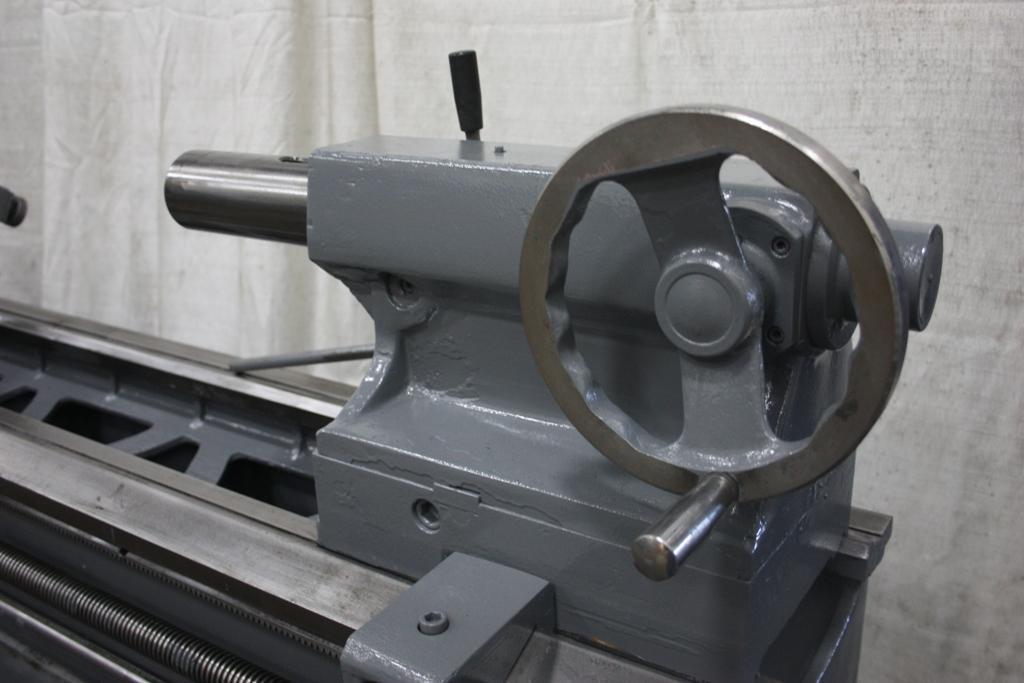

TAILSTOCK QUILL TRAVEL .... 8.5"
TAILSTOCK QUILL TAPER ..... #5 MT

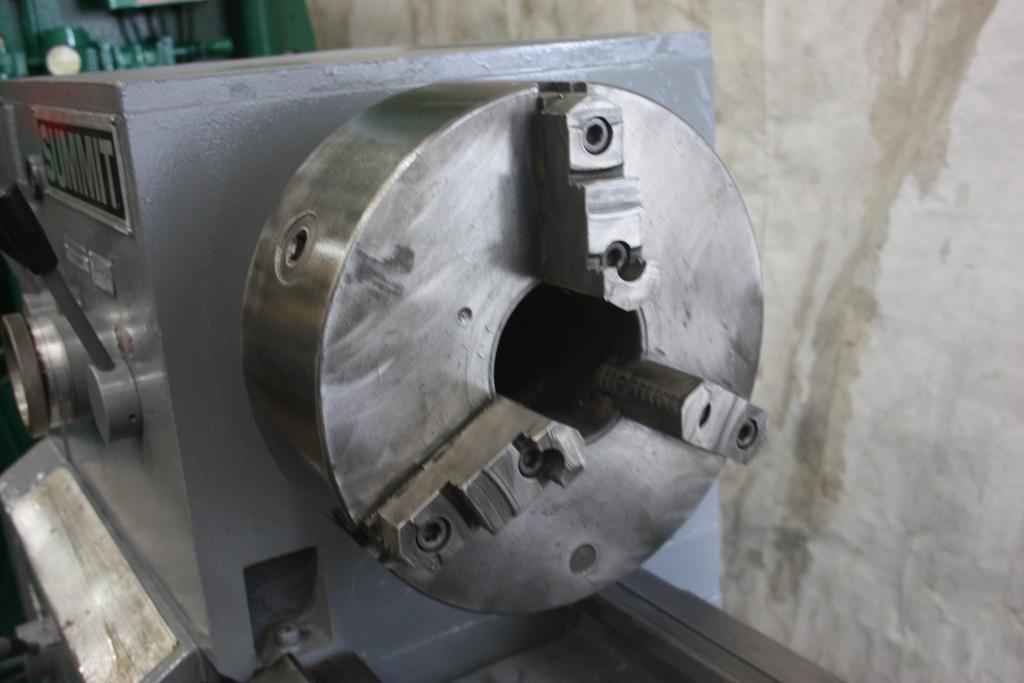

CHUCK ..................... 12" 3 JAW
TAPER ..................... YES
COOLANT ................... YES

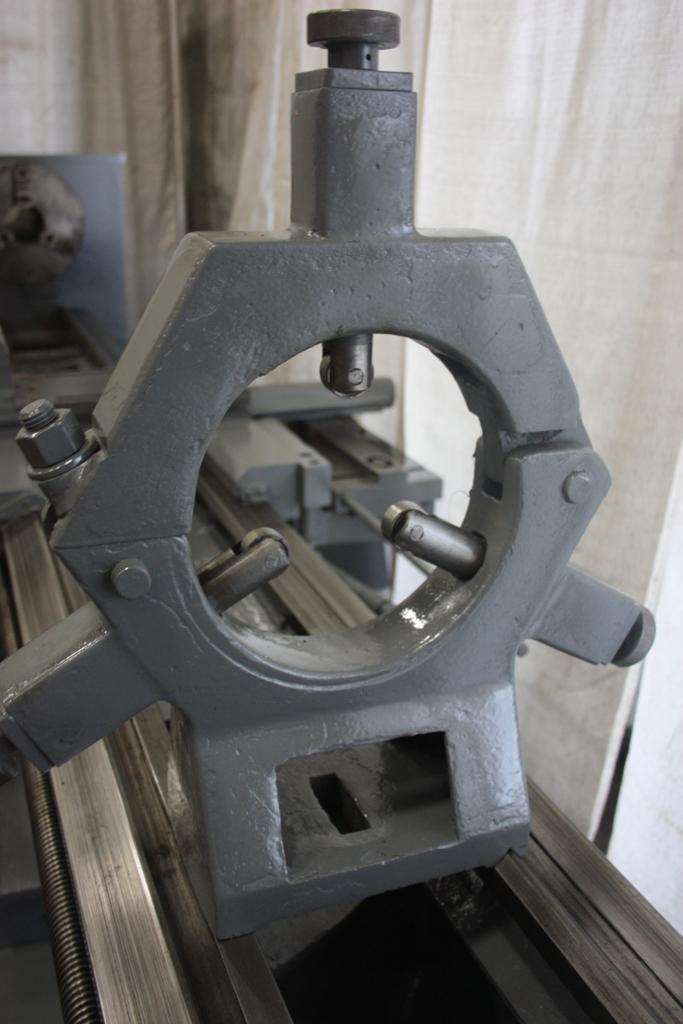

STEADY REST ............... 8" ROLLER
MOTOR ..................... 10 HP
