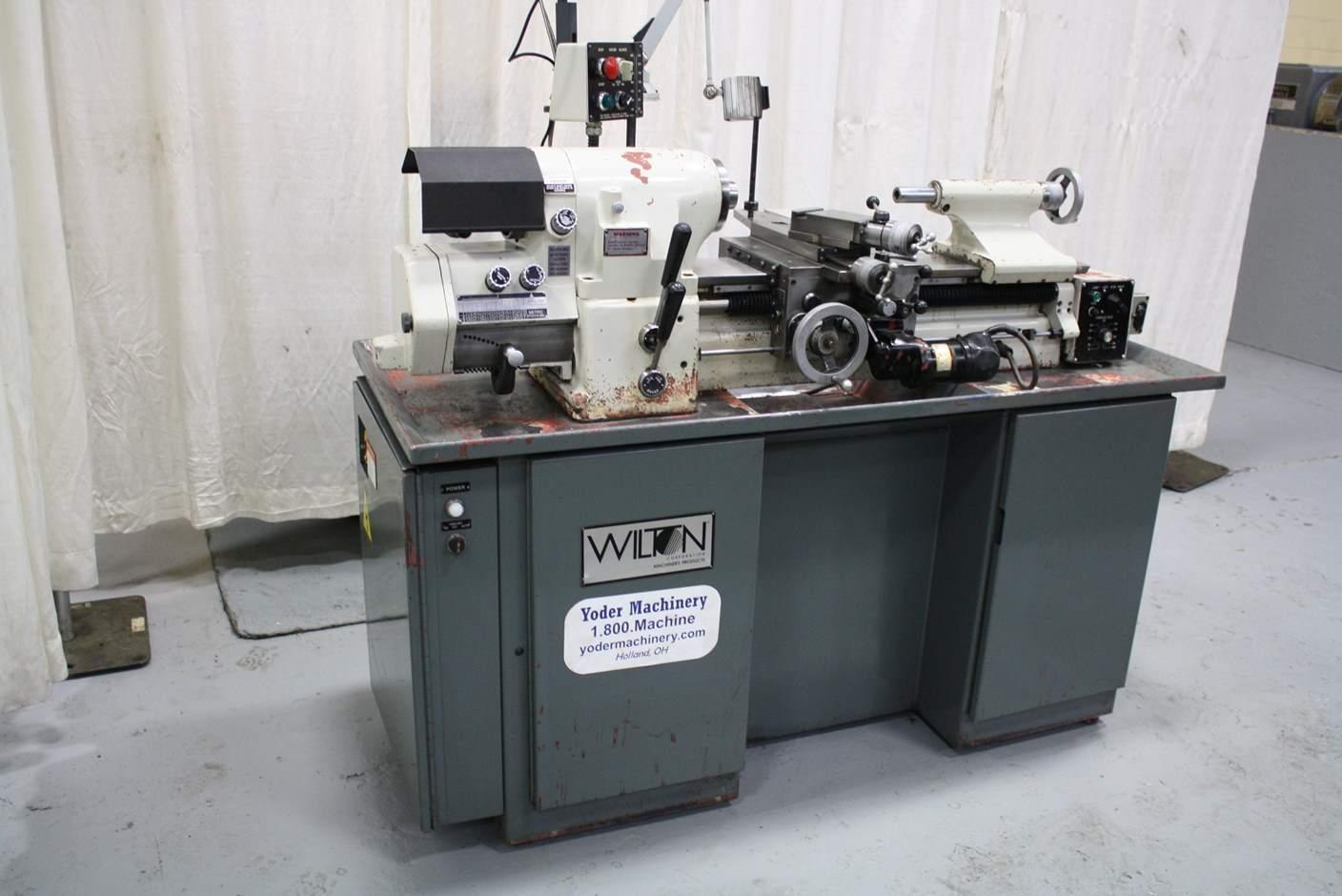

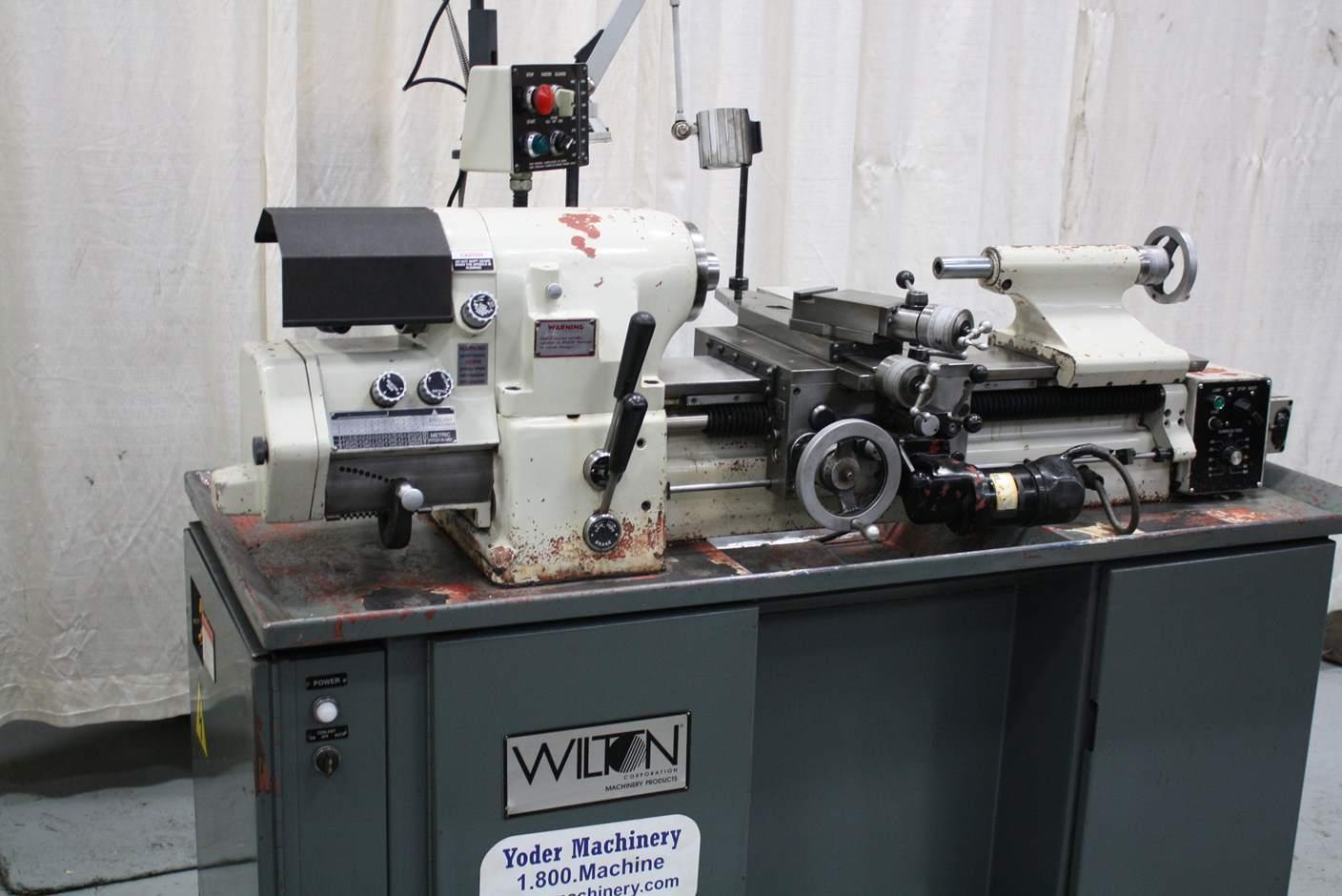

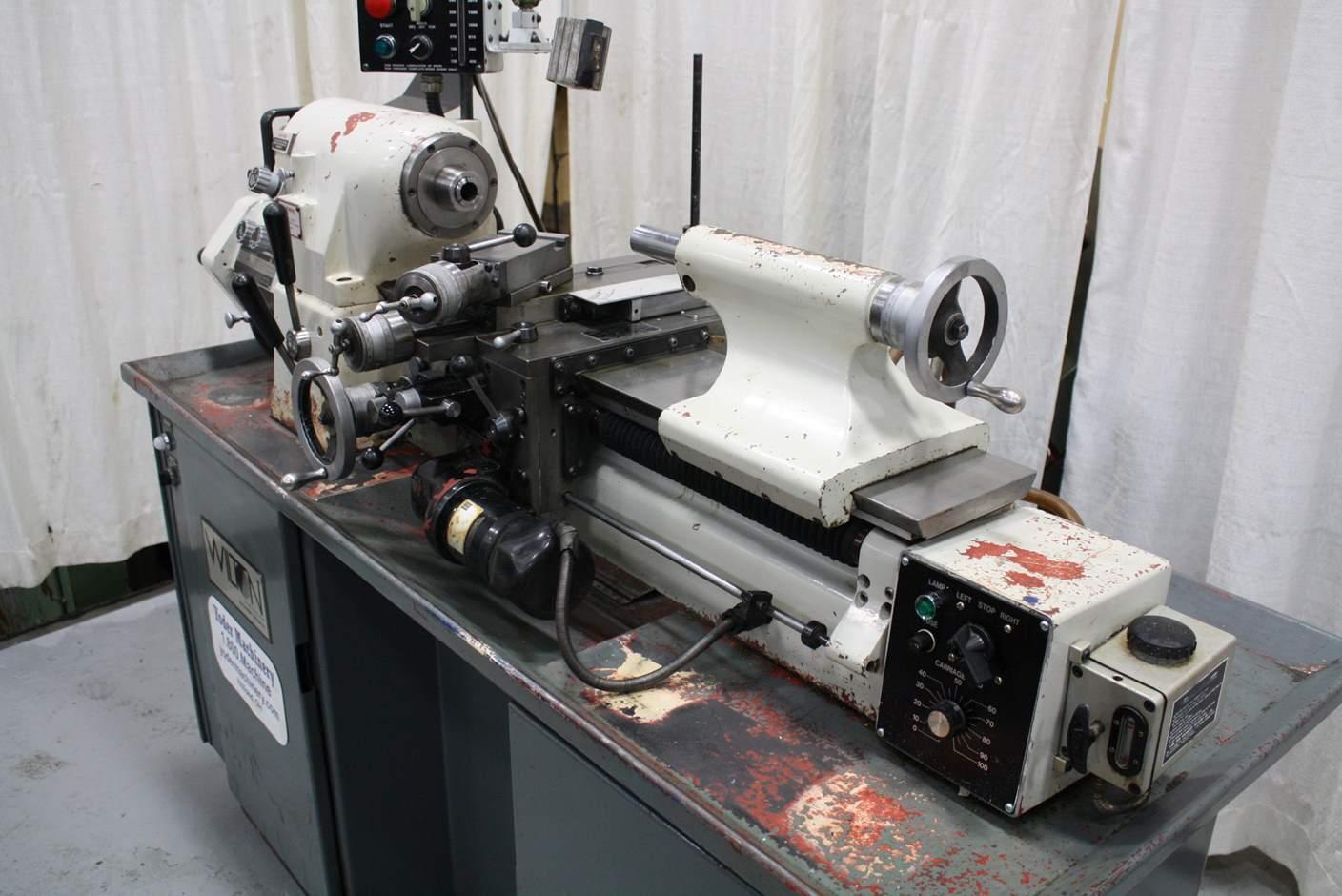

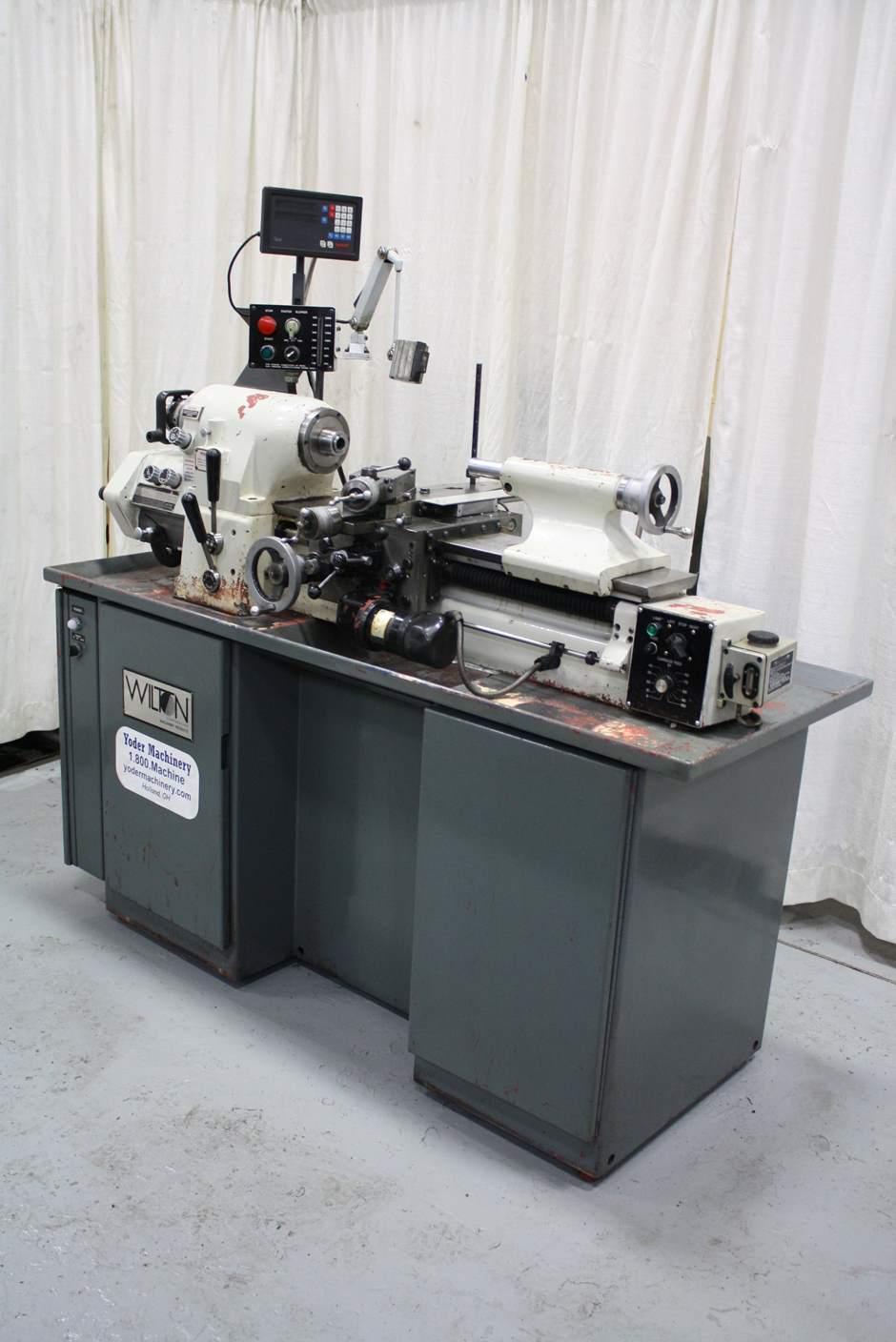

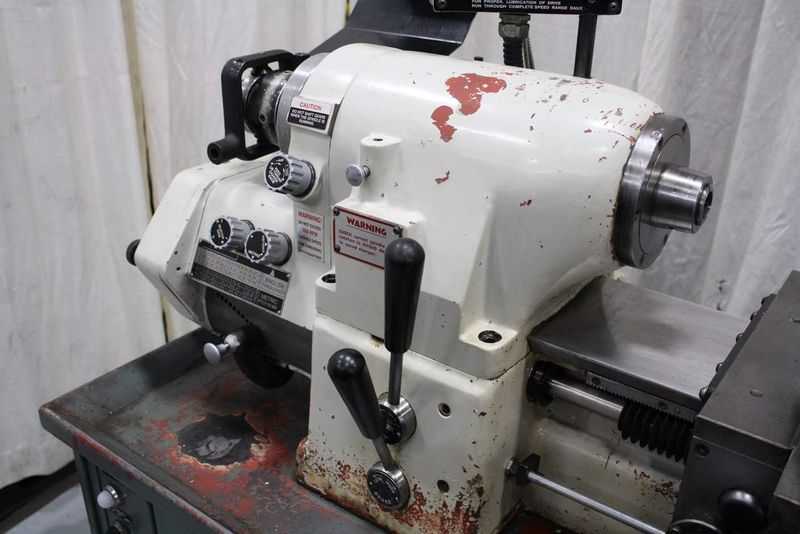

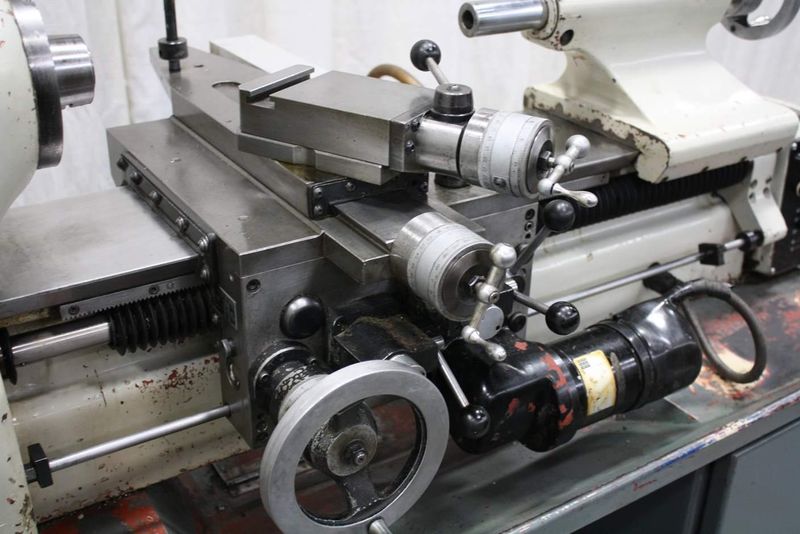

11" X 20" WILTON MODEL TRL11183 PRECISION TOOLROOM LATHE: # 66970

Manufacturer

WILTON

Category

Lathes

Type

LATHES, ENGINE

Stock

66970

Model

11 X 020

Dealer Location

Ohio

Request a Quote
View Contact Information

Spec Sheet



SERIAL ........................... 8912434
MODEL ............................ TRL11183
MAXIMUM SWING OVER BED ........... 11"
MAXIMUM SWING OVER CARRIAGE ...... 9"
MAXIMUM SWING OVER CROSS SLIDE ... 6"
DISTANCE BETWEEN CENTERS ......... 18"

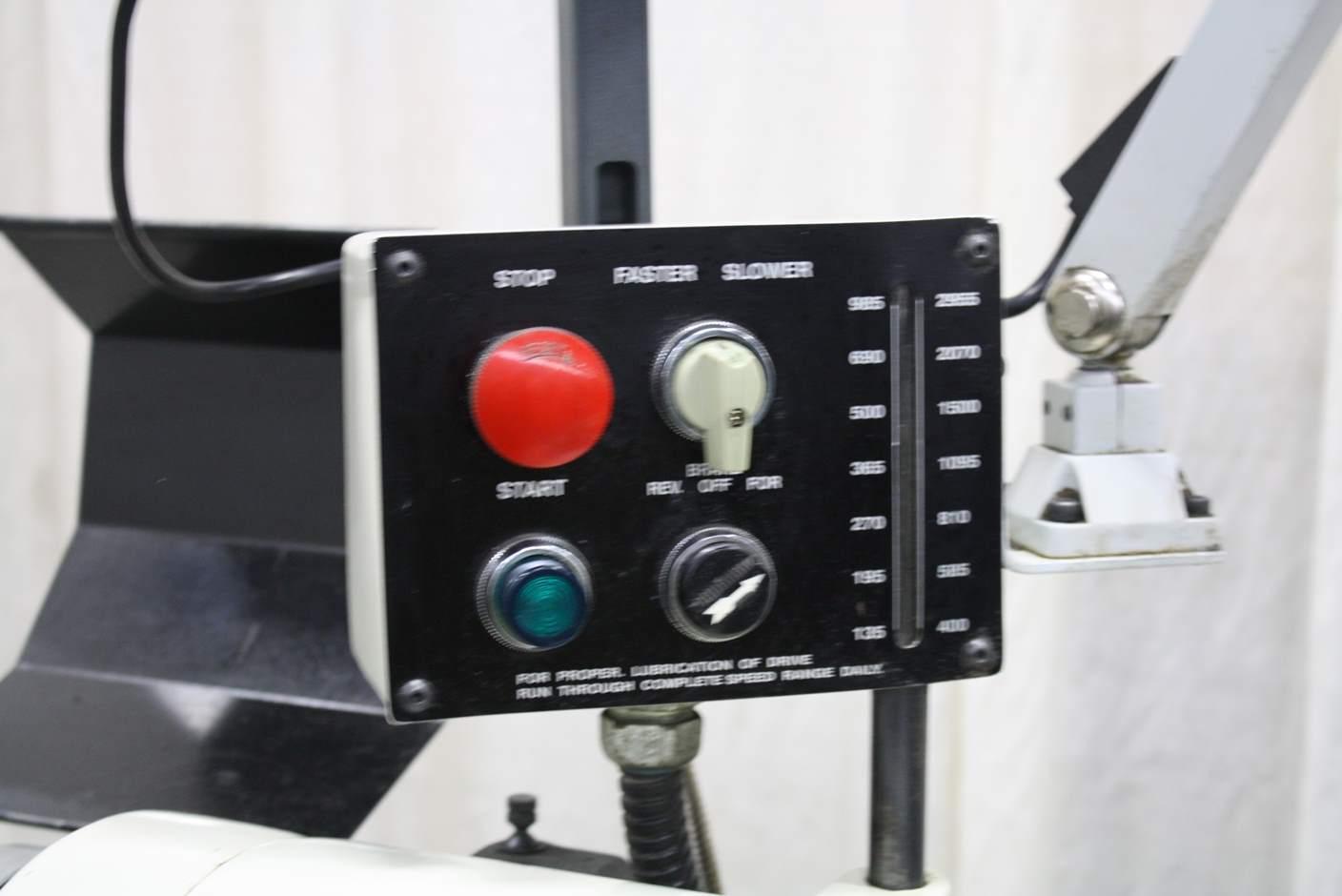

SPINDLE SPEEDS - VARIABLE ........ 135 TO 2955 RPM
HOLE THRU SPINDLE ................ 1-1/4"
COLLET CAPACITY .................. 5C 1-1/16" ROUND
COMPOUND SLIDE TRAVEL ............ 3"

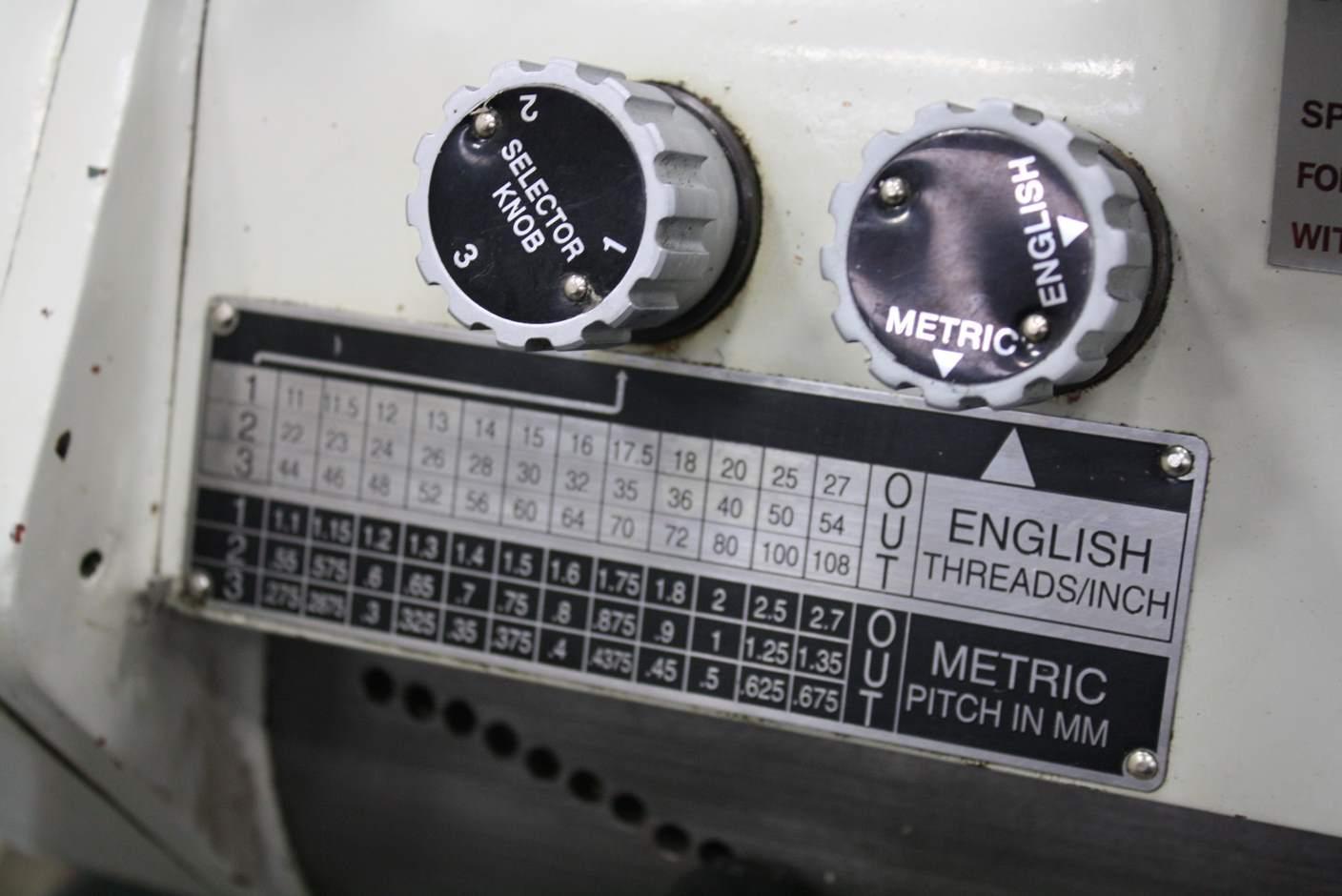

THREADS ENGLISH .................. 11 TO 108 TPI
THREADS METRIC ................... .275 TO 9 MM

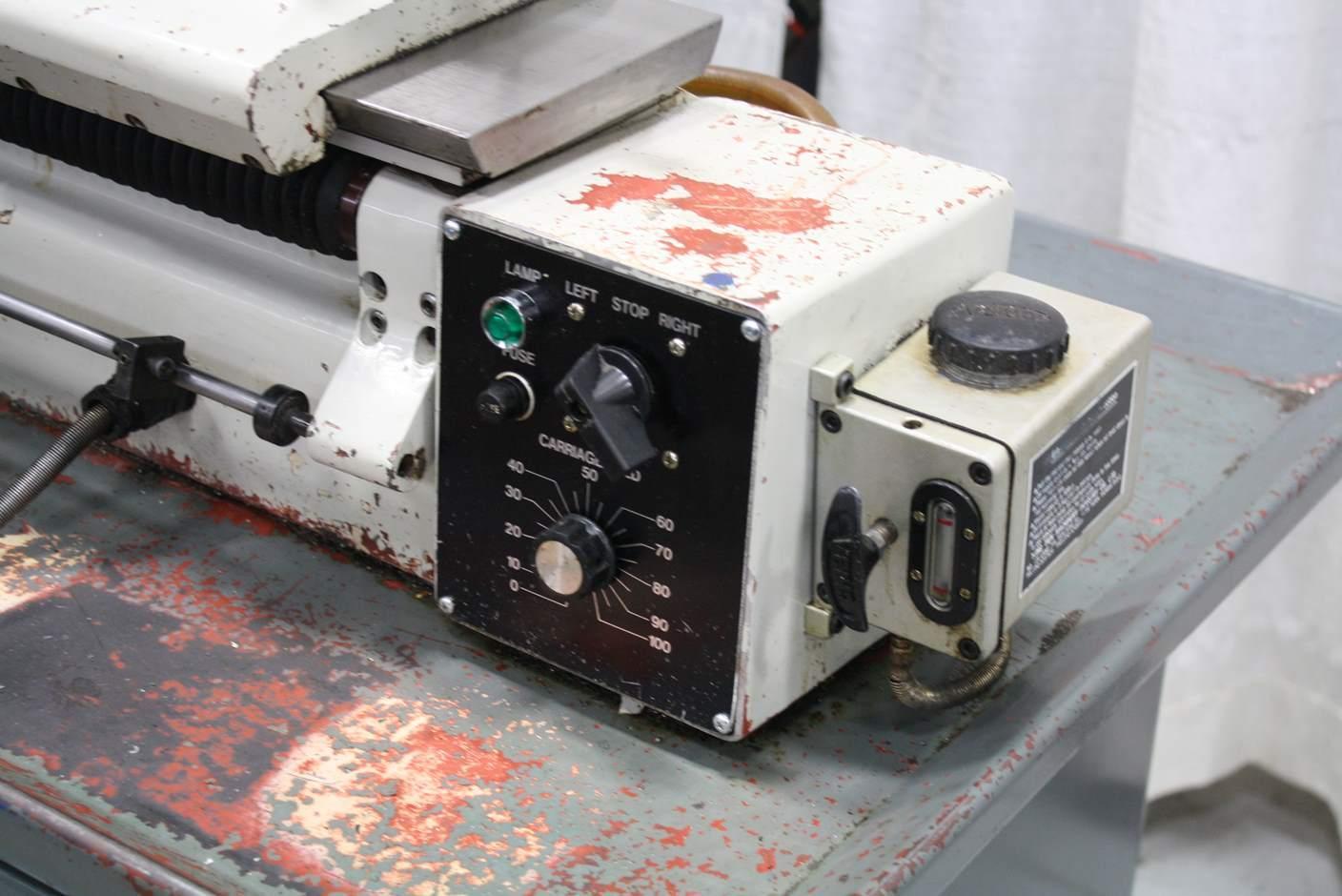

POWER FEED RANGE ................. 1/4" TO 7" PER MIN

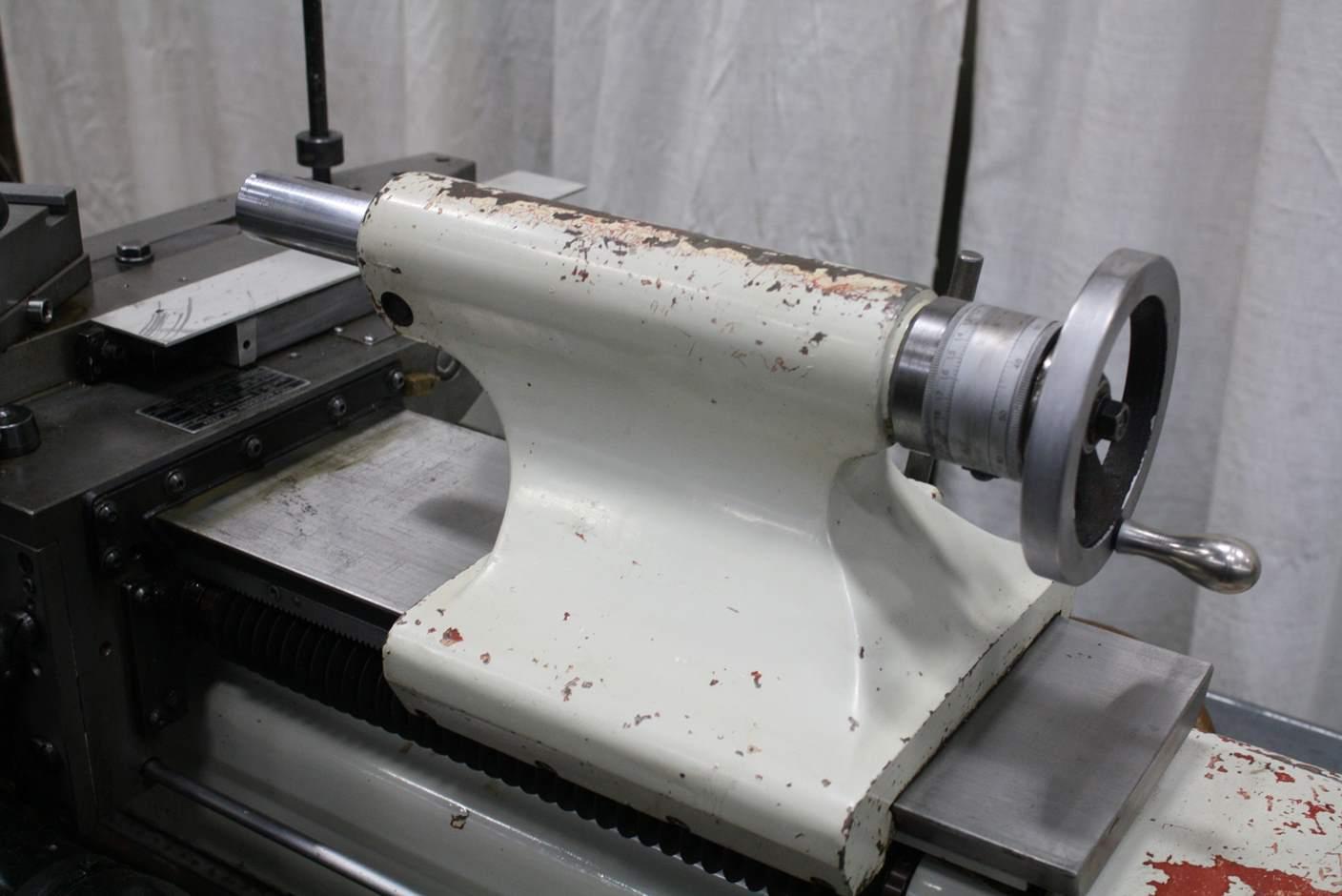

TAILSTOCK SPINDLE DIAMETER ....... 1-3/8"
TAILSTOCK SPINDLE TRAVEL ......... 3-3/4"
TAILSTOCK SPINDLE TAPER .......... NO. 2 MT

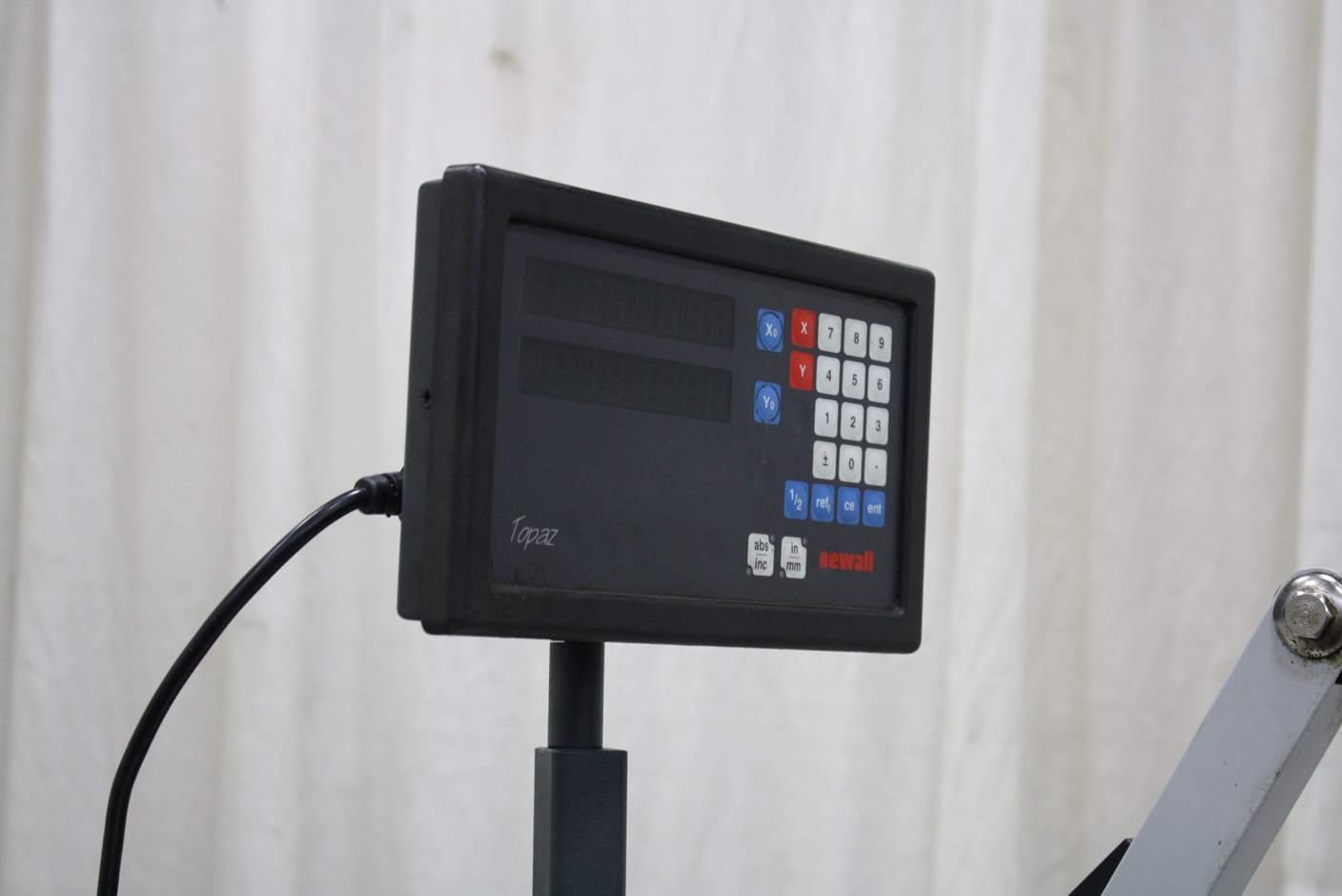

2 AXIS DIGITAL READOUTS .......... NEWALL
MOTOR ............................ 1 HORSEPOWER
