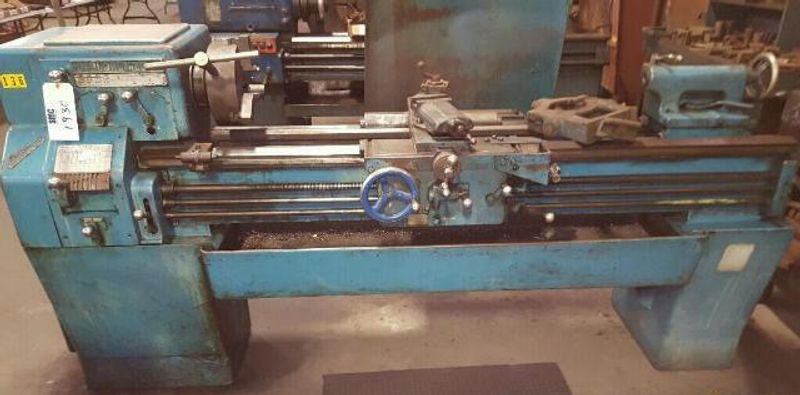

15" X 54" LEBLOND REGAL ENGINE LATHE: STOCK #67607

Manufacturer

LEBLOND

Category

Lathes

Type

LATHES, ENGINE

Stock

67607

Model

15 X 054

Dealer Location

Ohio

Request a Quote
View Contact Information

Spec Sheet



SERIAL ................................. 2B1784
MODEL .................................. REGAL
SWING OVER WAYS ........................ 14"
SING OVER CROSS SLIDE .................. 8"
DISTANCE BETWEEN CENTERS ............... 54"
SPINDLE SPEEDS ......................... (12) 30 TO 1200 RPM
DIAMETER OF SPINDLE HOLE ............... 1-1/2"
FEEDS .................................. (48) .0018 TO .106 TPI
THREADS ................................ (48) 4 TO 224 TPI
TAPER .................................. YES
CHUCK .................................. 10" 3 JAW
THREAD DIAL ............................ YES
MICRO CARRIAGE STOPS ................... YES
CHIP PAN & COOLANT ..................... YES
MOTOR .................................. 5 HORSEPOWER
