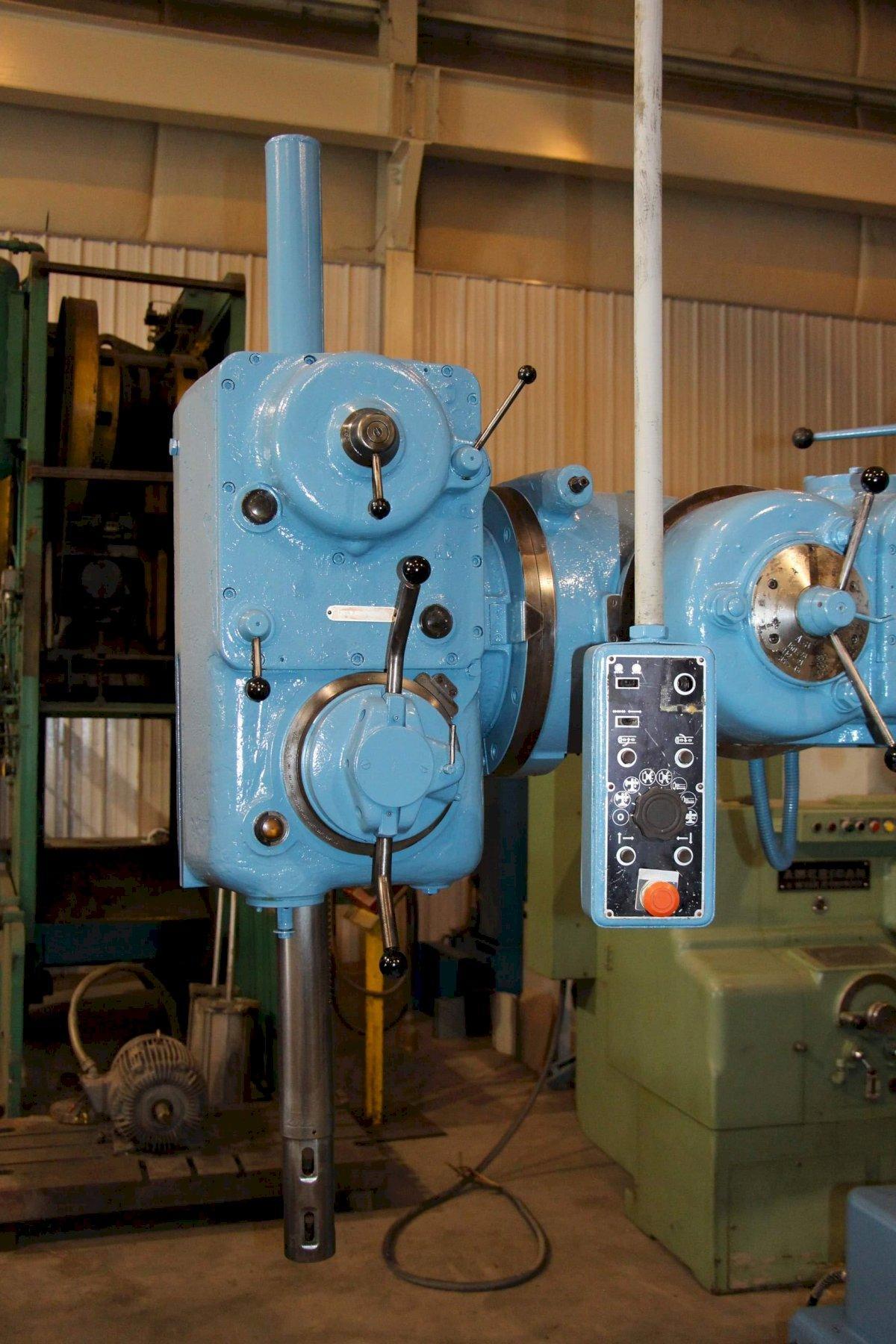

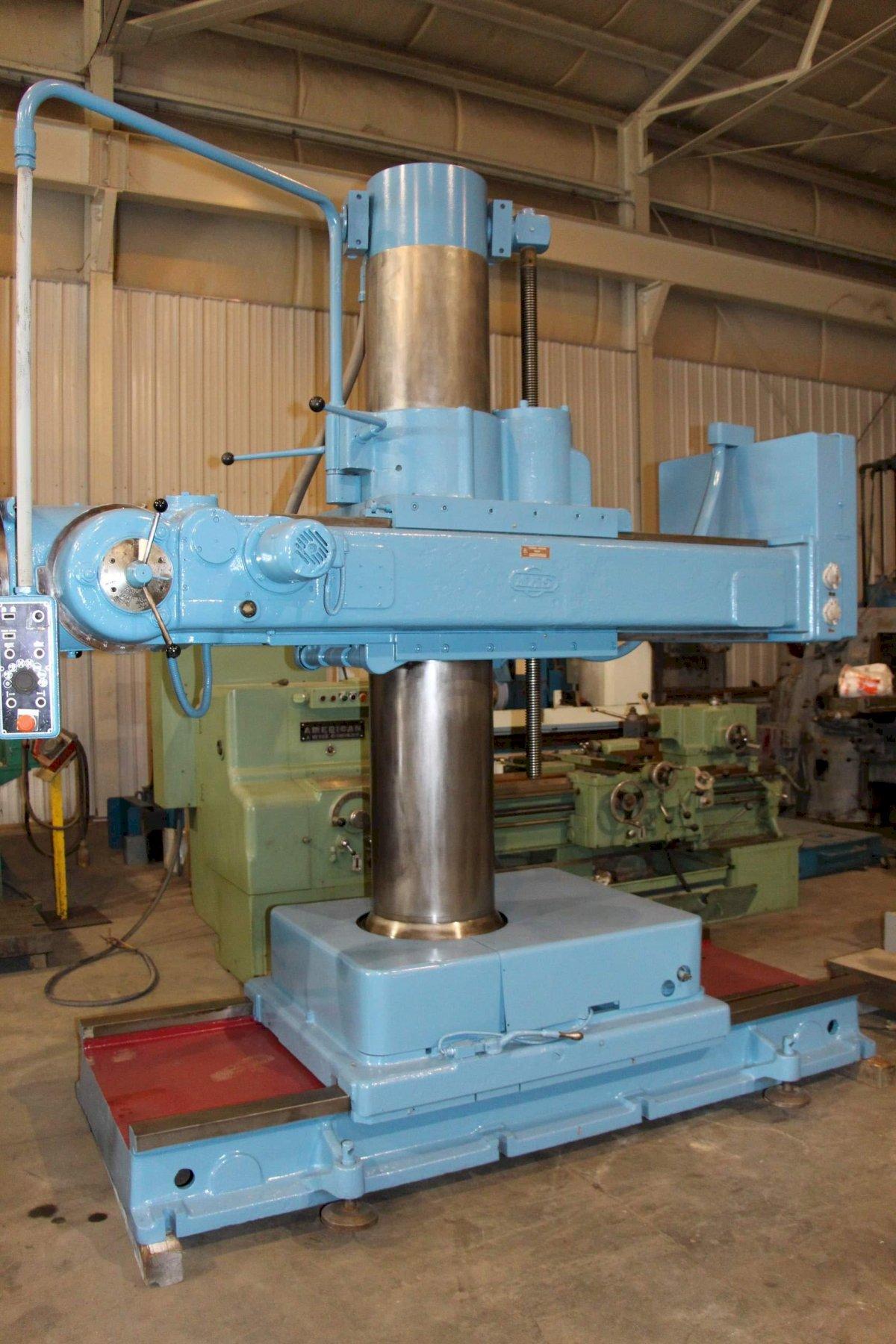

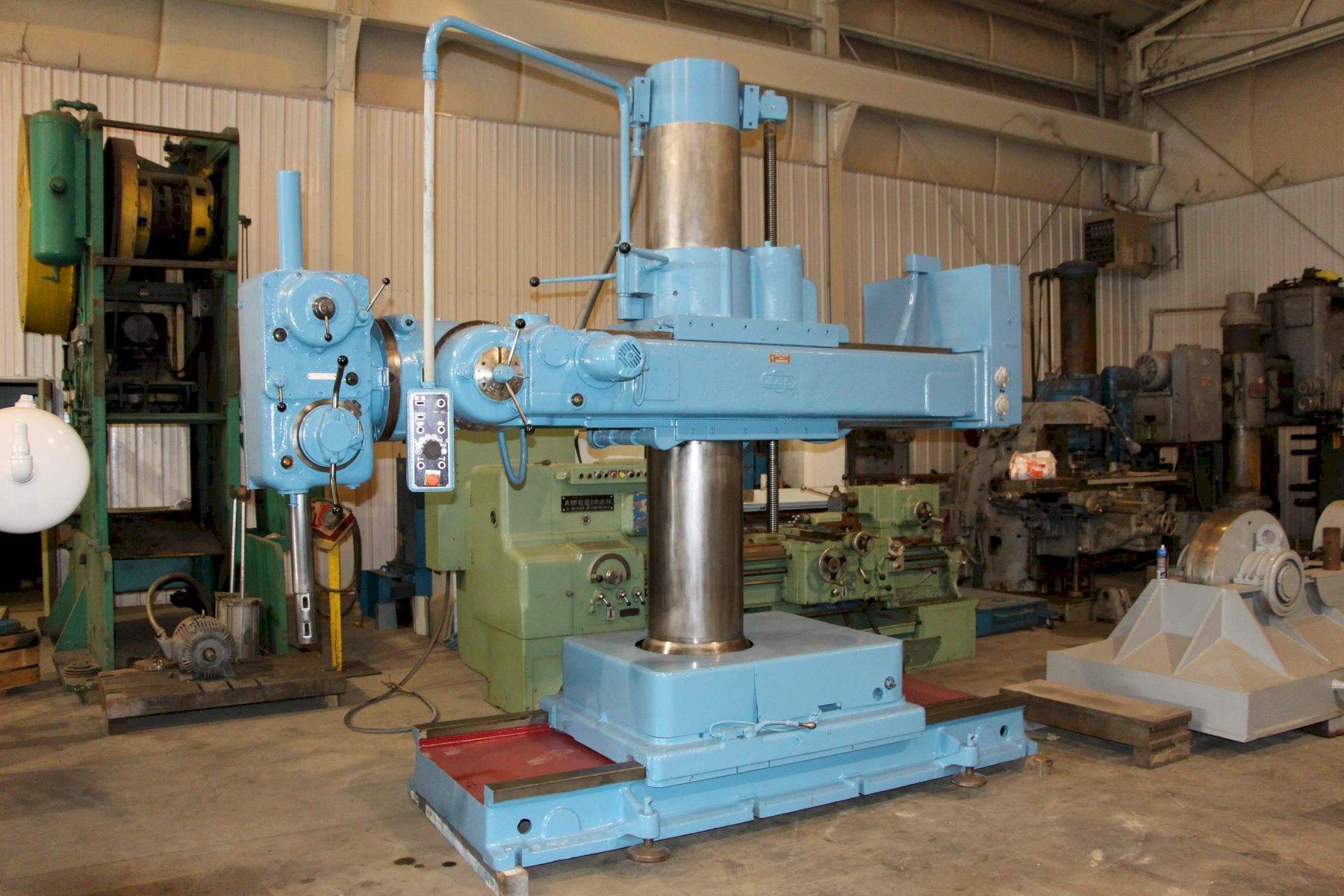

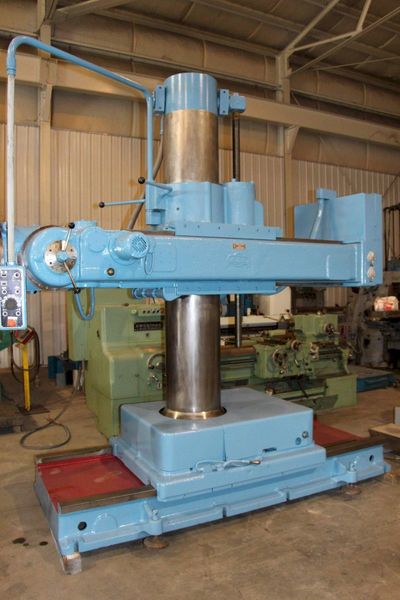

6' X 14' TOS MODEL VRM 50 UNIVERSAL RADIAL DRILL: STOCK #67935

Manufacturer

Category

Lathes

Type

LATHES, ENGINE

Stock

67935

Model

06 X 14

Dealer Location

Ohio

Request a Quote
View Contact Information

Spec Sheet



SERIAL ............................ 153090054
MODEL ............................. VRM50
LENGTH OF ARM ..................... 6'
DIAMETER OF COLUMN ................ 14"
SPINDLE SPEEDS .................... 16 TO 800 RPM
SPINDLE FEEDS ..................... (3) .003..007.012 IPR
RAPID TRAVERSE .................... 80" IPM
SPINDLE TRAVEL .................... 14"
VERTICAL HEAD TRAVEL OF COLUMN .... 50"
HORIZONTAL ARM TRAVEL ON HEAD ..... 74"
HORIZONTAL TRAVEL OF COLUMN ....... 40"
SWIVEL OF COLUMN ON BASE........... 360 DEGREES MANUAL
SWIVEL OF SPINDLE ................. 90 DEGREES
TAPER IN SPINDLE .................. #4 MT
POWER ELEVATION ................... YES
ARM TRAVERSE ...................... YES
