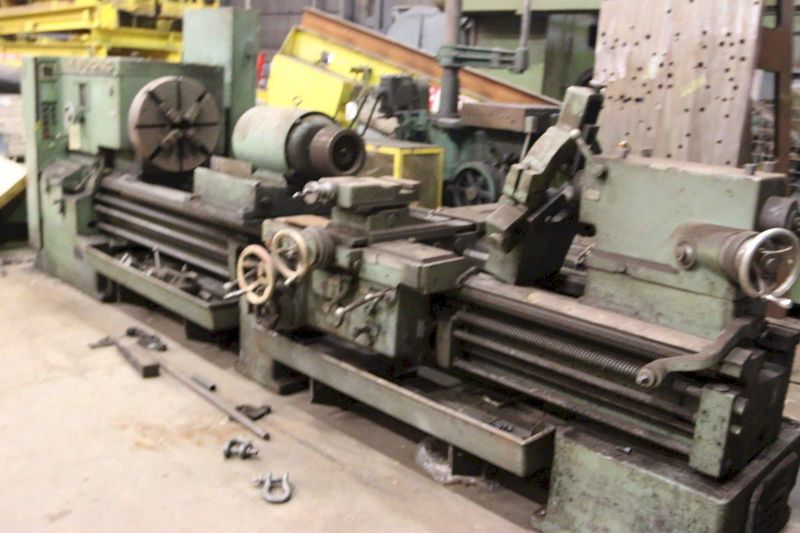

32" X 120" LEBLOND MODEL #3220 HEAVY DUTY ENGINE LATHE: STOCK #68307

Manufacturer

LEBLOND

Category

Lathes

Type

LATHES, ENGINE

Stock

68307

Model

32 X 120

Dealer Location

Ohio

Request a Quote
View Contact Information

Spec Sheet



SERIAL ............................ 3NF 12354
MODEL ............................. 3220 HEAVY DUTY
SWING OVER WAYS ................... 32"
SWING OVER CROSS SLIDE ............ 20"
DISTANCE BETWEEN CENTERS .......... 120"
SPINDLE SPEEDS .................... (24) 12 TO 1300 RPM
THREADS ........................... (60) 1 TO 60 TPI
FEEDS ............................. (60) .0045 TO .269 IPR
DIAMETER OF SPINDLE HOLE .......... 2.5"
CHUCK ............................. 24" 4 JAW

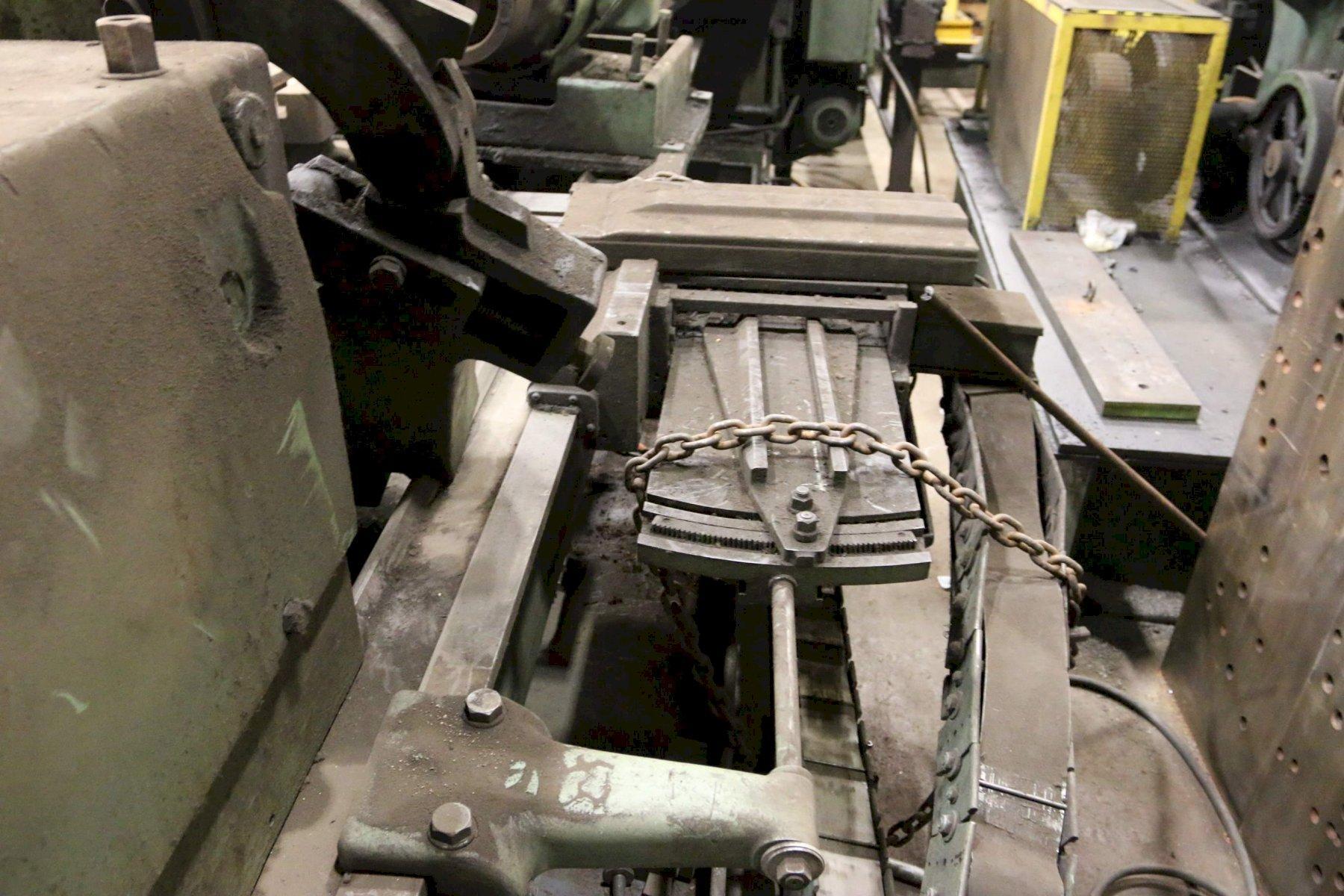

STEADY REST ....................... 11" 3 POINT ROLLER
TAILSTOCK QUILL ................... 6" DIAMETER
TAPER ATTACHMENT .................. YES
SPINDLE JOG ....................... YES
SPINDLE FORWARD & REVERSE ......... YES
4-WAY RAPID TRAVERSE .............. YES
HARDENED REPLACEABLE WAYS ......... YES
THREAD DIAL ....................... YES
MAIN DRIVE MOTOR .................. 30 HORSEPOWER
