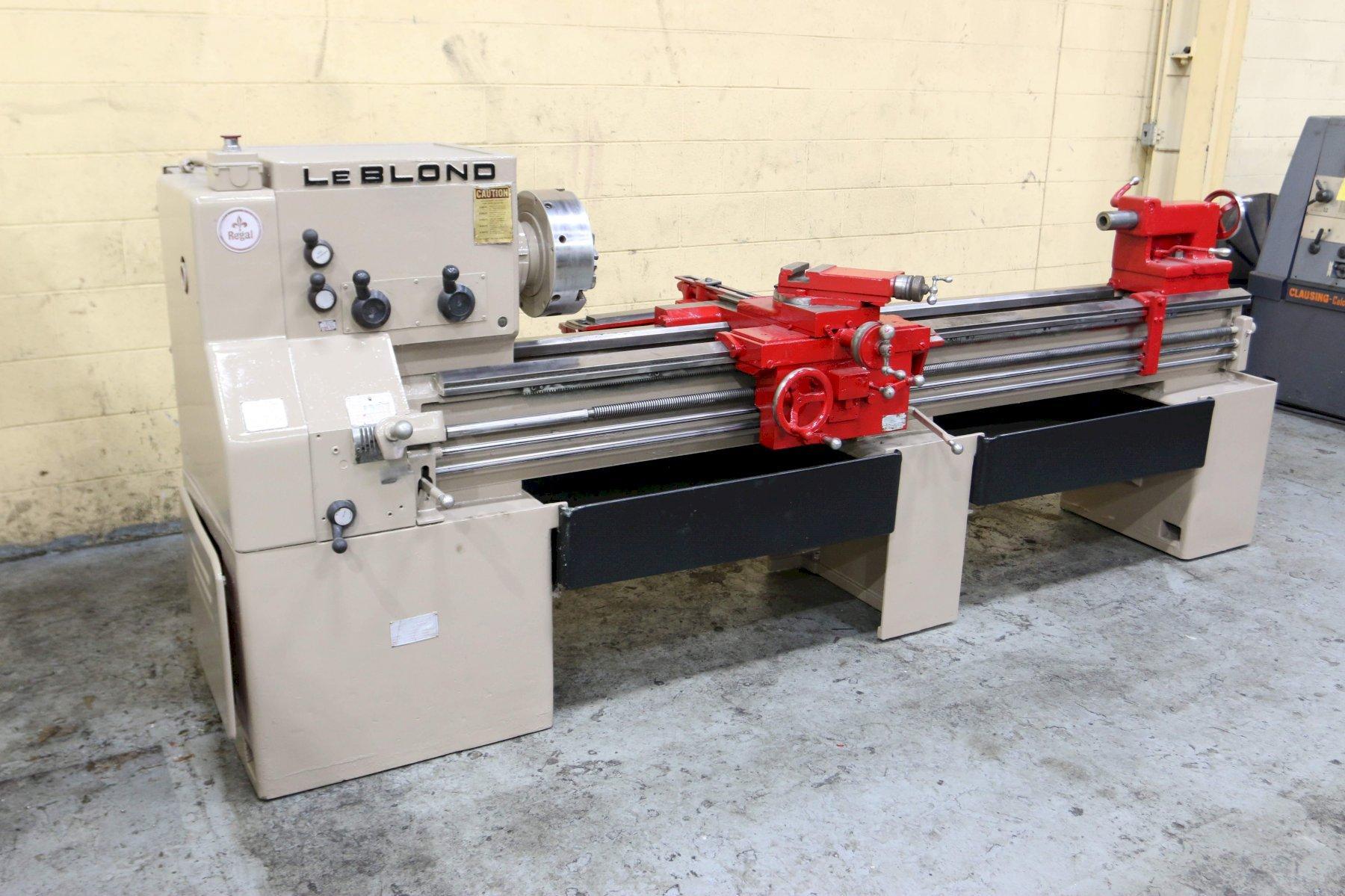

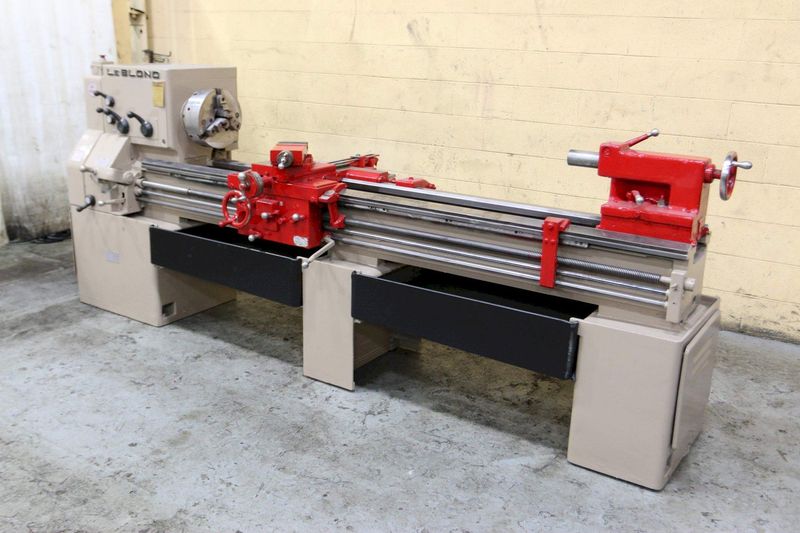

19" X 72" LEBLOND ENGINE LATHE: STOCK # 69093

Manufacturer

LEBLOND

Category

Lathes

Type

LATHES, ENGINE

Stock

69093

Model

19 X 072

Dealer Location

Ohio

Request a Quote
View Contact Information

Spec Sheet



SERIAL ......................... 8F2316
MODEL .......................... REGAL
SWING OVER WAYS ................ 19-1/2"
SWING OVER CROSS SLIDE ......... 13"
DISTANCE BETWEEN CENTERS ....... 72"
SPINDLE SPEEDS ................. (12) 40 TO 1600 RPM
FEEDS .......................... (48) .0018 TO .104 IPR
THREADS ........................ (48) 2 TO 112 TPI
DIAMETER OF SPINDLE HOLE ....... 1-49/64"
TAPER ATTACHMENT ............... YES

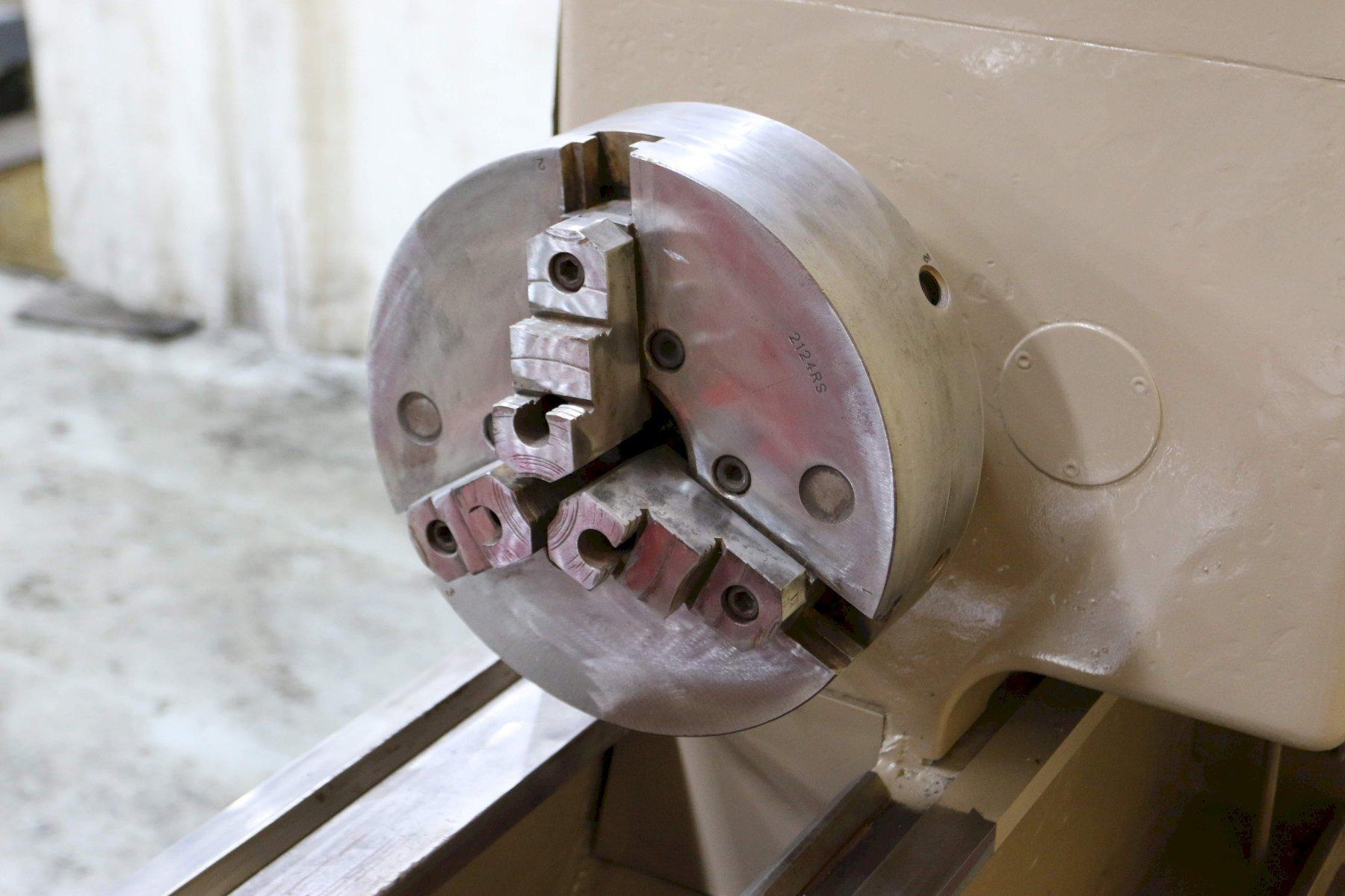

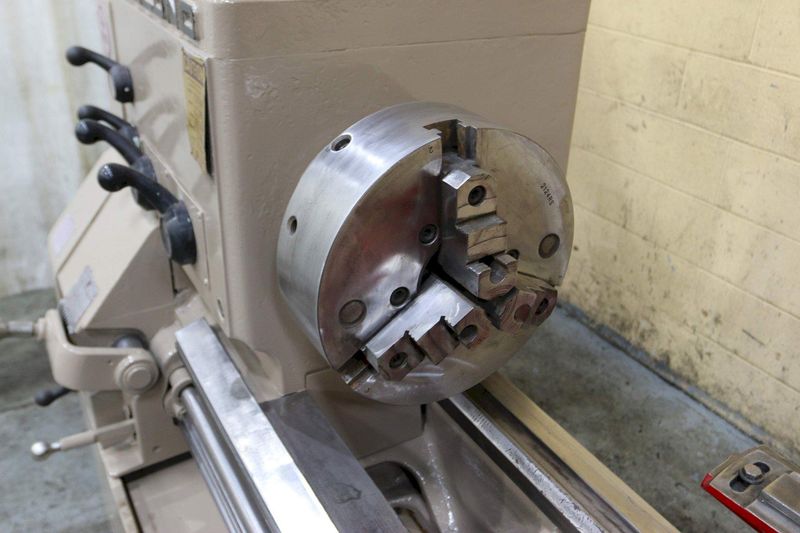

3-JAW CHUCK .................... 12"
HARDEN REPLACEABLE WAYS ........ YES
CARRIAGE STOPS ................. YES
THREAD DIAL .................... YES
COOLANT WITH CHIP PANS ......... YES
MOTOR .......................... 10 HORSEPOWER

No Video Available
