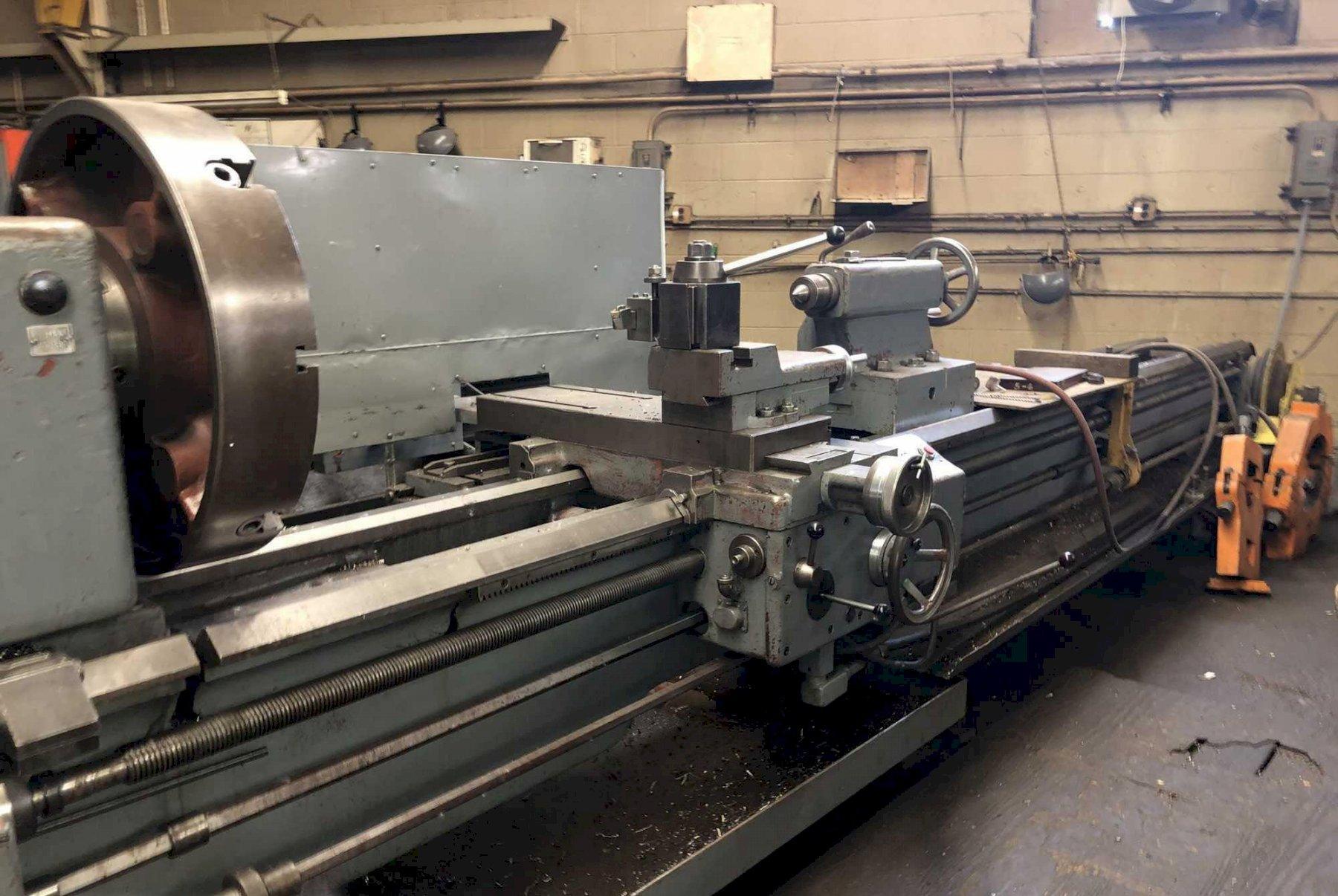

28" X 156" TOS TRENCIN MODEL #SN71C GAP BED ENGINE LATHE: STOCK #72283

Manufacturer

TOS TRENCIN

Category

Lathes

Type

LATHES, ENGINE

Stock

72283

Model

28 X 156

Dealer Location

Ohio

Request a Quote
View Contact Information

Spec Sheet



SERIAL ............................... 471400880139

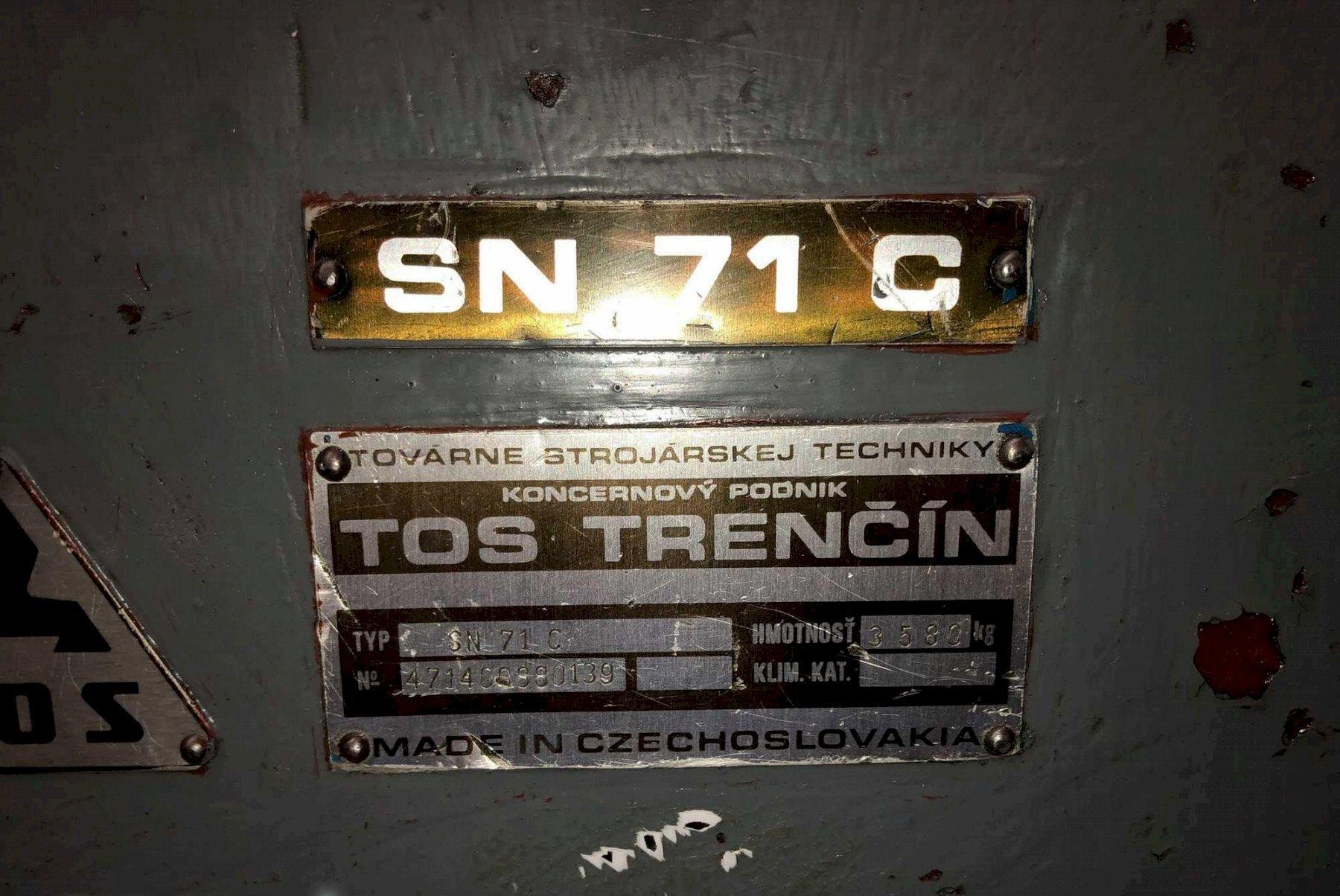

MODEL ................................ SN71C
YEAR NEW ............................. 1993
SWING OVER WAYS ...................... 28"
SWING OVER CROSS SLIDE ............... 17-1/2"
SWING IN GAP ......................... 36"
DISTANCE BETWEEN CENTER .............. 156"
LENGTH OF GAP ........................ 16"
SPINDLE SPEEDS ....................... (16) 10 TO 1000 RPM
FEEDS ................................ (36) .0002 TO .195 IPR
THREADS .............................. 1-1/2 TO 60 TPI
METRIC THREADS ....................... .05 TO 40 MM PITCH
DIAMETER OF SPINDLE HOLE ............. 3-1/8"

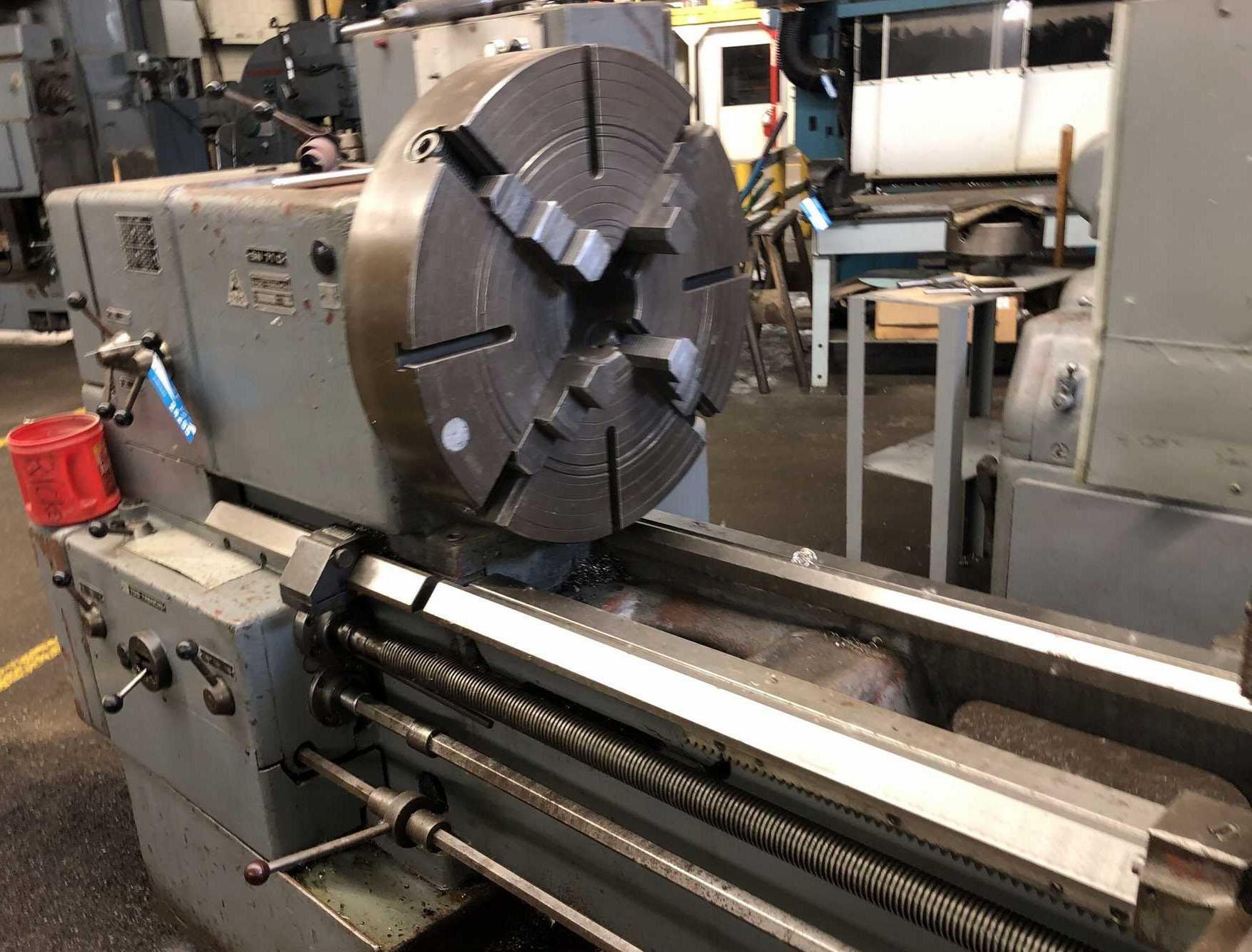

CHUCK ................................ 24" 4 JAW
RAPID TRAVERSE ....................... 4 WAY

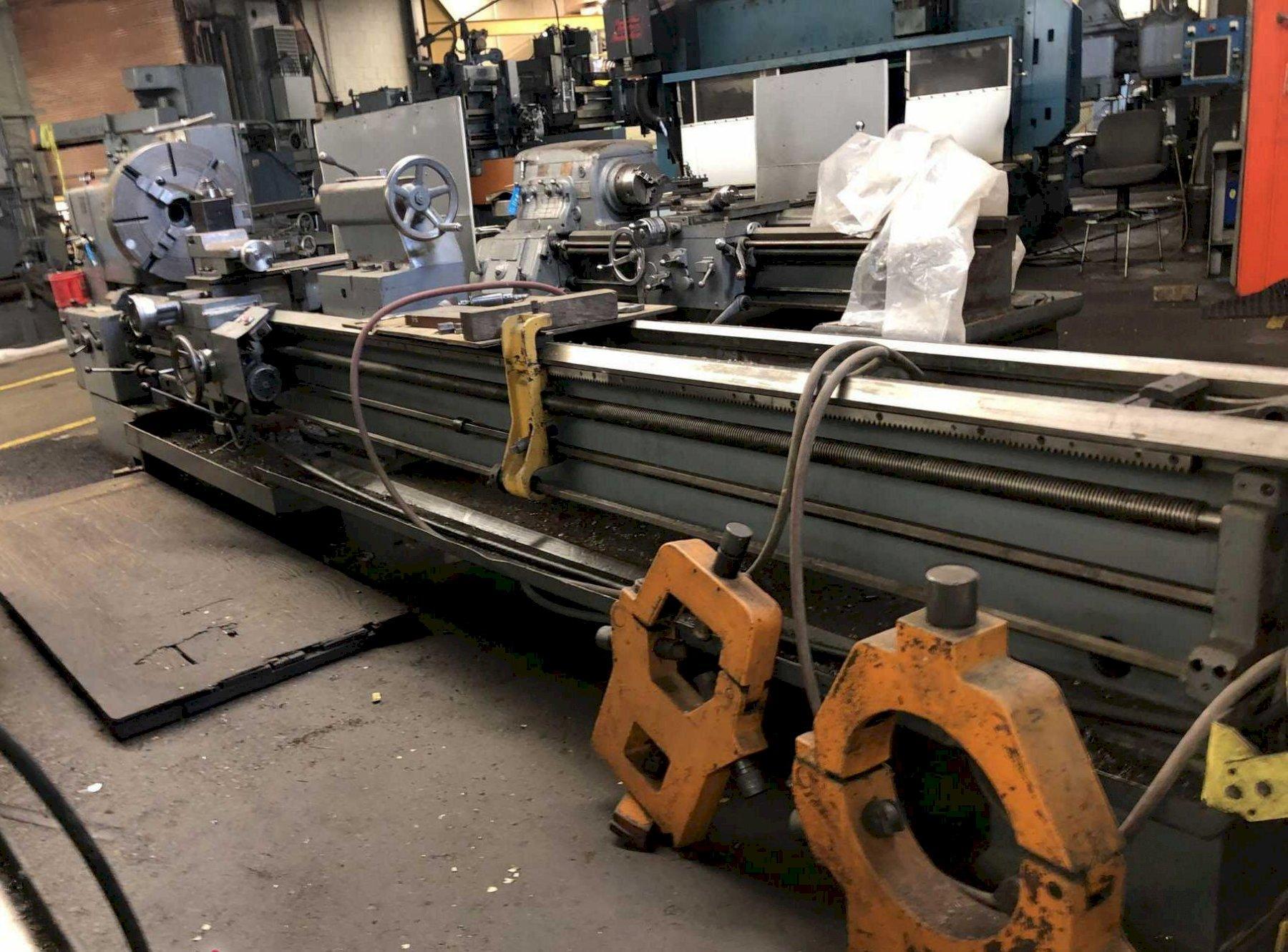

STEADY REST ROLLER & 3 POINT ......... 13" & 8"
THREAD DIAL .......................... YES
MICRO CARRIAGE STOPS ................. YES
COOLANT WITH CHIP PAN ................ YES
MOTOR ................................ 15 HORSEPOWER
