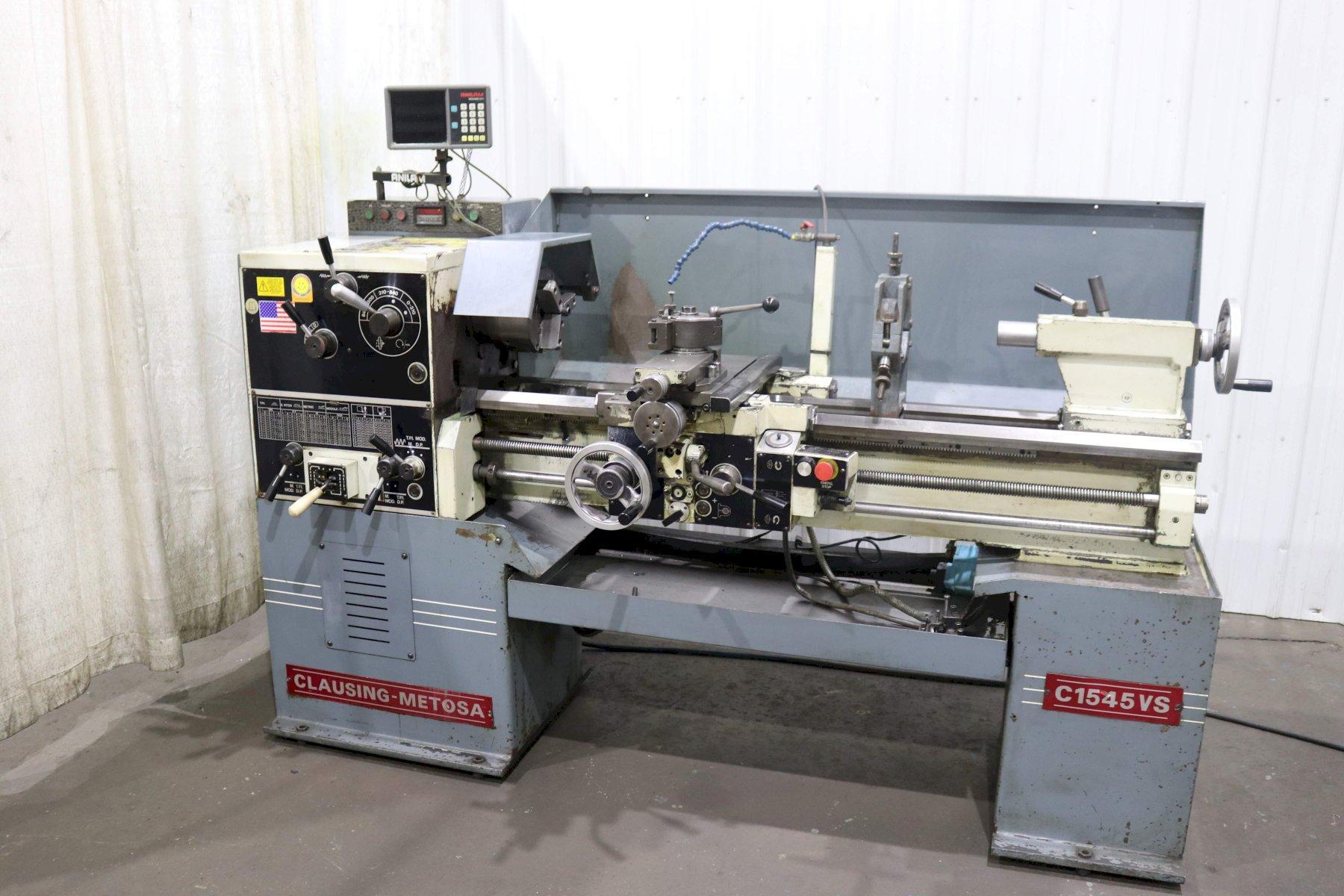

15" X 45" CLAUSING METOSA ENGINE LATHE: STOCK #72686

Manufacturer

Category

Lathes

Type

LATHES, ENGINE

Stock

72686

Model

15 X 045

Dealer Location

Ohio

Request a Quote
View Contact Information

Spec Sheet

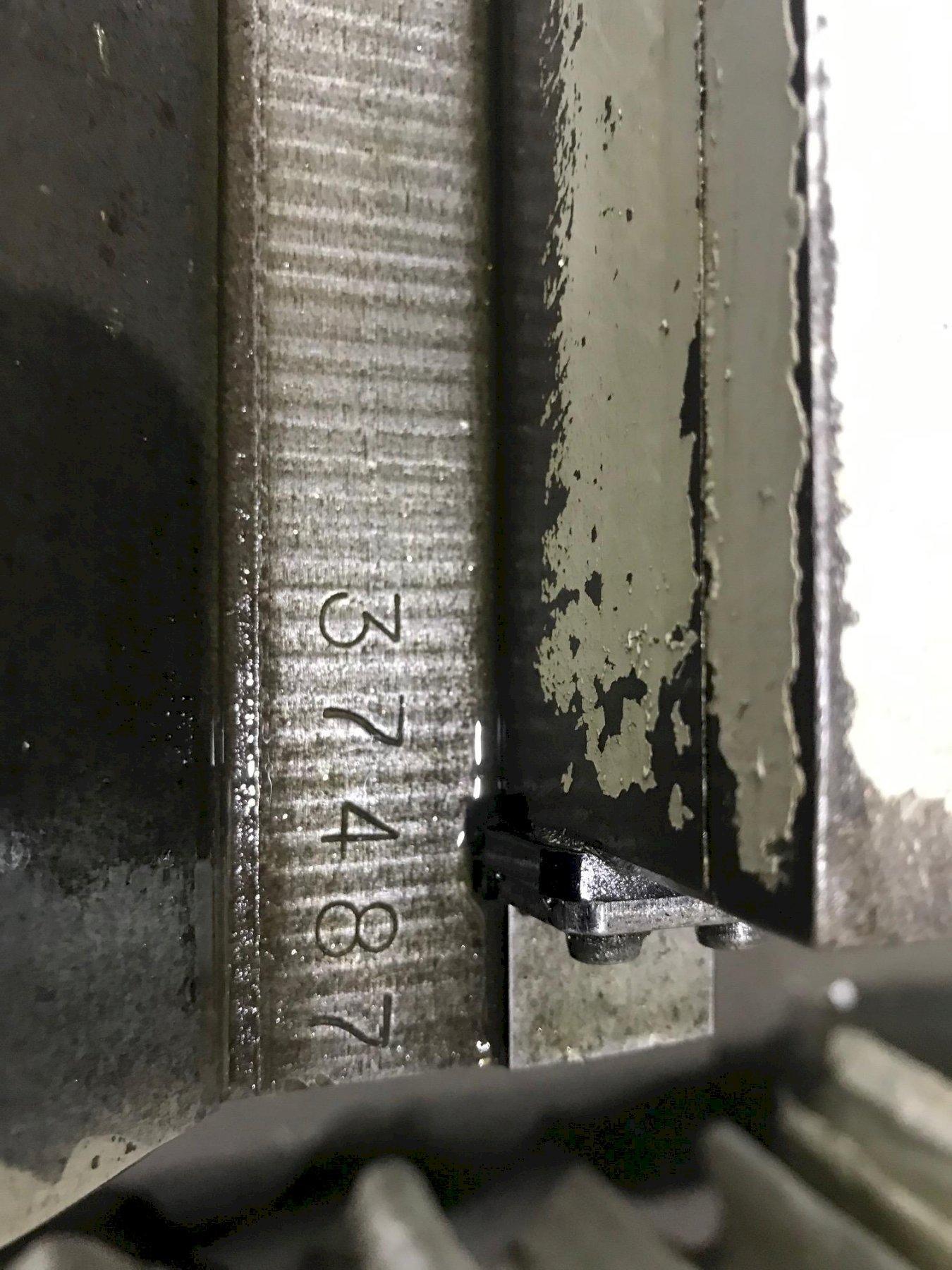

SERIAL ............................... 37487

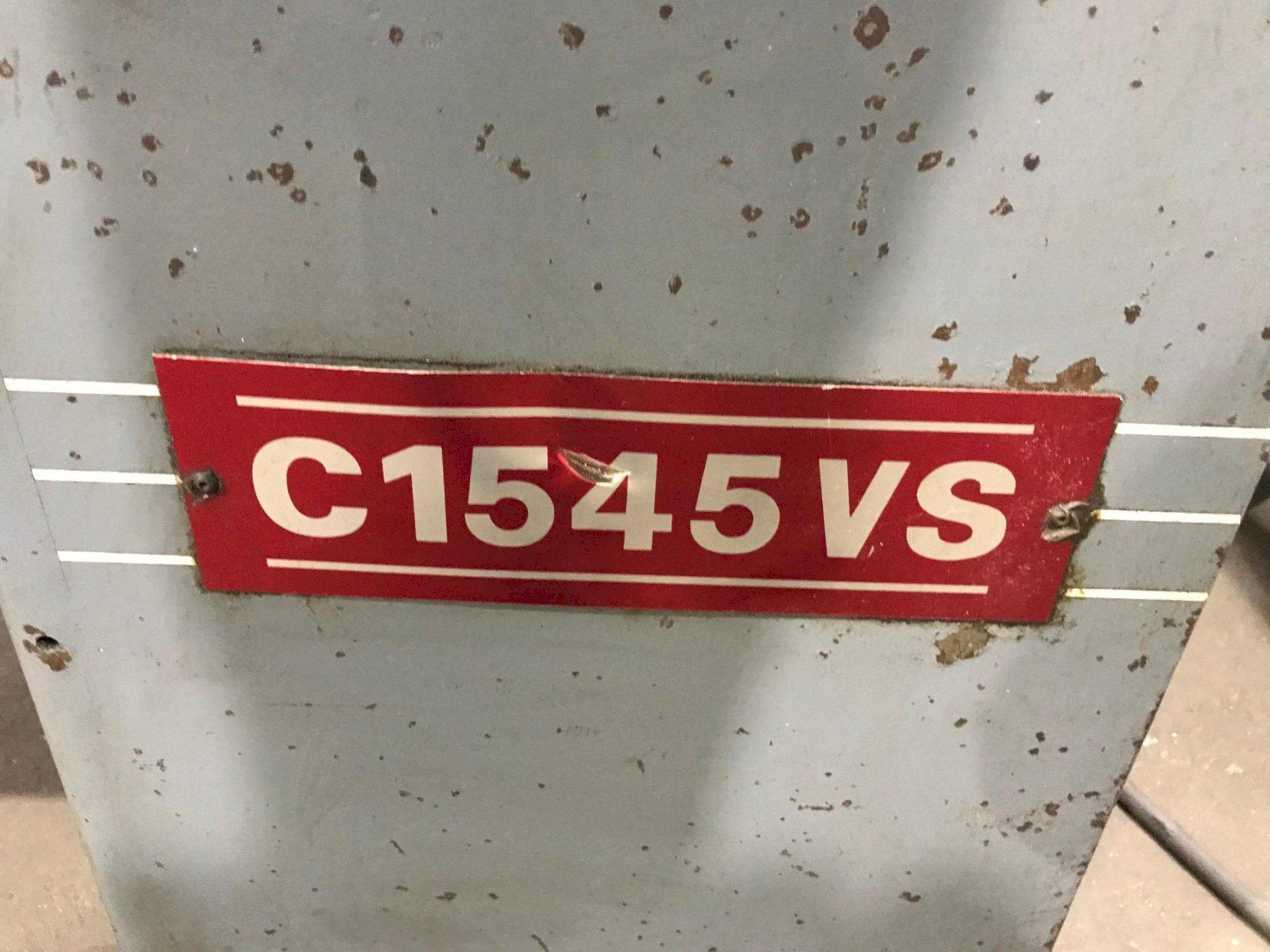

MODEL ................................ C1545VS
SWING OVER BED........................ 15.75"
SWING INSIDE REMOVABLE GAP............ 23.62"
SWING OVER CROSS SLIDE................ 8.26"
DISTANCE BETWEEN CENTERS ............. 45"
SPINDLE BORE.......................... 2.05"
SPINDLE NOSE.......................... D1-6"
WIDTH OF BED ......................... 12"
SPINDLE SPEEDS ....................... 0 TO 2300 RPM
LONGITUDINAL FEED RANGE (44) ......... 0.0018 TO 0.0264 IPR
CROSS FEED RANGE (44)................. 0.0005 TO 0.0076 IPR
THREADING RANGE ENGLISH (44) ......... 4 TO 60 TPI
THREADING RANGE METRIC (44) .......... .5 TO  7.5 MM
TAILSTOCK SPINDLE TRAVEL ............. 6"
3 JAW CHUCK .......................... 10"
2 AXIS DIGITAL READOUTS .............. ANILAM WIZZARD

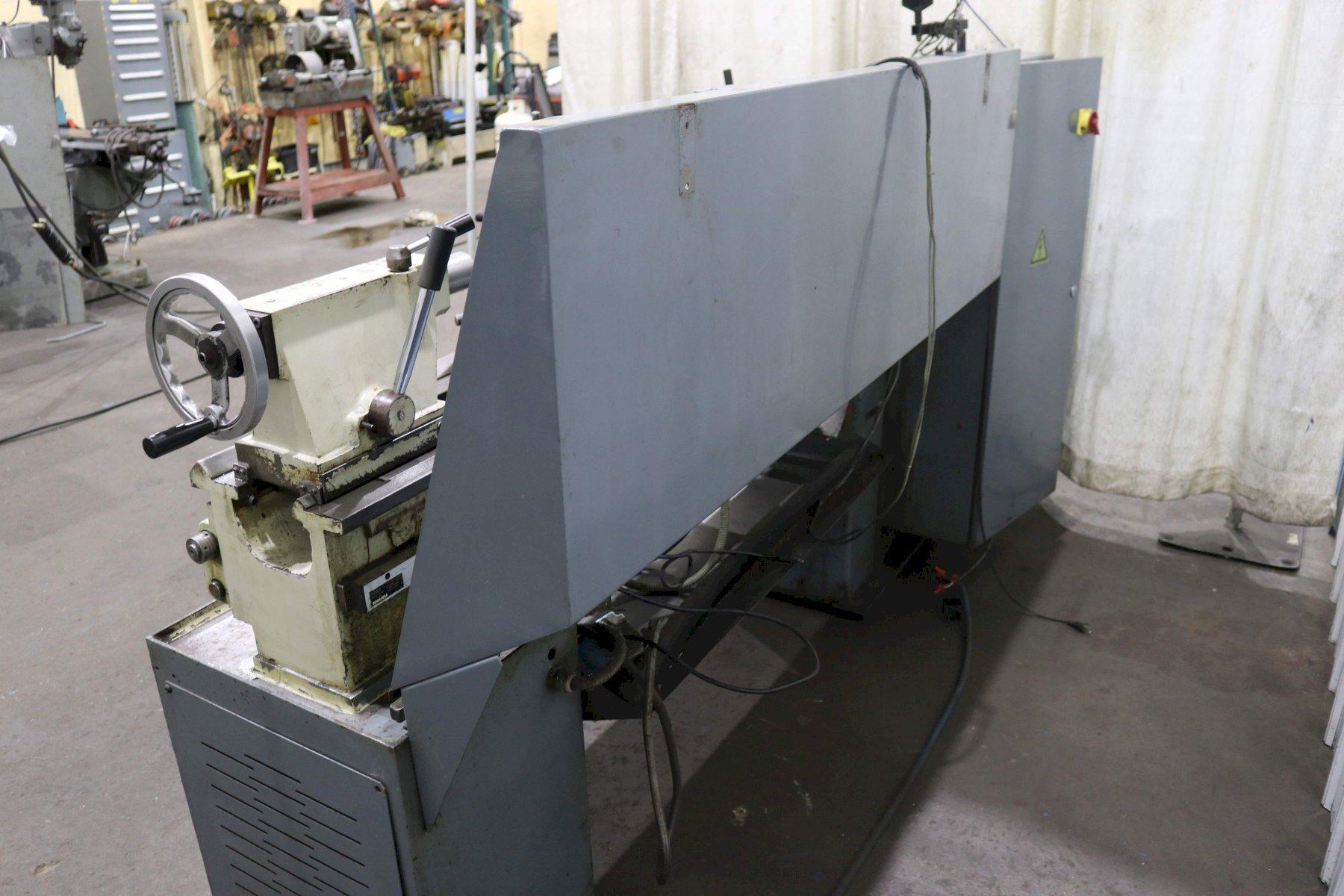

FULL LENGTH BACK SPLASH GUARD ........ YES
COOLANT PUMP AND TANK ................ YES
MAIN MOTOR ........................... 7.5 HP
