25" X 160" NARDINI ENGINE LATHE: STOCK #73578

Manufacturer

NARDINI

Category

Lathes

Type

LATHES, ENGINE

Stock

73578

Model

None listed

Dealer Location

Ohio

Request a Quote
View Contact Information

Spec Sheet



MODEL .................................. SZA25160T
SWING OVER WAYS ........................ 25-5/8"
SWING OVER CROSS-SLIDE ................. 17-5/16"
SWING IN GAP ........................... 33-7/8"
LENGTH OF GAP .......................... 12-1/4"
DISTANCE BETWEEN CENTERS ............... 160"
SPINDLE SPEEDS ......................... (18) 19 TO 1500 RPM
FEEDS .................................. 0.08 TO .02653" IPR
THREADS, INCH .......................... 2 TO 42 TPI
THREADS, METRIC ........................ 0,4 TO 35 MM
THREADS, MODULE ........................ 0.20 TO 15 MOD
SPINDLE HOLE ........................... 3-1/8" DIAMETER

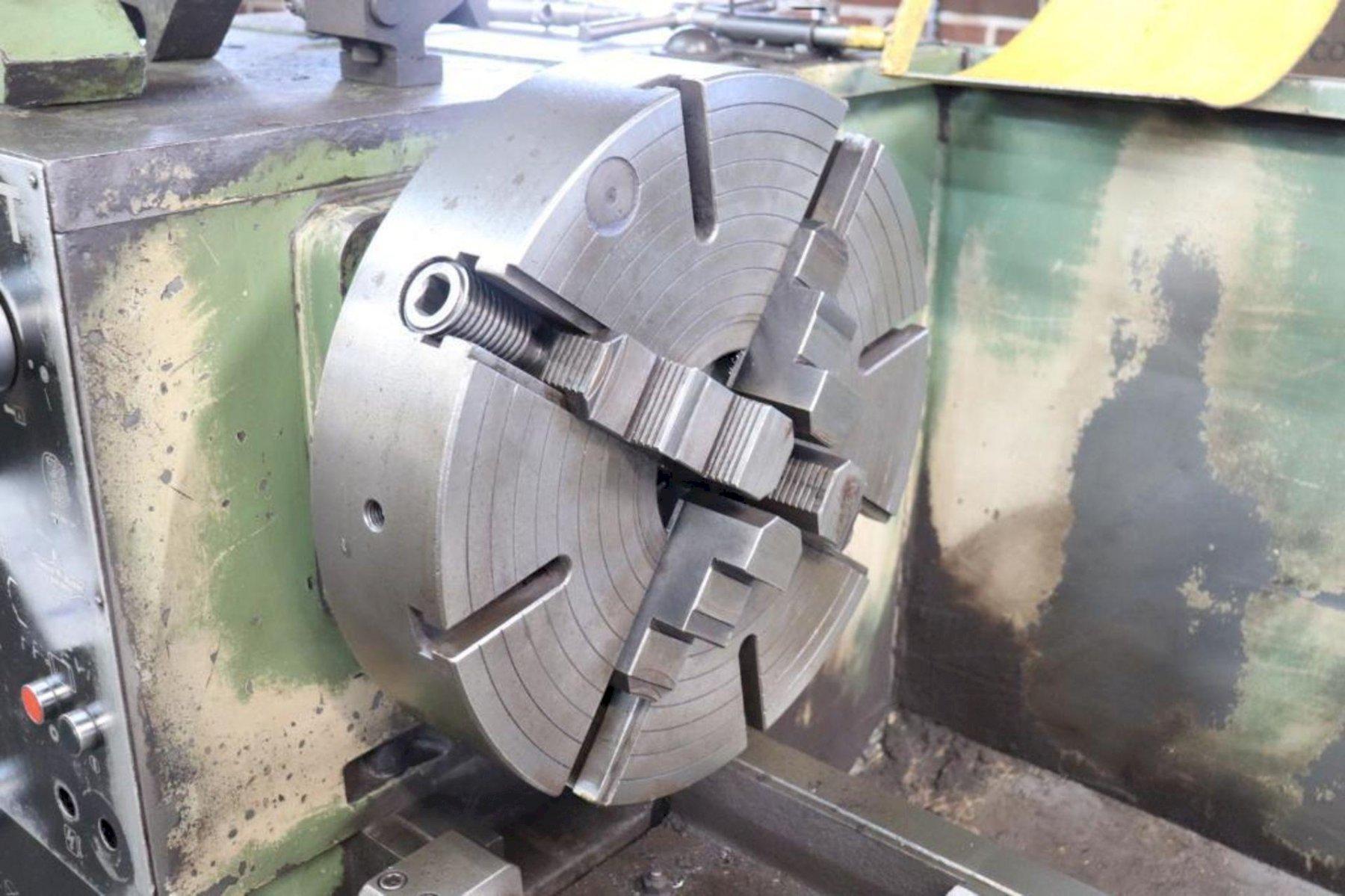

CHUCK .................................. 4-JAW

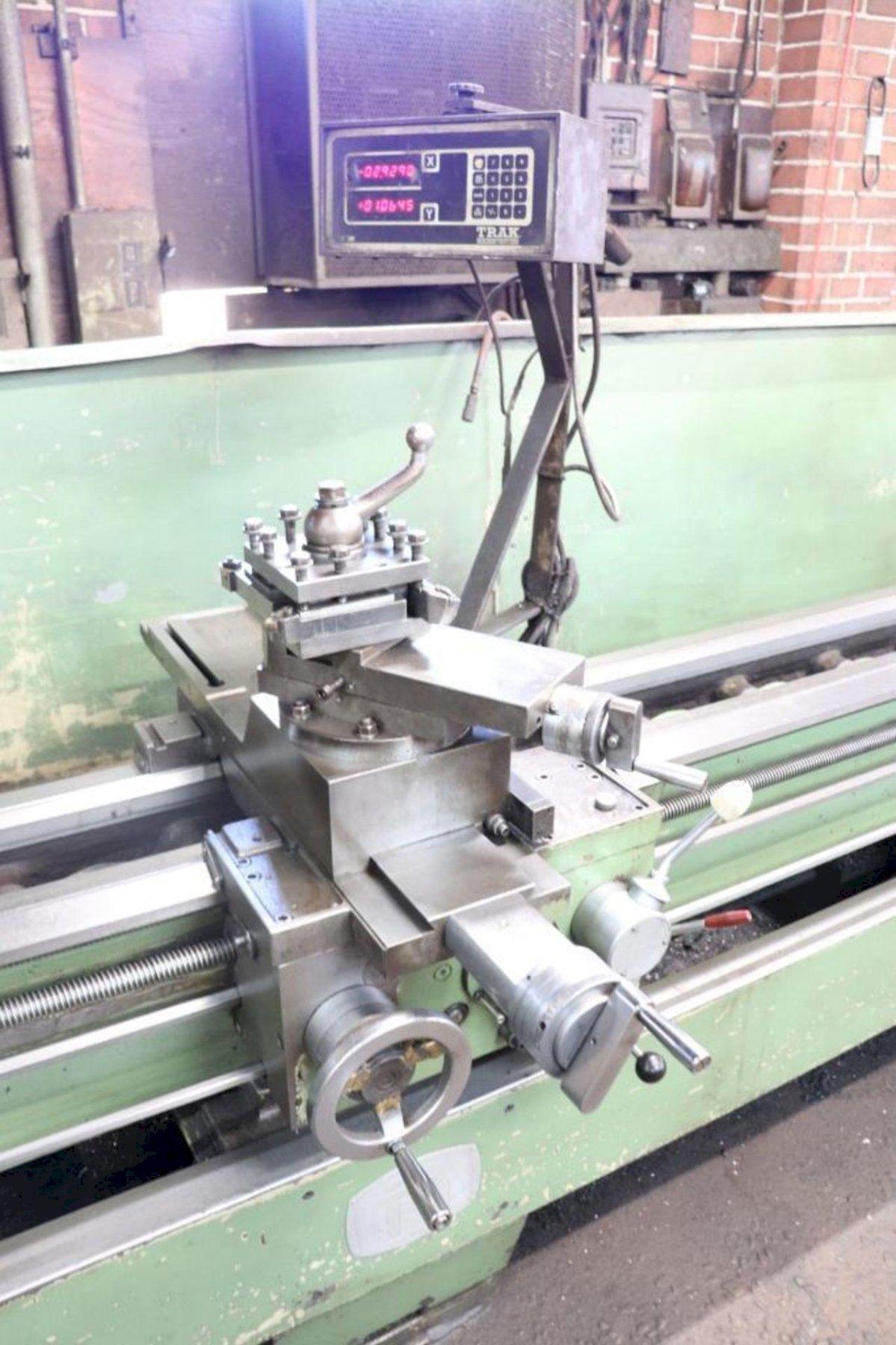

2 AXIS DIGITAL READOUTS ................ TRAK
ROLLER STEADY REST ..................... YES
FOLLOW REST ............................ YES
CHIP PAN & COOLANT ..................... YES
MOTOR .................................. 13 HORSEPOWER
